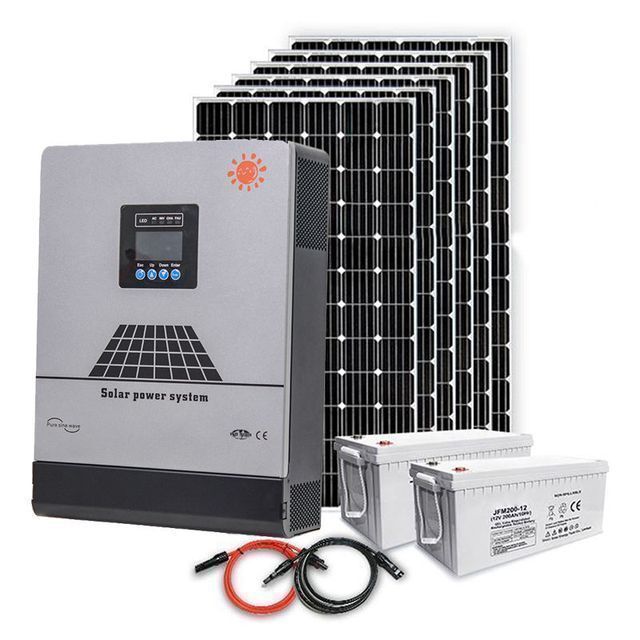

3000w 5000w all in one home 3kw hybrid solar power system commercial solar off grid system

PRODUCT DETAIL
Pre-sale project design:yespayment terms:L/C, Western Union, T/T, Paypal
brand:Hansproduct name:home solar system
Waveform:pure sparkle waveCommunication Interface:USB/RS232/GPRS/WIFI
Working hours (hours):24 hoursFree installation service:Do not
Protect:short circuit/overloadplace of origin; place of origin:Guangdong, China
AC Voltage Regulation (Battery Mode):230VAC ± 5%Certificate:CE, ROHS
port:FoshanLoad power (W):3KW
Solar Panel Type:Monocrystalline silicon, polycrystalline siliconapplication:Family
Warranty:3 months - 1 yeartype of battery:lead acid
battery voltage:24VDC/48VDCrated power:3200w/3500w/5000w/5500w
Installation type:roof installationPackaging Details:Standard packing or customized packing

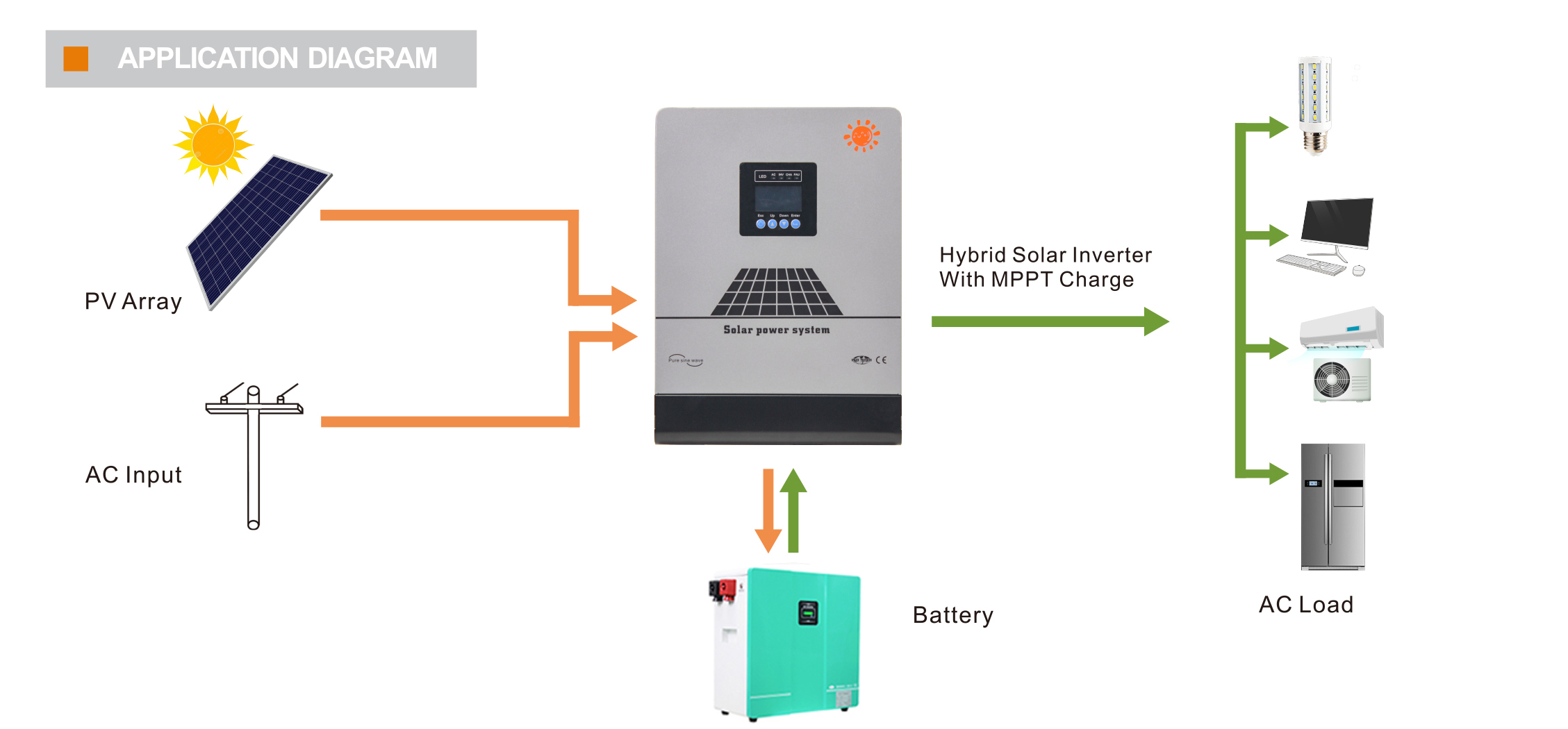

style:MPPT Hybrid Solar InverterOutput voltage (V):230VAC
Surge power:6400/7000/10000/11000VAOutput frequency:50/60 Hz
model:NKH-3Frequency Range:50Hz/60Hz
Controller type:MPPT

main feature:

- Pure sine wave inverter

- Configurable input voltage range for home appliances and PCs via LCD settings

- Configurable battery charge current per application via LCD settings

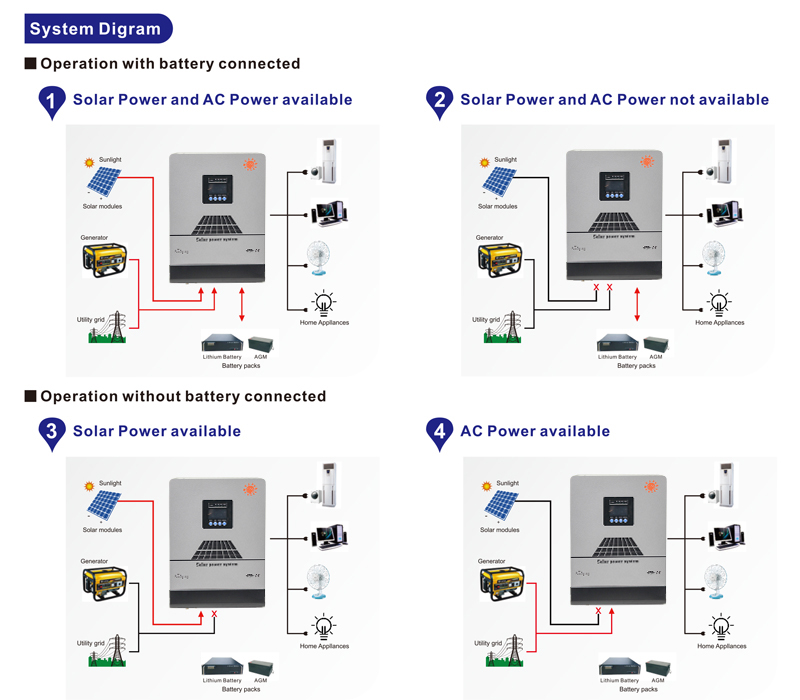

- Configurable AC/solar charger priority via LCD settings

- Compatible with mains voltage or generator power

- Automatic restart when the air conditioner is restored

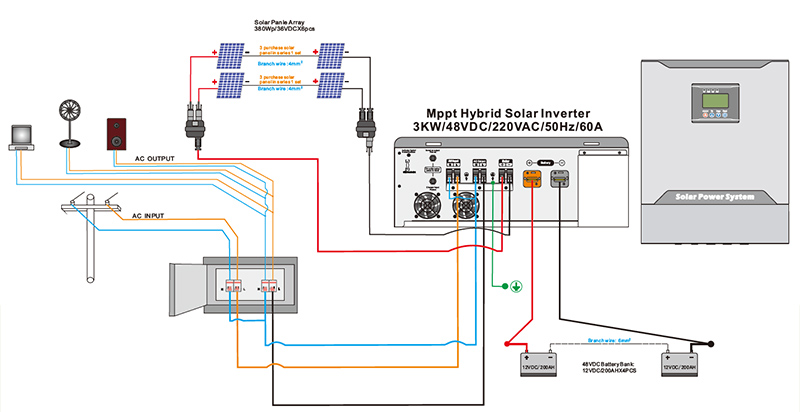

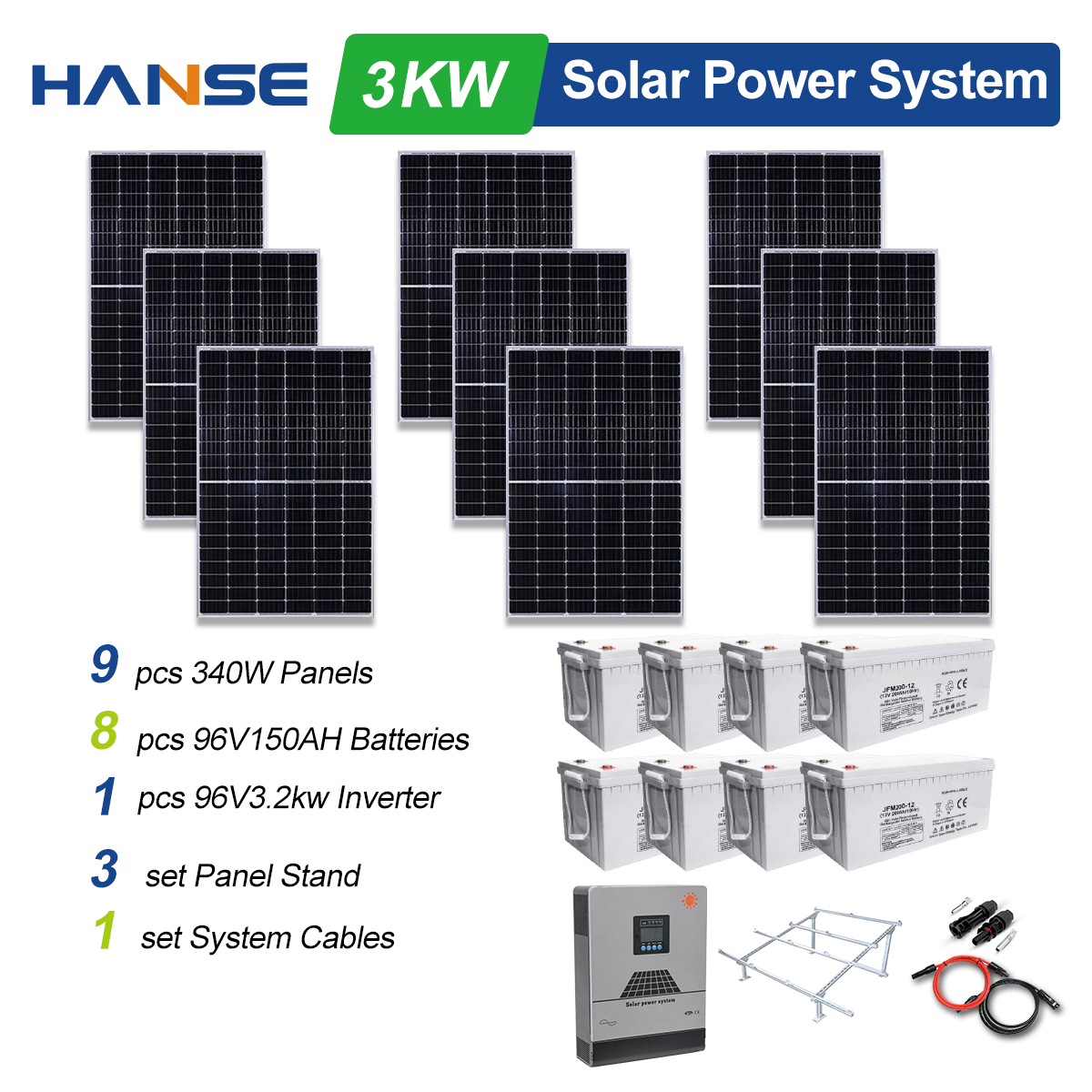

3KW off-grid (with on-grid switch) solar power supply system quotation
available load
equipment quantity Load (W) time (hours) Power (WH)
computer 1 100 5 500
Satellite Antenna 1 25 6 150
TV 55' 1 250 3 750
Micro-wave oven 1 2000 0.8 1600
180L refrigerator 1 50 twenty four 1200
1P air conditioner 1 800 5 4000
electric kettle 1 1200 1 1200
induction cooker 1 1600 1 1600
other small kits 5 20 8 800
water heater 1 1000 1 1000
all       12800 watts

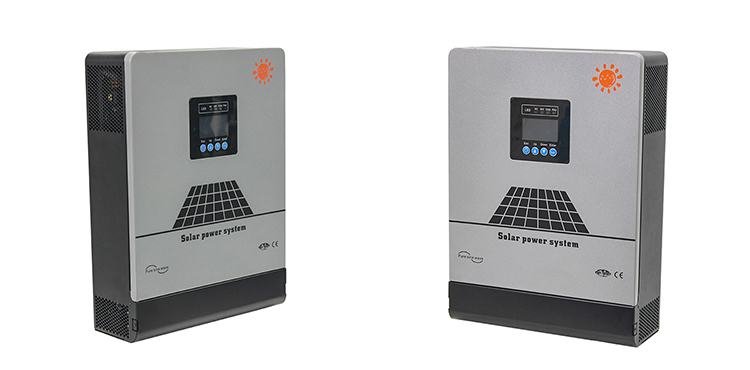

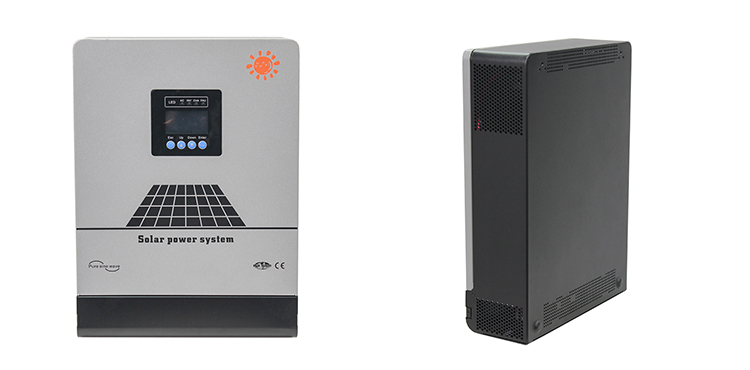

NKH MPPT Inverter 1 set NKH 3KW
Capacity: 3KW DC input: 24VDC
AC output: 230VAC 50HZ,
AC charging current 60A
Solar input range: 35VDC-145VDC
Photovoltaic MPPT charging current 60A
Solar input maximum power: 1500Wp
Size: 420*320*122MM
Net weight: 10kg
Communication mode: USB/RS232/WIFI/GPRS (optional)
Protection: short circuit, overload, battery reverse output short circuit, low voltage, overvoltage protection, etc.
Solar panels 9 items *STC irradiance 1000W/m2, AM1.5
Spectrum, model temperature 25ºC
Model Type: GP-340M-60 Peak Power (Pmax): 340W
Battery efficiency: 21.97%
Maximum supply voltage (Vmp): 33.3V
Maximum power current (Imp): 9.00A
Open circuit voltage (Voc): 38.9V
Short circuit current (Isc): 9.39A
Power Tolerance: ±3%
Maximum system voltage: 1000V
Series Fuse Rating (A): 12A
Dimensions: 1700*992*35MM
Weight: 20.3kg
Solar cells: 60 pieces in series (6*10)
Photovoltaic combiner box 1 set Suitable for outdoor photovoltaic systems
4 in 1 out
>4 PV string inputs with a maximum current of 40a
> Equipped with photovoltaic special high-voltage lightning arrester 20KA-40KA
>Waterproof terminal
>Lightning protection, can reduce solar cables
Battery 8 price 96V150AH battery
Battery case 1 price C8 8PCS 200ah
cable 1 set 4 mm2: PVC insulation, single core, red meter 100
4 mm2: PVC insulation, single core, black meter 100
16 mm2: PVC insulation, single core, red meter 5
16 mm2: PVC insulation, single core, red meter 5

Photovoltaic support broken 3 sets Installation site: tile roof (optional)
Material: Al6005-T5
Extruded Aluminum Profile
High-grade anodized aluminum
One set of brackets can install 3 solar panels
Wind load: up to 130mph (60m/s)
Snow load: up to 30psf (1.4kN/m2)













Q What is the MOQ?

A sort ofIt is also possible to customize a unit.



askAre you a manufacturer or trading company?

A sort ofWe are professional manufacturer.



Q What payment methods can I use? How secure is my payment?

A sort ofAccept your payment by bank transfer, Western Union, L/C, PayPal, etc.



askI need this product and want a system for home/industrial/commercial use, can you help me?

A sort ofYes, we have a professional technical team with an average of 10 years experience, and we can design solar power generation systems according to customers' special requirements.



Ask why choose us?

A sort of1) Prompt delivery and good after-sales service.
2) We have our own factory and the selling price is competitive.
3) All of our products have CE certification, ISO9001:2008, RoHS.
4) 100% new material production with high quality.
5) Professional engineer designer.
