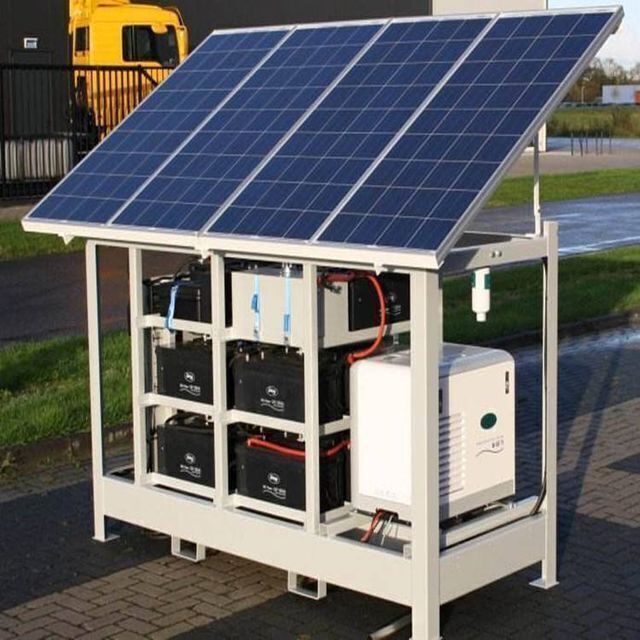

Off Grid type 5KW home use solar power system with mono and poly series solar panels
- $3000.00 / 1 - 4 sets
$2850.00 / 5 - 9 sets
$2800.00 / >=10 sets - 1 set
- Shandong Xintailai Photoelectric Co., Ltd.
- Shandong, China
- Mr Edy Xu
| Inverter: | Pure Sine Wave Inverter; | Place of Origin: | Shandong China; |
| Warranty: | 3 Years; | Controller: | MPPT Solar Charge Controller; |
| Packaging Detail: | 1. Packed by carton and pallet; 2. Packed by wooden case; 3. Quantity for 20' GQ/40' GQ/40' HQ containers have to be confirmed based on design of system;; | Battery Type: | Lead-Acid; |
| Output Voltage (V): | 110V 220V 380V,110-220VAC; | Model Number: | XTL5kw; |
| Load Power (W): | 5KW,3KW; | Work Time (h): | 24 hours; |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram; | AC output: | 220V/110V/380V; |
| Product name: | Off-grid Solar Power System; | Application: | Home; |
| Brand Name: | Xintailai; | Solar Panel Type: | Monocrystalline Silicon; |
| Specification: | Normal; | Mounting Type: | Ground Mounting,Roof Mounting; |
| Solar panel: | Mono; | Package Preview: | ; |
| Controller Type: | MPPT; | Supply Ability: | 3000 Set/Sets per Month; |
| Certificate: | CE RoHS IEC,CE ROHS ISO; | Output Frequency: | 50~60HZ; |
| Port: | QINGDAO/SHANGHAI/NINGBO/SHENZHEN; |
5KW solar home power system off grid solar system for home and factory use
An off-grid solar system (off-the-grid, standalone) is the obvious alternative to one that is grid-tied. For homeowners that have access to the grid, off-grid solar systems are usually out of question. Here’s why :
To ensure access to electricity at all times, off-grid solar systems require battery storage and a backup generator (if you live off-the-grid). On top of this, a battery bank typically needs to be replaced after 15 years. Batteries are complicated, expensive and decrease overall system efficiency.
|
Off grid solar power supply system- XTL-5KW |
|||
|
System Basic Information |
Solar panel rated output power: 3KW Daily power generation : >10KWH Allowable max loads power : 3.5KW |
|
|
|
Solar panel
|
300W mono solar panel (Vmp:31.2V Voc:37V Imp: 9.62A Size : 1650*992*40mm Terminal block:IP67 with connector Efficiency performance :25 years 80 % 20 year 85% 10 years 90% Connection: 10 parallels |
QTY 10pcs mono |
|
|
PV Array Combiner
|
24V PV strings inputs Simplify wiring between PV array and inverter, protections to inverter , Wide range of DC input voltage Reliable thunderstorm& surge protection |
QTY 1pc |
XTL-5kw Full set: Total volume: 1.2CBM Total weight:290KG
Notes: 1) pictures show are for reference. 2) power output data is based on areas with daily average peak power sunshine of 4.5hrs 3) solar panel rack can be specially designed based on site condition
Remark: 1) solar panel have 20-25 years’ warranty; 2) other parts have 2 years’ warranty; 3) ship the free parts for service (best service in china) 4) Accept OEM 5) MOQ:1 set |
|
Hybrid of Inverter
|
MPPT charging way Charging efficiency; 90%-95%, charging mode, intelligent control, temperature compensation, various protection functions; |
QTY 1pcs
|
|
|
Pure sine wave inverter:kw DC input:24v Output : 220v(single phase ) Use copper transformer; Bypass function with AC charger; Protection against short-circuit, over load, high-voltage and low-voltage protection |
|||
|
Lithium Battery
|
Capacity: 25.6V/200AH Lithium battery; Service life:6-8 years; |
||
|
panel rack
|
Ground rack installation including complete fittings (other type of rack can be customized as per client's requirement ) |
Qty 1set |
|
|
Cables
|
1)4mm2 PV cable 200M 2)battery terminals |
QTY 200M |
|
|
Remark: If you are not satisfied with this system design, you can refer to us your own requirements; |
|||
We are a factory located in Rizhao City of Shandong Province, mainly in the line for over than 10 years;
We always gurantee our production with A Grade, full power, high efficiency, longer lifespan;
We can make several power with the same outframe dimension: 1650*992*40mm range from 270W to 320W per piece, also the dimension :1956*992*40mm range from 350W to 380 W per piece .
Of course ,we can accept OEM for the customized request.we warmly welcome your inquiry about our productions, thanks so much;
Advantages
1.High power, high efficiency
2. Long lifespan, energy saving, environmental-friendly
3. Advanced technology, exquisite workmanship
4. Easy installation, free maintenance
| PAYMENT TERM | T/T | EXW | 30% T/T in advance, paid the balance before shipment |
| FOB | |||
| L/C | CFR | 30% T/T in advance, paid the balance against copy of B/L | |
| CIF | |||
| L/C amount above 50,000 USD, we can accept L/C at sight | |||
| West Union | Amount lower than 5000 USD | ||
| DELIVERY TIME | 7~10days after receiving payment for one container | ||
We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
Q: About Lead time:
A: Usually 7-15 days after deposit or If we have enough stock ,only 1-2 days can we shipping your orders.
Q: About Sample policy:
A: Samples are available on each model. They can be ready in 1-5 days once payment received.
Q: Port of loading:
A:Qingdao
Q: About Discount :
A:We offer discount on big quantity.
Q: About Products warranty :
A: 2-5 years accordingly. Solar panel have 10 years warranty ,other parts all have 2 years warranty. Free service can be provide for the problems of non-human factors.
Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q:Can I install it myself?
A:We provide installation drawing and user manual for you. We can sppoint our engineers to guide the installation.
Q:How to calculate the freight?
A:We will calculate it according to the specific location and transportation method, you can discuss it in detail with us.
Q:How do you guarantee the quality of the products?
A:We have passed the certification of strict certification assessment of the certification company, and the relevant identification report can be downloaded and viewed in our store. I can also provide you with the certificate.
