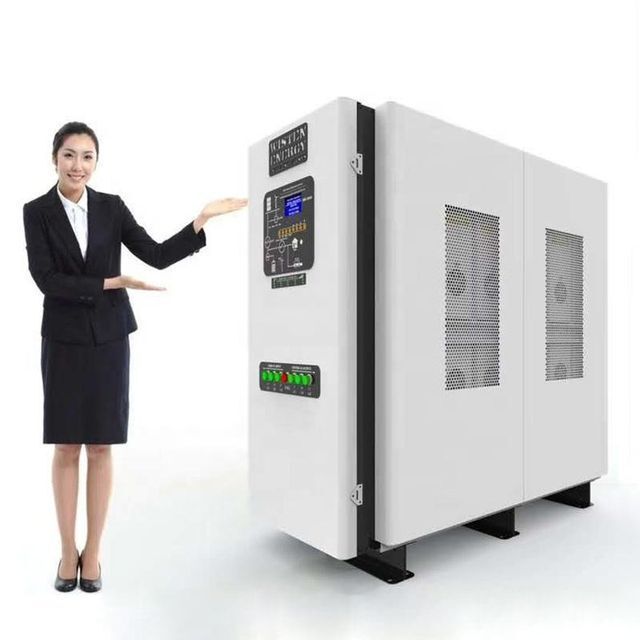

Manufacturers 12KW 16KW 25KW 12KW-442KW solar power storage solar energy system with battery
- $10000.00 /unit
- 1 unit
- Zhejiang Xinghai Energy Techology Co., Ltd.
- Zhejiang, China
- Ms Megan pi
PRODUCT DETAIL
Keyword: | Solar Energy Systems; | Solar Panel Type: | Monocrystalline Silicon,Polycrystalline Silicon; |
Battery Type: | Lithium Ion; | Solar panel: | Mon-crystalline silicon or Polycrystalline Solar Panel; |
Certificate: | CE; | Supply Ability: | 3000 Units per Month; |
Controller Type: | MPPT,PWM,NONE; | Work Time (h): | 24 hours; |
Model Number: | 12KW-442KW solar power storage; | Port: | Shenzhen/Shanghai; |
Inverter: | Pure Sine Wave Inverter; | Load Power (W): | 12KW-442KW; |
Place of Origin: | China; | Package Preview: | ; |
Mounting Type: | Ground Mounting,Roof Mounting,Carport Mounting,BIPV Mounting; | Battery: | LiFePO4; |
Output Voltage (V): | 220/230V; | Application: | Home,Commercial,Industrial; |
System Type: | Smart micro-grid energy storage power station; | Output Frequency: | 50-60HZ; |
Payment Terms: | T/T,Western Union; | Product name: | Solar Power System; |
Lithium Battery Parameter
Model | LP-LV-LiFePO4 LP-HV-LiFePO4 LP-LV-NCM/NCA LP-HV-NCM/NCA | MP-LV-LiFePO4 MP-HV-LiFePO4 MP-LV-NCM/NCA MP-HV-NCM/NCA | HP-LV-LiFePO4 HP-HV-LiFePO4 HP-LV-NCM/NCA HP-HV-NCM/NCA | |||
Bi-direction inverter module AC input and output specifications | ||||||
AC output continuous capacity / resistive load power @25℃ | 3KVA/2.4KW | 5KVA/4KW | 7KVA/5.6KW | |||
4KVA/3.2KW @30mins | 6KVA/4.8KW @20mins | 8KVA/6.4KW @10mins | ||||
6KVA/4.8KW @15s | 9KVA/7.2KW @10s | 12KVA/9.6KW @5s | ||||
Single-phase true sine wave AC output rated voltage | (single-phase): 115Vac ±5% (50/60HZ) or 230Vac ±5% (50/60HZ) Double live wires AC-power output: L1=L2=115Vac ±5%, 50/60HZ | |||||
AC output harmonic distortion and power factor( CosΦ ) | <3% ±0.1~0.1(leading or lagging) | |||||
Emergency generator on/off control | Yes have | |||||
Solar DC→AC conversion maximum efficiency Battery DC←▉→AC conversion maximum efficiency | 87~92% | |||||
Grid charging mode actual maximum power / voltage / current | 2.4KW, 170~240Vdc/10A | 4KW, 255~360Vdc/11A | 5.6KW, 340~480Vdc/12A | |||
Transfer switch delay from solar power to battery backup | ||||||
transfer switch delay when convert to grid bypass mode | ||||||
Transfer switch delay of from AC→DC reverse charger mode to normal DC→AC conversion Mode | ||||||
When AC-grid is failure, delay of from AC→DC charger mode to emergency DC→AC battery backup conversion mode | 0.2-1S, use the fast Static Electronic Switch (STS) | |||||
MPPT (maximum power point tracking controller) DC input and output specifications | ||||||
MPPT output charging voltage and max. rated current | 170~240Vdc, 30Adc | 255~360Vdc, 30Adc | 330~480Vdc, 30Adc | |||
Max. solar / wind generator input power | 6KW/3KW | 10KW/5KW | 12KW/7KW | |||
Max. PV or wind generator open circuit voltage | 225Vdc | 355Vdc | 440Vdc | |||
Min. PV or wind generator input starting voltage | 120Vdc | |||||
PV or wind generator input voltage when output in full load | 150~200Vdc | 240~320Vdc | 330~440Vdc | |||
Max. solar / wind generator input current | 41Adc/20.5A | 43Adc/21.5A | 38Adc/19A | |||
Max. solar / wind generator MPPT output charging current | 26Adc/13A | 29Adc/14.5 A | 26Adc/13A | |||
Max. solar / wind generator MPPT efficiency | (wind generator power): =90~92% | |||||
5 panels series into a group | 8 panels series into a group | 11 panels series into a group | ||||
use 250~300W/pcs monocrystalline or polysilicon solar panels, solar panels series into a group first, and then 1~4 panel groups in parallel according to the actual situation | ||||||
Recommended wind power generator configuration | TBD (to be determined) | |||||
Wind or hydraulic power generator unload and brake | this function is outside, to be determined(TBD) according to the actual situation | |||||
System comprehensive specifications | ||||||
Local EMS (energy management system) | 5.1 inch TFT high performance LCD screen(HMI) | |||||
Communication interface / Communication protocol | the standard interface is CAN-BUS or RS-485(the standard configuration is mod-bus RTU, we can customize the special communication protocol), the option is Ethernet / GPRS / Wi-Fi / 4G | |||||
Operating temperature | 5℃~35℃ clean room | |||||
Storage temperature | -20℃~50℃ clean room | |||||
Operating humidity | 10%~90%RH non condensation and Ice-free | |||||
Max altitude | <3000m | |||||
width * height * depth | 80 * 128 * 53 cm | 98 * 128 * 53 cm | 117 * 128 * 53 cm | |||
maximum weight | 180 ±30 KG | 220 ±40 KG | 260 ±50 KG | |||
Built-in lithium battery specifications | ||||||
Total rated built-in battery capacity | 12.5KWH(±3%) | 18.75KWH(±3%) | 25KWH(±3%) | |||
Minimum built-in battery capacity during the service life【<=60%】 | ~8KWH(±10%) | ~12KWH(±10%) | ~16KWH(±10%) | |||
Rated specification of built-in high-voltage battery modules in cabinet | 102.4V/61.5AH | |||||
Number and using mode of built-in battery modules in cabinet | 2, (Using in series) | 3, (Using in series) | 4, (Using in series) | |||
Battery pack total voltage range | 160~240V | 240~360V | 320~480V | |||
Built-in battery type (chemical material) | High performance LiFePO4 lithium battery | |||||
Built-in batteries cycle life: 3000~5000 cycle times, about 8~10 years, Working environment temperature is 25℃, DOD(depth of discharge) is less than 80% every time, Charging and discharging continuous current is less than 0.25C every time, Residual capacity is greater than 60% when the battery’s life is over. | ||||||
Disclaimer: the table above is for reference only, the actual specifications shall be subject to the product manual or the user’s manual without notice. |
Product Description
Packing & Delivery

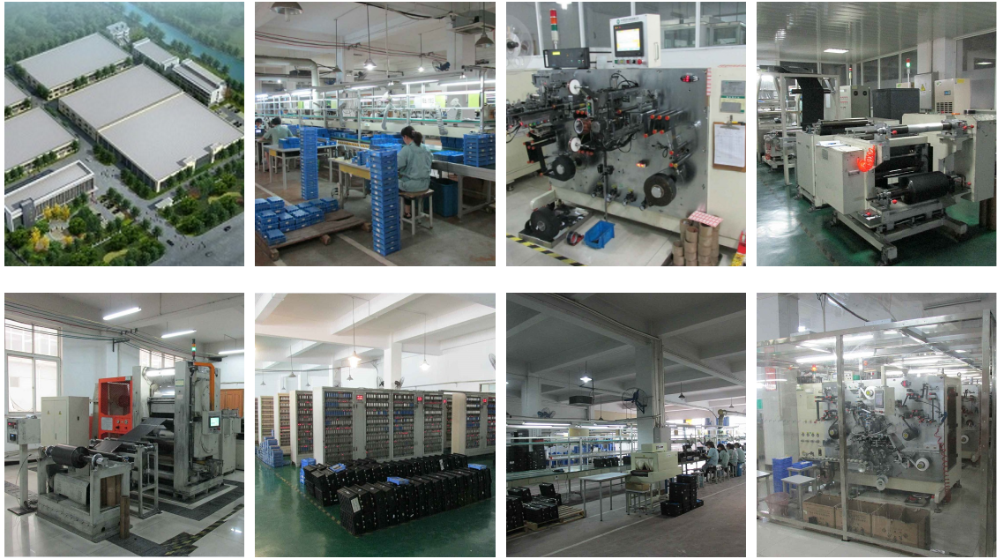

Equipment
