High quality solar system 5kw complete with high efficiency 500W solar panels price Chinese solar energy system

PRODUCT DETAIL
inculding parts:solar panel , inverter .battery .racking , cable;Work Time (h):24 Hours;
Output Frequency:50hz;Single package size:1640X992X30 cm;
Selling Units:Single item;Battery Type:Lead-Acid,Lithium Ion;
Output Voltage (V):110v 220v;Solar panel:Mono or poly;
Mounting Type:Ground Mounting,Roof Mounting;Certificate:CE RoHS,CE, ROSH;
Pre-sales project design:Y;sevice:during the warranty ,factory will ship the free parts for service.;
Model Number:Solar System SP 5kw 10KW;Product name:Off-grid Solar Power System;
Place of Origin:Guangdong, China;Brand Name:SUNCHEES;
Free installation service:Yes;Single gross weight:18.000 KG;
Specification:Normal;Application:Home,Commercial,Industrial;
OEM:accept;Load Power (W):5KW;
load list:TV. light , Refrigerator, air conditioning;Controller Type:MPPT,PWM,48v50a;
Solar Panel Type:Monocrystalline Silicon,Polycrystalline Silicon;Warranty:10 Years for solar panels, other parts are 2 years,10YEARS;
Battery:Deep Cycle Maintenance-free;Package Preview:;

High quality,Low price 5000W solar system 5kw complete High efficiency Hot sale poly 250W Chinese solar panels price















What is the off-grid power generating system?



Off-grid power generation system is mainly composed of solar panels, controller, storage battery, off grid inverter, solar power generation through the assembly, by the controller on the battery charge and discharge management, and to theDC for providing power to a load or through the inverter and provide electrical power to a new type of AC load.



Sunchees solar panel system technical specifications:



solar power system basic information

solar panel rated output power :4050w



suitable for loads that daily power consumption <26KWH

Allowable ma loads power :5KW



 1:Mono solar panel &poly solar panel can be choose ,mono solar panel efficiency is 16%-17%,poly solar panel efficiency is 15%

2:suchees solar inverter have AC charger function , it can acturally charger power to batteries by city grid power ,when cloudy&raindy day and battery power use off

 SOLAR PANEL

type :SP450w MONO solar panel (poly optional )

max power :450W  Vmp:42v ,voc:49v  imp:10.71A

Size:2060*1036*40mm(IP65 with MC4 connector )

25 years life time ,warranty :10 years

Effieiency performace:25%years 80%,20years 85%.10 years 90%









               QUANTITY :  9PCS

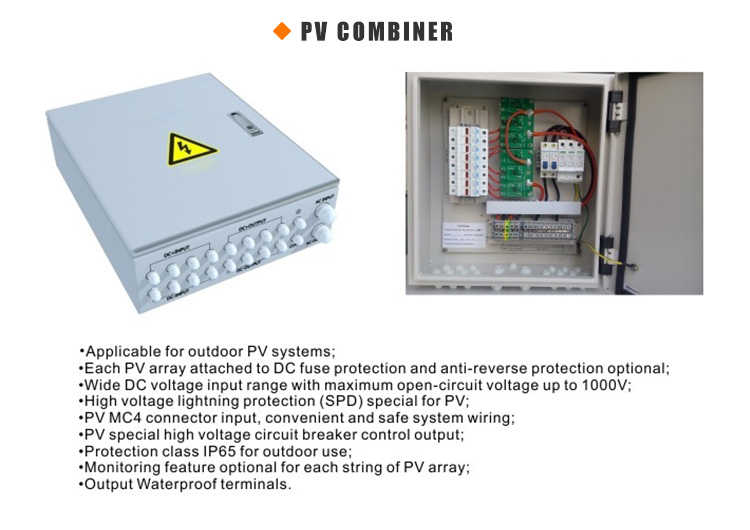

 PV COMBINER BOX

 Modell: PC6-48V

Multiple PV strings inputs ;Simplify wiring between PV array and controller

protections to controller ;  thunderstorm& surge protection

Warranty:2 years , ship the free one for service





              QUANTITY :  1PC



HYBRID SOLAR INVERTER

Solar inverter with controller built it Inverter power:SI5000w/48v

With MPPT controller :60A/48v

Charging efficiency; 90%-95%, Built-in AC charger (public network)

Output:110v,120v,220v,230v,240v(optional) Product size:370*195*570mm

Total : 1 Set Warranty :2 years, ship the free a main board by DHL or FEDEX for service











               QUANTITY :  1PC

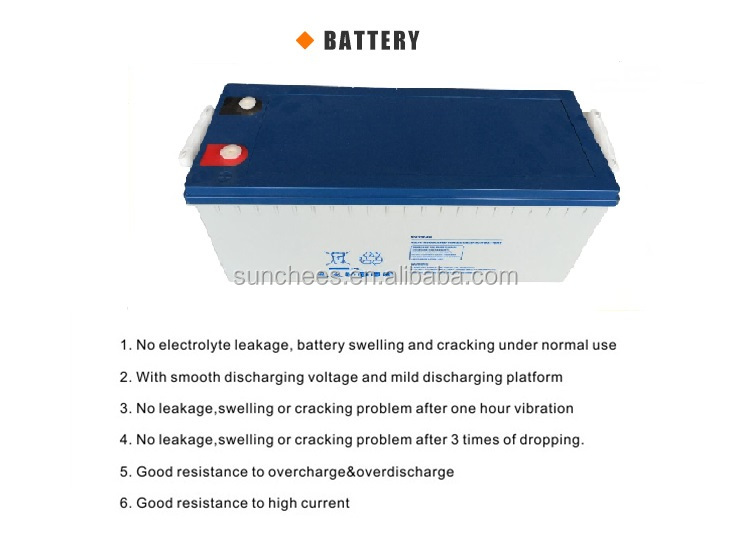

 SOLAR POWER GEL BATTERY                 Capacity:12V/200AH

Servicelife : 5-6years Size:522*240*219mm / Weight:59KG

Total : 8PCS  warranty :2 years, ship the free one for service









              QUANTITY :  8PCS

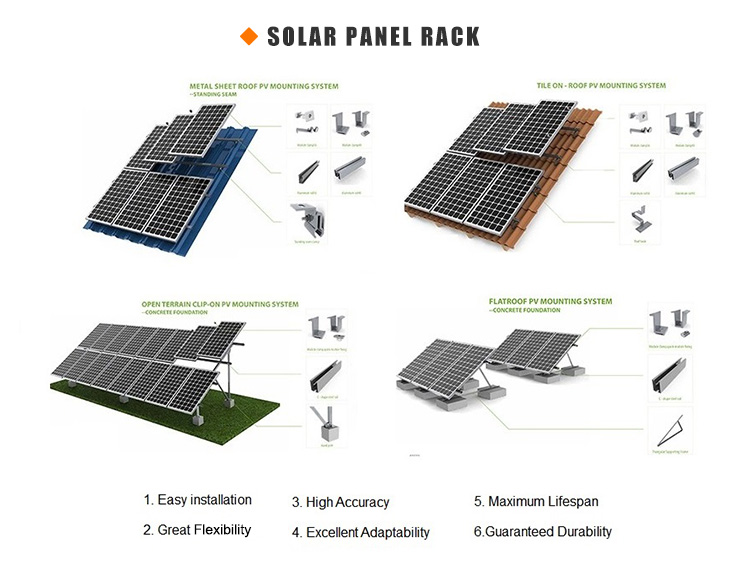

 SOLAR PANEL RACKING

Slope Rooftop or Flat rooftop

including complete fittings, wind load:55m/s,snow load:1.5kn/m2 structure:Anodized Aluminum+stainless steel, Angle adjustable







            QUANTITY : 1SET

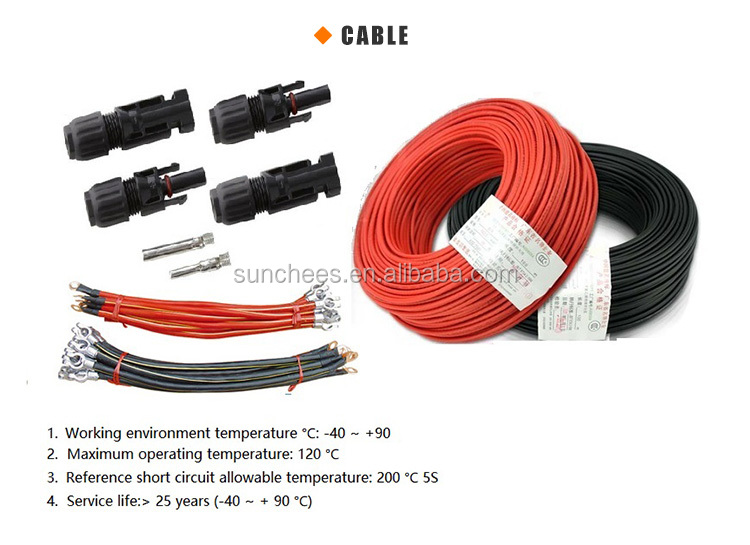

 PV Cable

14pcs 16mm2*35CM battery cable
4pcs 16mm2*1M battery cable 4mm2 PV cable 100M







                QUANTITY : 1SET









Load reference

5000W solar home system

Load name

Load’s watt

Qty

Total watt

lights

11W

8

88W

Fan

80W

2

160W

computer

150W

2

300W

printer

250W

1

250W

Fax machine

150W

1

150W

refrigerator

120W

1

120W

Washing machine

300W

1

300W

Microwave

1000W

1

1000W

Electric cooker

300W

1

300W

Air conditioner(2HP)

1500W

1

1500W

Satellite TV receiver/VCD

25W

1

25W

Color TV

100W

2

200W

Water pump

200W

1

200W

Total

4513W





Remark: Refrigerator,air conditioner &water pump is inductive load ,start working power is 3-6 times more than normal power ,in the process of use ,turn on the inductive load first

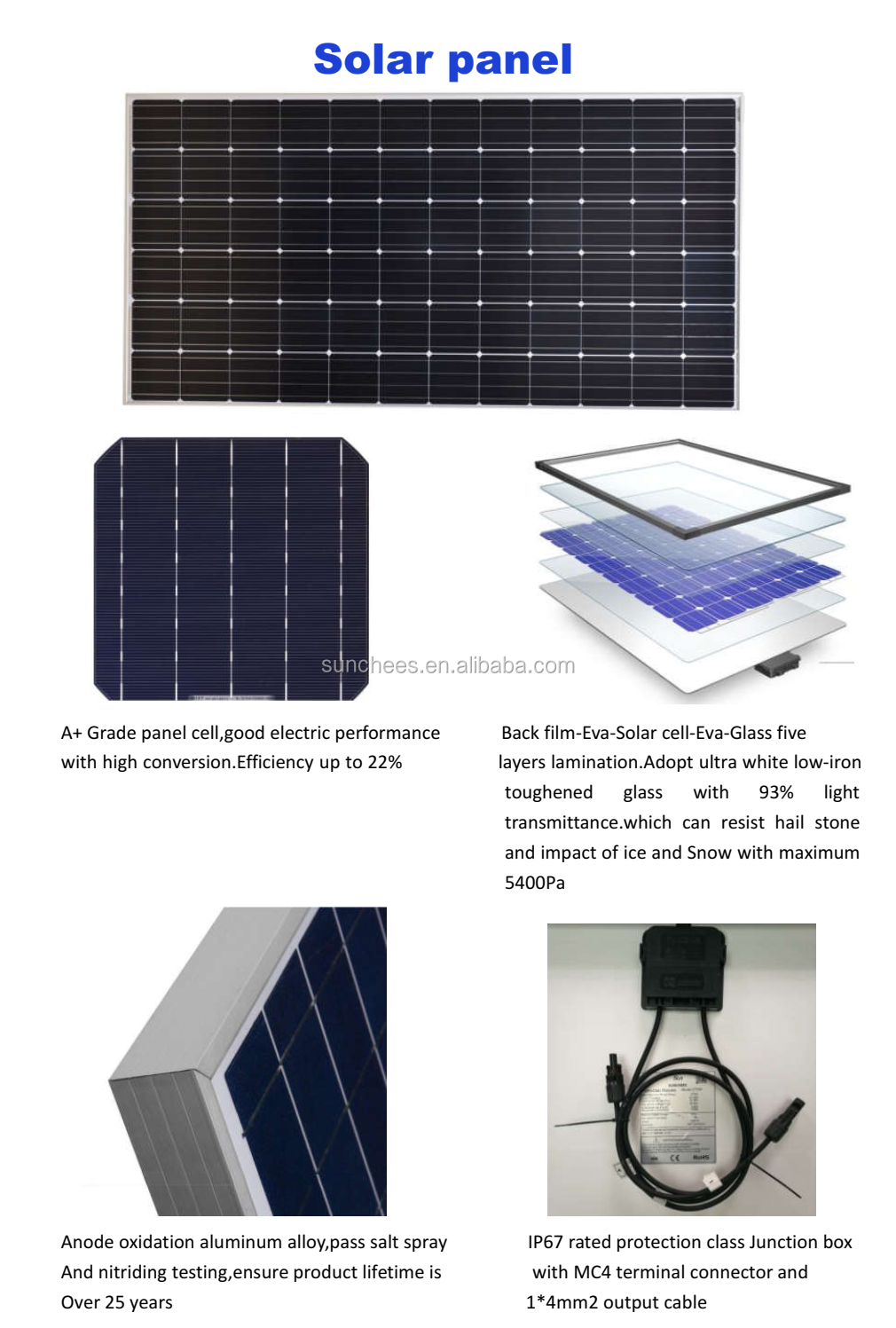

Solar Panel

Solar Panel is a major part, but also the value of the highest solar power system components, its role is to convert the sun's radiant energy to DC power.









 PV Combiner Box





Stroage Battery

Its main task is battery energy storage in order to ensure that the load-day electricity at night or rainy.

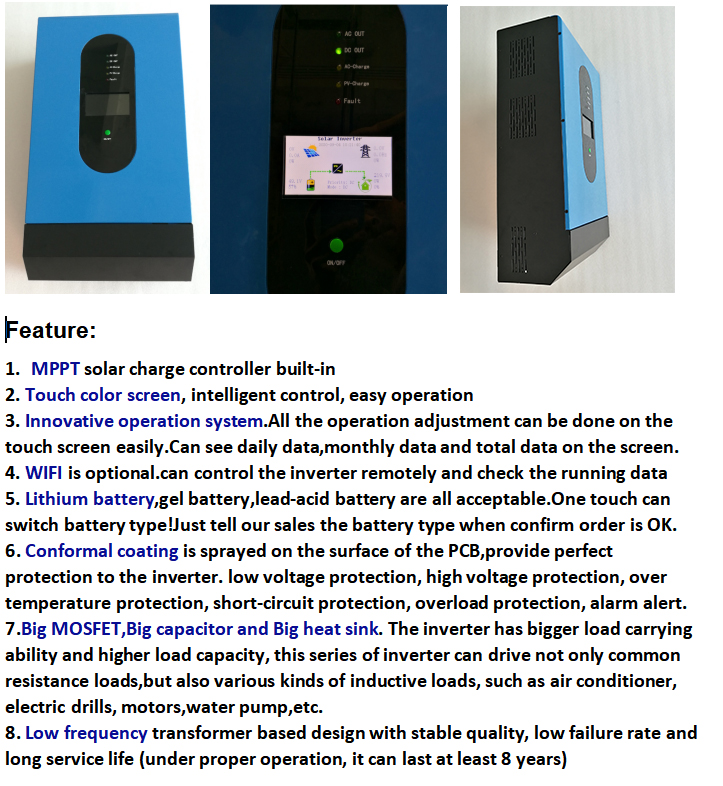

Off-Grid Pure Sine Wave inverter with MPPT charger controller

Off-grid inverter is the core component of off -grid power system, is responsible for converting direct current to alternating current for AC load use. In order to improve the overall performance of photovoltaic power generation system to ensure long-term stable operation of the power station, the inverter performance is very important.



Battery Box and Wires

Battery box is helpful for storage and usage of battery. And we choose special PV wires for the solar power system.





1. Who Are We?
Foshan Sunchees Energy Technology Co., Ltd. based in Guangdong, China, start from 2009,sell to South America(10%),North America(10%),Southeast Asia(5%),Mid East(5%),South Asia(5%),Eastern Europe(5%),Africa(30.00%),Oceania(5%),Eastern Asia(5%),Western Europe(5%),Central America(5%),Northern Europe(5%),Southern Europe(5%).

2. How Can We Guarantee Quality?
Our solar power system aftersales service :
1) Solar panels 10 years warranty , if any quality problem, we will change new ones ;
2) Gel battery have 2 years warranty ,we will ship new ones for change
3) Solar hybrid inverter 2 years warranty , during the warranty time , any problems, we will DHL or Fedex new spare parts for change , it is free of charge for the shipping cost .
4) Solar air conditioners are 5 years warranty , during the warranty time , any problems, we will offer new free spare parts for change , shipping cost we will pay for it .

3.What Can You Buy From Us?
Foshan sunchees main products : Off grid solar power system , on/off grid hybrid solar power system , solar on grid system , wind and solar hybrid system , solar inverter , solar air conditioner system , solar street light system .

4. Why Should You Buy From Us Not From Other Suppliers?
Sunchees has 10 years of experience in the solar industry.
Sunchees  has the professional production lines,each step of production is under strict quality control
Provide installation service, technical support
Sunchees  offers free solar power system design , we can customize you oen complete solar power system , solution based on you requests
sunchees  has a special after-sales service department ,working time :24h*7 days

5. What Services Can We Provide?

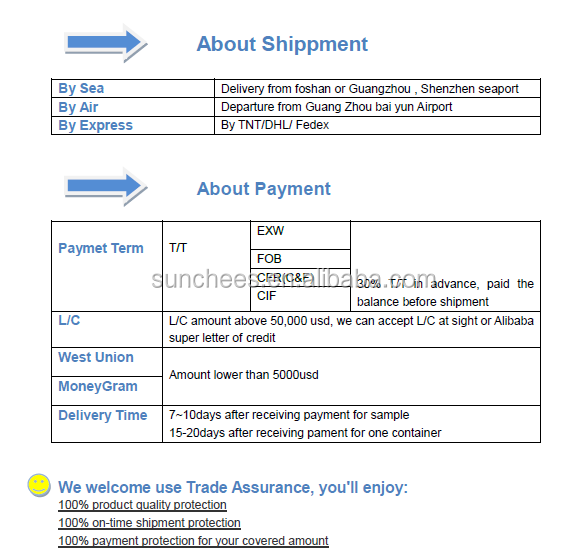

Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,Western Union;
Language Spoken:English,Chinese,Spanish







 Customer Feedback















FAQ



Solar power system
FAQ

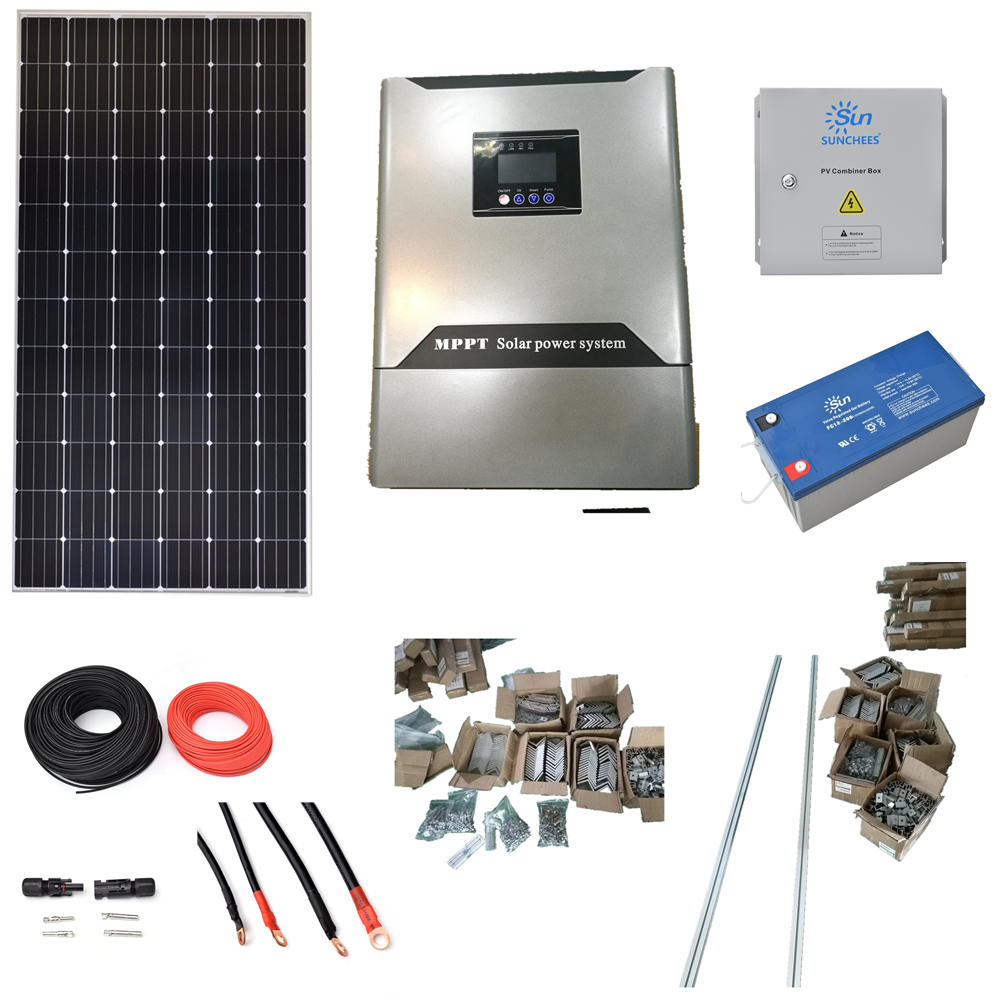

Q: What can be included for this system from Sunchees?
A:This system includes:solar panels, PV array combiner,Solar inverter with MPPT solar controller build in, Gel free maintenance battery,solar panel rack,cables.,etc.

Q: Is the solution for complete set? If not, what else are needed?
A: Yes, we can provide solution of complete set. If you don't need complete set, basic parts are available also.

Q:What's the advantage for this solar system from Sunchees ?
A: 1.Steady operating
2.The most advantage:On grid energy backup(not means sell electricity,just backup)
3.CE RoHS Certified
4..Easy installation according to our instructions.
5.professional parts supply

Q: Is the system solution always the same? Can I customize one?
A: No. We have professional teams making solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. So the 1kw system may be with different configuration.

Q: Who arranges the shipping?
A: We could help you arrange the shipment, we have good service forwarder in Guangzhou.

Q: What's the difference between off grid and on grid solar power system?
A: Off grid solar power system doesn't connect to the power grid. In general, it includes solar panels, charger controller, batteries and inverter. This system will store the solar power into the batteries, batteries energy will be converted the electricity power to supply the appliances working through the inverter.

On grid solar power system connects to the power grid. In general, it includes solar panels, grid-connected inverter, the solar power will be converted the electricity power to appliance working directly. When the solar power is off, the power grid will replenish the electricity power to appliances working.

Q: Can the inverter switch automatically to national grid to protect batteries.
A: Yes. It can also connect to third generator, as like diesel generator. Please tell our sales before production.

Q: What is the lifetime of the solar power system?
A: Solar panel’s lifetime are 25 years, charger controllers 5~ 7 years, inverters 5~7 years, batteries 6~8 years.

Q:what is Sunchees solar system after sales service?
A: during the warranty ,Solar panel--ship free new one ;battery—ship the new one ,
Inverter/controller---ship free PCB by DHL or Fedex.

Q:how about Sunchees solar system quality?
A: we promise for our quality materials, and after sales service. We have many projects in all over the world, contact our sales get the project feedback photos.

Q:what is your trade Assurance?
A:100% product quality protection
100% product on time shipment protection
100% payment protection for your covered amount
If you have more question, welcome to contact us freely, Choose Sunchees, Choose Satisfaction!
