4 channel SDI broadcast video vmix streaming media 4 SDI capture card

PRODUCT DETAIL
nature:1080P60 live broadcastCompression method:software compression
Software Development Kit:SDK supportSupply capacity:500 pieces per month
brand:TCHDchannel:4
enter:SDIx4Operating system support:Windows, Linux
solve:1920x1080P60payment terms:Wire transfer, PayPal
Video compression format:H.264Packaging Details:carton
application:Live broadcast, webcast, video conferencing, game screenshotsVideo encoding:H.264
output:HTTP/RTMP/RTSPtype:PCIe 4U
Origin:Beijing China

SDI SDK supports video conferencing 1080p video capture card



introduce

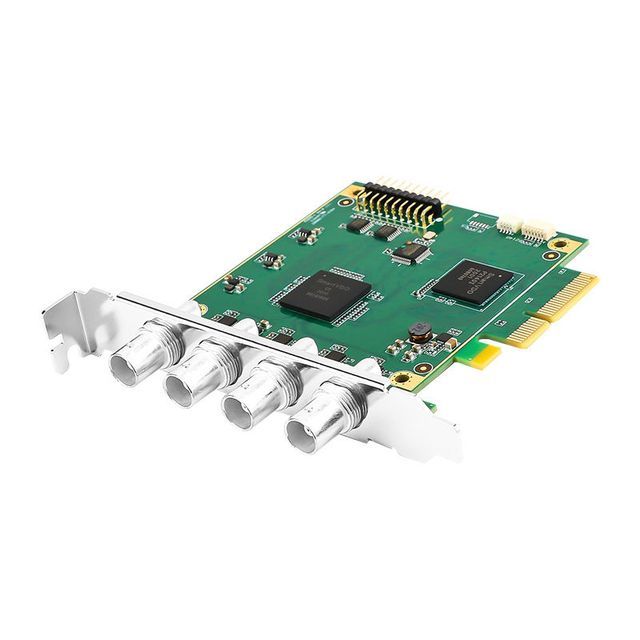

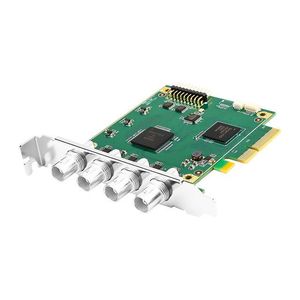

TC400N4SDIIt has 4 SDI inputs, supports 1080p/720p/480p/480i, 1080i full HD full-screen real-time preview and capture without distortion, and can be connected to digital TV set-top boxes, MOD, BD Blu-ray players, HDV digital cameras, Xbox and PS3, etc. You can connect another PC display card to record directly.

Model

400N4 SDI

Maximum Input Resolution

Input 1920×1080p@60/50 → Output 1920×1080p@60/50

recording mode

Software compression, real-time mode

aspect

93.98×91.5 mm

interface

PCIe×4 (Gen 2)

video input

4 x SDI

Video Raw Data Format

YV12, NV12, YUY2, RGB24, RGB32, P010,

Video Raw Data Resolution

3G-SDI
1920×1080p@60/50fps

HD-SDI
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps

Standard Definition SDI
720×480i@60fps
720×576i@50fps

Recording video format

H.264 (software compression)

color format

capture/preview
4:4:4 8-bit RGB24
4:4:4 8-bit RGB32
4:2:2 8-bit YUV2
4:2:0 8-bit YV12, NV12
4:2:0 10 bit P0110

video processing

Video, audio and VANC capture

Video cropping and scaling

Automatic Signal Detection

deinterlacing engine

Multiple instances

audio input

4 x stereo embedded audio

audio format

Stereo/16 bit/32000~48000Hz

software support

Vmix/OBS/ZOOM/Skype/Teams/Discord/Slack/Cisco Webex/GoTo Meetings

*DirectShow/V4L2 compatible software

System Requirements

operating system support

Windows 7 / Windows 8 / Windows 8.1 / Windows 10 / Windows 11

Linux 4.8 or later (32-bit and 64-bit)

Linux ARM

nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX
