4CH 1080P All Hybrid Video Capture Card - VHD-1204C

Price:$10.00 / >=10 units
Min. Order:10 units
Supplier:VIVAKOREA CO., LTD.
Region:Incheon, South Korea
Contact:Ms AMBER SHIN

PRODUCT DETAIL

place of origin; place of origin:	South Korea	Warranty:	2 years
price:	Negotiable	port:	Incheon, Busan
Packaging Details:	export box	brand:	Vivaco
payment terms:	wire transfer	Video compression format:	H.264
Supply capacity:	300000 units/year	channel:	other

Product Description

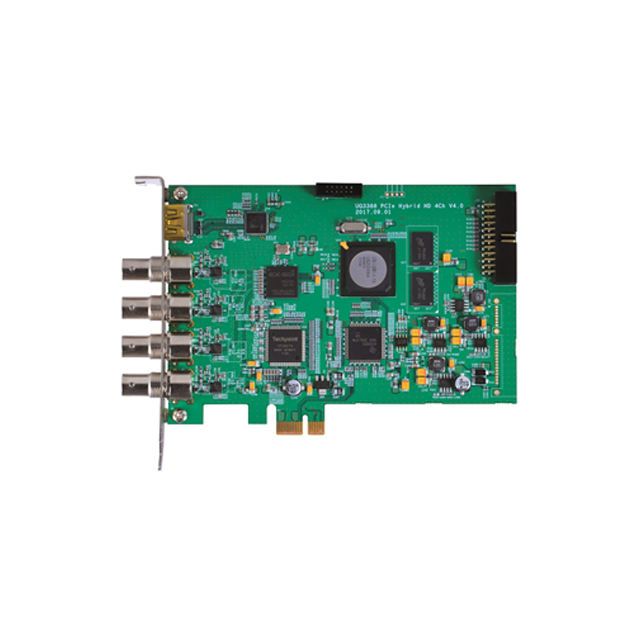

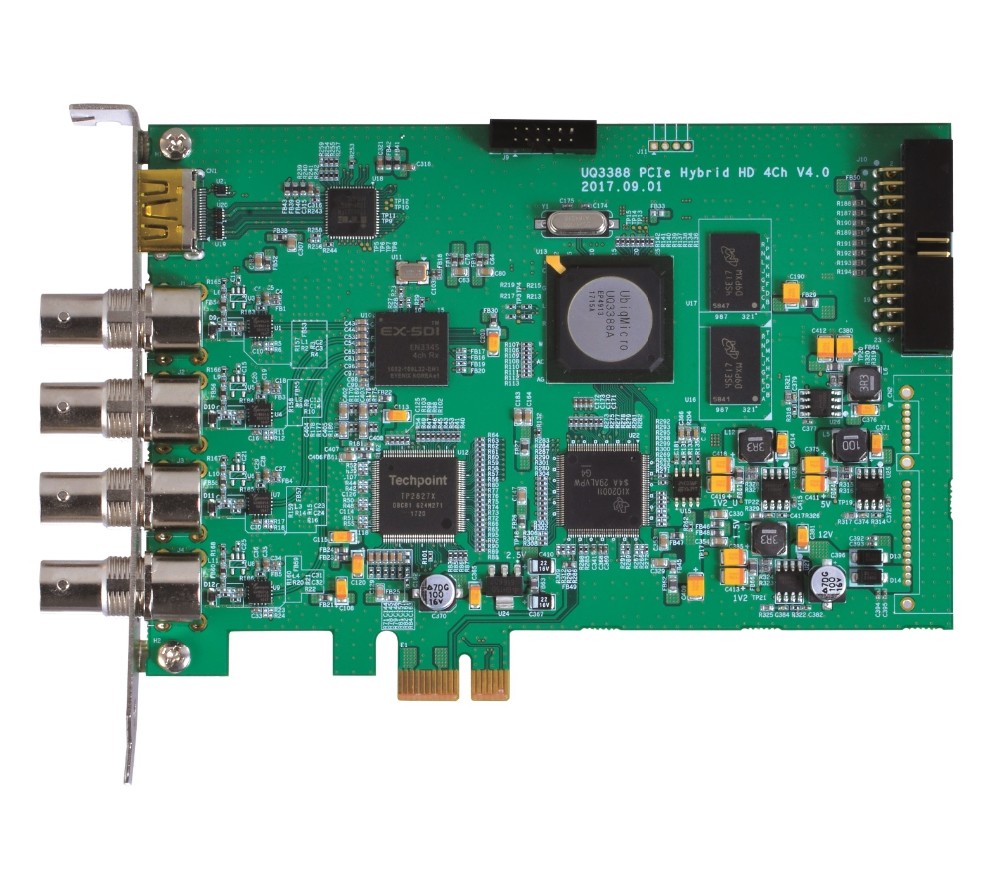

4ch 1080P full hybrid compression card

- VHD-1204C

4ch 1080P full hybrid compression card

H.264 video compression
Support 2M EX-SDI, HD-SDI, AHD, TVI, CVI, CVBS cameras
2M full HD live view per channel
2M full HD real-time recording per channel
H.264, MJPEG - Dual Stream
Motion Detection, Video Loss, Privacy Masking
Dynamically set frame rate via OSD
SPOT Monitor - 1x HDMI, 2x CVBS
PCI-Ex1 LAN port
SDK in Windows OS, Linux OS

Model		VHD-1204C
general	Encoder	UQ3388
	PCI standard	PCI-Express1.0x
	Multi-card operation	Support max. 4 cards
	daughter card (optional)	Audio input 4Ch(RCA), 2Ch CVBS output
video	enter	4x BNC (EX-SDI, HD-SDI, AHD, TVI, CVI, CVBS camera)
	standard	1080P(25,30) / 720P(25,30, 50, 60)
	Preview resolution	Max.1080P real-time, support main preview and sub-preview
	compression	H.264, MJPEG
	encoding resolution	maximum. 1080P@30fps per channel
	encoding speed	Mainstream: All resolutions are 25/30fps, Max.1080p@150 fps Extra substream: max. 1080P/4, max. 30 frames each
	bit rate	256Kbps~10Mbps
	compressed stream	All channels @1080P, 720P, 1080P/4, 720P/4, including other substreams
	TV point (optional)	1x HDMI(1920×1080), 2x CVBS(with expansion card), 1, 4 split screen
vocal (optional)	enter	4x RCA inputs (with expansion daughter card)
	compression	PCM, G.711-A method, Mufa, ADPCM
	Sampling Rate	8. 16-bit (8KHz, 16KHz, 32KHz, 44.1Khz)
	bit rate	Minimum 64Kbps
system Require	operating system	Windows XP/7/8/10, Linux
	CPU	Intel or AMD
	motherboard	Intel or AMD Chipset PCI-Eslot
	memory	2GB or more
	graphics	AMD, Nvidia, . VGA
surroundings	working environment	'-10~+55℃/10~90%RH/86~106kpa
	electricity demand	12V±10%, 3.3V±10%
	energy consumption	10W less
	aspect	154mm×98mm
* Design and specifications are subject to change without notice.

South Korea

Vivakorea Co., Ltd. has been a leading global developer and manufacturer of advanced video surveillance products for 14 years. Tono Provide high-quality products to more than 100 customers from 50 countries, we have been pursuing the best quality in the world, and have passed CE, FCC, ISO, RoHs certification. Vivakorea researches quality improvement with the goal of customer satisfaction. We always appreciate your business and promise to continue to strive for greater success in security solutions to help you succeed.

history
