Promotion 4K 60Hz HD HDMI Video Capture Card USB3.0 Free Drive Mic Game Record Live Streaming 60fps PS4 Game Live Recording

PRODUCT DETAIL
Type:capture video hdmi, hdmi capture card, other home audio;Place of Origin:Guangdong, China;
Color:Black;Selling Units:Single item;
MOQ:30pcs;Input:4k 30Hz;
Warranty:1 Year;Material:Metal;
Single package size:15X10X8 cm;Application:Game video recording;
Brand Name:MGL/OEM;Product Name:4K 60Hz HD HDMI Video Capture Card USB3.0 Free Drive Mic Game Record;
Loop out:4K 60Hz;OEM:Yes;
Package Preview:;Packaging Detail:Box package;
Video Compression Format:H.264;Channels:4;
Single gross weight:0.220 KG;
Product Description

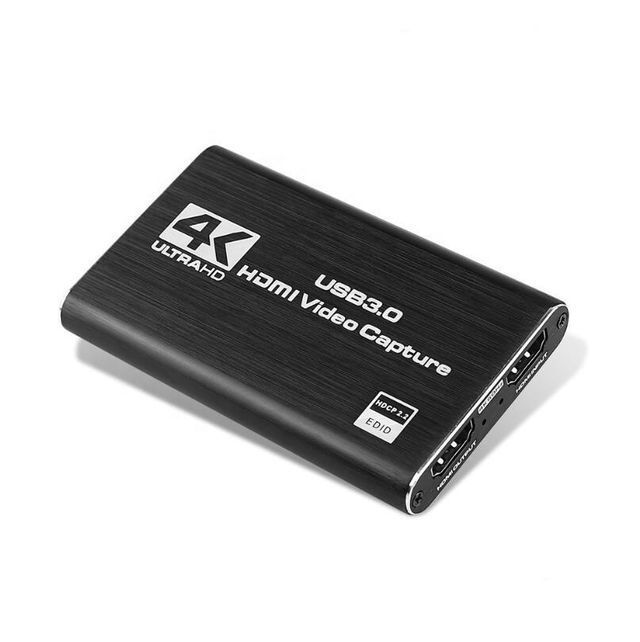

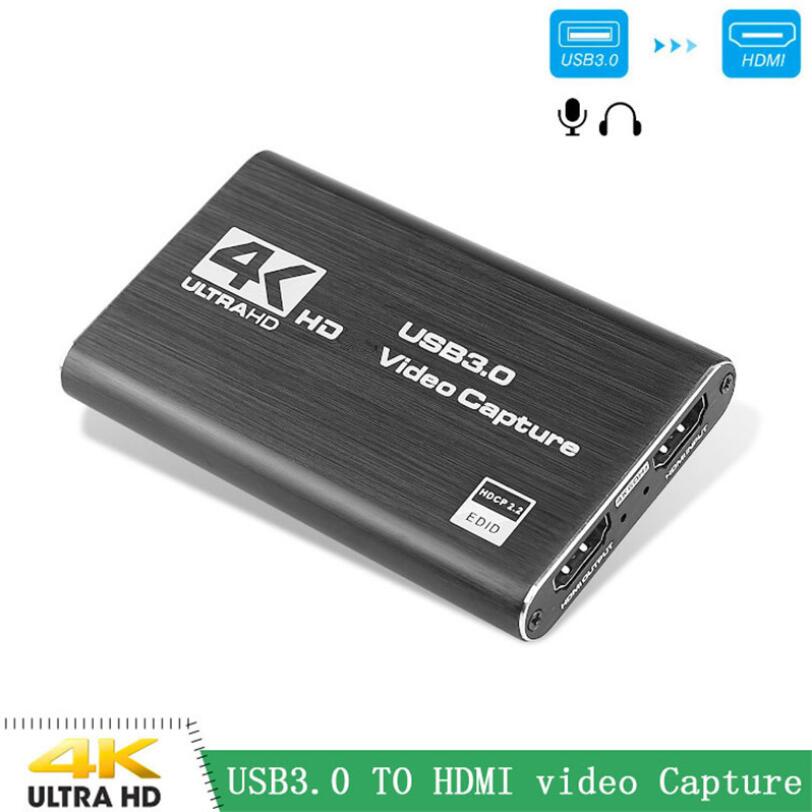

4K 60Hz HD HDMI Video Capture Card USB3.0 Free Drive Mic Game Record Live Streaming 60fps PS4 Game Live Recording
Features:

HDMI to USB3.0 video capture dongle, easy to carry, has excellent performance, outstanding compatibility, simple installation and many other functions. It can capture an HDMI 4K 60Hz input; compatible with Windows, Linux, Mac OS X and USB 3.0 interfaces, compatible with many USB 3.0 chipsets (Intel, Renesas, ASMedia, Fresco Logic), compatible with PCIe Gen1.1 x1 expansion via USB 3.0 interface ; HDMI video capture complies with UVC and UAC standards, no need to install drivers and settings, real PnP, easy to use.

Applications:

1. Connect the Blu-ray player with HDMI output interface, Play Station, audio/video receiver, satellite receiver and other signal sources and HDMI cable to the HDMI input of the device



2. Insert the USB3.0 cable head into the USB3.0 interface, and insert the other end of the cable into the USB3.0 interface of the computer.

3. HDMI to USB3.0 video capture Dongle is based on UVC (USB video class), UAC (USB audio class) standards, no need to install drivers and settings. After installation in the operating system, related video and audio devices will be added. For example, in Windows, there will be new image devices:

USB3.0 video;

USB3.0 audio;

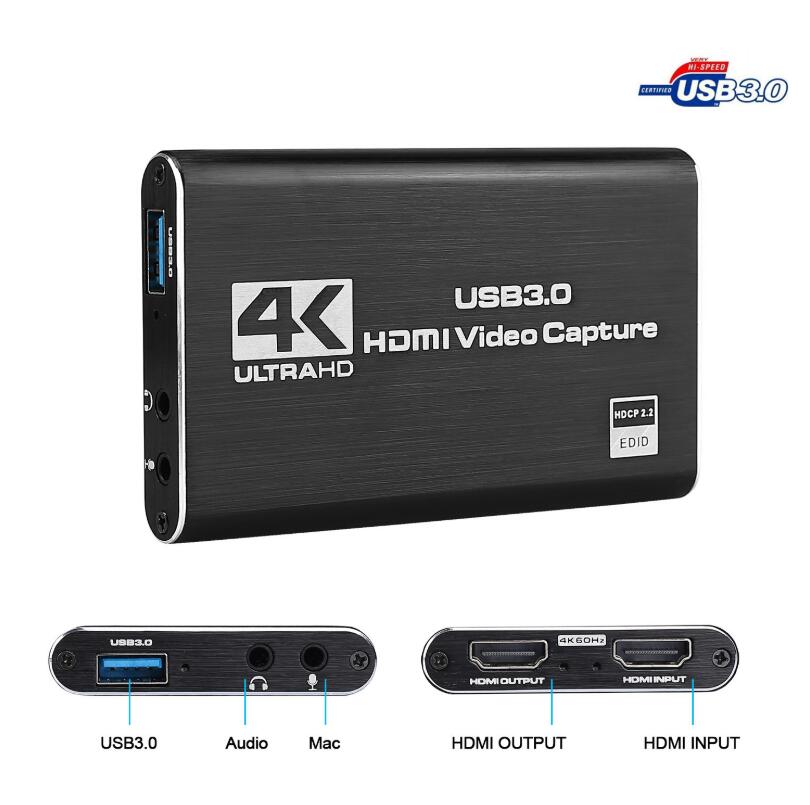

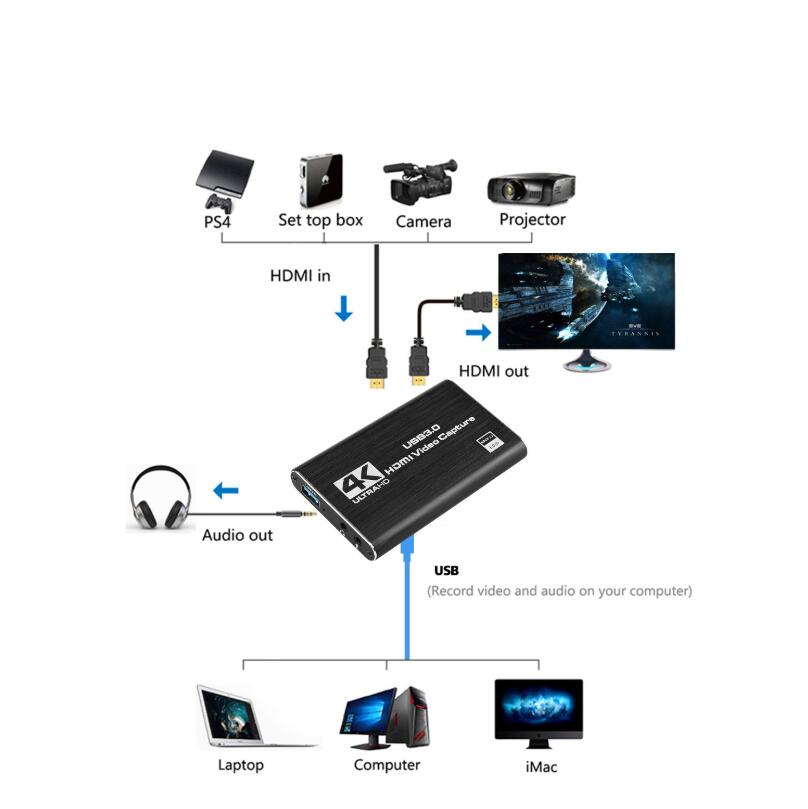

MIC→Connect the microphone.

HDMI IN→Connect the HDMI signal source output of DVD, PS4, set-top box and notebook.

LED → power red light.

USB→Connect to a computer notebook

HDMI OUT→Connect to HDTV

Audio output → connect headphones

Details:

No need to install the driver, it is a real PnP.

Compatible with Windows, Linux, OS X operating systems

USB3.0, speed 300-350MB/s, compatible with USB 2.0

The process of video and audio is completed by the dongle and will not occupy the CPU.

It can capture a single-channel high-definition HDMI video signal.

It can automatically detect the input video format, and automatically adjust the output size and frame rate.

The input and output video signal can reach 1080p / 60 Hz.

It is compatible with UVC video capture and YUV 422 video output.



Host interface USB3.0, * 300-350MB / s,

USB2.0, *40MB/s

Input interface HDMI interface

HDMI input format: 480i, 480p, 576i, 576p, 720p50,

720p60, 1080i50, 1080i60,

1080P24/ 25/30 /60;



Output format

Supported resolution:

640×480/720×480/720×576/768×576/800×600/1024×768/1280×720/1280×800/1280×960/1280×1024/1368x768/1440/1600×1200/1680× 1050/1920×1080/1920×1200/640×360/856x480/960×540/1024x576

Frame rate: 25 / 29.97 / 30/50 / 59.94 / 60 fps

Audio and video capture standards for UVC and UAC

Support OS Windows 7 Windows Server 2008 R2

Linux (kernel version 2.6.38 and higher) OS X (10.8 and higher)

Software compatibility Windows Media Encoder (Windows)

Adobe Flash Media Live Encoder (Windows, OS X)

Real Producer Plus (Windows)

VLC (Windows, OS X, Linux)

QuickTime Broadcaster (OS X)

QuickTime player (OS X)

Wirecast (Windows, OS X)

Potplayer (Windows) etc.

Interface compatibility

DirectShow (Windows), DirectSound (Windows),

V4L2 (Linux), ALSA (Linux) OS X (QuickTime)

Size: 79.5x51x21 (L/W/H, mm)

Power consumption <= 2.5W

Operating temperature 0-50 degrees Celsius

Storage temperature -20-70 degrees Celsius

Storage humidity 5%-90%



Packaging

HDMI to USB3.0 video capture----------------------- 1Pcs

USB3.0 cable -------------------------------------------- 1Pcs

User Manual--------------------------------------------- 1pcs

Product pictures

Related products 3

 RELATED PRODUCTS

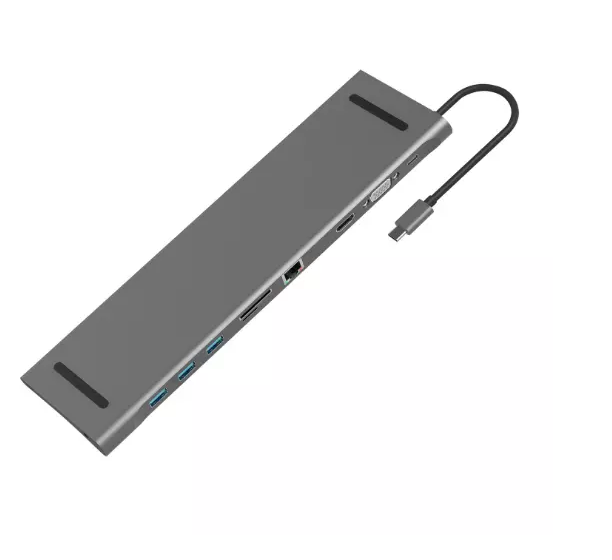

USB C Hub 10 in 1 Type C to HDMI VGA 3*USB 3.0 RJ45 Gigabit Ethernet PD SD/TF card reader 3.5mm
$23.91 - $24.63 / Piece
50 Pieces (Min. Order)
:-)

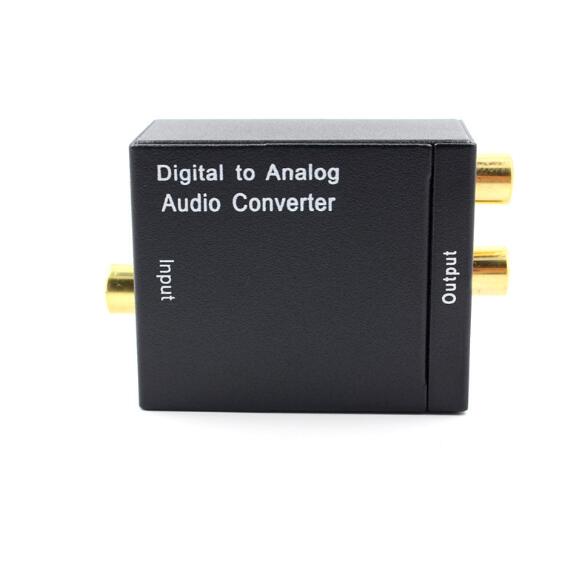

1080P Digital to Analog Audio Converter Optical to Analog Audio Adapter
$1.99 - $2.68 / Piece
200 Pieces (Min. Order)
:-)

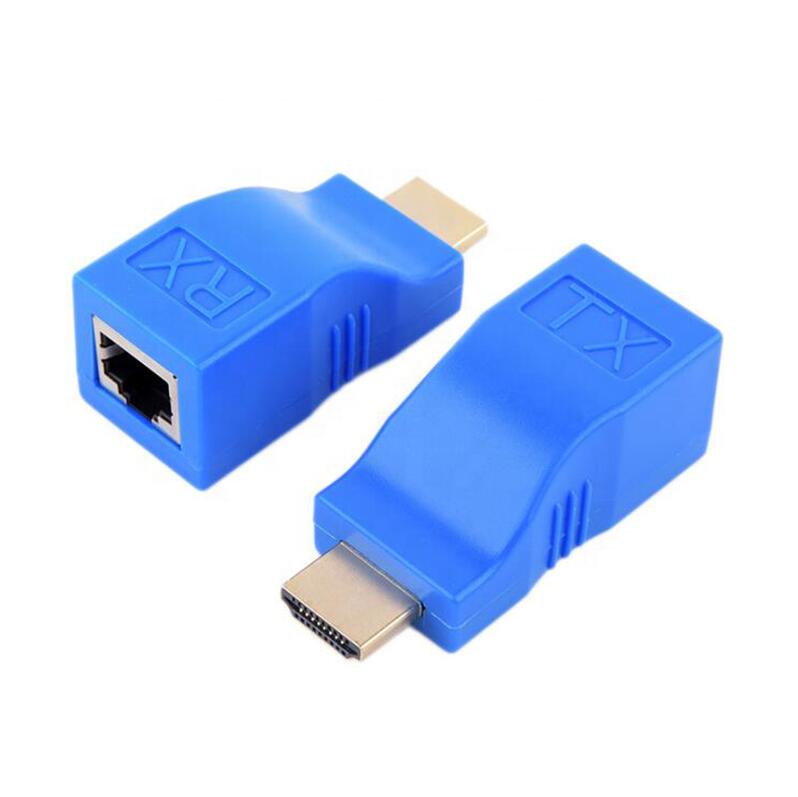

Full HD 1080P HDMI Extender HDMI to RJ45 Converter for 30M Transmission Distance
$3.91 - $4.2 / Piece
100 Pieces (Min. Order)
:-)

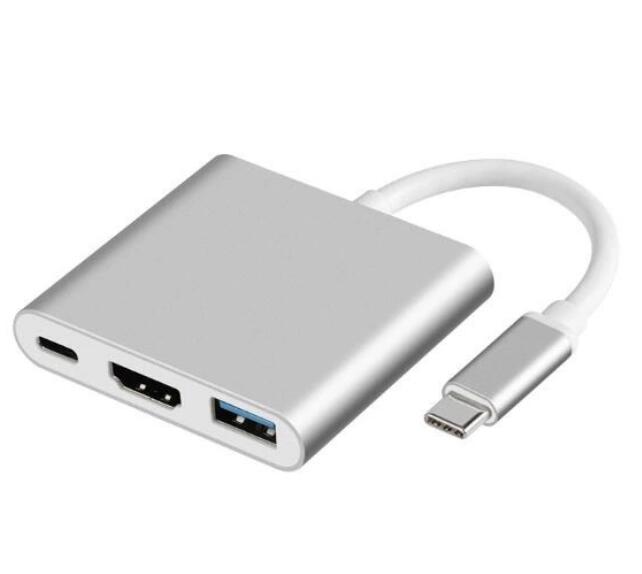

3.1 USB C Type C to 1080P 4K HDMI+USB 3 in 1 HUB Converter Adapter Cable
$1.41 - $1.88/ Piece
200 Pieces (Min. Order)
:-)

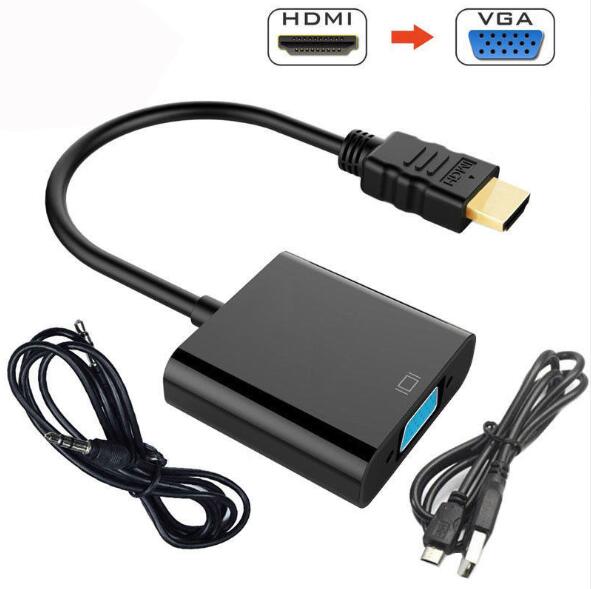

1080P HDMI to VGA Male to Female Adapter Signal Converter with Audio Cable and Power
$1.5 - $1.65 / Piece
200 Pieces (Min. Order)
:-)

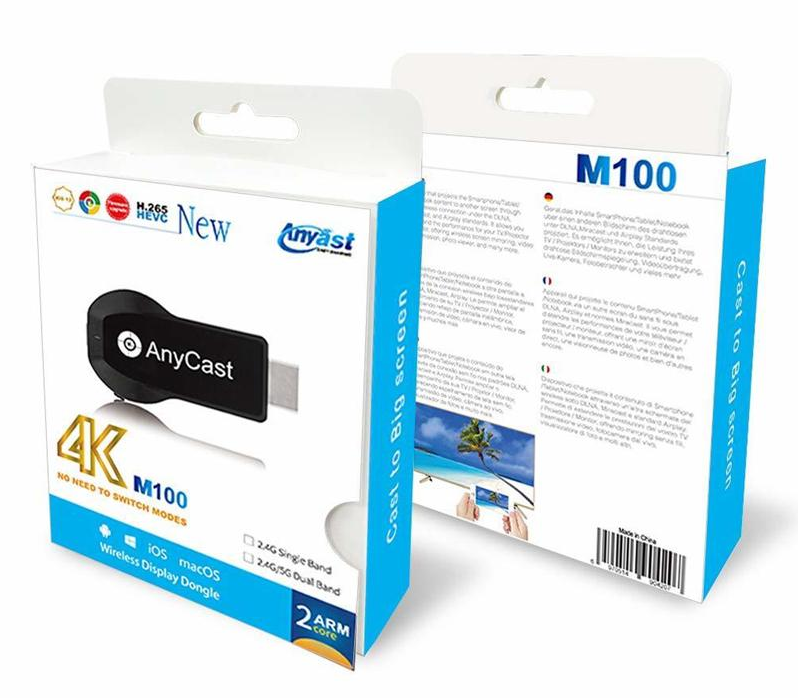

AnyCast M100 HDMI WiFi Display 5G Tv Dongle Dual Core H.265 Decoder 4K HD Output Tv Stick
