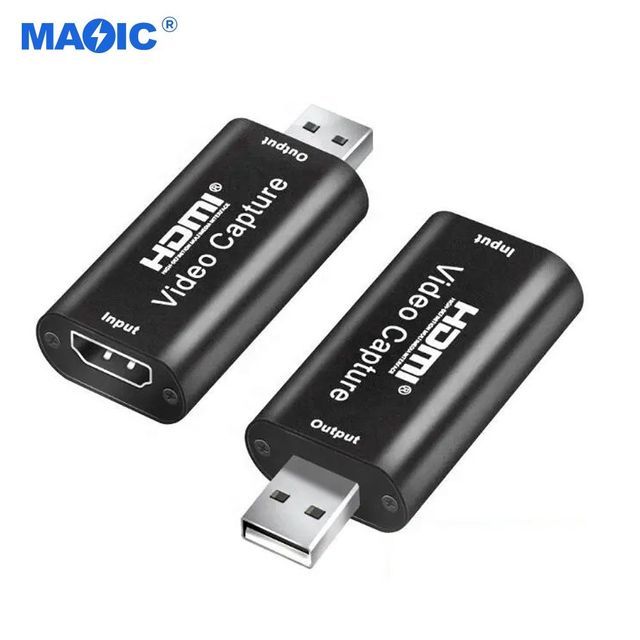

USB2.0 to HDMI video capture 1080P 60Hz 1 channel input 4K HDMI audio and video capture Live RecordBox supports HDMI capture card
- $3.35 / 50 - 499 pieces
$3.21 / 500 - 999 pieces
$3.13 / >=1000 pieces - 50 pieces
- Shenzhen Magelei Electronic And Technology Co., Ltd.
- Hubei, China
- Ms Shine Chen
PRODUCT DETAIL
| Version: | HDMI 2.0 | enter: | 4K@30Hz |
| length: | 1 meter | application: | Computers, TVs, Monitors |
| channel: | 1 channel | Material: | Cooper Clad Steel |
| Key words: | HDMI capture card, capture card, video capture card | Origin: | Guangdong, China |
| product name: | USB2.0 to HDMI video capture card 4K 1080P 1ch | color: | Black |
| Gross weight per piece: | 0.120 kg | Video compression format: | JPEG |
| solve: | 1080P@60Hz | brand: | Magic/OEM |
| Packaging Details: | retail color box | Sales unit: | single product |
| Cable Type: | male to male | Single pack size: | 10X3X2 cm |
This product is a selected product with strong supply capacity. The quality is good and the price is right. welcomeVIPCustomer mass customization. All selected products click here
Product Description
feature:
* Support maximum input resolution up to 4K;
* Support maximum output resolution up to 1080P;
* Support 8/10/12 bit color depth;
* When using a standard AWG26 cable, the input transmission distance can reach 15 meters (1080P and below resolution);
* Support most acquisition software, such as VLC, OBS, Amcap, etc.;
* Support Windows, Android and MacOS;
* Comply with USB video UVC specification;
* Comply with USB audio UAC specification;
* No need for external power supply, small size, easy to carry.
This USB 2.0 capture card can simultaneously capture HDMI video and HDMI audio, and can transmit audio and video signals to
PC and smartphone for preview and storage. It is suitable for high-definition collection, teaching recording, medical imaging, etc.
Application field:
1: Connect the UHD signal source and the HDMI input port of the USB capture card through an HDMI cable
2: Insert the USB head of the USB capture card into the USB port of the computer
3: Acquisition operation steps (OBS): Open the software → add a new source → select "Video Acquisition Device" → set the screen size →
Select "Studio Mode" (dual window) → click "Start Recording", as shown below
1. Add new source and select "Video capture device" 2. Set screen size
3. Select "Studio Mode" (dual windows), and the above settings are completed.
detail:
HDMI resolution................................................ . . . . The maximum input can support 4K
Video input format ................................................ ................................................ 8/10/12 bit color depth
Video output mode ................................................ ..........................................YUV, JPEG
Video output resolution................................................ ..The maximum output resolution is 1080P
Supported audio formats ................................................ ……………………L-PCM
Input cable length................................≤15m, AWG26 HDMI standard cable
Maximum operating current................................................ ..........................................0.4A/5VDC
range of working temperature............................................... ........... (-10 to +55°C)
size................................................. ......64x28x13 (mm)
weight................................................. ..........21.4g
Packing specification: 0.038-0.05kg/piece
Note: computer hardware configuration requirements
CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above
Storage: 4G memory
Packaging accessories:
1. Capture card
2. User Manual
* Support maximum input resolution up to 4K;
* Support maximum output resolution up to 1080P;
* Support 8/10/12 bit color depth;
* When using a standard AWG26 cable, the input transmission distance can reach 15 meters (1080P and below resolution);
* Support most acquisition software, such as VLC, OBS, Amcap, etc.;
* Support Windows, Android and MacOS;
* Comply with USB video UVC specification;
* Comply with USB audio UAC specification;
* No need for external power supply, small size, easy to carry.
This USB 2.0 capture card can simultaneously capture HDMI video and HDMI audio, and can transmit audio and video signals to
PC and smartphone for preview and storage. It is suitable for high-definition collection, teaching recording, medical imaging, etc.
Application field:
1: Connect the UHD signal source and the HDMI input port of the USB capture card through an HDMI cable
2: Insert the USB head of the USB capture card into the USB port of the computer
3: Acquisition operation steps (OBS): Open the software → add a new source → select "Video Acquisition Device" → set the screen size →
Select "Studio Mode" (dual window) → click "Start Recording", as shown below
1. Add new source and select "Video capture device" 2. Set screen size
3. Select "Studio Mode" (dual windows), and the above settings are completed.
detail:
HDMI resolution................................................ . . . . The maximum input can support 4K
Video input format ................................................ ................................................ 8/10/12 bit color depth
Video output mode ................................................ ..........................................YUV, JPEG
Video output resolution................................................ ..The maximum output resolution is 1080P
Supported audio formats ................................................ ……………………L-PCM
Input cable length................................≤15m, AWG26 HDMI standard cable
Maximum operating current................................................ ..........................................0.4A/5VDC
range of working temperature............................................... ........... (-10 to +55°C)
size................................................. ......64x28x13 (mm)
weight................................................. ..........21.4g
Packing specification: 0.038-0.05kg/piece
Note: computer hardware configuration requirements
CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above
Storage: 4G memory
Packaging accessories:
1. Capture card
2. User Manual
custom packaging
Custom packaging mockups are optional, and the pictures are for reference only.

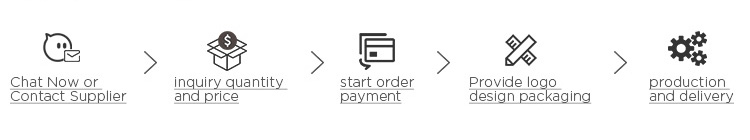

Custom process
cutting edge
* Please consult customer service before placing an order. Prices may fluctuate. We will give you the best price.
* For customized products, please provide your brand logo source files, such as AI, PDF, CDR, PSD. If not, at least provide a high-res image of the logo and we'll try to convert it into a printable format. For customized packaging, you can choose our original packaging, of course you can also provide your packaging design files.
* If you only need samples in stock, we suggest to order more samples. Currently, freight rates are on the rise. Correct order quantity will save your purchasing cost. At the same time, more samples can test the real quality of the product. If you need other products, please provide photos. We'll check the internal network and try to find them for you.
Our advantage

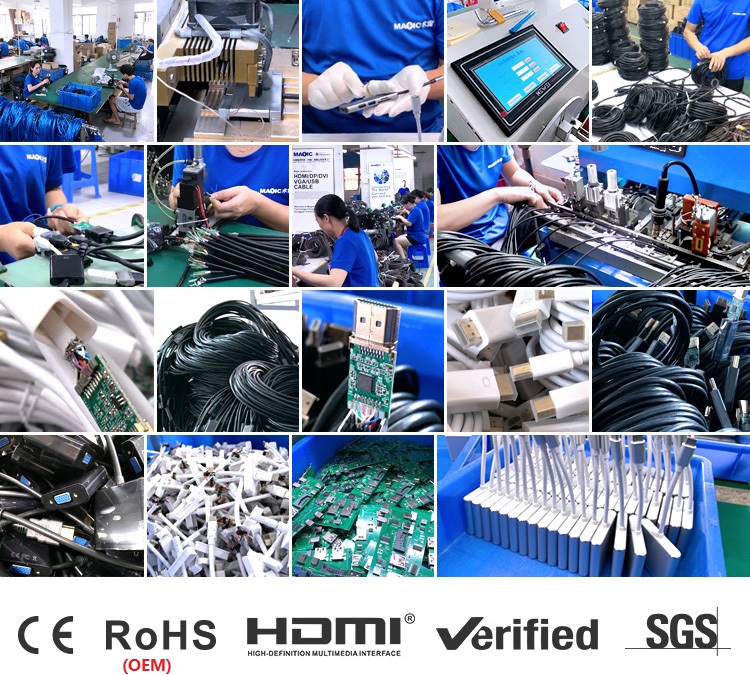

・We have been specializing in the production of electronic products related to AV data cables. Such as HDMI / TYPE-C / DP / DVI / VGA / AUX / USB / SATA. ・We have a history of ten years. ・Our founder comes from the Panasonic R&D department and has the genes of Panasonic Corporation. ・Our factory has the strength of mass production and strict quality inspection system. ・We have strong OEM customization experience. ・We have strong relationships with key component suppliers.
Our products have obtained many international certifications. | ||||||||
