50-220L steel drum/barrel making machine

China 55 gallon steel drum manufacturer rolling machine

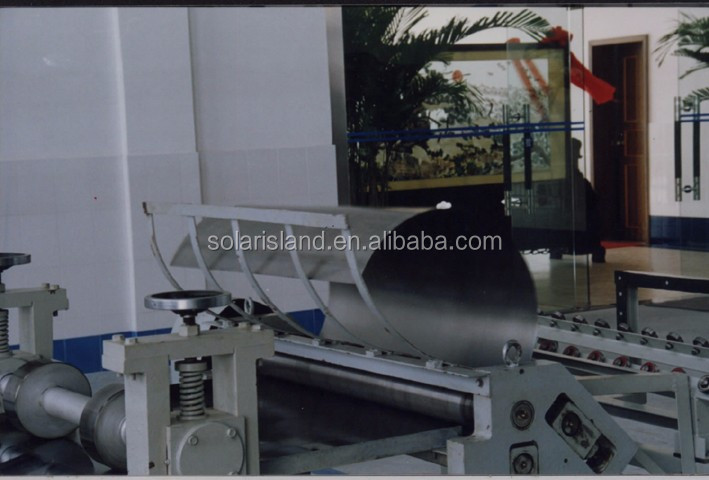

A. Rounding machine:

The rounding machine is a three-roller type, driven by a motor, with an adjustable radius, equipped with a special guide plate to minimize the edges at both ends of the steel plate. Unit power: 2.2KW;

Auto Welding Machine 55 Gallon Steel Drum Manufacturers in China:

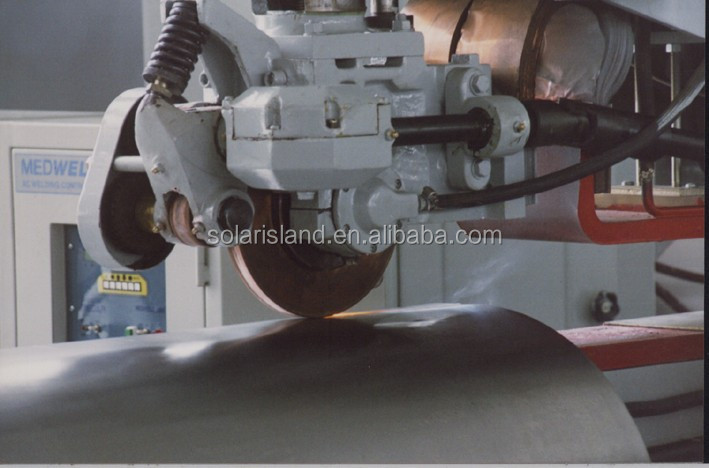

B. Automatic welding machine:

Connect the circular cylinder body along the direction of the cylinder body, weld by seam welding machine, and operate manually. Power: 150KVA;

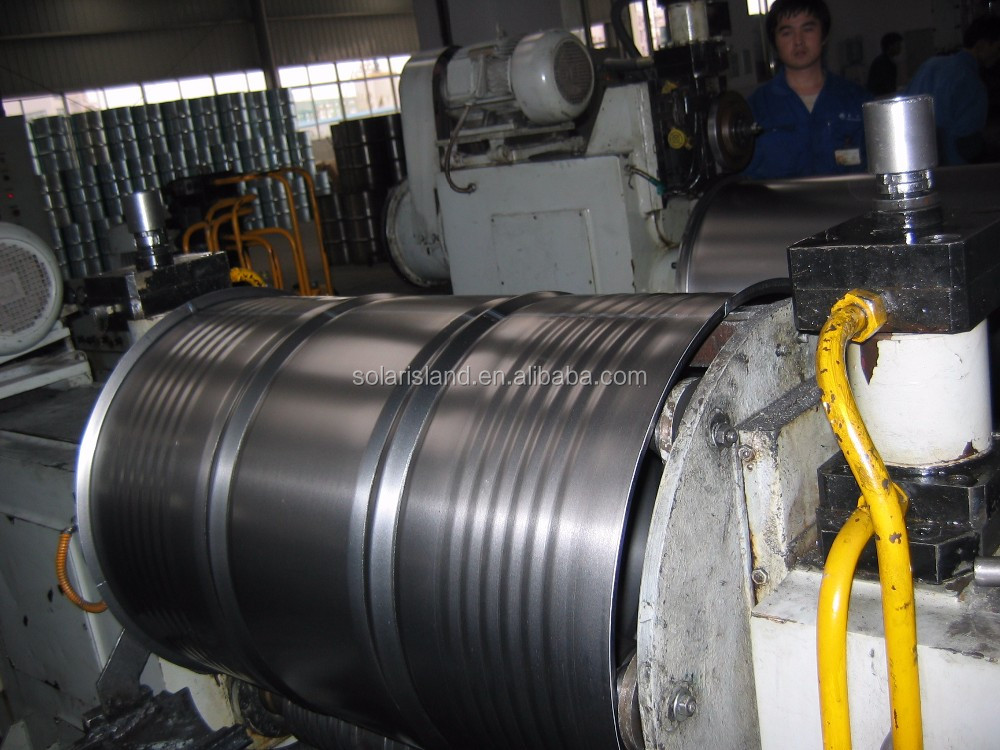

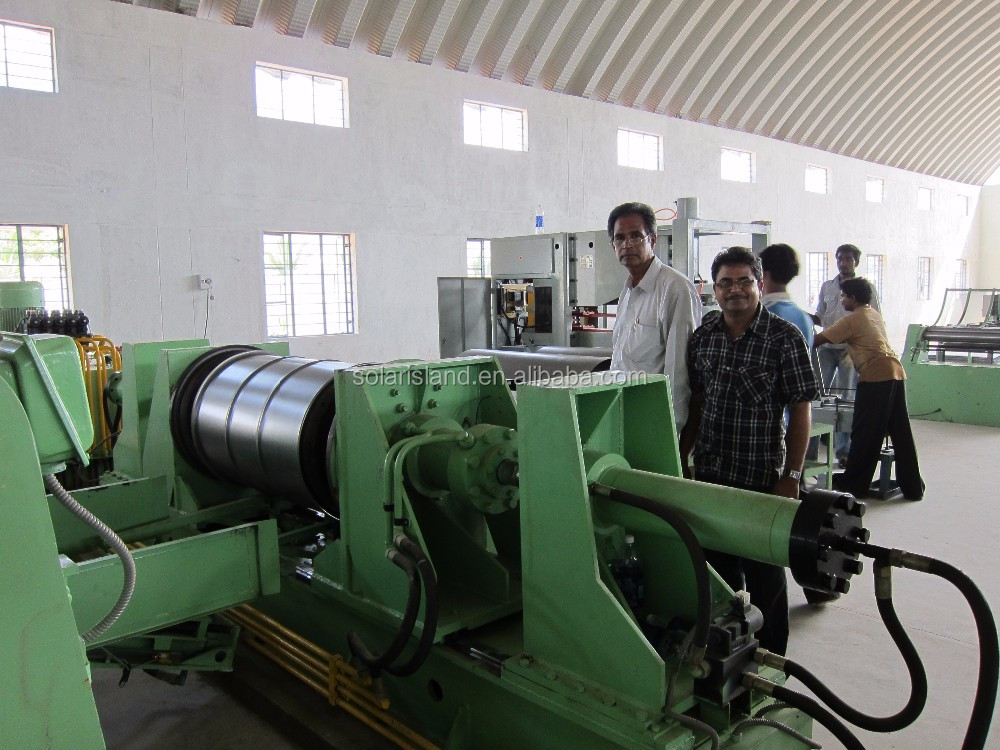

Extrusion Flange And Crimping Machine 55 Gallon Steel Drum Manufacturer In China:

This machine puts the barrel body into the forming template, moves back and forth to directly form the flanging, and simultaneously presses the ribs. High flanging precision, higher work efficiency, suitable for cold-rolled steel sheet, PLC control, hydraulic drive. Unit power: 22KW.

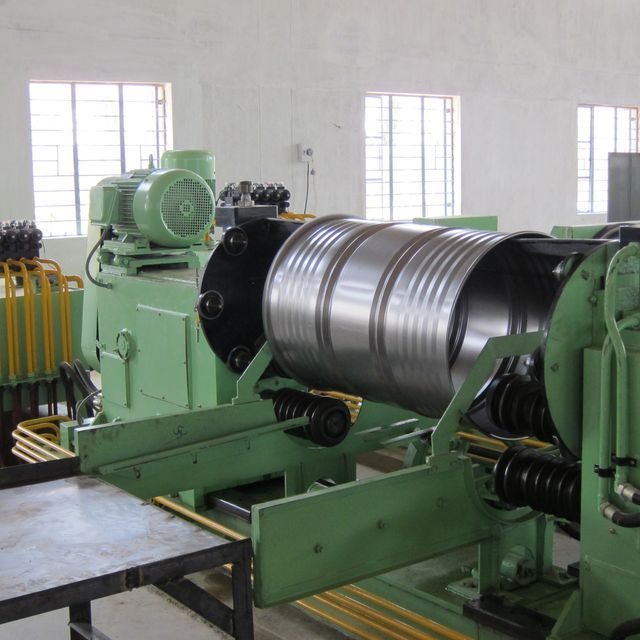

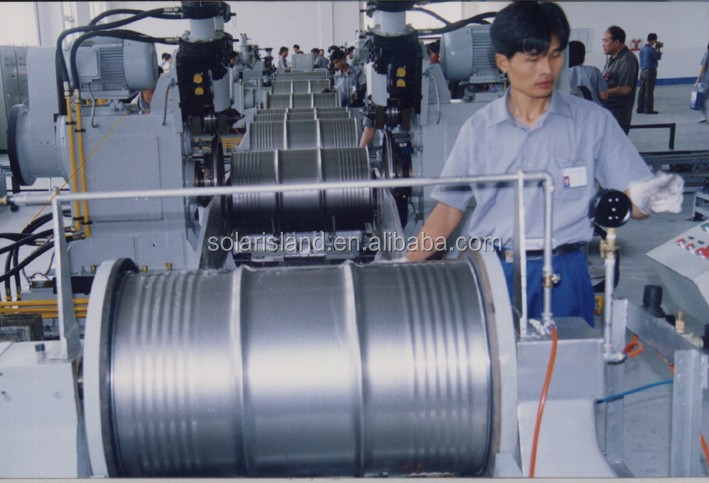

China Corrugated 55 Gallon Steel Drum Manufacturer

This machine puts the barrel body into the forming template, moves back and forth, and directly forms the flange; at the same time, it performs ribbing. High flanging precision, higher work efficiency, suitable for cold-rolled steel sheet, PLC control, hydraulic drive. Unit power: 22KW.

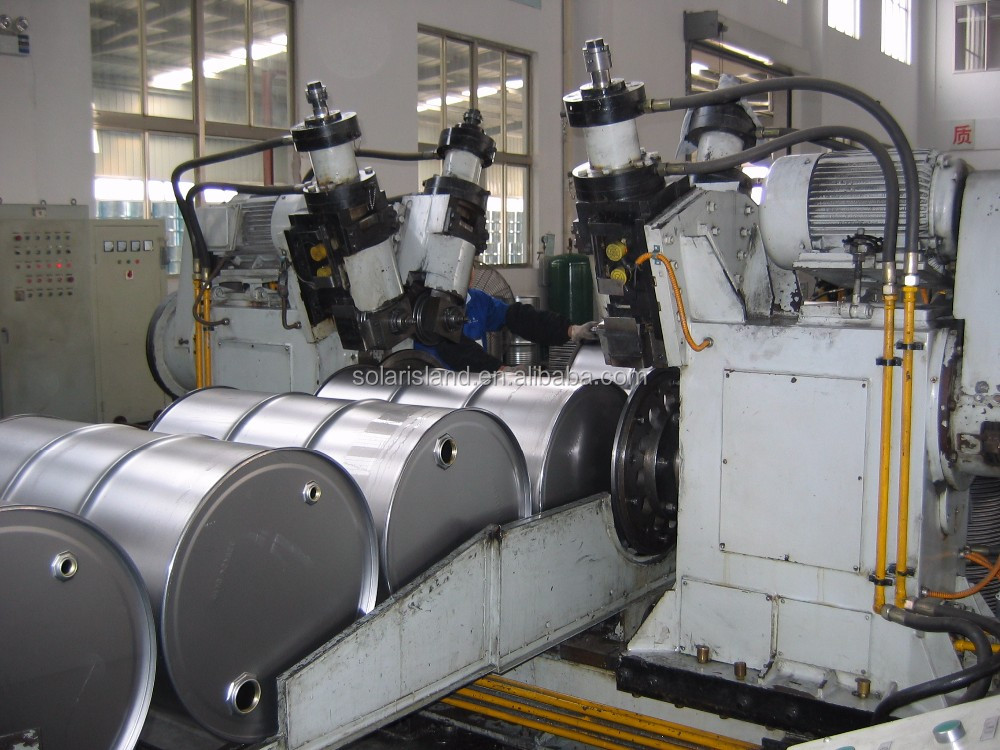

Sealer:

Manually put the top and bottom of the barrel on the loading rack, and the barrel body is automatically loaded and pressed together. Double motors, two spindles running, which is a new structure in this field, drive the sewing machine.
The rollers of the sewing machine are driven by hydraulic pressure, easy to adjust, controlled by PLC, and the power of the single machine is 41KW.

Leakage test machine:

Horizontal test, air pressure 0.03Mpa. Manually spray soapy water and manually test for leaks. There are two types of leak testing machines, one is PLC controlled, hydraulically driven, and the other is simple, normally controlled, pneumatic testing machine

Steel drum production line cleaning line

(1) Rain channel: see the washing equipment process flow table for details;
(2) Washing and transportation

Type: The conveying roller advances and rotates on its own
Speed: 0.5-4m/min.
Motor: electric, stepless speed regulation;
Material: chain --- 304 stainless steel or other;
Axle --- 2Cr13 stainless steel;

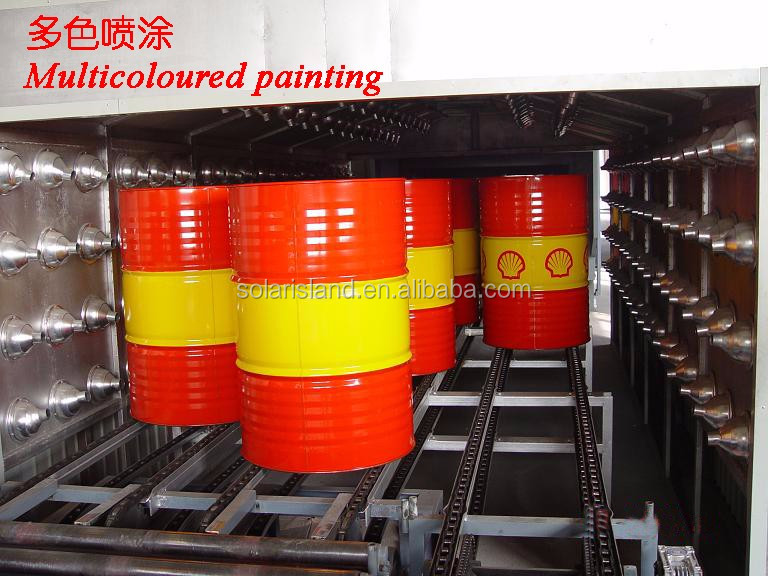

China 55 gallon steel drum manufacturers coating equipment:

(1) Paint booth

(2) Coating type: barrel vertical;
(3) Paint color and ribbon:

A. Color: The lid, bottom, and both ends of the barrel are the same color; the middle of the drum body is the same color.
B. Ribbon: The connection surface of the two colors is clean, the mixing surface is less than ±1mm, and the paint fog is allowed, but it cannot be seen beyond 1000mm.
(4) PLC control box: 1 set; (control painting and transportation)

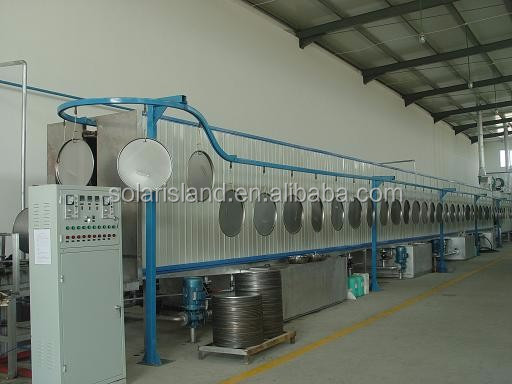

Steel drum production line drying line

Heating method: oil heating;
Heat engine unit: 2 sets (the main components are made in Italy);
Fuel consumption: 80L/h (2 sets) Max;
Working temperature: room temperature to 200°C, and can be adjusted continuously;
Temperature control accuracy: ±5°C (action accuracy);
Heating time: ≤20min. (at room temperature 20°C)
Insulation performance: when the channel is 200°C, the surface temperature rise is less than 10°C (locally less than 15°C);
