Well Priced automatic plastic bottle unscrambler for sale pet round robot production line
- $4500.00 /set
- 1 set
- Zhangjiagang Just Machinery Co., Ltd.
- Jiangsu, China
- Ms Mariya Ma
| Usage: | kinds of drink production line packing line; | Packaging Material: | Plastic,Wood; |
| Condition: | New; | Dimension(L*W*H): | 3500mm/2000mm/2200mm; |
| Material: | Stainless Steel 304; | Key words: | automatic bottle unscrambler price; |
| Function: | water /soda/juice/milk/beverage bottle unscrambler; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; |
| Port: | shanghai; | Machinery Test Report: | Provided; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Place of Origin: | Jiangsu, China; |
| Product name: | automatic bottle unscramble machine; | Voltage: | 110V/220V/380V/415V(customized); |
| Warranty of core components: | More than 5 years; | Brand Name: | JUST bottle unscrambler machine; |
| Bottle type: | PET Plastic Bottle or PP bottle; | Showroom Location: | Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Japan,Malaysia,Australia; |
| Automatic Grade: | Automatic; | Application: | Beverage,Food; |
| Applicable Industries: | Manufacturing Plant,Food & Beverage Factory; | Key Selling Points: | Long Service Life; |
| Warranty: | 5 years; | Core Components: | Bearing,Motor,PLC; |
| Package Preview: | ; | Packaging Detail: | PE film and wooden case; |
| Packaging Type: | Bottles,CANS,Barrel; | Supply Ability: | 15 Sets per Month bottle unscrambler machine; |
| Processing Types: | bottle unscrambler machine; | Weight: | 4500 KG; |
| Name: | Well Priced automatic plastic bottle unscrambler for sale pet round; | Marketing Type: | New Product 2020; |
| Video outgoing-inspection: | Provided; | Type: | Packaging Line; |
| Capacity: | 2000-22000bottles per hour; | Driven Type: | Electric; |

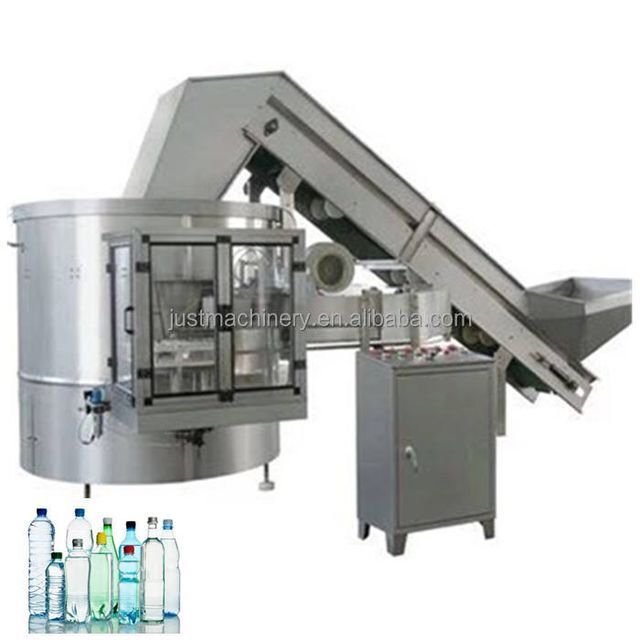

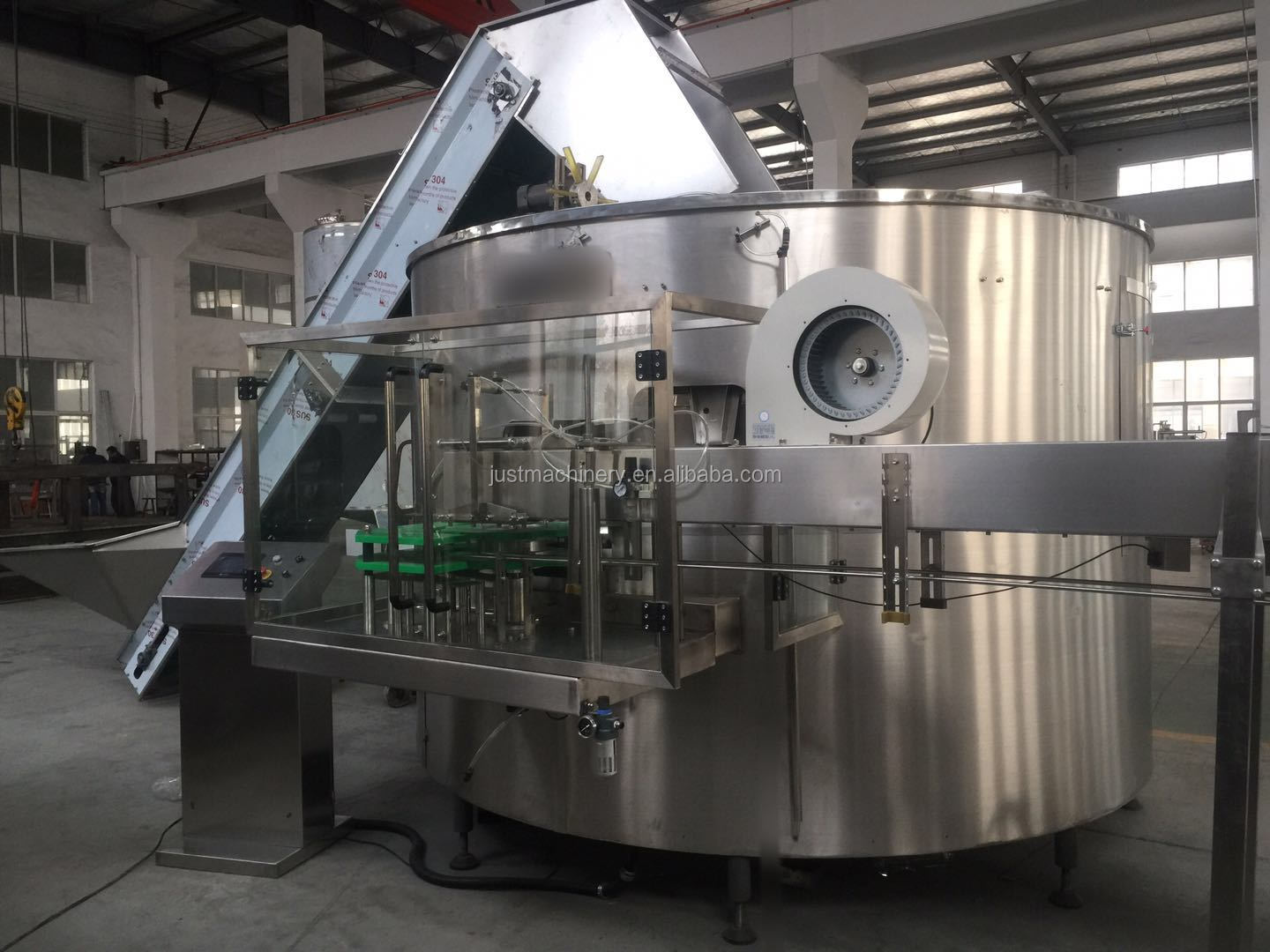

Well Priced automatic plastic bottle unscrambler for sale pet round

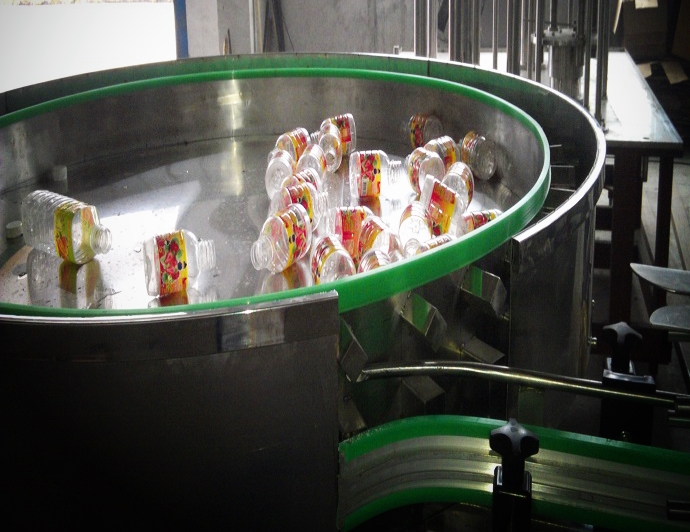

Bottle unscramble
LP-18 Bottle unscrambler is a bottle handling machine based on the advanced technology introduced from foreign countries.It possesses domestic leading technology,invented according to the development need of China’s high-speed beverage filling equipment.
Features:
1) Torque limit part is designed for the main motor reducer so as to protect the machinery if malfunctions occur.
2) Two put-casts in one cycle ensure that every work location should be with one bottle, which enhances bottle output efficiency.
3) The bottles are neck locked through the air conveyor so as to avoid overturn in delivery.
4) Dilapidated bottles will be eliminated by a special device.
5) A lock detector is equipped for alarming; when locked, the machine will automatically stop.
6) A photoelectric switch is set for starting when there is no bottle and stopping when there are bottles.
7) An oil pump will readily fill up the gears, bearings and the cams
8) Maintenance doors and mould replacement door provided.
9) Mitsubishi, Omron and Simons provide the main electrical components; Such as transducers, PLC, photoelectric switch and relays.
10) Machine outer tank,revolving tank and meet the bottle part are all stainless steel AISI304. Frame part adopts high-grade carbon jointing.
|
Model |
LP-12 |
LP-14 |
LP-16 |
LP-18 |
LP-21 |
LP-24 |
|
Output(B/H) |
4000-6000 |
8000 |
12000 |
16000 |
18000 |
22000 |
|
Mainpoewr |
2.2kw |
2.2kw |
3kw |
3kw |
3kw |
3.7kw |
|
Suitable bottle(D*H)(mm) |
(50-90)*(165-290) |
(90-96)*(165-310) |
(50-90)*(165-290) |
(50-96)*(165-310) |
(50-96)*(165-310) |
(50-96)*(165-310) |
|
Machine size |
4500*1700 *2000 |
4500*1700 *2000 |
4800*2300 *2000 |
4800*2300 *2000 |
4800*2300 *2000 |
4800*2300 *2000 |
Semi-auto bottle unscrambler bottle feeding machine bottle handling machine
Parameter(semi-auto)
|
model |
LP-A |
|
Dimension(L*W*H) |
1200*1100*1300mm |
|
Voltage |
220V/380V/415V(Customized) |
|
power |
0.1KW |
|
Weight |
150KG |

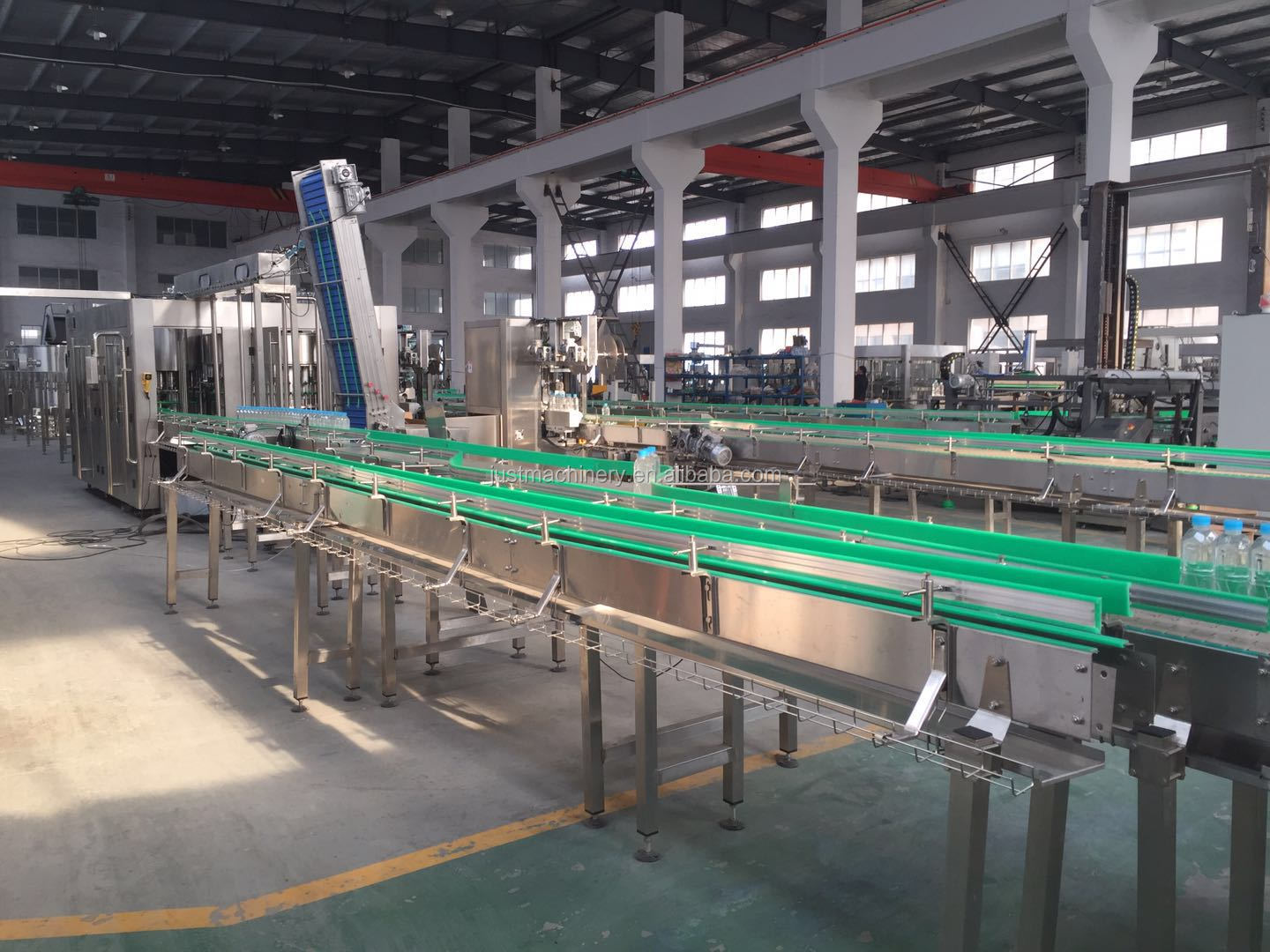

Our Workshop
Our product mainly included:

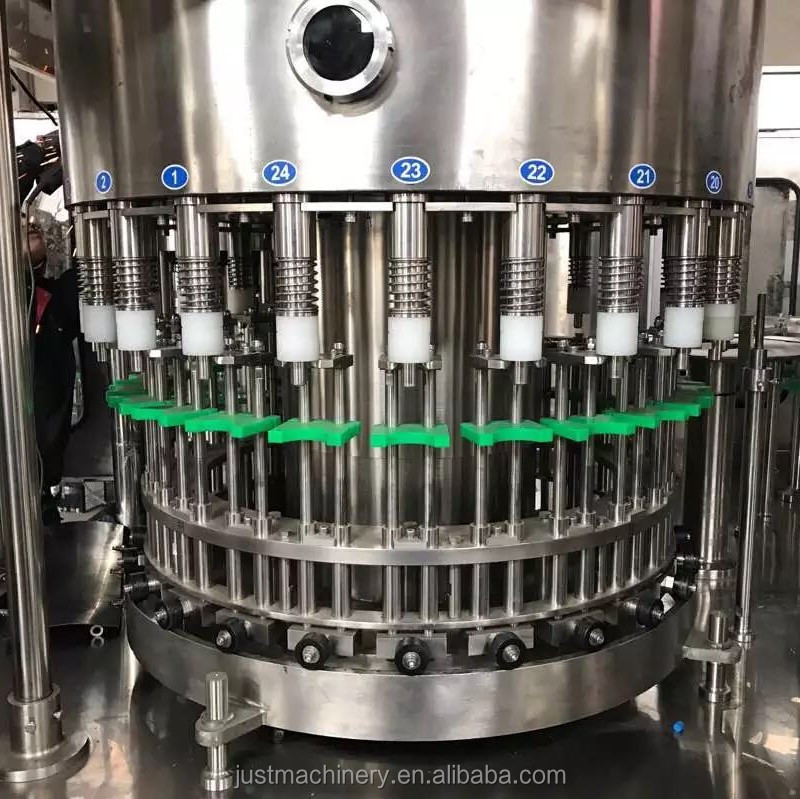

1. drinking water bottling machine, filling machine production line,Water treatment, juice, cola processing plant,
2. Kinds of liquid filling machine, 5gallon barrel filling machinery.
3. Label stick machine, sleeve labeling machine,
4. Film shrink packing machine,
5. automatic and semi-auto carton packing machine, palletizer
6. auto and semi-auto blow moulding machine for water juice soft drink bottles.
Proposal design and make budget
We are capable of providing specialized proposal design and make a general budget for you.
Equipment production&commissioning

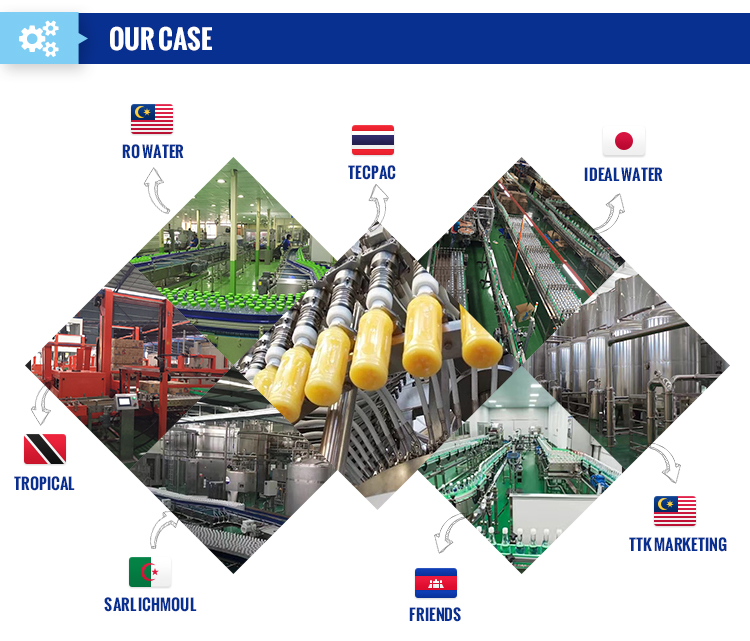

We will arrange the production for you as soon as the order confirmed, and make sure the quality of products, We have client cases in different countries , we can provide theirproduction working video for you .
Factory layout design
Machines and factory layout design is also available after the proposal confirmed.
Bottle shape design
We can also help to do the bottle shape design for you according to your needs.
Label Design
We can also help to design the label for you, and you can share with us your idea too.
Raw Material supply
We are capable of provide one-stop service, so the raw material supply is also available.
After-service
1, the guarantee of our machines is one year, life-long service, also we will supply spare parts along with the machines free of charge, the parts will be enough for at least 3 yearsfor the normal operation of machines.
2, we can train your engineers in our factory free of charge. IMeans you can send your engineers to our factory to study and training, we have rich experiences for the training, it is the good way to make sure that you can operate and maintain our machines successfully and for long time normal use.
3, we will supply you detail user manual for our machines, also we will make one Video CD to show you how to install and maintain the machines, it will help you to maintain the machines for the long time.
4, We will send our engineers to your factory to install the machines and train your staff how to operate the machines., We have been doing the install jobs for our overseas customers for many years.
5.We will help to arrange the shipping of goods for you and keep you posted about the steps.
Q1: Are you manufacturer?
A1:Yes, welcome to visit us ! We can show you our machine running.
Q2: How long of your warranty?
A2: Regarding warranty, normally we offer 1 year warranty, and we offer lifetime maintenance.
Q3: Can you provide turnkey project service?
A3: Yes, of course, we can provide the full set of turnkey project service to you, from raw material, to equipments, installation nd training etc.
Q4. Do you accept OEM order?
A4: Yes, we have strong design team and technical team. Therefore we can also accept OEM and customized order with special requirements.
Q5: What else need to be paid attention besides price?
A5: except for the price, we also need pay attention to quality, product construction, design principle, configuration of part list, reasonability, convenience of operation, professional, service and etc1
drinking water pure water mineral water bottling machine

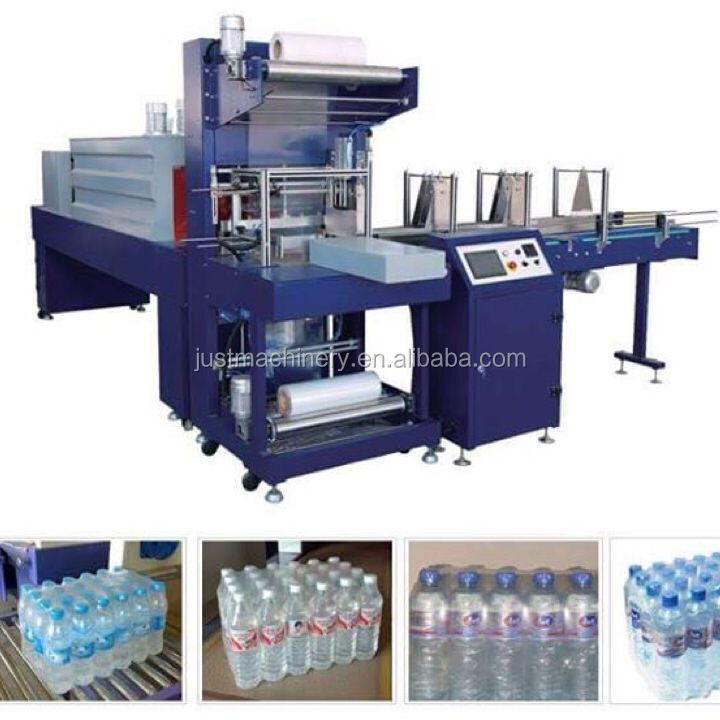

good quality PE film shrink wrapping machine

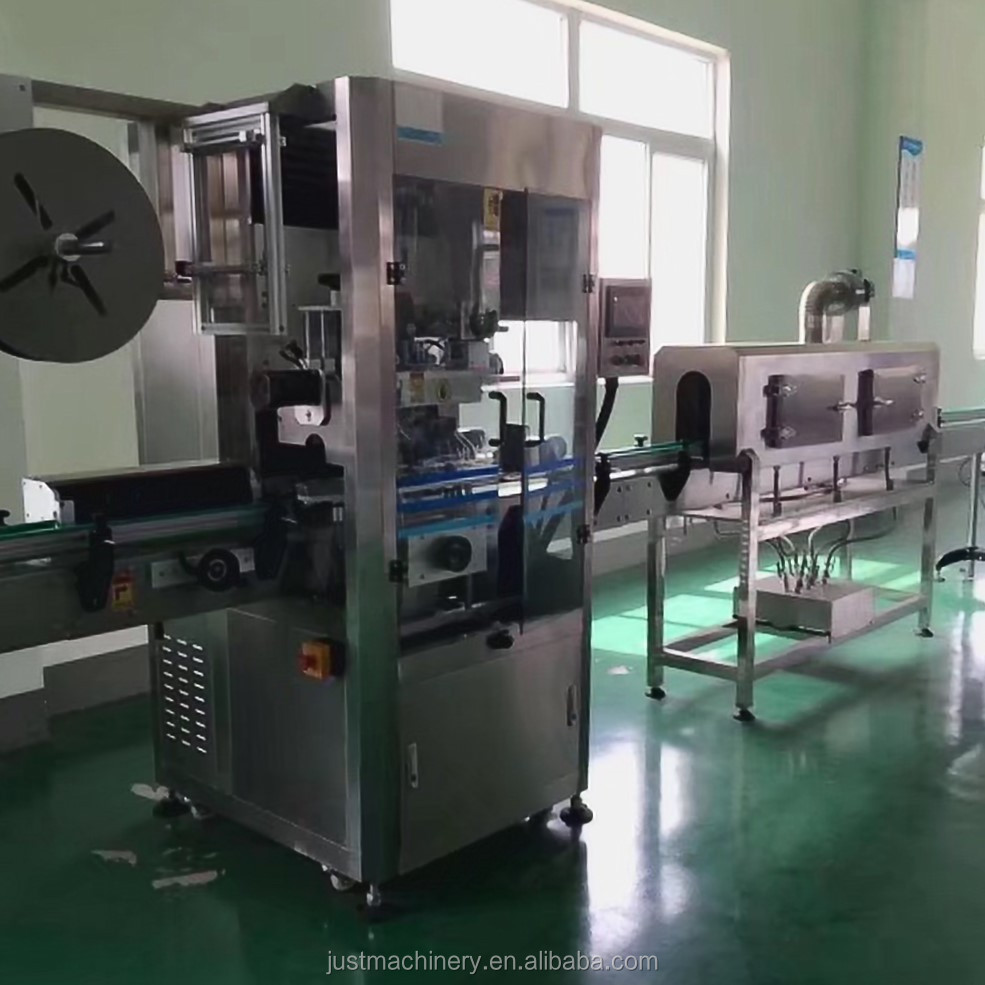

automatic labeling machine

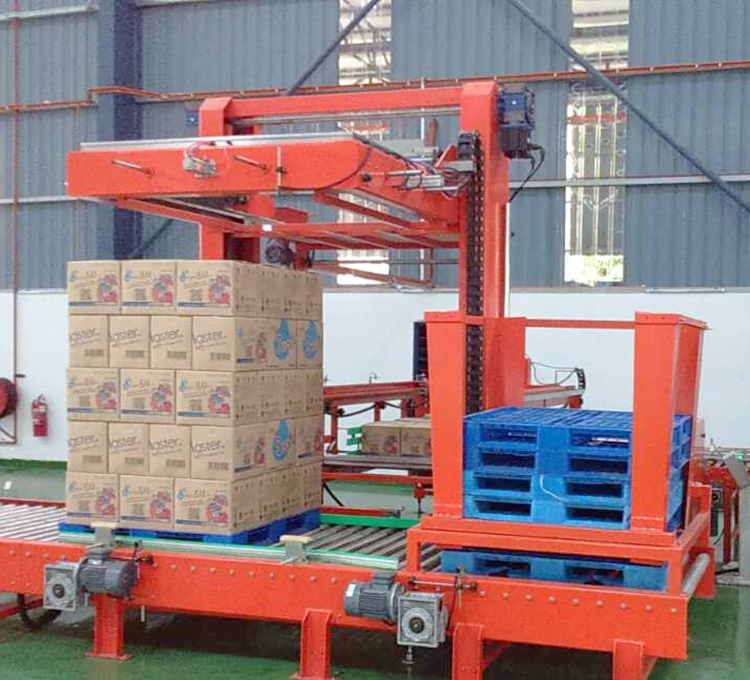

Automatic carton palletizer
