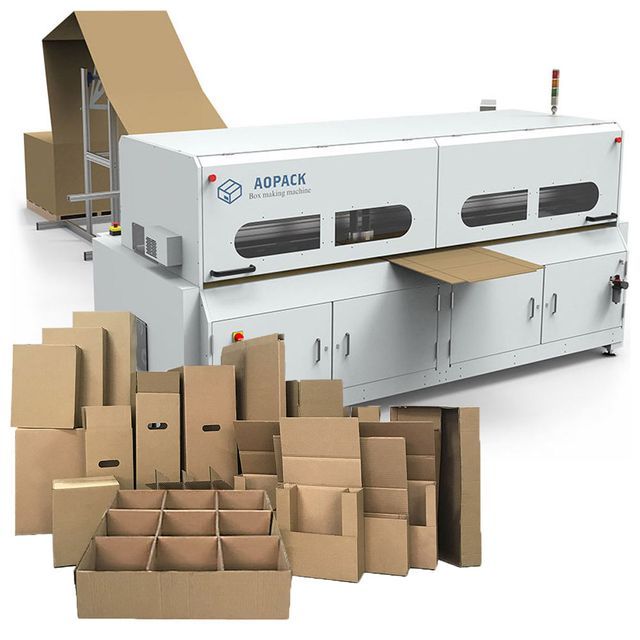

Aopack slotting creasing creasing slitting die cutting multifunctional short version compact automatic box making machine
- $50000.00 /piece
- 1 piece
- Qingdao Aopack On Demand Packaging Co., Ltd.
- Shandong, China
- Ms Anna Qin
PRODUCT DETAIL
| Automatic level: | Automatic box making machine | type: | Packaging line |
| Core component warranty: | 1 year | Package preview: | |
| product name: | Short version compact automatic box making machine | Packaging Details: | Box Making Machine Film Wrapping Wooden Box Pallet Packaging |
| Cardboard Thickness: | 2-10 mm | Warranty: | 1 year |
| Main selling points: | Automatic box making machine | Video outbound inspection: | box making machine |
| Scribing/creasing wheels: | 4 | Corrugated cardboard type: | Single or folded pages (single-layer, double-layer) |
| Health status: | new | Applicable industries: | Hotel, clothing store, building supply store, manufacturing plant, machinery repair shop, food and beverage factory, farm, restaurant, household, retail, food store, print shop, construction, energy and mining, food and beverage store, other, advertising agency , packing box manufacturer |
| application: | Food, beverage, daily necessities, medical treatment, chemical industry, mechanical hardware, clothing, textiles, box making machine | Mechanical test report: | box making machine |
| Driver type: | electrical box manufacturer | Supply capacity: | 150 carton machines per year |
| Production capacity: | About 7-10pcs/min or depends on size and box style. | Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump, box manufacturer |
| brand: | Opak | type of packaging: | Carton, box, box making machine |
| Showroom location: | Egypt, Canada, Turkey, UK, USA, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Indonesia, India, Russia, Spain, Thailand, Korea, Chile, Romania, Japan, Malaysia, Australia, box making machines | Voltage: | box making machine |
| Materials used for packaging: | Paper and box manufacturers | port: | Qingdao port box making machine |
| Vertical cutter: | 4 | Maximum board size: | 2500mm width x unlimited length |
| Origin: | Shandong Province, China | Cardboard Density Range: | up to 1200 g/m² |
| weight: | 3300 kg | Minimum board size: | 200mm wide x 650mm long |
| Dimensions (L*W*H): | 3540(W)*2050(L)*2090mm(H) | Slotting knife: | 2pcs*500mm length |
| payment terms: | L/C, Western Union, T/T, Corrugated box making machine |
Product Description
Aopack slotting creasing creasing slitting die cutting multifunctional short version compact automatic box making machine
technical specifications

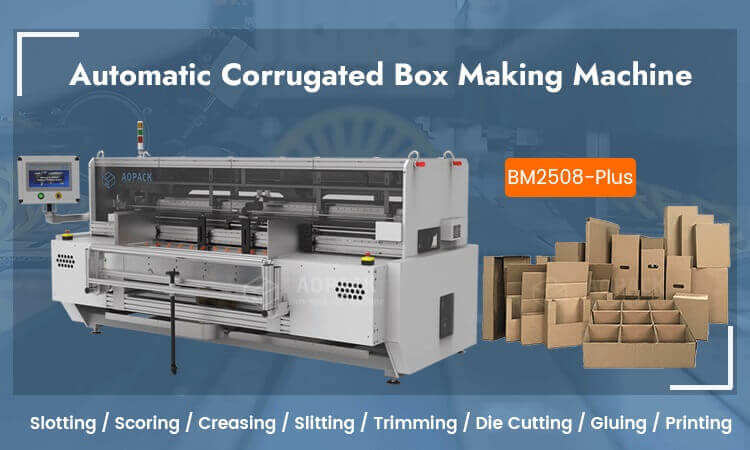

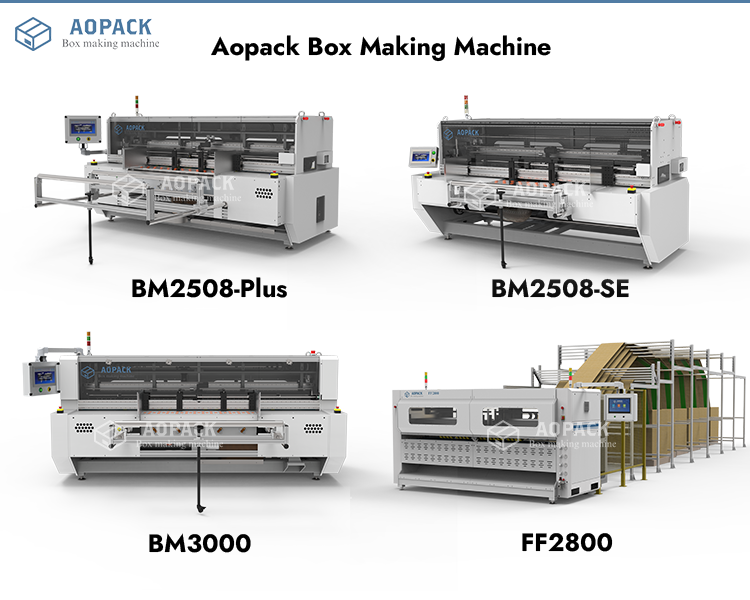

BM2508+ | BM2508SE | BM3000 | ||||
Corrugated Cardboard Type | Sheet or folded paper (single ply, double ply) | Sheets (single layer, double layer) | Single or folded pages (single-layer, double-layer) | |||
Cardboard Thickness | 2-10 mm | 2-10 mm | 2-10 mm | |||
Cardboard Density Range | up to 1200 g/m² | up to 1200 g/m2 | up to 1200 g/m² | |||
maximum. Board size | 2500mm width x unlimited length | 2500mm width x unlimited length | 3000mm width x unlimited length | |||
production capacity | About 7-10 pieces/minute Depends on size and box style. | About 7-10pcs/min depending on size and box style. | About 8-12pcs/min depends on size and box style. | |||

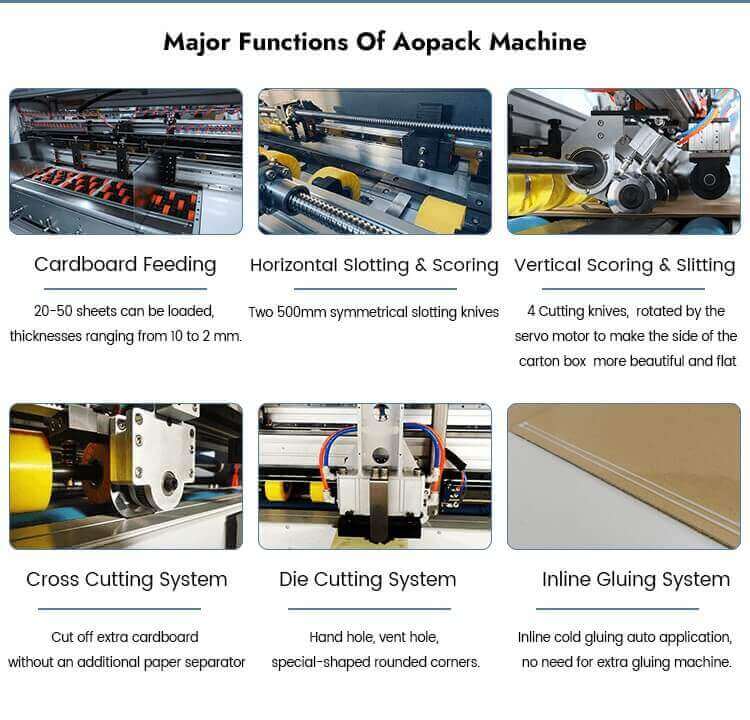

slotting knife | 2pcs*500mm length | 2pcs*500mm length | 2pcs*500mm length | |||
vertical cutter | 4 | 4 | 4 | |||
Crease / Crease wheel | 4 | 2 (option 4) | 4 | |||
Cross cutter | 1 | 1 | 1 | |||
power supply | BM2508-Plus 380V±10%, max. 7 kW, 50/60 Hz | BM2508-SE 380V±10%, maximum 6.2kW, 50/60Hz | BM3000 380V±10%, max. 7.7 kW, 50/60 Hz | |||
air pressure | 0.6-0.7MPa | 0.6-0.7MPa | 0.6-0.7MPa | |||
aspect | 3540(width)*2050(length)*2090mm(height) | 3370(width)*1800(length)*2000mm(height) | 3650(width)*1950(length)*2090mm(height) | |||
gross weight | About 3300Kg | About 2800Kg | About 3500Kg | |||
Automatic paper feeding | Leading edge feeder 1400mm | Front edge feeder 900mm | Leading edge feeder 1400mm | |||
Hand hole on the side of the box | Hand hole module size (120*120mm) | No | Hand hole module size (120*120mm) | |||
Air consumption | 75 l/min | 40 l/min | 75 l/min | |||

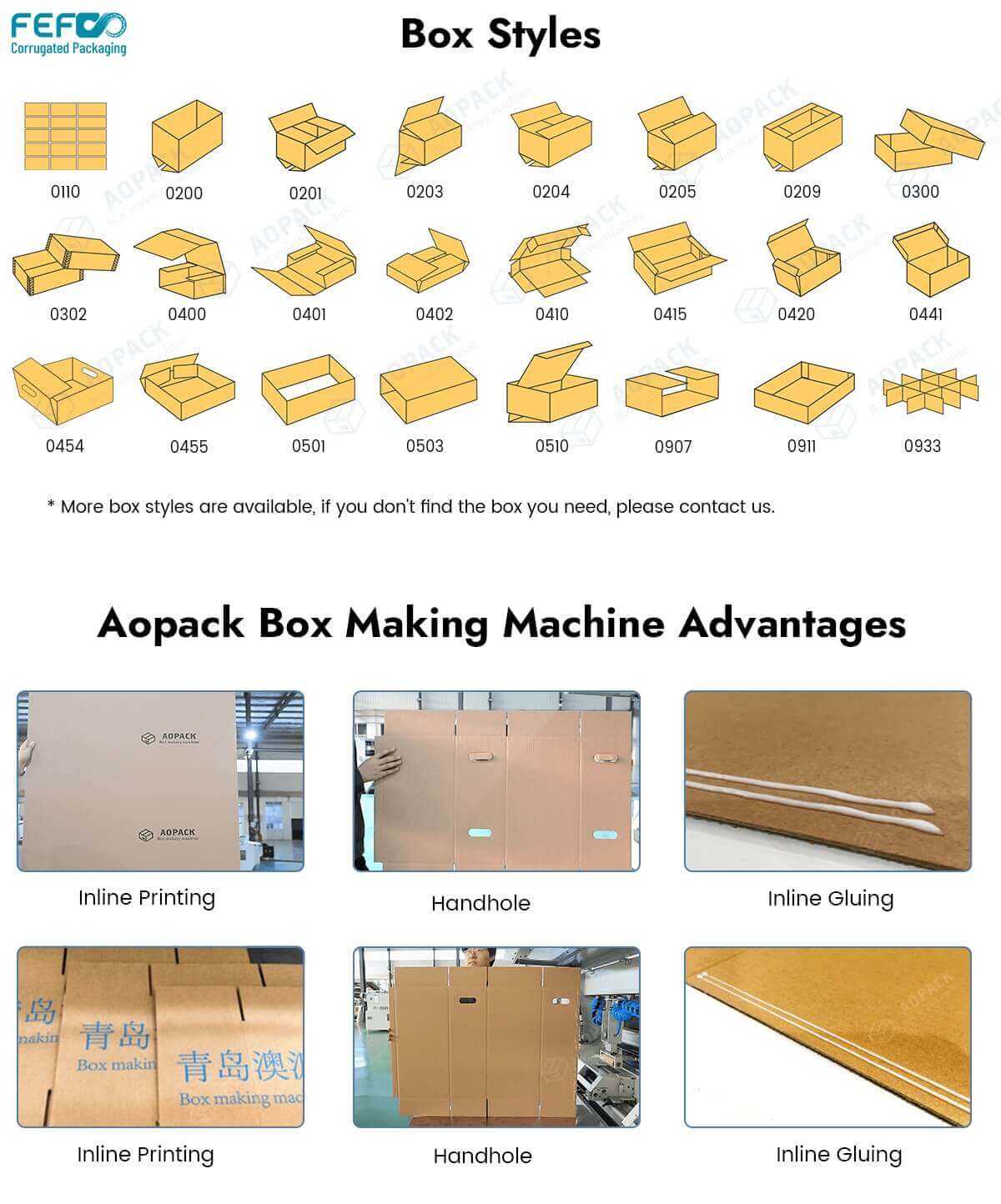

box style | More than 60 Fefco codes | About 27 (36) Fefco codes | More than 60 Fefco codes | |||
All above specifications are for reference only. | ||||||
The final right of interpretation belongs to Qingdao OPEC On-demand Packaging Co., Ltd. | ||||||
Our advantage

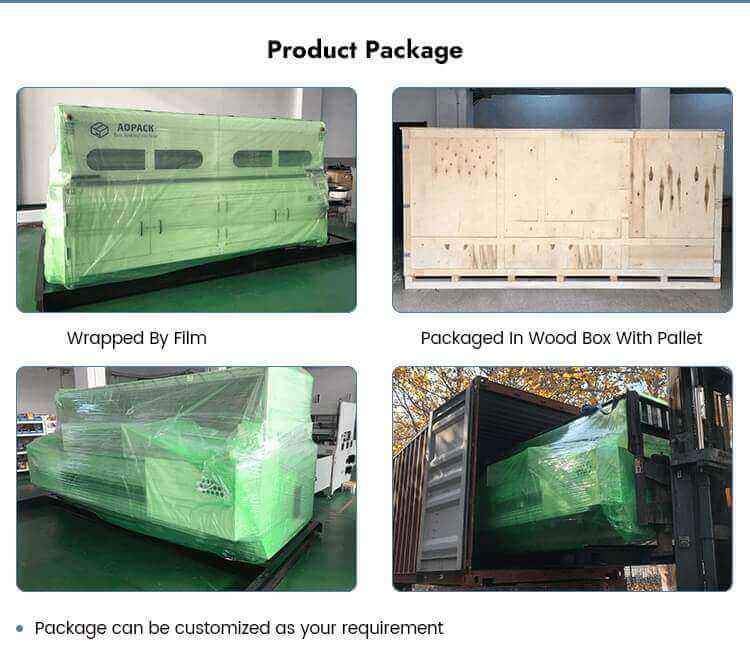

Packaging and Logistics
