5N 100N 200N 500N Push Pull Force Measuring Digital Dynamometer
- $75.00 / 10 - 49 pieces
$70.00 / >=50 pieces - 10 pieces
- Ningbo Osen Sensor Technology Co., Ltd.
- Zhejiang, China
- Ms Cindy Wang
PRODUCT DETAIL
| Store temperature: | -20℃ ~ 70℃; | Brand Name: | OSEN; |
| Work environment: | no vibration and corrosive medium; | Place of Origin: | Zhejiang, China; |
| Port: | Ningbo; | Type: | force measuring instruments; |
| Package Preview: | ; | Non-linearity: | ±0.5%; |
| Model Number: | OS-7657; | Supply Ability: | 5000 Pieces per Month; |
| Power: | Lithium battery, 3.7V/3000mAh; | Automatic shutdown: | 0~99 minutes; |
| Packaging Detail: | foam and carton; | Unit: | N / kgf / lbf; |
| ADC rate: | 1000Hz; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Work temperature: | 0℃ ~ 40℃; | Peak hold: | 0~99 seconds; |
| Relative humidity: | 15% ~ 80%; |
Product Description

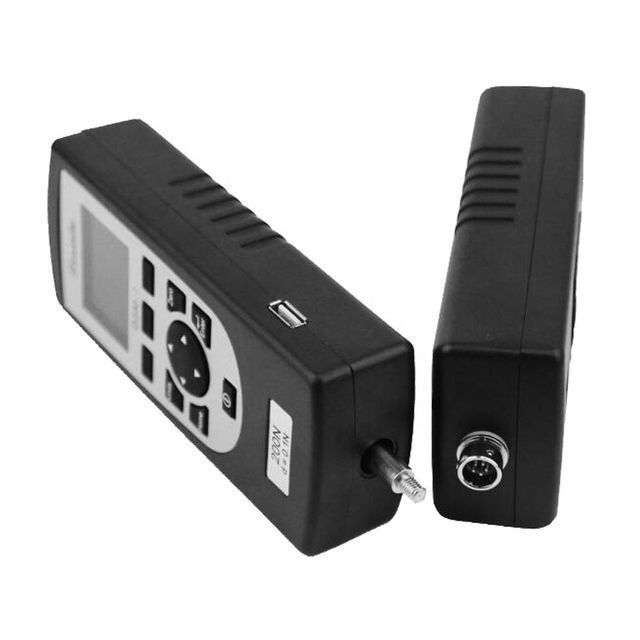

OS-7657 digital force gauge is a universal portable push and pull load testing instruments, has the advantages of small volume, light weight, easy to carry, multi-function, high precision characteristics, is suitable for sliding load testing of various products, insertion force test, destruction test, a small experimental machine and can be combined with all kinds of machine and fixture composition for different purposes.
Load F.S | 2/5/10/20/50/100/200/500N |
Indexing | 0.001/0.005/0.01/0.05/0.1N |
Non-linearity | ±0.5% |
Unit | N, kgf, lbf |
ADC rate | 1000Hz |
Power | Lithium battery, 3.7V/3000mAh |
Work temperature | 0ºC ~ 40ºC |
Relative humidity | 15% ~ 80% |
Sampling rate | 960 Hz |
Peak hold | 0~99 seconds |
1. Free to set upper and lower deviation data, automatically determine whether or not qualified
2. Display flip function: test direction can be 180 degrees turn display
3. Full color display: TFT2.4 ', 320*240262K color LCD
4. Aautomatically calculate the average value, maximum value, minimum value
5. No operation automatic shutdown (0~99 minutes set free)
6. Support for multiple languages
7. Serial output can be connected to the computer for analysis the printing process
8. Gravity acceleration value can be set
9. With the layer menu operation interface original
10. Automatic monitoring of battery, battery instrument will automatically shut down
Related Products
From high precision micro-analysis to more than 100 tons of weighing application, we specialize our products and solutions around various processes of the petrochemical, metallurgical, chemical, port, building material, breeding, paper making, pharmaceutical, food, textile, and logistics industry. Main products: electronic weighing scale (bench scale, floor scale, platform scale, crane scale, animal scale, pallet truck scale), digital weighing indicator, load cell, sensor, weighing module, etc.
Company Introduction

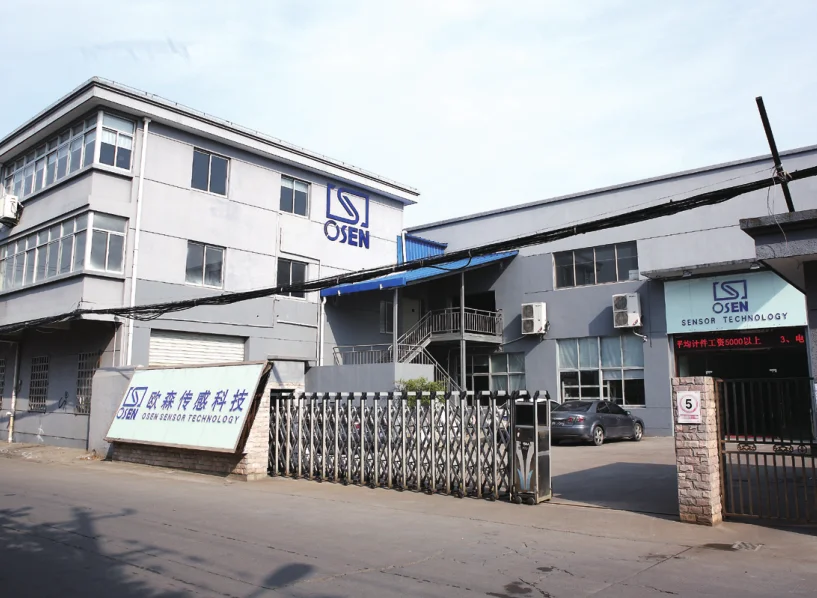

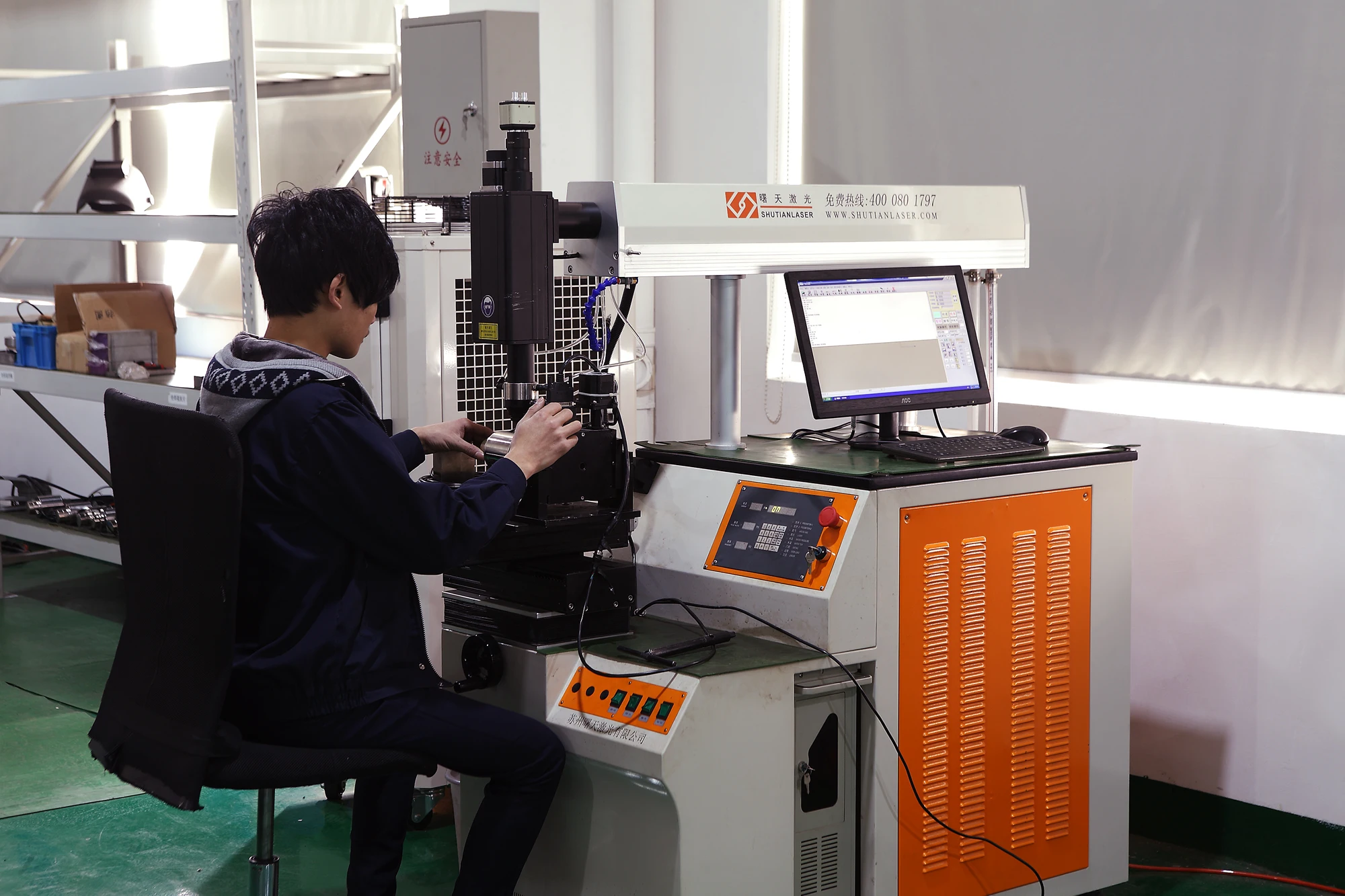

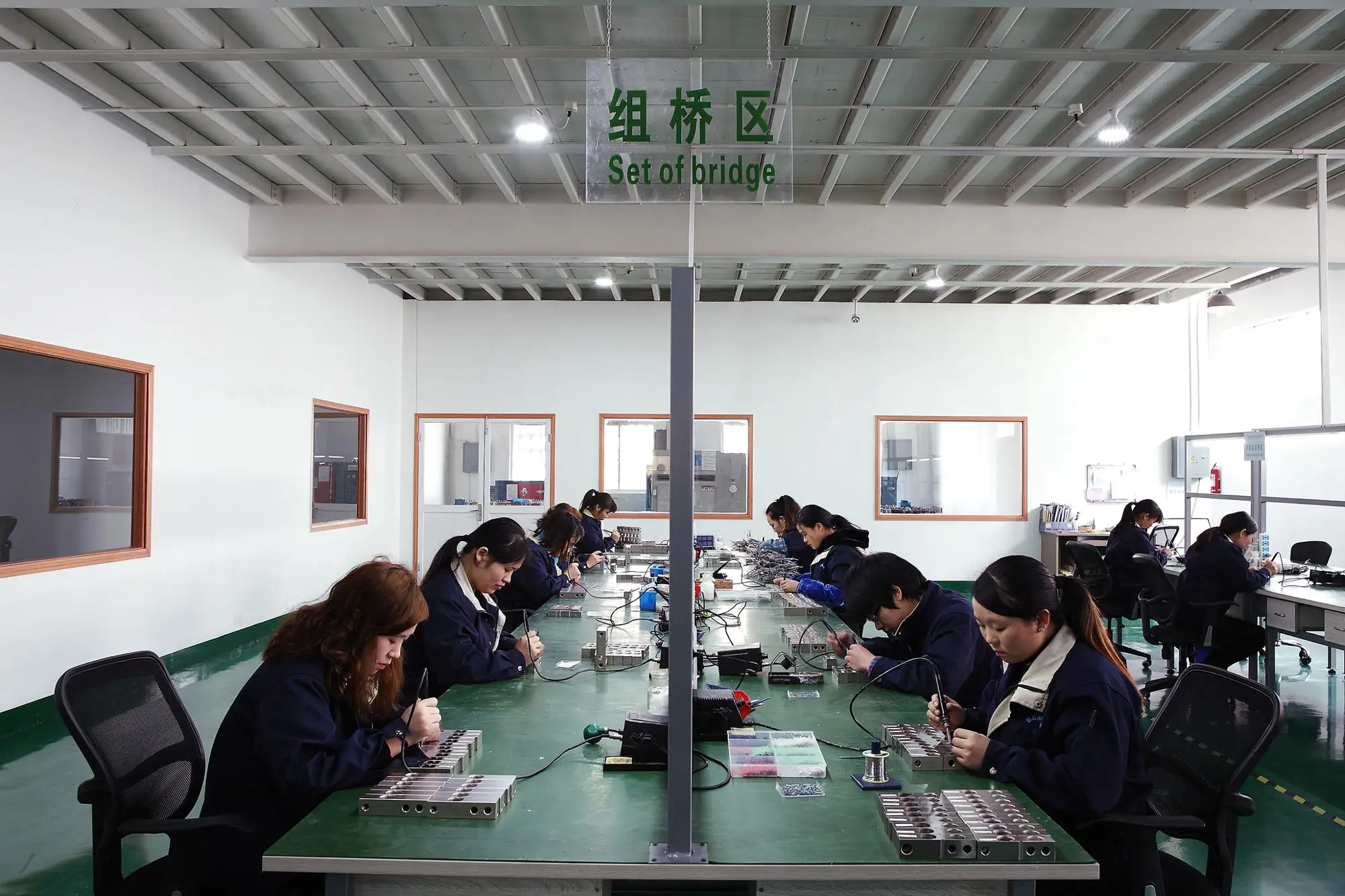

NINGBO OSEN SENSOR is a manufacturer of weighing apparatus and high precision instruments for professional use. Adhering to the business philosophy of "Modular craft, Pipelining production, Integrated brand, Global service", we are responsible for the R&D, manufacturing, solutions, sales and after-sales services of weighing instrument.
OSEN is an experienced company for ODM & OEM service. We have cooperation with well-known enterprises both at home and abroad. We owe our achievement to your trust and the driving force for self-transcendence. We promise to improve performance and reduce costs with abundant energy and passion.

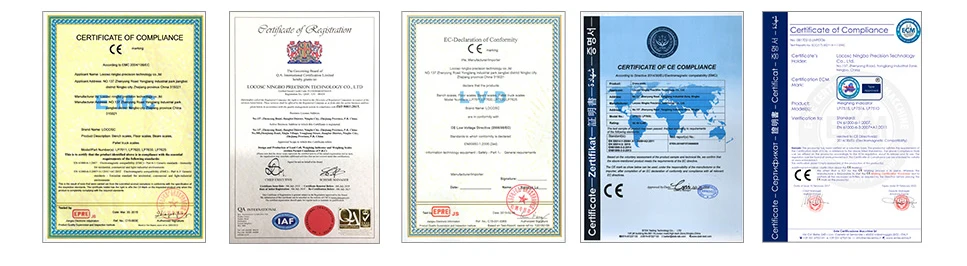

Certifications
At present, the annual production and sales capacity of OSEN is 30, 000 bench scales, 30, 000 floor scales, 4, 000 truck scales, 200, 000 weighing indicators, 500, 000 load cells, 20, 000 crane scales, 20, 000 platform scales, 500 loader scales, and more than 100 weighing systems. Each product of OSEN has its uniqueness and has been awarded many certifications, such as ISO9001, NTEP, OIML, CE.
Packing&Shipping
Our products have been well sold all over China, and 60% of them are exported to North America, Europe, South America, Southeast Asia.
Why Choose Us
1. Your inquiry will be replied within 12 hours.
2. OEM or ODM projects are welcomed.
3. We send samples for customer to check the quality.
4. We provide an English manual for using and maintaining.
5. All products and accessories have been tested by three times before ship out.
6. All products have 1 year warranty. If there is no man-made problems, we will replace/repair freely.
7. We have a professional R&D team.
8. We provide good quality, on-time delivery and competitive price for you.
FAQ
1. Do you have any minimum order quantity limit for load cell?
One piece for sample checking is available, but the sample price is high. In the mass production, unit price depends on the rough idea of Qty., the more the better.
2. What is a load cell and where can I find the explanation of the used terminology?
Load cell is an electrical instrument which is used to convert a mechanical force into an electrical output signal. The terminology for load cells can be found in the OIML R60 regulation for load cells.
3. Will load cells be supplied with a calibration certificate?
All of our load cells will be supplied with a unique calibration certificate with the values determined during the production process.
4. How do I connect a 4-wire load cell to a 6-wire connector?
When connecting a 4-wire load cell to a 6-wire connector, two bridge wires are necessary to connect the wires properly. These bridge wires should be connected between the Exc+ and the Sig+ and the other wire between the Exc- and the Sig-. Please look at the user manual for this solution in practice.
5. Are you a trading company or a factory?
We are a group company specialized in the R&D and manufacture of weighing equipment for 12 years. Our factory is located in Ningbo, China. You can come to visit us. Looking forward to meeting you!
