Amphibious Dredger with cutter suction pump and Hydraulic power pack

PRODUCT DETAIL
Brand Name:SINOWAY;Power Type:Diesel;
Bucket Capacity:0.9 cbm;Dredging Depth:15;
Applicable Industries:Construction works ,Energy & Mining;Packaging Detail:Nude;
Condition:New;Machinery Test Report:Provided;
Warranty of core components:1 year;Type:Cutter Suction Dredger;
Slewing speed:11rpm;Port:Shanghai, Tianjin, Qingdao;
Grade ability:65%;Core Components:Engine,Motor,Pump;
Supply Ability:20 Unit/Units per Month;Marketing Type:Ordinary Product;
Warranty:One year,1 Year;Ground pressure:0.014Mpa;
Place of Origin:China;Video outgoing-inspection:Provided;
Weight:30;Hydraulic flow rate:2x210L/min;
Showroom Location:None;After-sales Service Provided:Video technical support,Free spare parts,Online support,Field installation, commissioning and training,Field maintenance and repair service;
Local Service Location:None;Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Draught:150;
Product Description
Sinoway SWEA220 is a medium scale amphibious excavator, which is enjoying heavies demand in the global market, especially Weast Africa and South America.

Fitted with Isuzu, Cummins or Doosan engines are available with us. The engines produce bigger output and torque, and far better fuel consumption. Sinoway insist on using a mechanical injection engine as we understand that our amphibious excavators must be able to take poor grade fuel.

Features for Sinoway Hydraulic Undercarriage:

The hydraulic undercarriage pontoons are extremely important to an amphibious excavator, Sinoway is pride of his abundant experience on manufacturing pontoons that last. According to your application requirement and working conditions, we are able to design and produce an amphibious excavator specially for your working area covering swamps, salty land, off-shore, river area and so forth.

High grade steel material for Pontoons
Sinoway pontoons are standard made with high grade steel sheets, which is with high tensile strength and good corrosion resistant.
For special applications like off-shore or salty areas, full weathering steel pontoons are also available as optional. For those applications require extra anti-corrosion, Sinoway offer pontoons with marine grade ship plate steel.

Wear-proof Steel Track Cleats
Heavy duty marsh buggy track chains are constructed with high strength tensile steel, the bushings and pins are stronger, each pontoon comes with two or three heavy duty track chains, track cleats are fixed on the chain
pitch welded or bolted. The hardened track chain rollers run in pontoon channels with a strip of wear resistant steel. The drive and idler sprockets are flame hardened to match the hardness of the track chain rollers.

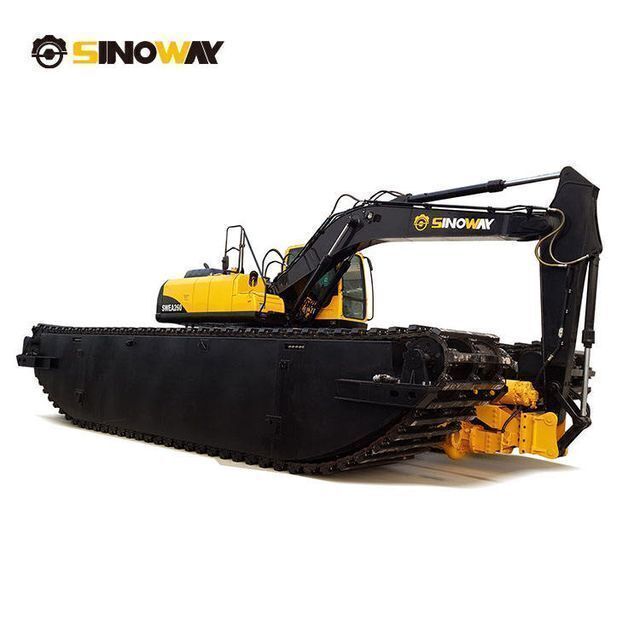

Machine Show
Product Paramenters
Engine

Model
Isuzu/Cummins/Doosan
Type
Six-cylinder,water-cooled turbocharged,mechanical injection
Rated power
110KW
Main Technical Specification

Operating weight
30000Kg
Standard bucket capacity
0.9m3
Slewing speed
11rpm
Stick digging force
97.64KN
Bucket digging force
122.85KN
Main Features

Tracked pontoon structure

Big torque travelling device

Big circular arc structure

High capacity of fuel tank

Main Applications

River/Beach earth moving

Swamp works

Dredging applications

Delta works

Waterway deepening

Hydraulic System

Main pump
KAWASAKI
Main valve
KAWASAKI
Motor
KAWASAKI
Hydraulic flow rate
2x210L/min
Hydraulic pressure
32MPa
Travelling System

Travelling speed
0~5.4km/h
Grade ability
65%
Ground pressure
0.014MPa
No. of chains
300%
Dimensions

Overall length
11200mm
Overall width
5350mm
Overall height
3900mm
Ground clearance
1192mm
Length of pontoon
8000mm
Width of pontoon
1500mm
Height of pontoon
1500mm
Optional

Wide bucket

Operating Scope

Stick length
2900mm
A: Max. cutting height
10577mm
B: Max. dumping height
7810mm
C: Max. digging depth
5704mm
D: Max. reach
10000mm
