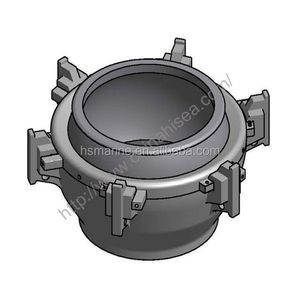

DN750 Dredge Ball Joint
- $2000.00 /piece
- 1 piece
- Chongqing Hi-Sea Marine Equipment Import & Export Co., Ltd.
- Chongqing, China
- Ms Jun Xie
| Condition: | New; | Tilting Angle: | 15degrees,18degrees; |
| Supply Ability: | 1000 Pieces per Month; | Model Number: | dredge ball joints; |
| application: | dredging project or discharge pipeline; | color: | according to client's requirement; |
| material: | wear-resisting steel; | Dimension(L*W*H): | Customized; |
| Warranty: | 1 year; | Place of Origin: | Chongqing, China; |
| Port: | any ports of china; | working pressure: | 10bar,20bar,30bar; |
| Power Type: | Diesel; | Draught: | 700 cm; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Dredging Depth: | 35 m; |
| tension: | 100ton; | Type: | dredger; |
| Brand Name: | HI-SEA; | Certification: | BV,CCS,DNV,LR; |
| Packaging Detail: | standard export packing; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Weight: | 2t; | Delivery Detail: | Shipped in 30 days after payment; |
| size: | DN400 to DN1200; |
Dredging Ball Joints :
DN750 Dredging Ball Joints :
DN750 Dredging ball joints features:
1.Pipe through ball construction
2.Ball joint to be welded to the dredge pipe
3.Exchangeable case liner
4.Exchangeable rubber seal
5.Ball joint can be customized to client’s requirements.
Technical Specifications
Dredge pipe(ID) | Max. Width | Height | Finished weight | Tilting angle |
750mm | 1550mm | 1100mm | approx. 2300kg | 15° |
NOTE:We can provide customer with the best suitable solution and lowest cost , the dredge ball joints are designed in six different types, giving variations of tilting angle from 15 to 18 degrees and duties from 10 bar to 30 bar.

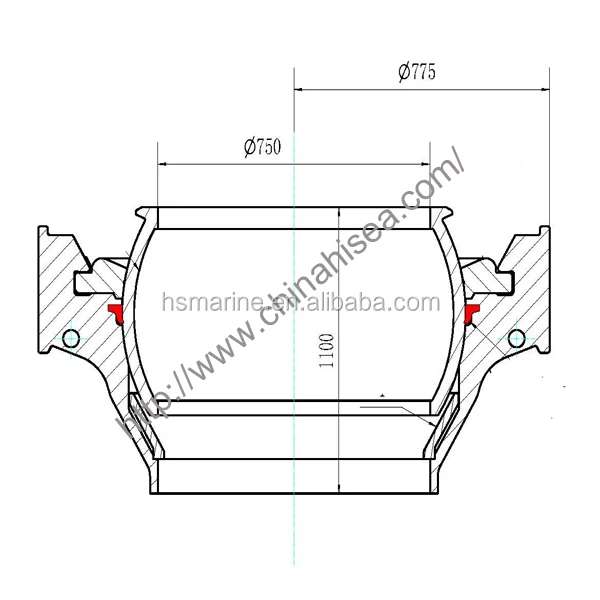

DN750 dredge ball joint drawing
Materials used:
Ball: ZG30Mn
Case: ZG30Mn
Gland: ZG30Mn
Liner: ZG30Mn
Seal: NBR
Lock: Q345

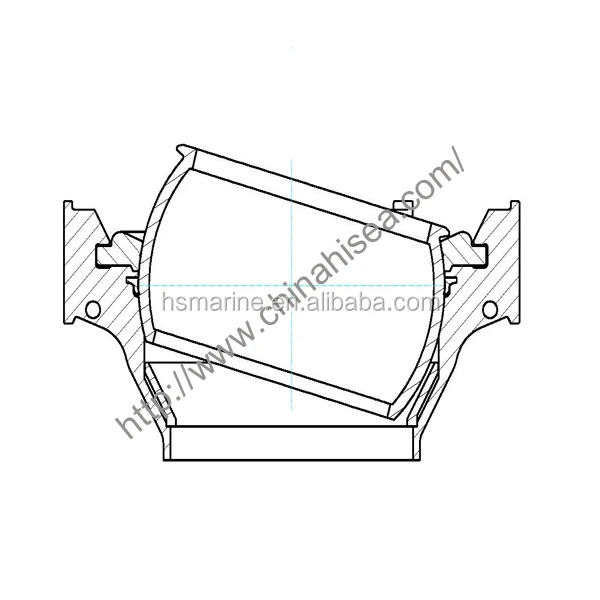

15°DN750 dredge ball joint
