DFV-D50 20-50 m 20-50 m Excavating robot for drainage of pipeline / tunnel for excavation of robots
- $249000.00 /set
- 1 set
- Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.
- Henan, China
- Ms Lisa Si
| Applicable industries: | construction project | Mechanical test report: | if |
| Power Type: | electrical | Core Components Warranty: | 1 year |
| strength: | 21KW | weight: | 1100kg |
| payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram | brand: | defy |
| type: | underwater dredger robot | After-sales service provided: | Video technical support, online support, on-site installation and debugging training |
| Key words: | water master dredger | Showroom location: | not any |
| Craft: | pump | place of origin; place of origin: | Henan, China |
| Dredging depth: | 50 meters | draft: | 5000 cm |
| Dimensions (L*W*H): | 2750*1300*1150mm | application: | dredging, river dredging, tunnel dredging |
| work place: | underwater, tunnel | structure: | Q345D body |
| Supply capacity: | 100 sets per quarter | feature: | Environmentally friendly and easy to operate |
| operating system: | Hydraulic control system | Marketing Type: | Hot Products of 2019 |
| Core components: | motor, pump | Certification: | International Organization for Standardization |
| Local service location: | not any | Packaging Details: | DFV-D50 20-50m Hydraulic Crawler Drainage Pipe/Tunnel Dredging Robot One 20ft Container |
| Warranty: | 1 year | product name: | 20-50m Hydraulic Crawler Drainage Pipe/Tunnel Dredging Robot |
| Health status: | new | Key words: | Tunnel Dredging Robot |
| Video external inspection: | if | port: | Shanghai, Qingdao or as needed |

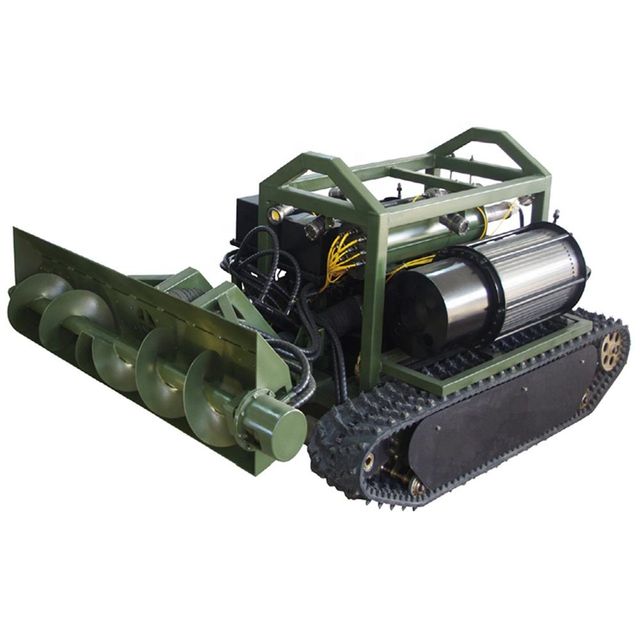

DFV-D50 20-50m Hydraulic Crawler Drainage Pipe/Tunnel Dredging Robot
Advantages of ROV Dredger Robots
Remote operation
Controlled from the ground and equipped with rail, auger and submersible pump
Small size
Easily reach hard-to-reach places that require attention but are difficult to clear accurately
easy to operate
Remote operation by one operator via a mobile control platform. Easy to plan and correct lessons.
smart sensor
Sensor payload monitors robotic dredger location and performance
high precision
Accuracy in last mile dredging, hard to reach areas
cost effective
Less manpower and fuel for dredging per cubic meter
Environmental friendly
Fewer sediment plumes in dredging activities and fewer emissions during operation

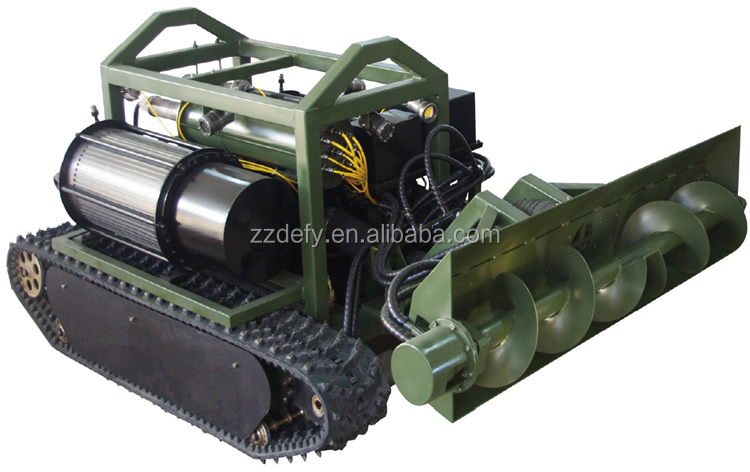

Introduction of Dredger Robot
Underwater dredging ROV is mainly used for dam dredging, circulating pool dredging, urban pipeline dredging, and large-scale pipeline dredging. The whole machine adopts a small body design, Q345D material, the diving depth can reach 50M, and is equipped with a waterproof cable. The robot moves forward, and the sludge is collected to the suction nozzle through the sludge recovery device, sucked into the sludge through the sewage suction pump, and then discharged through the sewage pump. Can walk into sludge and pipes, high tension and long service life. Equipped with 700tvl professional camera, it can be used in muddy water to observe the internal pipeline condition in all directions.
The underwater dredging ROV is small in size, easy to operate and has high dredging efficiency. It can also be customized for customers according to the on-site pipe diameter. Usually, 2 to 3 people can quickly complete the inner work of the pipeline.
Typical applications include:
1. Canal Dredging
2. Protection items
3. Dredging Industrial Lagoons
4. Dredging Municipal Sewage Lagoons
5. Emergency Management - Flood, Pollutant Removal
6. Environmental Restoration, Pond and Lagoon Management: Dredging
7. Drinking water treatment
8. Removal of municipal and industrial waste
9. Remove sticky waste
10. Remove sand and gravel
11. Solid waste and landfills: removal and management
Parameters of underwater dredging robot
|
Robot part |
|
|
size and weight |
2750*1300*1150mm (with agitator) 1950*1300*1150mm (without agitator) 1400kg; |
|
Material |
Stainless steel material, corrosion-resistant, can be used in sea water and fresh water |
|
Power Systems |
powered by hydraulics |
|
observation system |
Adopt high-definition turbid water network camera, minimum illumination 0.001 lux, super night vision, automatic day and night switching. |
|
Light |
Front 3*50W LED light; Rear 1*50W LED light; |
|
cable control system |
The outer diameter is 22 mm and the total length is 100 m. It is covered with two layers of load-bearing steel wire pin armor and rubber protective layer. Maximum load 1000kg |
|
Depth & Speed |
The submerged depth is 15m, and the travel speed is 5-26 m/min; |
|
sensor |
Depth sensor, temperature sensor, three-dimensional electronic compass; |
|
track |
High wear-resistant rubber track, 255mm wide and 4015mm long. |
|
main control part |
|
|
main control system |
Independent research and development, display parameters include machine orientation, hydraulic system parameters, battery temperature, video overlay, and photography; |
|
Power Systems |
The robot and sludge treatment unit are powered by 200kW electric control cabinet and substation system, and have safety protection function. |
|
winch |
The electrical cabinet is integrated with the wire take-up device, and the construction is safe and convenient. |
|
advantage |
Full hydraulic drive winch system, strong impact resistance, 1700mm length can well complete underwater operations. |

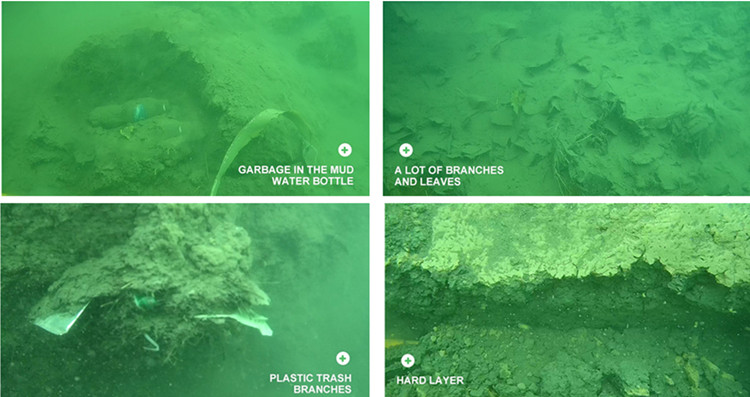

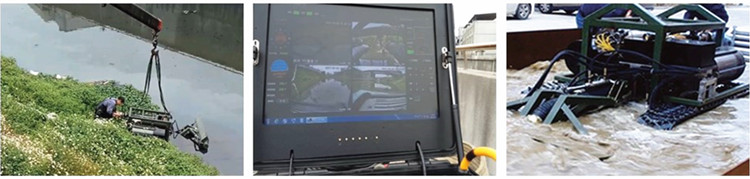

The operating environment is complex and diverse, and the amount of garbage and silt compacted is large. The bulk of the litter was within view of channels, front of gates and diverter wells. formed over a long period of time. Please refer to the image below for details.

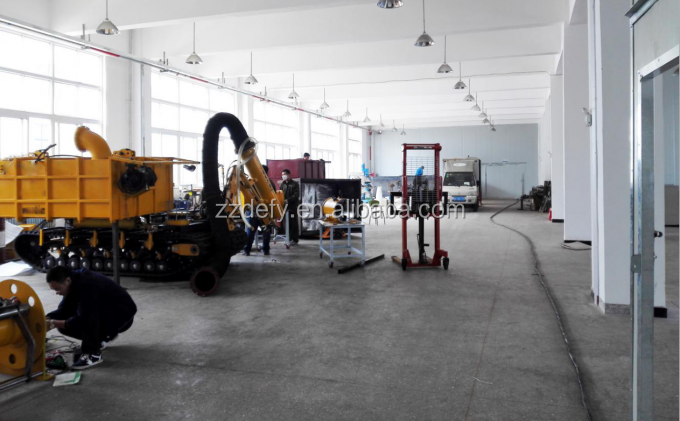

DEFY Corporation
Defy offers a dredging solution based on continuously teleoperated robotic dredgers that travel on the bottom of the water. The dredger robot can move easily with minimal impact on the environment. Continuous monitoring of water quality and sludge location allows for timely or continuous dredging. Continued dredging will improve water quality, have less ecological impact, and reduce the cost of dredging challenging locations as well as large maintenance dredging projects.
All our ROV products and underwater robot products meet international quality standards and are well received in a variety of different markets around the world.
Please scan the QR code to view the office panorama
If you can tell us details about your dredging project, we are happy to provide the best offer
WHATSAPP/WeChat/Tel: +8618681448031
