Power jet gold suction machine for sale
- $5150.00 / 1 - 2 sets
$5100.00 / >=3 sets - 1 set
- Qingzhou Real Mining Equipment Science Technology Co., Ltd.
- Shandong, China
- Mr Michale Meng
PRODUCT DETAIL
| weight: | 280kg | Core Components Warranty: | 1 year |
| visit the factory: | very welcome | Dredging depth: | 10 m underwater |
| usage: | Gold and Gem Recycling | type: | portable |
| Engine power: | 6.5 horsepower*2 sets | structure: | gather |
| draft: | 50 inches | Applicable industries: | Energy and Mining |
| product name: | 6 inch jet suction mining dredger | Ability to work: | About 12 cubic meters per hour |
| Mechanical test report: | if | brand: | real |
| Marketing Type: | normal product | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| port: | Qingdao | work place: | river |
| Showroom location: | not any | Packaging Preview: | |
| Packaging Details: | 3-layer wooden box | place of origin; place of origin: | Shandong China |
| Power Type: | gasoline | Dimensions (L*W*H): | 1.95*1.35*1.2m |
| Health status: | new | Air compressor: | include |
| Rubber mat: | Gold hot type | Warranty: | 1 year |
| Supply capacity: | 200 sets per month | Video external inspection: | if |
| Dredging depth: | 10 m | Core components: | Engines, motors, pumps |

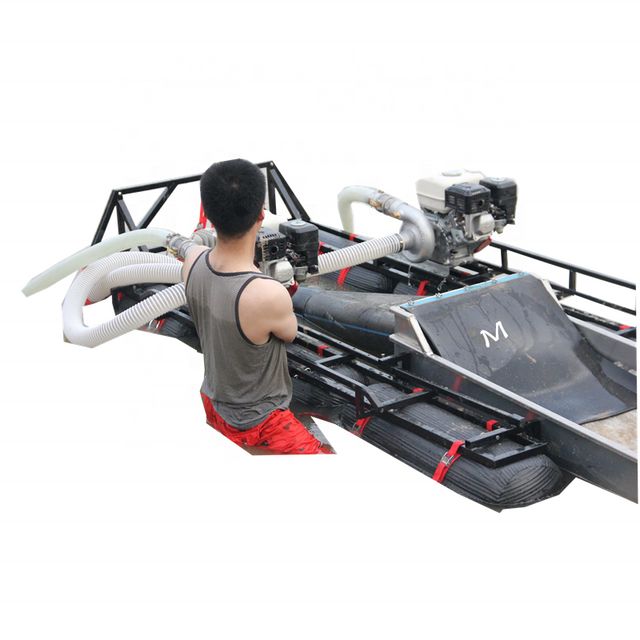

Light 6 inch gold mining dredger

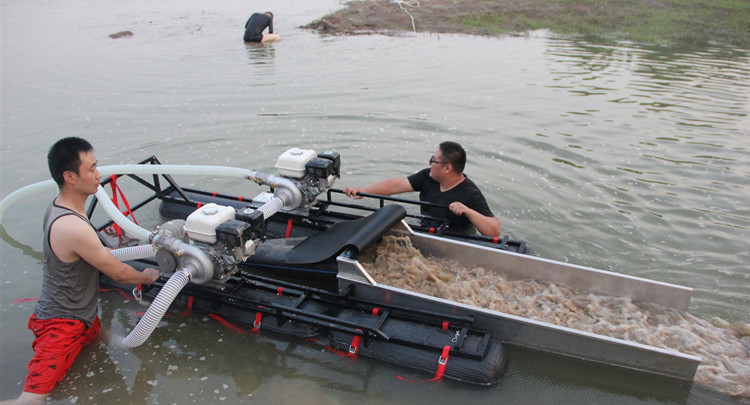

These new 6 inch dredges are economical and portable equipment.

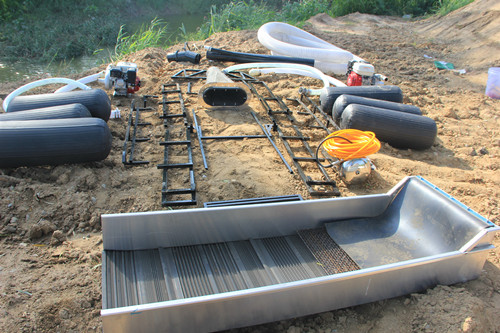

These dredgers can be quickly and easily broken down into small parts, and two people can transport the dredger by hand.
The lock box is set on the water surface to reduce water lift and increase suction. The two smaller Honda gasoline engines are powerful and have good fuel economy.
The engine provides greater suction depth, up to 8 meters. The lock box contains rubber pads for the recovery of fine gold and precious stones.
All dredgers are equipped with a T80 compressor, which provides a sufficient air supply for 1-2 divers.
The suction system is equipped with oversized powered jets and a dual ejector system to reduce the occurrence of rock clogging. Installed on a modular cross-linked flotation module, measuring 6 pieces of high-impact inflatable rubber buoys, the assembled dimensions are about 1.3m wide and 3.9m long.
The gate dimensions are 0.65m wide and 1.7m long. All frames are reinforced to provide a more stable work platform.
These dredgers can be quickly and easily broken down into small parts, and two people can transport the dredger by hand.
The lock box is set on the water surface to reduce water lift and increase suction. The two smaller Honda gasoline engines are powerful and have good fuel economy.
The engine provides greater suction depth, up to 8 meters. The lock box contains rubber pads for the recovery of fine gold and precious stones.
All dredgers are equipped with a T80 compressor, which provides a sufficient air supply for 1-2 divers.
The suction system is equipped with oversized powered jets and a dual ejector system to reduce the occurrence of rock clogging. Installed on a modular cross-linked flotation module, measuring 6 pieces of high-impact inflatable rubber buoys, the assembled dimensions are about 1.3m wide and 3.9m long.
The gate dimensions are 0.65m wide and 1.7m long. All frames are reinforced to provide a more stable work platform.
Product Specifications
Engine & Pump | Air compressor | maximum depth | Maximum capacity | straw |
2*6.5hp&P180 | T80 | 8 meters | 12 cubic meters/hour | 6"*10m |
Product advantages
1. The dredger can be quickly and easily broken down into small parts, and two people can carry the dredger manually;
2. The deck has a large carpeted walkway that accommodates several divers and facilitates all working parts of the dredger.
3. The gate box is set on the water surface to reduce the water lift and increase the suction force, and the winch leveling system performs precise tilting and gate box adjustment;
4. Equipped with world famous rubber pads, specially designed for excellent gold recycling;
5. The suction system is equipped with super power jet and double ejector system to reduce the occurrence of stuck stones;
6. The frame is reinforced, and the working platform is more stable;
7. The original T80 air compressor can supply air for divers.
2. The deck has a large carpeted walkway that accommodates several divers and facilitates all working parts of the dredger.
3. The gate box is set on the water surface to reduce the water lift and increase the suction force, and the winch leveling system performs precise tilting and gate box adjustment;
4. Equipped with world famous rubber pads, specially designed for excellent gold recycling;
5. The suction system is equipped with super power jet and double ejector system to reduce the occurrence of stuck stones;
6. The frame is reinforced, and the working platform is more stable;
7. The original T80 air compressor can supply air for divers.
detailed picture
Engine & Pump & Air Compressor

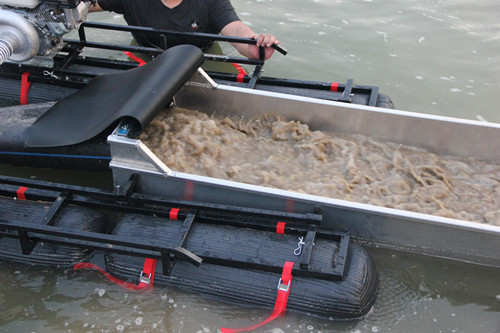

Brake box with rubber pad
Power Jet & Nozzle
Inflatable rubber float
Sturdy frame and quick connect
Air pipe & water tank
Pre-sales and after-sales service
Pre-sale:
After sales:
1. Understand the actual mining situation of customers, and recommend suitable equipment according to the actual needs of customers;
2. Support customer customization.
1. 24 hours*365 days online support;
2. Engineers and workers can be sent to the customer's mine for assembly and debugging.
