Automatic High Speed Carbon Steel Wire Straight Line Wire Drawing Machine
- $6000.00 /set
- 1 set
- Shijiazhuang Satle Machinery Manufacture Co., Ltd.
- Hebei, China
- Mr Yongjun Du
| Brand Name: | SATLE; | Lifetime: | Durable; |
| Speed: | 12m/s; | Power: | 22KW/30KW; |
| Certification: | CE/ISO9001; | Type: | LZ straight line wire drawing machine; |
| Port: | Tianjin Port; | Warranty Of The Capstan: | 2 years; |
| Place of Origin: | Hebei, China; | Warranty: | 1 Year; |
| Supply Ability: | 100 Sets per Year; | Year: | 2019; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Usage: | Metal Wire Drawing; |
| After-sales Service Provided: | Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support; | Quality: | High Standard; |
| Dimension(L*W*H): | 1.3m*1.8m*1.3m; | Condition: | New; |
| Weight: | 1500KG; | Drawing Material: | Iron wire, carbon steel wire,stainless steel wire , copper wire,etc; |
| Voltage: | 380V; | Outlet Diameter: | 2.0mm; |
| Capstan: | 550mm; | Inlet Diameter: | 6.5mm; |
| Motor: | Inverted Motor; | Packaging Detail: | water proof plastic film or as request; |
Automatic High Speed Carbon Steel Wire Straight Line Wire Drawing Machine
Model | LZ400 | LZ550 | LZ700 | |
Inlet Wire Dia. | mm | 3.2 | 6.5 | 8 |
Outlet Wire Dia. | mm | 0.8 | 2.0 | 5.4 |
Number of drawing capstan | 8 | 9 | 4 | |
Motor | Inverted motor | Inverted motor | Inverted motor | |
Single Power | kw | 11 | 22 | 22 |
Max speed | m/s | 12 | 12 | 10 |
Dia.of capstan | mm | 400 | 550 | 700 |
Material of the capstan | Steel coated tungsten carbide | Steel coated tungsten carbide | Steel coated tungsten carbide | |
Warranty of capstan | month | 24 | 24 | 24 |
Main steel plate thickness | mm | 16 | 16 | 16 |
Warranty | month | 12 | 12 | 12 |
Drive mode | Deduction gear | Deduction gear | Deduction gear | |
Control system | PLC | PLC | PLC | |
PLC | Siemens | Siemens | Siemens | |

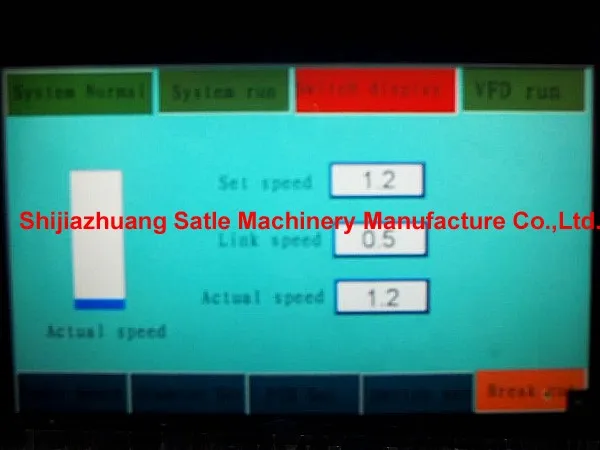

Operation | Touch screen | Touch screen | Touch screen |

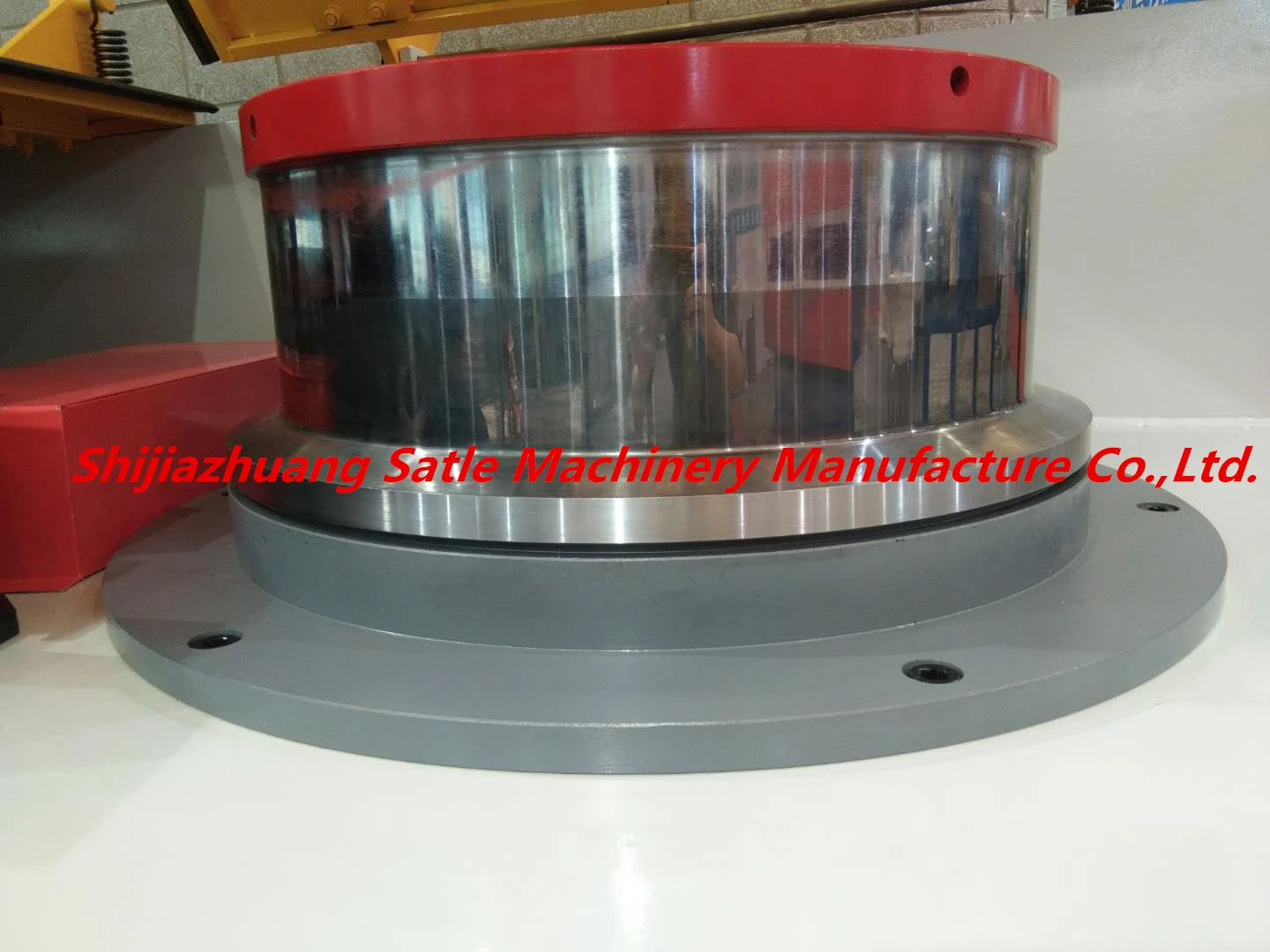

Capstan structure
Material is ZG45 steel casting blank body, after quenching and tempering treatment, HB250. Dig 5mm depth on the working surface of capstan, then melt the tungsten, cobalt carbide, overlay welding. Then rough lathing, precision lathing, grinding and polishing, surface roughness can reach to 0.08μm, hardening layer height 300mm, depth more than 3mm, HRC 58-62.
Capstan cooling
The main shaft of capstan is fixedly install an upper spiral water jacket, below is a water wheel. Capstan is mounted on the spindle, the lower part of water jacket and capstan inner wall form 10-15mm water storage. Circulation cooling water from the upper o water jacket to capstan inner wall, the water cabin is filled with cooling water will adequately cool the wounded steel wire. When capstan rotating, spiral groove will keep the cooling water to rise, then flow down along the capstan wall, discharge the water through the upper outlet, forming good circulation water cooling.
Drawing Dies
The drawing dies, besides the finished rolls, all rolls about 8 ° tilt to keep the wire reel maximum amount of plot lines and wire straight toward. Tuning rollers apply anti-pull the wire, to reduce mold drawing force.

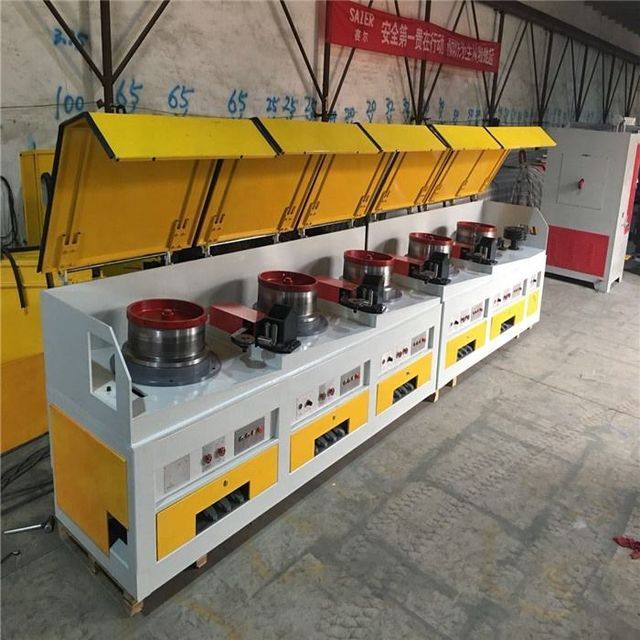

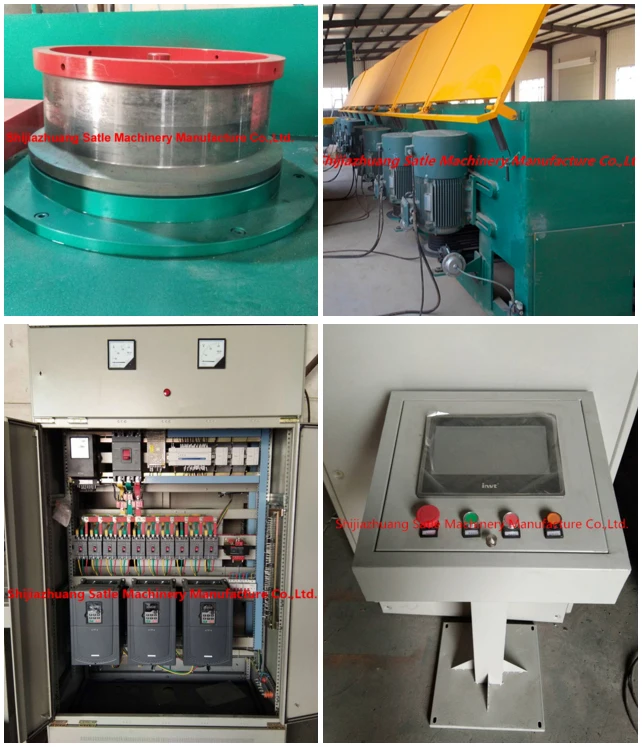

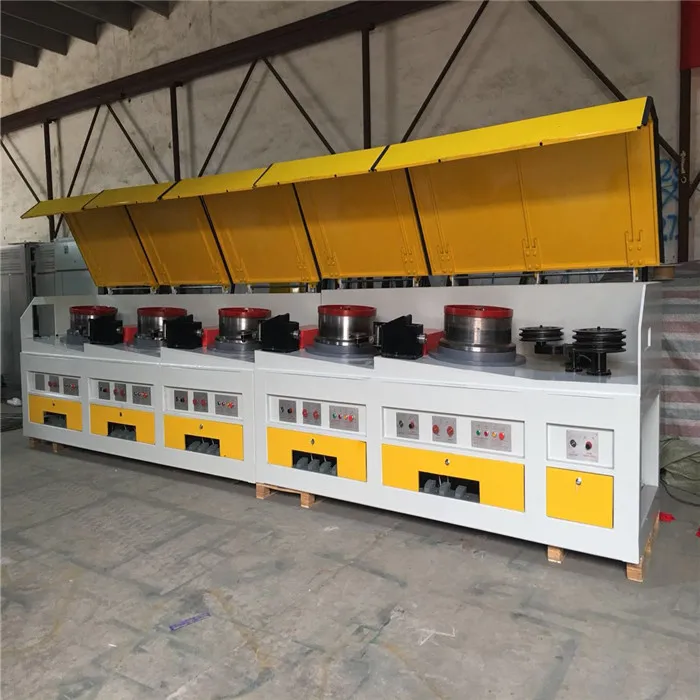

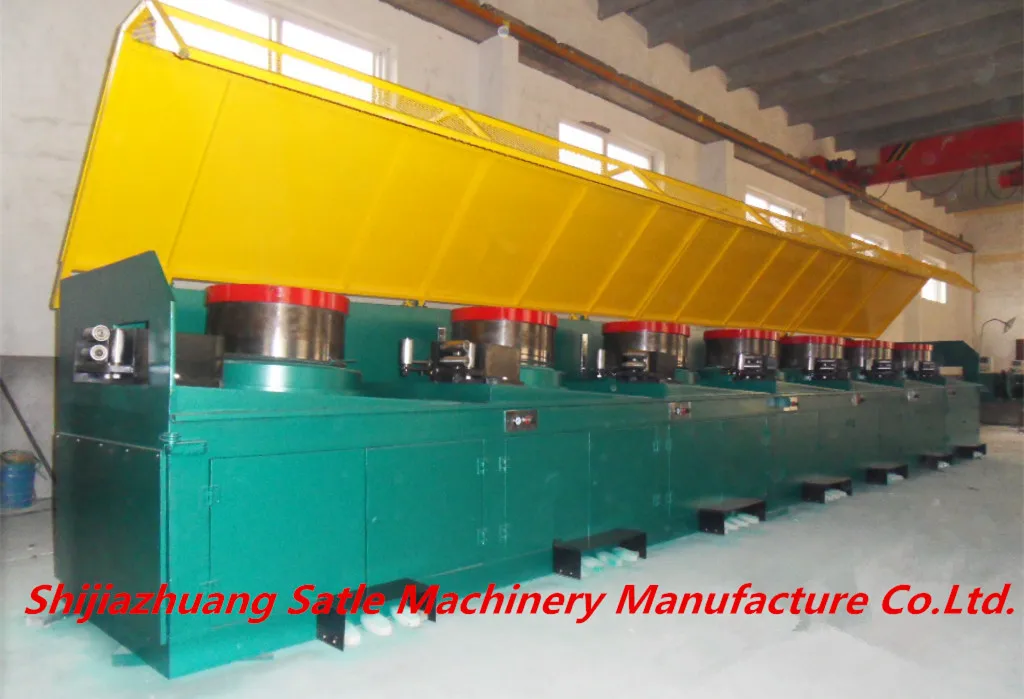

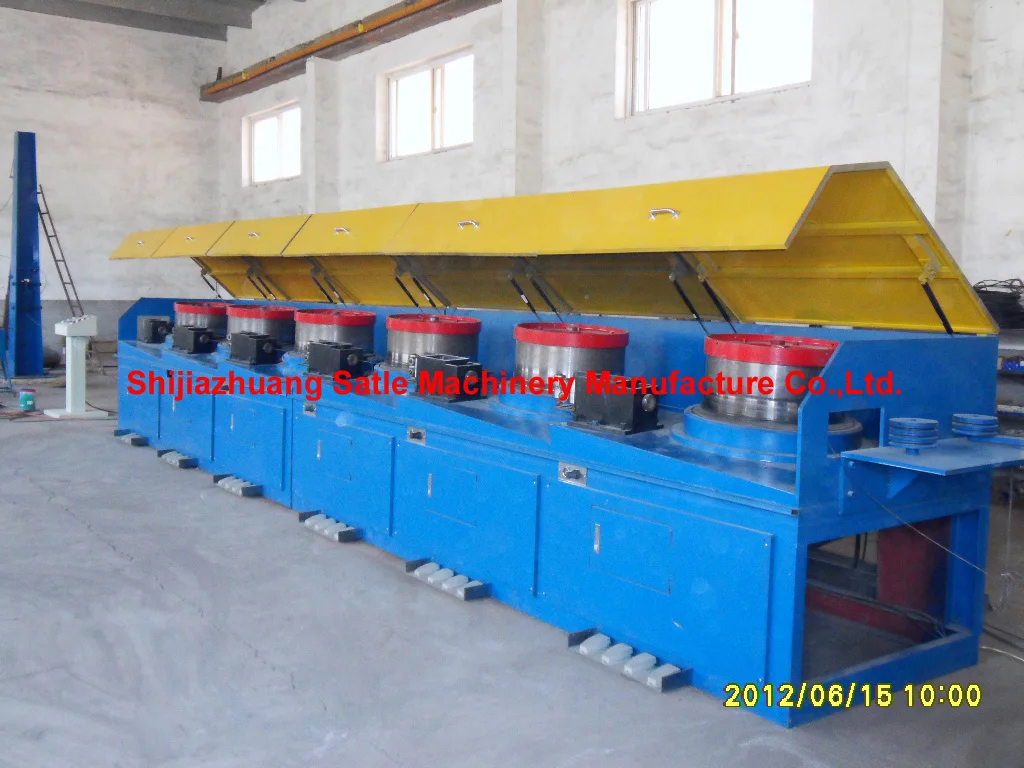

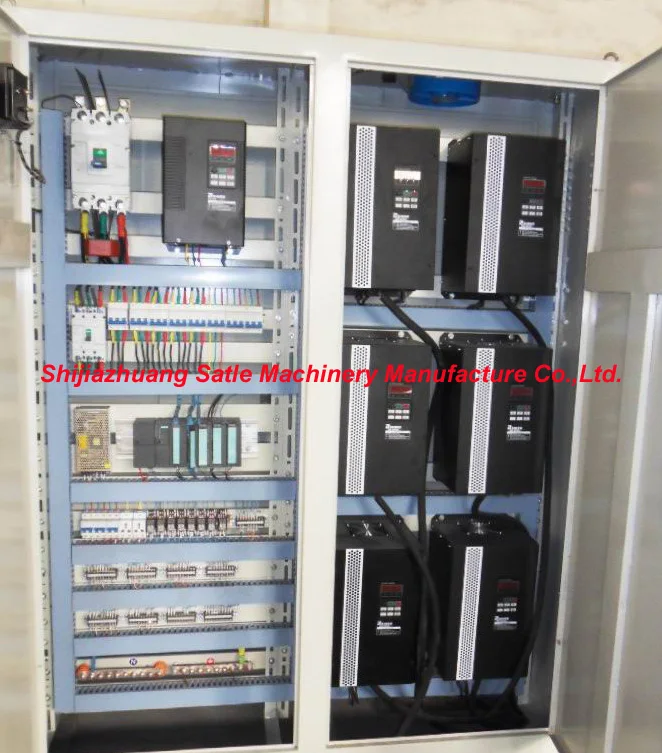

Photos :

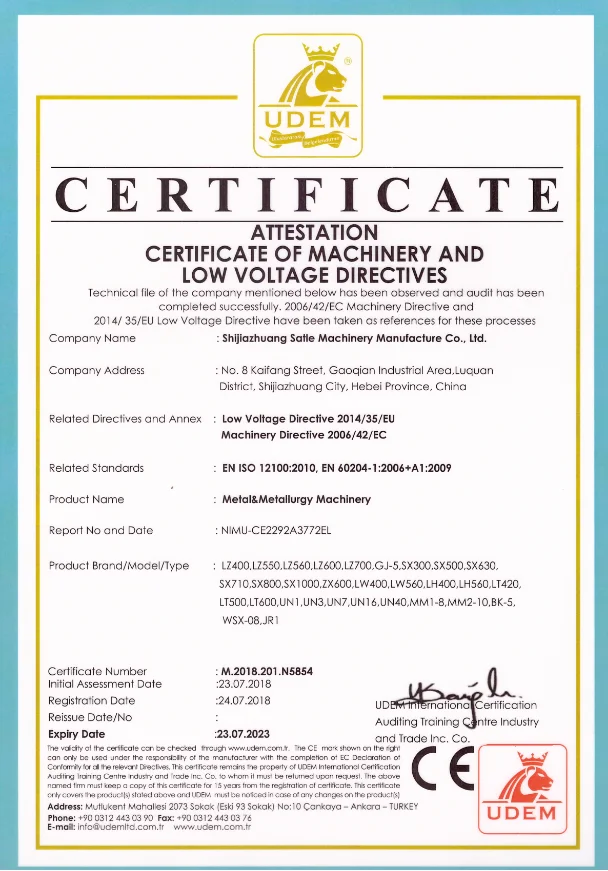

Certificate:
After-Sales Service:
One year warranty for whole machines.
Two years for the capstan.
Low charge for continue maintenance when warranty is expired.
Free training to how to install the machine, how to use the machine.
Engineers available to service machinery overseas.
Q:Are you trading company or manufacturer?
A: We are manufacture and trading company.
Q:Can your machine be customized?
A:Yes,give me your parameters.
Q:What is your delivery date?
A:10-40days.
Q: What is your terms of payment?
A: T/T,L/C,Western union,cash,etc.
Q: What is your available Shipment?
A:FOB Tianjin.
Why choosing you?
We have more than 16 years of experiences in wire and wire machine production.
Our machines have good reputation overseas,have been exported to the Korea,India,United States, Egypt, Malaysia,Pakistan,Kazakhstan,Uzbekistan and many other countries.
Professional technical team and good after-sale service team.
Excellent production management team. admin(at)cnwiremachine(dot)com
