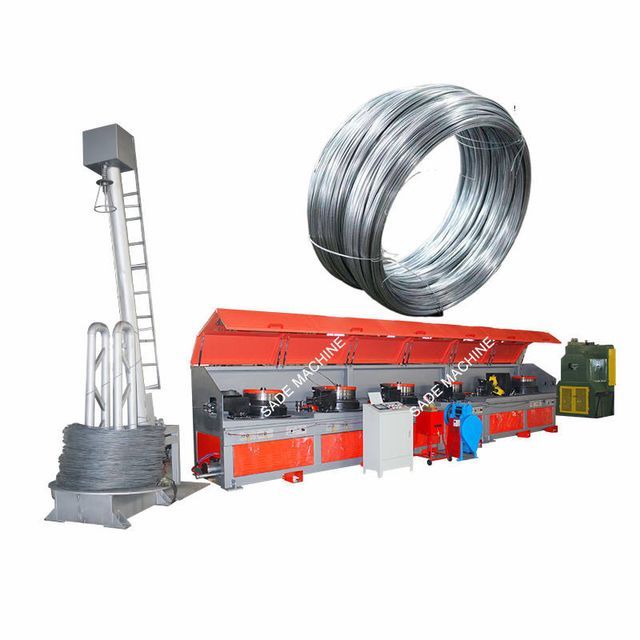

Low carbon steel linear wire drawing machine for wire binding
- $9100.00 /set
- 1 set
- Hebei Sade Machine Manufacturing Co., Ltd.
- Hebei, China
- Ms Alice Zhang
| weight: | 2 tons | Minimum outgoing line: | 2mm |
| Key words: | Drawing Machine | Dimensions (L*W*H): | 1.7X0.115X1.75 |
| Mechanical test report: | if | Supply capacity: | 1 single wire drawing machine per month |
| strength: | 18.5-30 | Core component warranty: | 2 years |
| Function: | nail | Origin: | Hebei china |
| Maximum incoming line: | 6.5 mm | Marketing Type: | 2020 New Products |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Applicable industries: | Building materials stores, energy and mining |
| Main selling points: | high productivity | After-sales service provided: | Engineers available to repair machinery overseas |
| brand: | Sade | port: | Tianjin Xingang |
| usage: | Drawn steel/copper/brass/aluminum/stainless steel wire | Voltage: | 380V/440V/110V, 50Hz/60Hz |
| Health status: | new | Outlet Diameter: | 2mm |
| type: | PLC | Inlet diameter: | 6.5 mm |
| Video outbound inspection: | if | Machine name: | Single wire drawing machine |
| weight: | 2000 | Showroom location: | Morocco, Korea, UAE, Colombia, Algeria |
| Block speed: | 245 meters | Packaging Details: | Bare machines are covered with plastic film, and accessories or tools are packed in cartons or wooden boxes. |
| Warranty: | 1 year | Core components: | PLC |

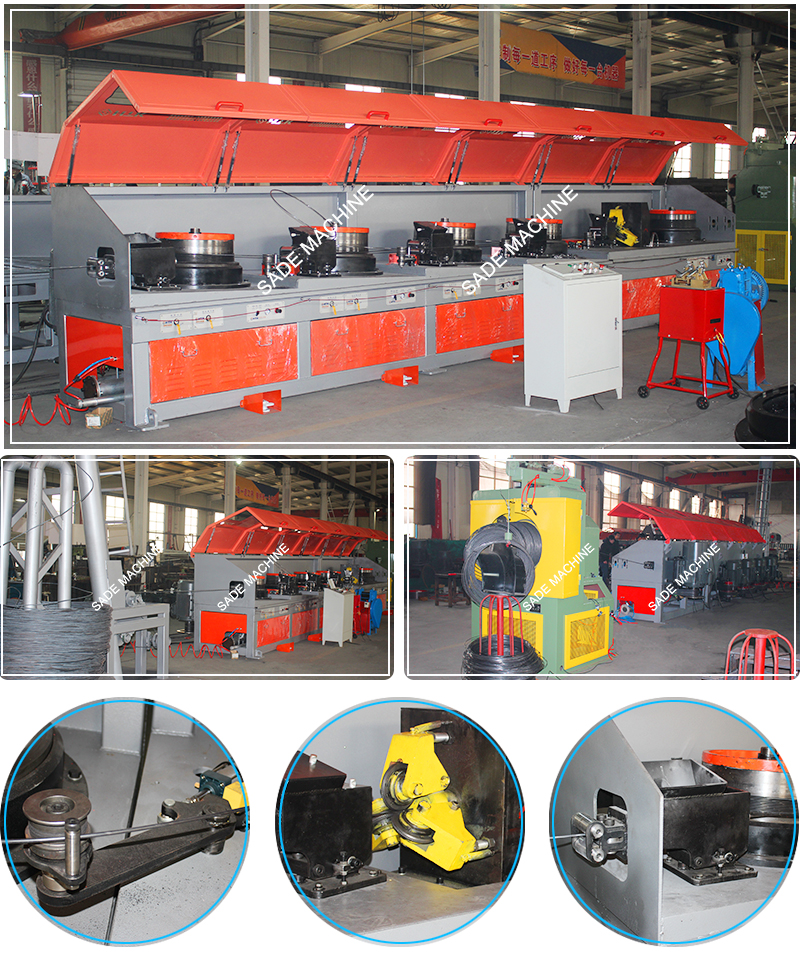

This type of finished line machine has high quality, smooth surface, uniform thickness, adopts good cooling system, water cooling and air cooling, good quality, high reliability and low downtime rate. This type of machine adopts PLC+ frequency conversion speed regulation, which is easy to operate.

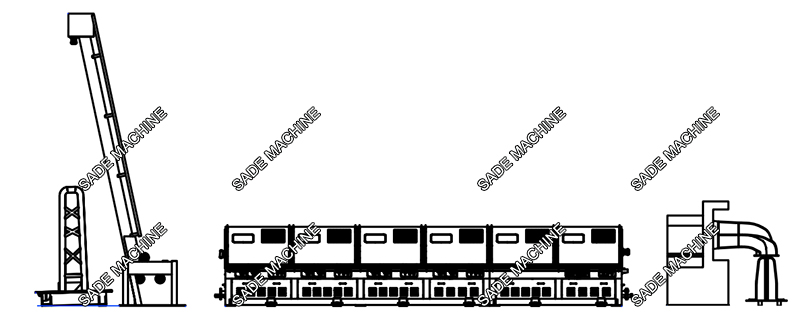

The structure includes hydraulic pay-off machine, hydraulic descaling machine, brush descaling machine, main block, hydraulic take-up machine. The detail part can be designed and requested according to your detail needs.
Technical Parameters:
|
Project name/type |
LN9-900 |
LN9-800 |
LN9-700 |
LN10-600 |
LN10-400 |
|
Drum diameter/mm |
900 |
800 |
700 |
600 |
400 |
|
Drawing times/time |
9 |
9 |
9 |
10 |
10 |
|
maximum. Inlet diameter/mm |
8-14 |
8-10 |
6.5-8 |
5.5-6.5 |
1.8-2.5 |
|
minute. Wire diameter/mm |
3-5 |
3-4 |
2.5-3 |
1.8-2 |
0.75-1 |
|
Drawing speed/m/min |
300 |
360 |
Chapter 480 |
750 |
Chapter 840 |
|
Inlet strength/kg/mm2 |
≤1300 |
≤1300 |
≤1300 |
≤1300 |
≤1300 |
|
Total compression rate/% |
85.94-87.24 |
84-85.94 |
85.21-85.94 |
89.29-90.53 |
87.24 |
|
Average compression rate/% |
19.58-20.48 |
18.42-19.58 |
19.13-19.58 |
21.00-21.02 |
18.61 |
|
Motor power/kW |
90-110 |
55-90 |
55-75 |
22-37 |
7.5-15 |
The structure includes hydraulic pay-off machine, hydraulic descaling machine, brush descaling machine, main block, hydraulic take-up machine. The detail part can be designed and requested according to your detail needs.
Recommended machine:
New descaler:
Advantage:
1.Water cooling reduces the heat generated during the drawing process, reducing
Die loss, improve wire quality.
2.The finished line is of high quality, with a smooth surface and uniform thickness.
3. Tungsten carbide sprayingdrum kit,long lasting
4.High speed, frequency conversion speed regulation

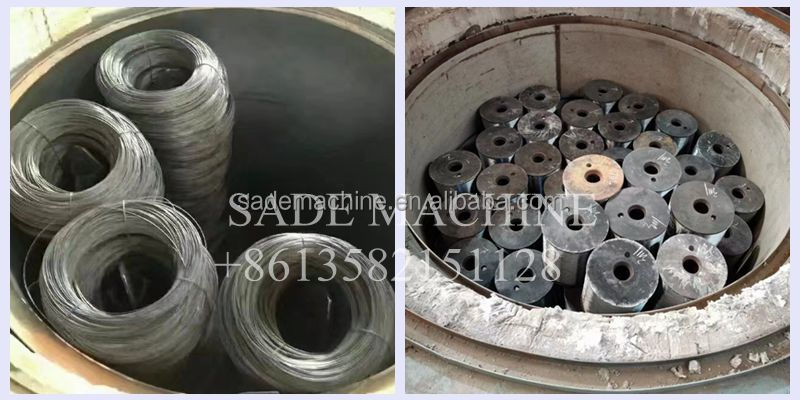

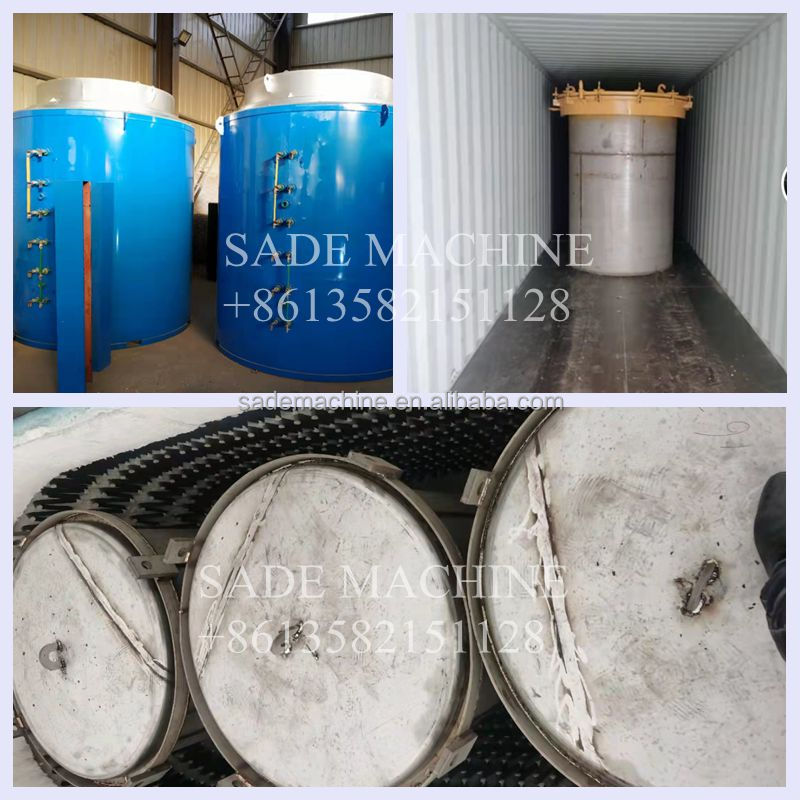

Well type annealing furnace
The annealing furnace is a periodic operation type electric furnace, which is mainly used for heat treatment of metal and alloy parts in equipment.
The resistance furnace is composed of furnace body, furnace lining, heating element, furnace cover mechanism, furnace floor, power distribution cabinet, control system and other accessories.
