Die steel wire drawing machine for nail making machine
- $6000.00 /set
- 1 set
- Xuchang Hongshuo Machinery Co., Ltd.
- Henan, China
- Mr
PRODUCT DETAIL
type: | Drawing Machine | Suitable material: | Medium and high carbon steel wire |
application: | Drawing process | Motor Power: | 15-50kw |
Certification: | ISO9001:2008 | Applicable industries: | Building material stores, manufacturing plants, construction projects |
After-sales service: | if | strength: | 15-50kw |
After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services | Inlet diameter: | 6.5-2.0mm |
Function: | smaller diameter | Origin: | Henan, China |
Voltage: | 380/415/440/220V | port: | Qingdao Port |
color: | Require | Video outbound inspection: | if |
usage: | Metal wire drawing | Outlet Diameter: | 0.8-5.5mm |
Year: | 2020 | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
Supply capacity: | 200 die iron steel wire drawing machines for nail making machines per month | product name: | Die steel wire drawing machine for nail making machine |
Warranty: | 2 years after installation | Main selling points: | competitive price |
Health status: | new | Marketing Type: | 2020 New Products |
quality: | High standard wire drawing machine | Packaging Details: | Wooden box or mold iron steel drawing machine nailing machine suitable for shipping |
Core component warranty: | 2 years | Local service locations: | not any |
Mechanical test report: | if | Core components: | Gearboxes, pressure vessels, pumps, gears, bearings, engines, motors, PLCs |
brand: | Hong Shuo | Showroom location: | not any |
Product Description

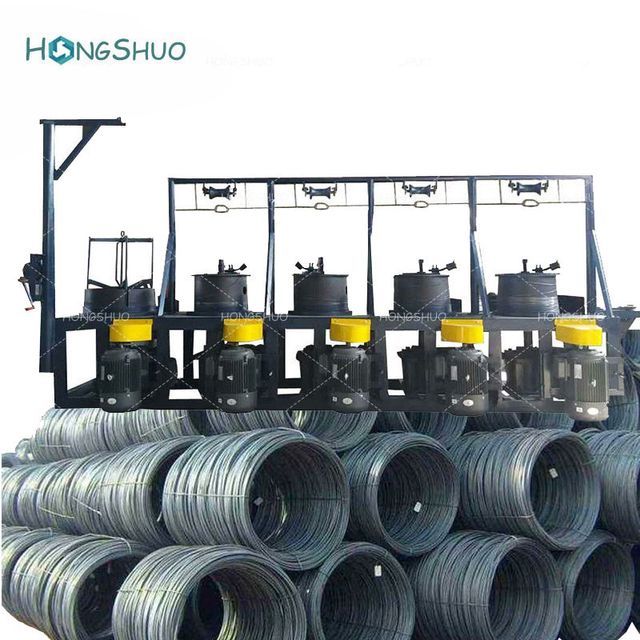

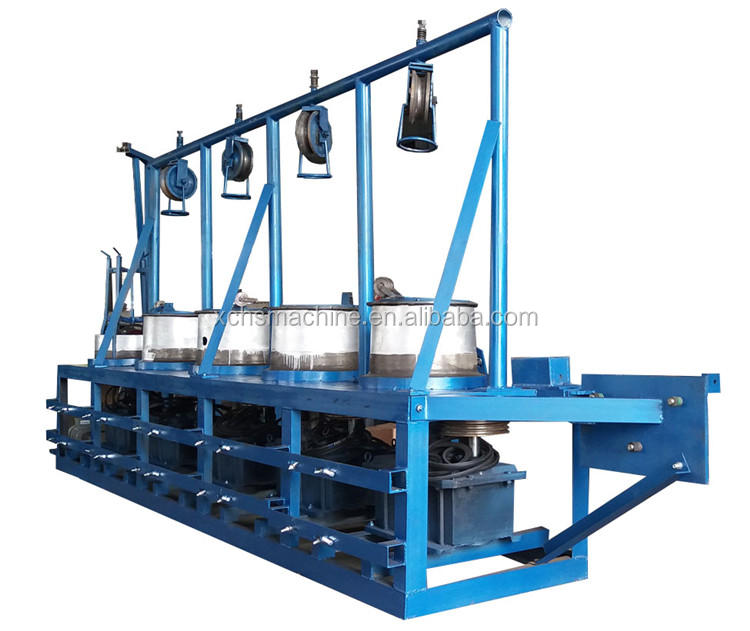

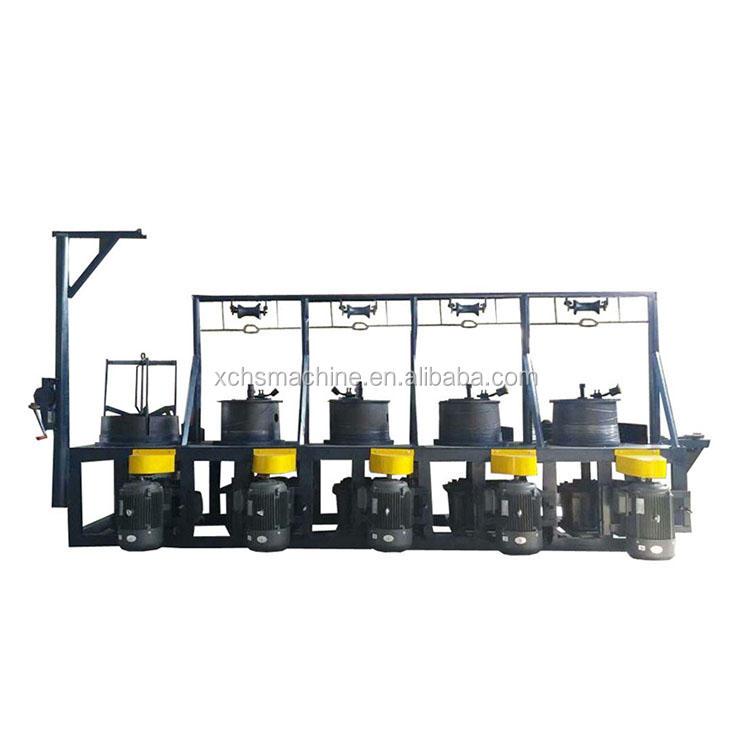

Die steel wire drawing machine for nail making machine
If the wire has a thicker diameter before entering the nail making machine, the machine can reduce the diameter of the wire, and then the user can get the diameter they need. According to the daily capacity, it can be combined with 2 combinations, 3 combinations, 4 combinations or more combinations.
model. | LS3-560 | |||
Maximum inlet wire diameter | 6.5 mm | |||
Minimum outgoing wire diameter | 2.0mm | |||
Motor total power | 15kw*3+2.2kw | |||
drawing speed | 150m/min | |||
TIPS: If you buy a wire coil with a suitable diameter directly from the market, you don’t need a wire drawing machine and auxiliary equipment (tip rolling machine and butt welding machine). |

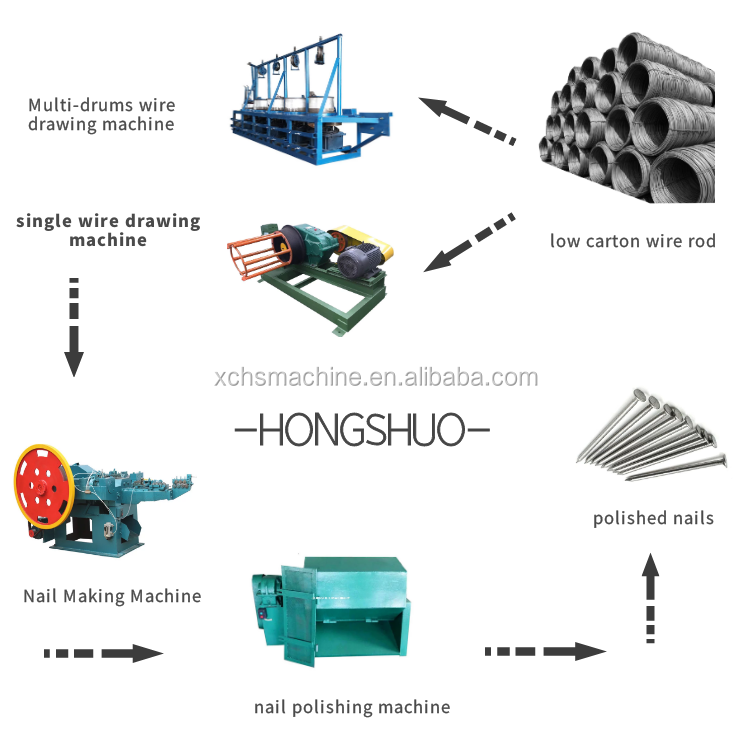

process flow

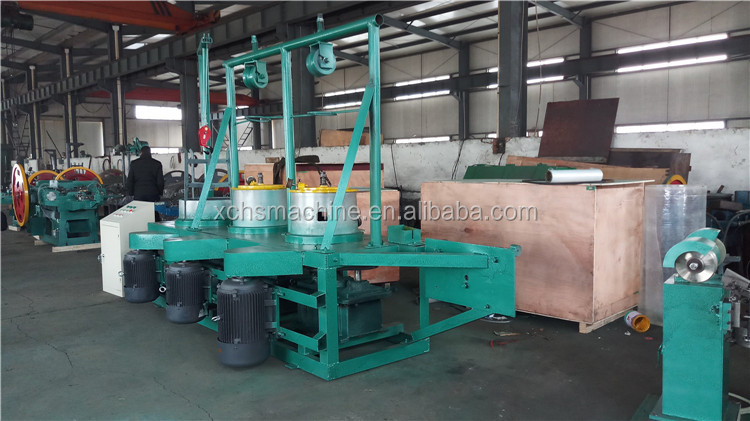

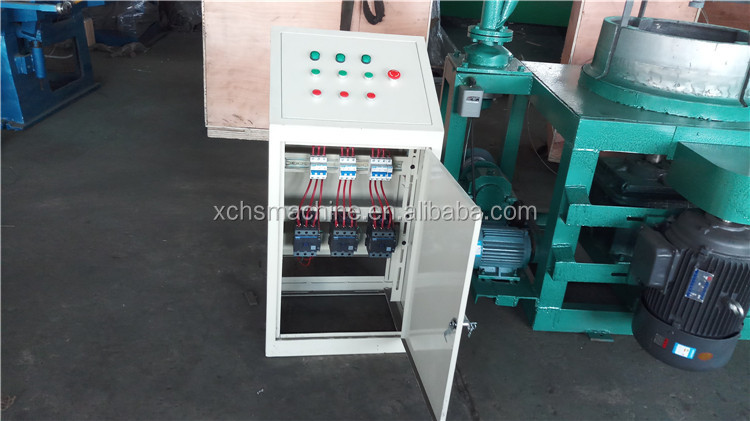

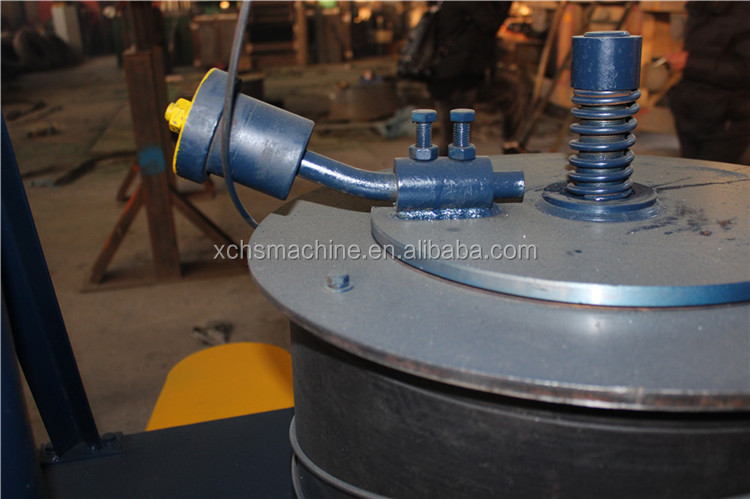

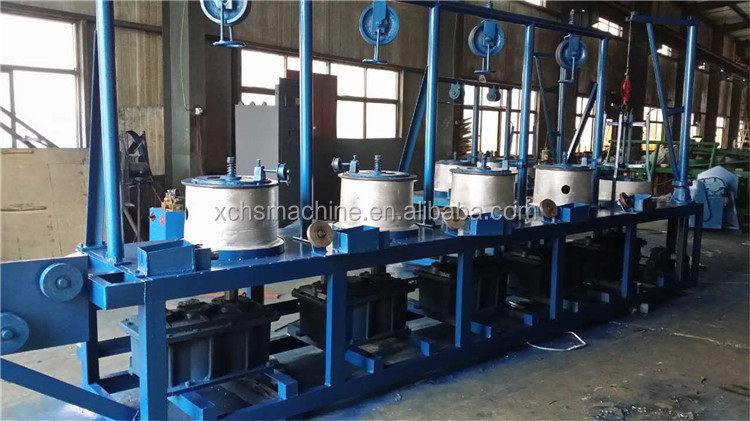

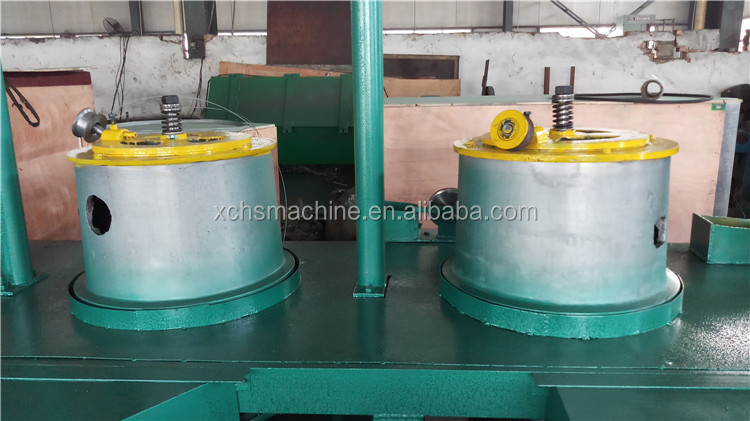

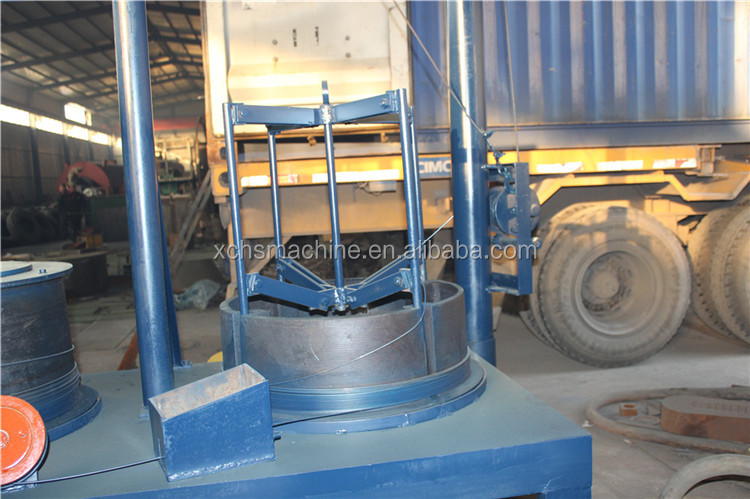

detailed image
Auxiliary equipment

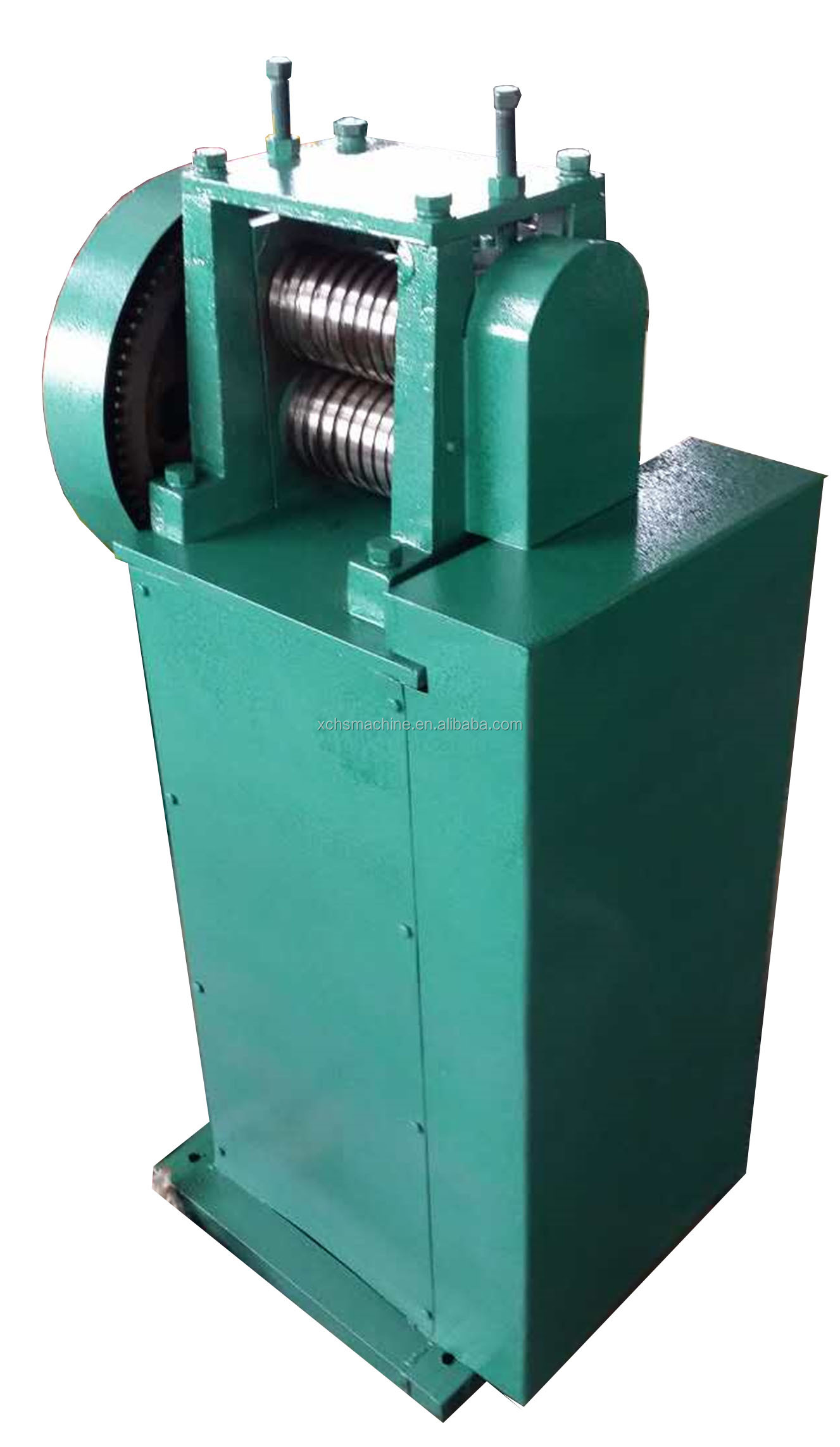

1. Hobbing machine
Solder the two coils together for continuous operation.
Function: sharpen the wire end, so that the wire coil can enter the wire drawing machine easily.
model. | Scroll tip range | Motor Power | total measurement | weight |
Hobbing machine | ≤8mm | 2.2 kW | 1.2*0.6*1.0m | 80 kg |

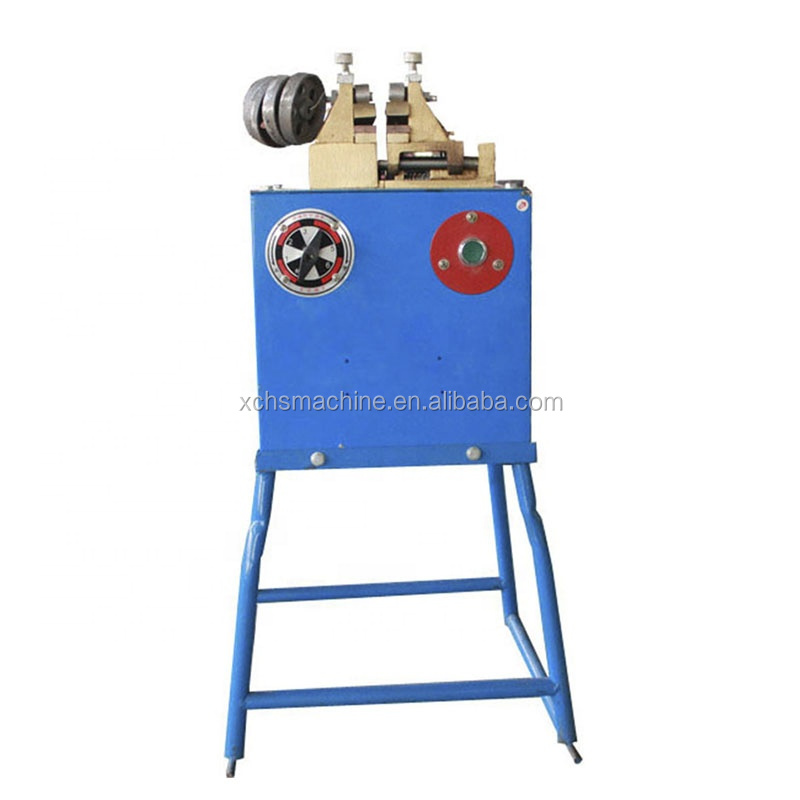

2. Butt welding machine
Solder the two coils together for continuous operation.
Function: Weld two coils together to keep the continuity of the drawing process.
model. | Butt welding range | Voltage | weight |
Butt welding machine | φ3—φ8mm | 380V 50Hz | 50 kg |
manufactures
manufactures
Wire diameter 6.5-2.0mm
