Factory direct supply jewelry making machine gold and silver thread rolling machine jewelry wire rolling machine
- $4500.00 /piece
- 1 piece
- Shenzhen Hasung Precious Metals Equipment Co., Ltd.
- GUANGDONG, China
- Mr Jackey Qin
PRODUCT DETAIL
| Marketing Type: | 2019 Hot Products | payment terms: | Western Union, D/P, D/A, T/T, MoneyGram |
| Video shipment inspection: | if | port: | Shenzhen |
| Voltage: | 380V; three-phase, 50/60hz, 380V | Drum Length: | 230mm |
| power: | 4 kW; | Applicable industries: | Manufacturing plants, energy and mining, other |
| hardness: | 60-61 degrees | Rolling capacity: | 12mm-1mm square wire |
| Package preview: | Warranty: | 2 years, 2 years | |
| Outlet Diameter: | 1MM | weight: | 300 |
| Packaging Details: | standard wooden box | brand: | harmony |
| Showroom location: | not any | strength: | 4 kW |
| Mechanical test report: | if | Origin: | Guangdong, China |
| Core components: | gearbox, engine, motor | application: | For gold and silver wire rolling |
| Supply capacity: | 50 pieces per month | Core component warranty: | 2 years |
| Inlet diameter: | 16mm | Health status: | new |
| Drum Diameter: | 113mm | Main selling points: | high accuracy |
| weight: | 400 kg | aspect: | 780x580x1400mm; |
Product Description

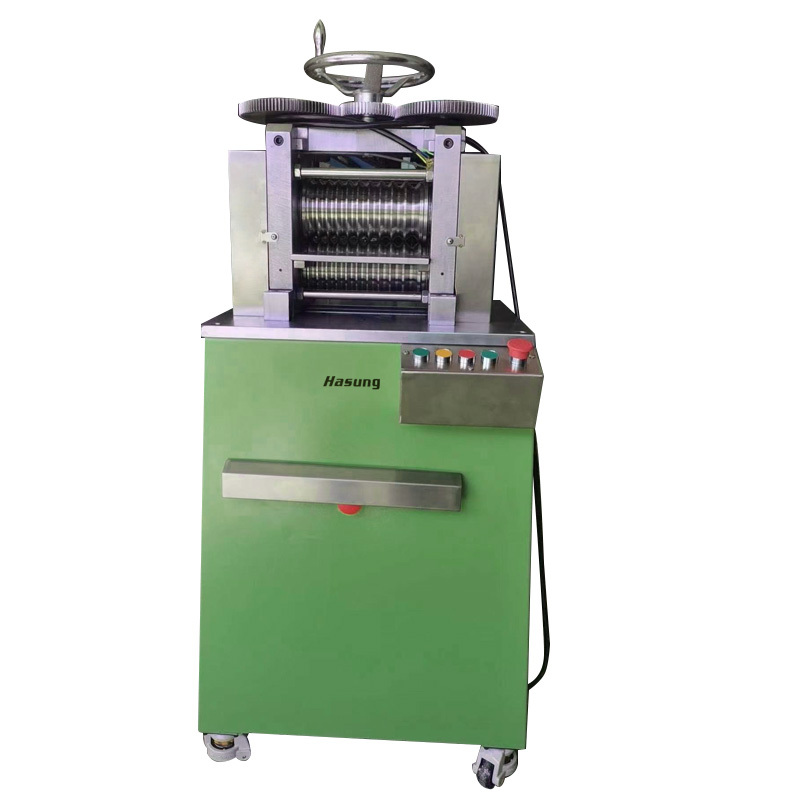

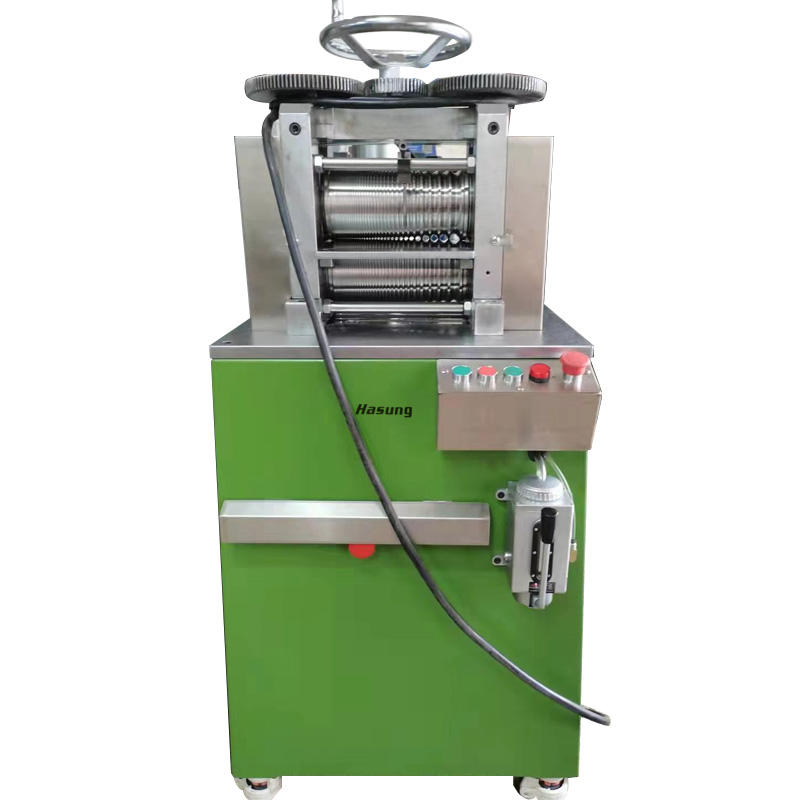

5.5HP wire rod mill

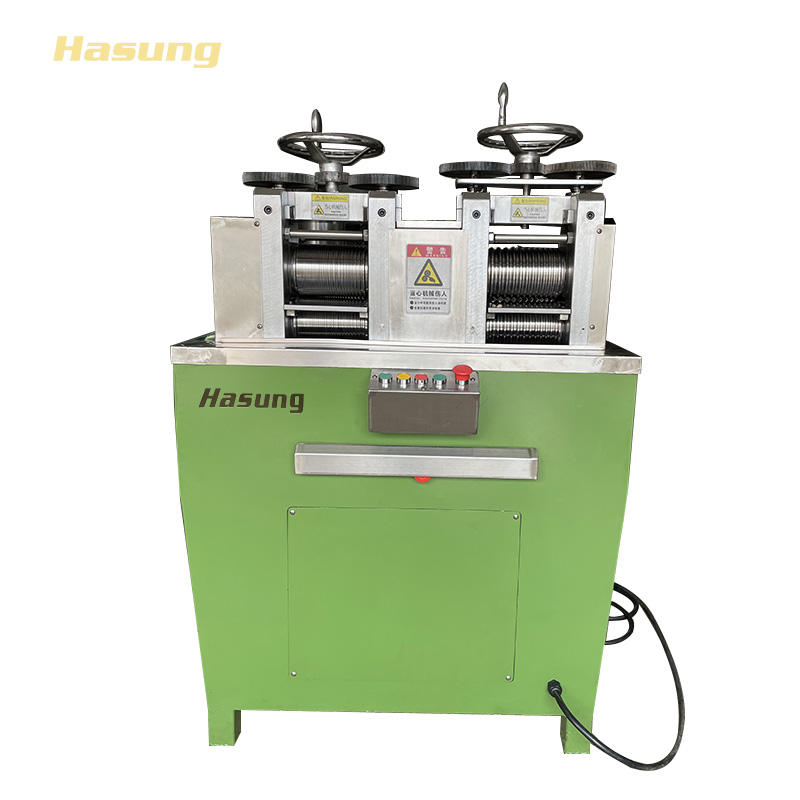

Double-end wire rod mill
application
Suitable for gold, silver, copper, aluminum, tin, etc.
Specification
model. | HS-5HP 5.5HP Wire Rolling Mill |
Voltage | 380V, 50/60Hz |
strength | 4KW |

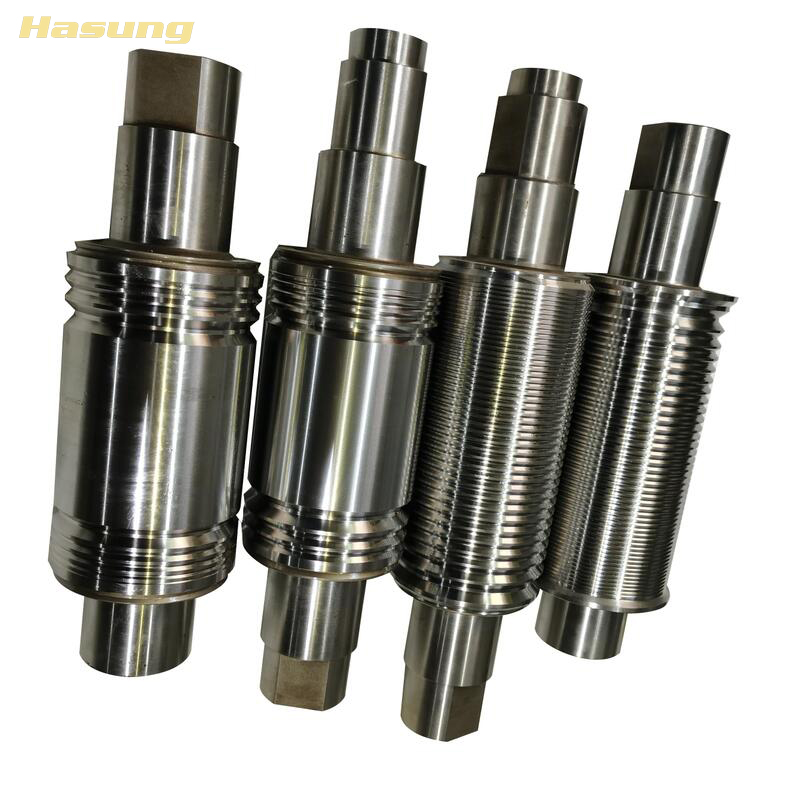

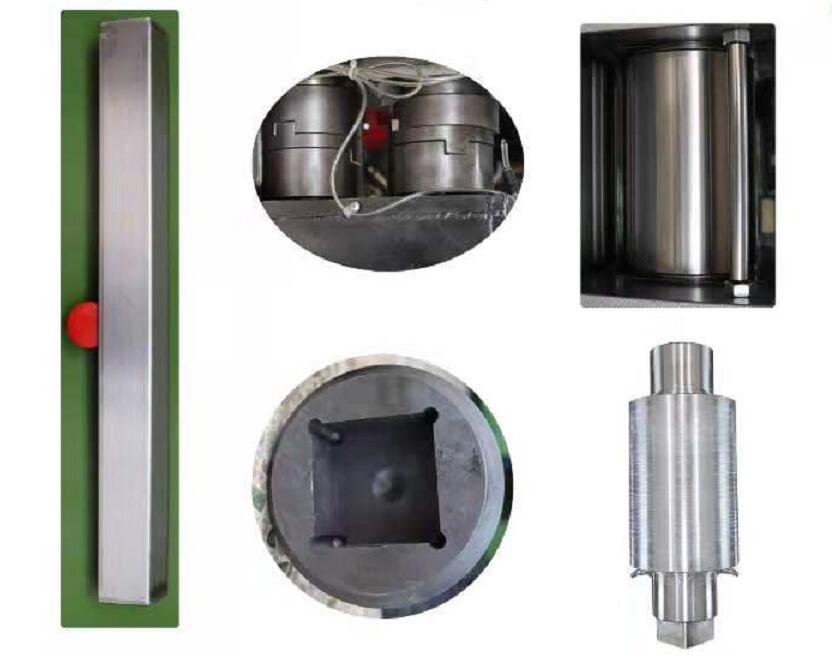

roller | Diameter 112 x Width 230mm |
Roller hardness | 60-61° |
Roller material | D2 or Cr12moV |
Square wire size | 12, 9.5, 7.5, 6, 5.5, 5.1, 4.7, 4.35, 4, 3.7, 3.45, 3.2, 3, 2.8, 2.65, 2.5, 2.35, 2.2, 2.05, 1.92, 1.8, 1.68, 1.58, 1.49, 1.43, 1.37, 1.31, 1.25, 1.19, 1.14, 1.1, 1.06, 1.03, 1mm |
Maximum input line | 16mm |
speed | 30rpm/min. |
aspect | 780×580×1400mm |
weight | about 300 kg |

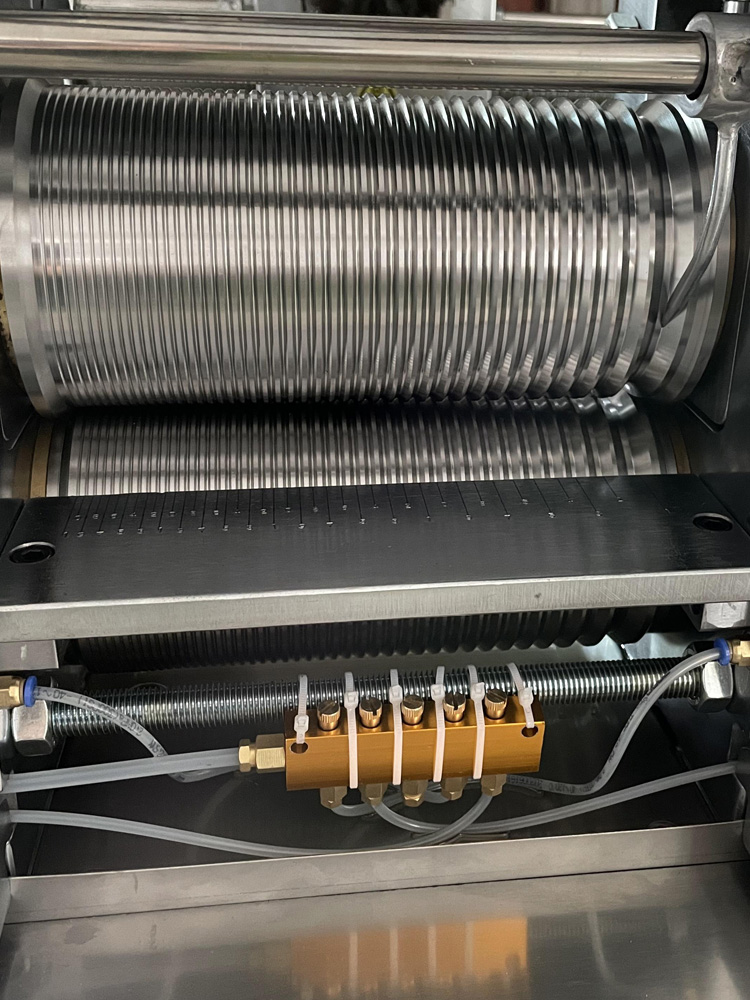

Additional features | automatic lubrication; gear transmission |
feature | The maximum thickness of the film when the sheet is rolled is 25mm; the surface of the wire is smooth, the size is accurate, and there is no low front loss; automatic wire take-up (optional); Frame electrostatic dust removal, decorative hard chrome |
