Nail and screw making machine Nail/screw making machine

PRODUCT DETAIL
brand:Hong ShuoAfter warranty service:Video Technical Support
usage:Construction Rebar ScrewsCore component warranty:2 years
place of origin; place of origin:Henan, Chinaproduct name:Screw Machine Drywall Nail/Screw Machine
Marketing Type:New Products 2020port:Qingdao Port Tianjin Port
Health status:newweight:0.6
Warranty:2 yearsMaterial:Carbon steel
Package preview:Function:Rebar Rolling Screws
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramApplicable industries:Building material stores, manufacturing plants, construction projects
strength:custom madeVoltage:custom made
Video shipment inspection:ifType of machine:Bolt production line
suitable for:deformation stickMechanical test report:if
Main selling points:competitive priceShowroom location:not any
color:custom madeDimensions (L*W*H):custom made
application:put upCore components:PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
Packaging Details:Wooden box or Drywall Screws Nail/Screw Making Machine according to customer's requirements for Nail And Screw Making MachinesAfter-sales service provided:On-site installation, commissioning and training
thing:High speed screw machineSupply capacity:200 sets per month Nail And Screw Making Machines Drywall Screws Nail/Screw Making
Production capacity:100%
Product Description

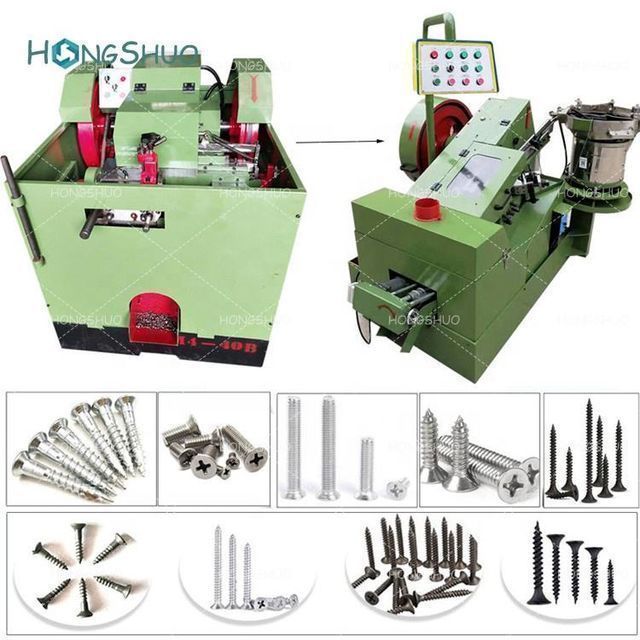

1. Cold heading machine


This equipment adopts the cold heading method, and the wire rod is upset by double-clicking the entire mold. One machine completes feeding, straightening, cutting, forming and discharging.



2. Automatic thread rolling machine


This equipment adopts the staggered 1/2 pitch design of two thread tooth rolling plates, the fixed plate is fixed, and the moving plate and the fixed plate make a linear motion back and forth. When the workpiece is fed between the two plates, the moving plate twists the workpiece forward to make it The surface is plastically deformed into threads.

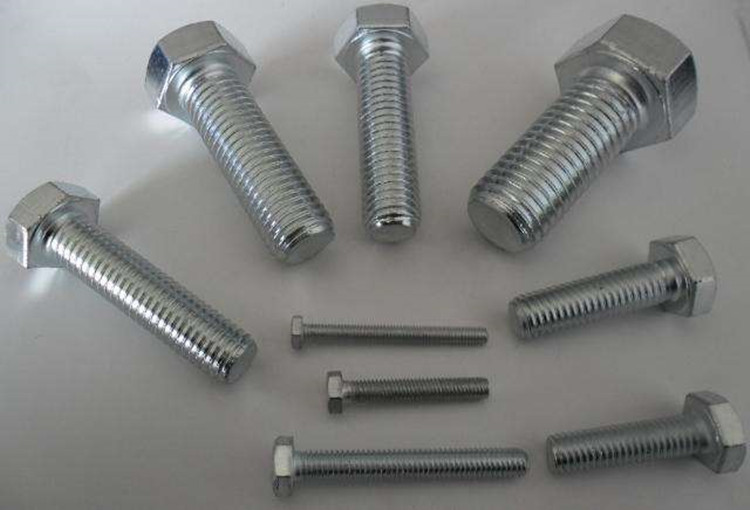

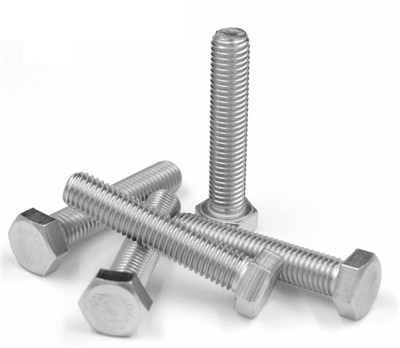

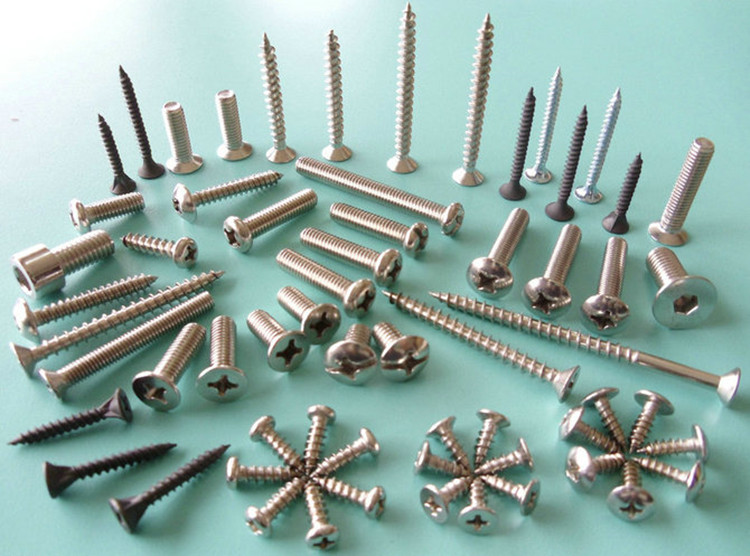

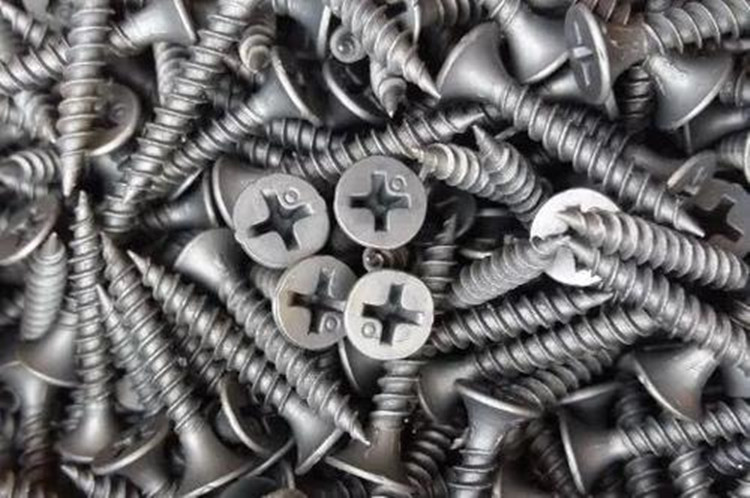

End products
Specification
Model
maximum. Screw diameter(mm)
maximum. Screw length(mm)
motor
(kilowatt)
capacity
(pcs/min)
weight
(Ton)
Overall size (m)
R3-20A
M2.6
20
1.1
350
0.3
1.1*0.53*1.2
R3-20B
M2.6
20
1.1
350
0.3
1.1*0.53*1.2
R4-25A
M4
25
1.5
320
0.45
1.3*0.63*1.32
R4-25B
M4
25
1.5
320
0.45
1.3*0.63*1.32
R4-40A
M4
40
2.2/0.37
280
0.97
1.5*1.15*1.35
R4-40B
M4
40
2.2/0.37
280
0.97
1.5*1.15*1.35
R5-55B
M5
55
3+0.37
160
1.2
1.6*1.35*1.7
R5-65A
M5
65
3+0.37
130
1.3
1.75*1.4*1.65
R5-65B
M5
65
3+0.37
130
1.3
1.75*1.4*1.65
R6-60A
M6
60
4/0.37
180
1.5
1.7*1.65*1.3
R6-60B
M6
60
4/0.37
180
1.5
1.7*1.65*1.3
R6-100B
M6
100
5.5+0.37
110
1.9
2.7*1.3*1.3
R8-80B
M8
80
5.5/0.37
110
1.8
2.1*1.55*1.3
R8-100B
M8
100
7.5+0.37
100
2.1
2.7*1.7*1.3
R8-120B
M8
120
5.5
100
2.1
2.4*1.8*1.4
R10-120B
M10
120
7.5
80
1.8
2.35*1.95*1.4
R12-120B
M12
120
11
60
3
2.45*2*1.45
R12-160B
M12
160
13
60
3
2.45*2*1.45
R12-220B
M12
220
15
50
3.5
2.5*2*1.45
R16-120B
M16
120
15
50
3.8
2.5*2.1*1.45
R16-160B
M16
160
15
50
4
2.5*2.1*1.45
R16-220B
M16
220
15
45
4.8
3.7*1.9*1.7
detailed image

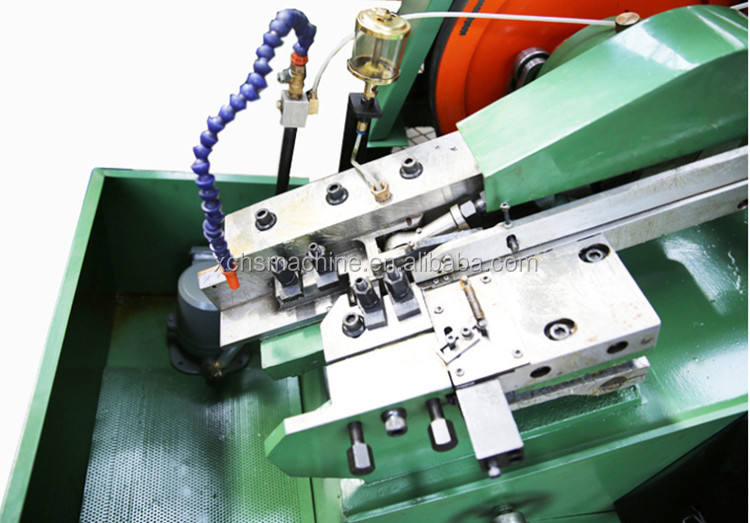

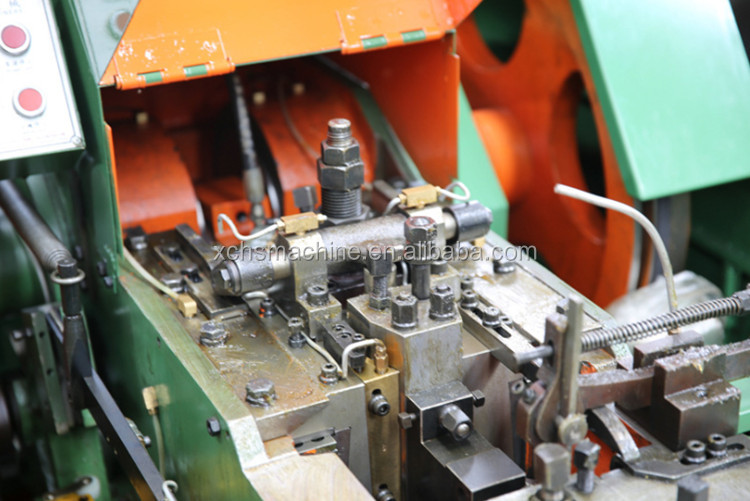

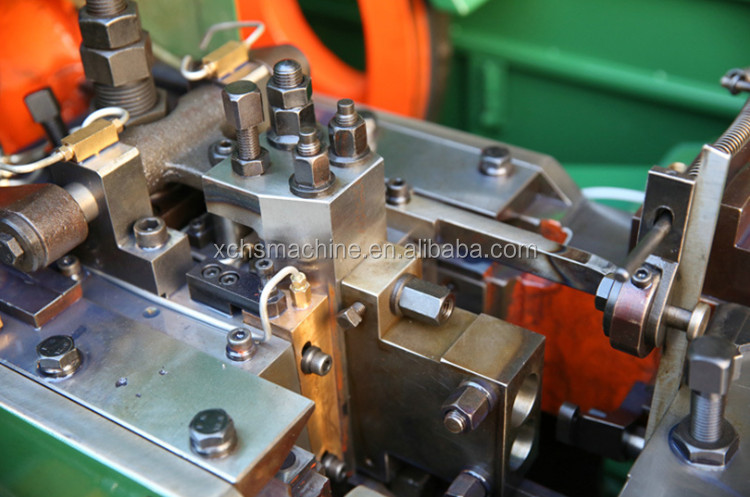

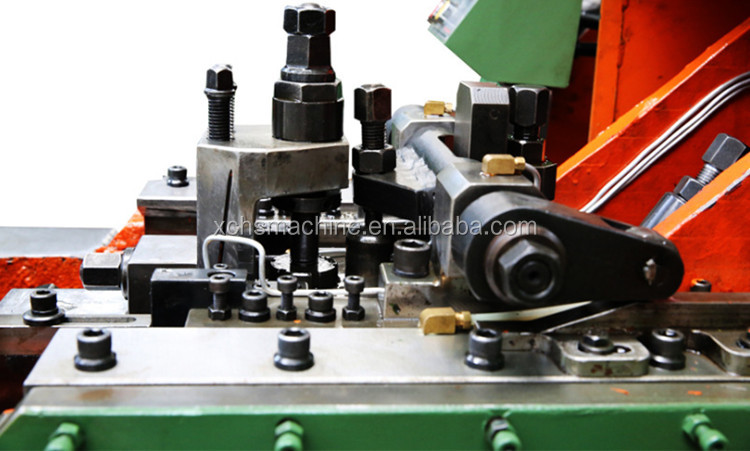

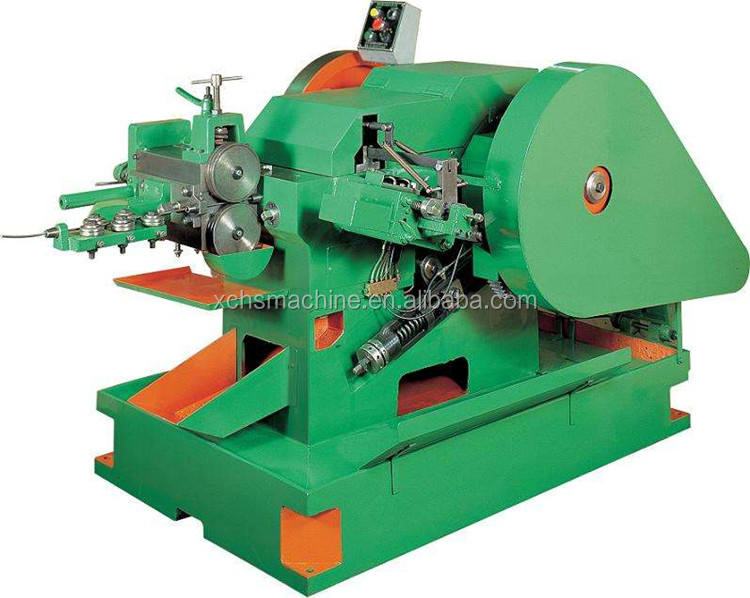

1. Cold heading machine

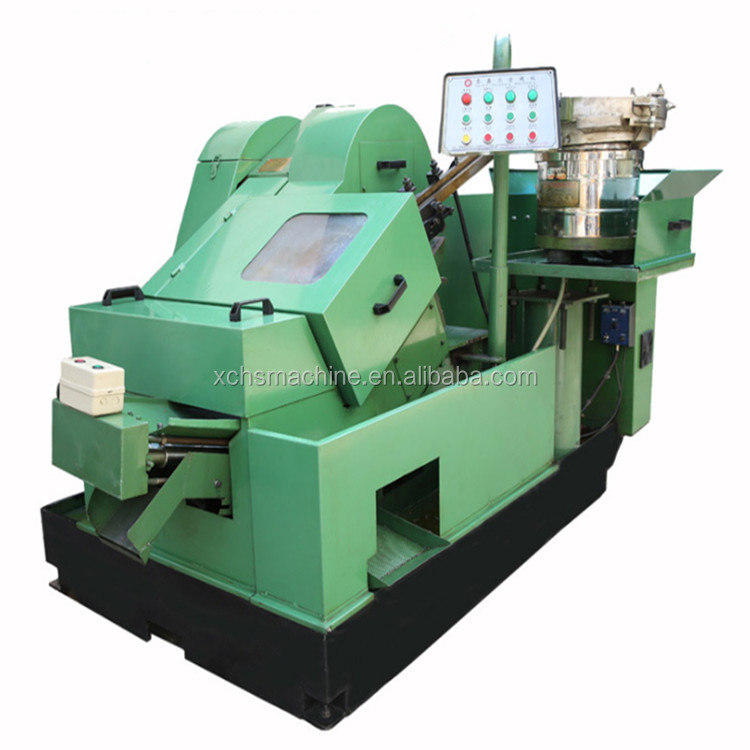

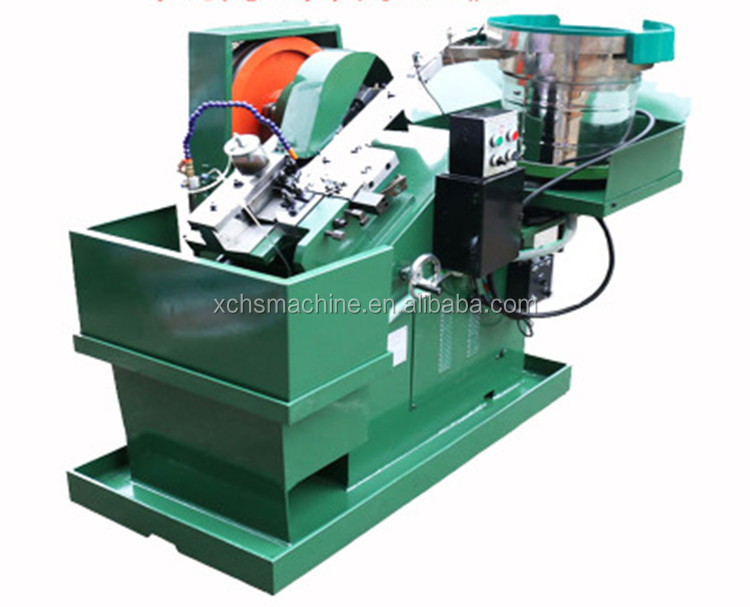

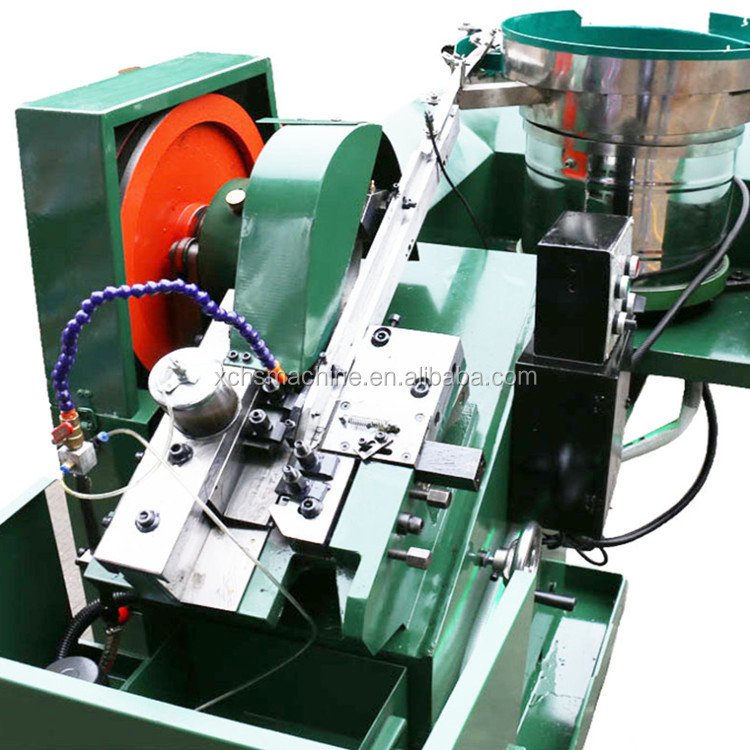

2. Automatic thread rolling machine
Applications

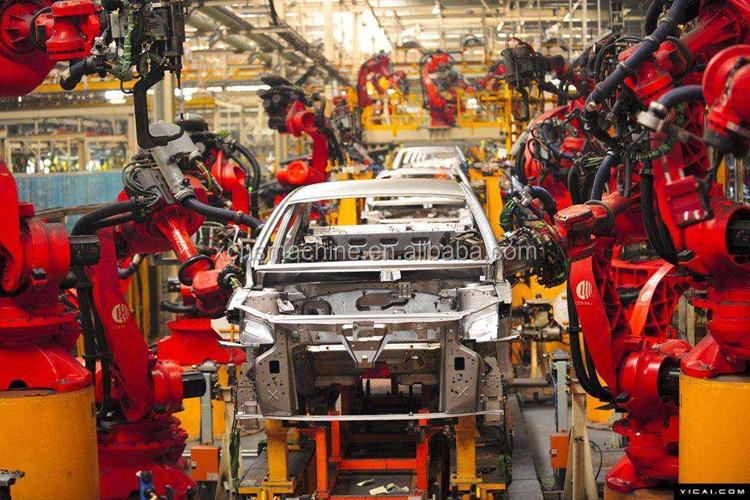

Automobile industry
construction industry
Machining industry
shipbuilding
