High quality thread machine Machine for making self-drilling screws
- $5000.00 /set
- 1 set
- Xuchang Hongshuo Machinery Co., Ltd.
- Henan, China
- Mr
PRODUCT DETAIL
strength: | 0.75-15KW | color: | custom made |
Local service location: | not any | Dimensions (L*W*H): | According to the machine |
Showroom location: | not any | After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services |
Screw diameter: | 3-14mm | Voltage: | 380V/custom |
product name: | Thread rolling machine self-drilling self-tapping screw making machine | After-sales service provided: | Free spare parts, on-site installation and commissioning training, on-site maintenance and repair services, video technical support, online support |
Marketing Type: | normal product | Main selling point: | easy to operate |
thing: | High-speed screw machine | Video external inspection: | if |
feature: | Stable performance | Screw length: | 10-360mm |
pack: | wooden box | Applicable industries: | Building materials stores, manufacturing plants, construction projects |
port: | Tianjin or Qingdao or Shanghai | place of origin; place of origin: | Henan, China |
Function: | make screws | brand: | 100% |
payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Production capacity: | 100% |
application: | put up | Certification: | Chief Executive |
usage: | automatic control operation | Warranty: | 2 years |
Mechanical test report: | if | Core components: | Main engine, main slide and crankshaft, PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump |

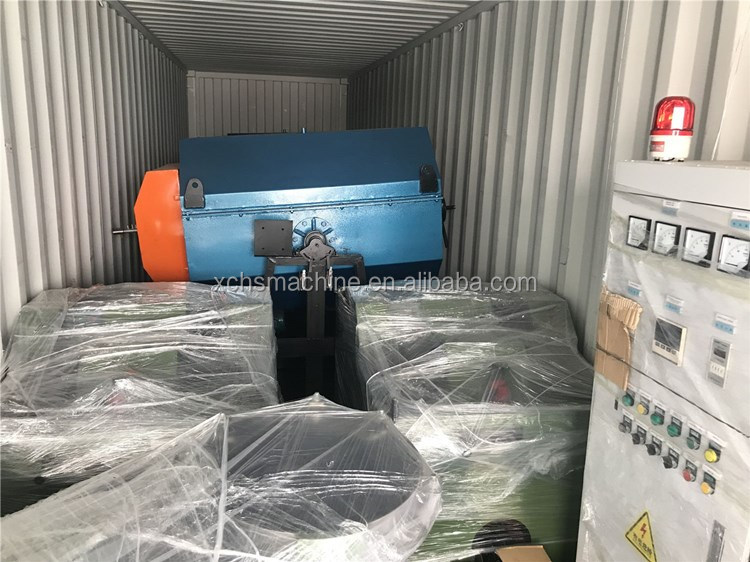

Core Components Warranty: | 2 years | Packaging Details: | High quality thread rolling machine self-drilling self-tapping screw making machine in wooden box or sea worth |
Health status: | new | Supply capacity: | 300 sets/month high-quality thread rolling machine self-drilling and self-tapping S |
weight: | 0.6T-11T | Packaging Preview: |

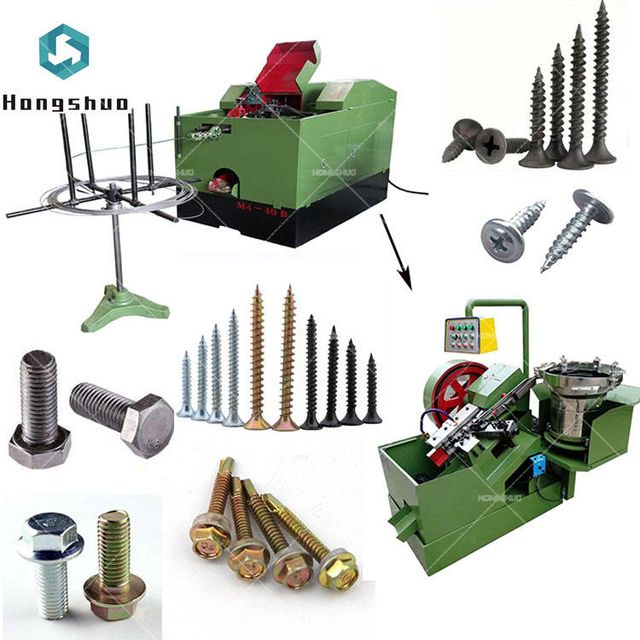

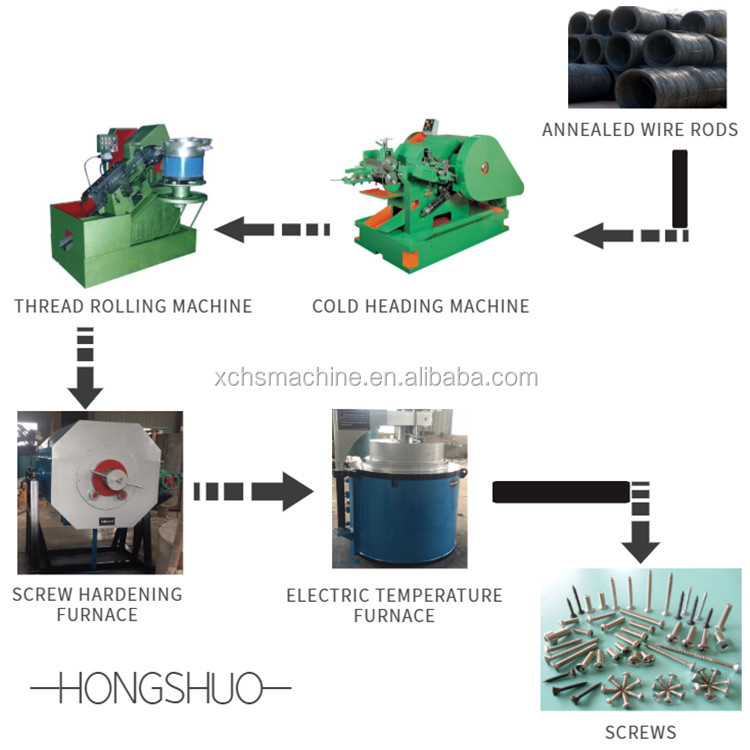

Automatic cold heading machine thread rolling machine screw machine

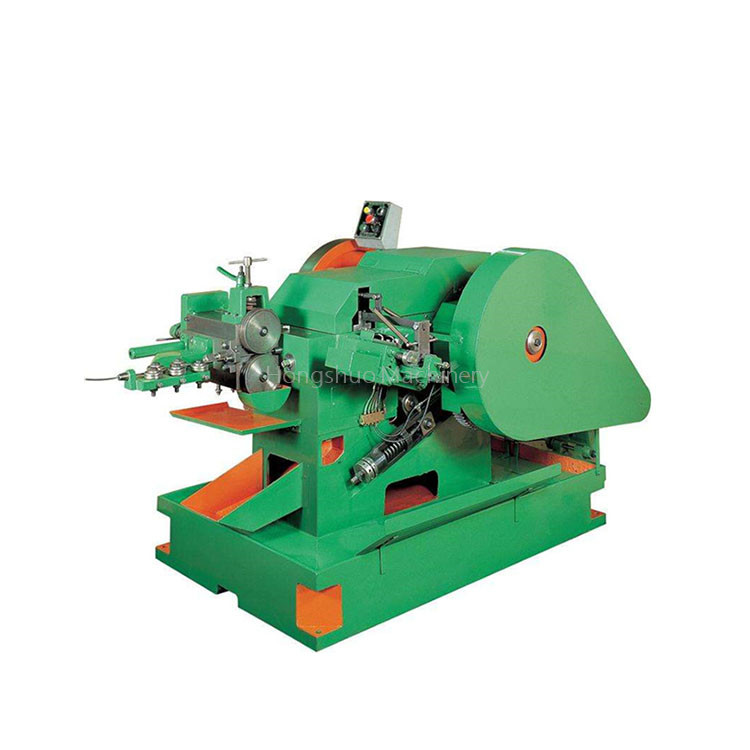

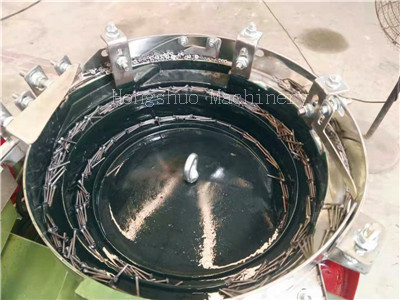

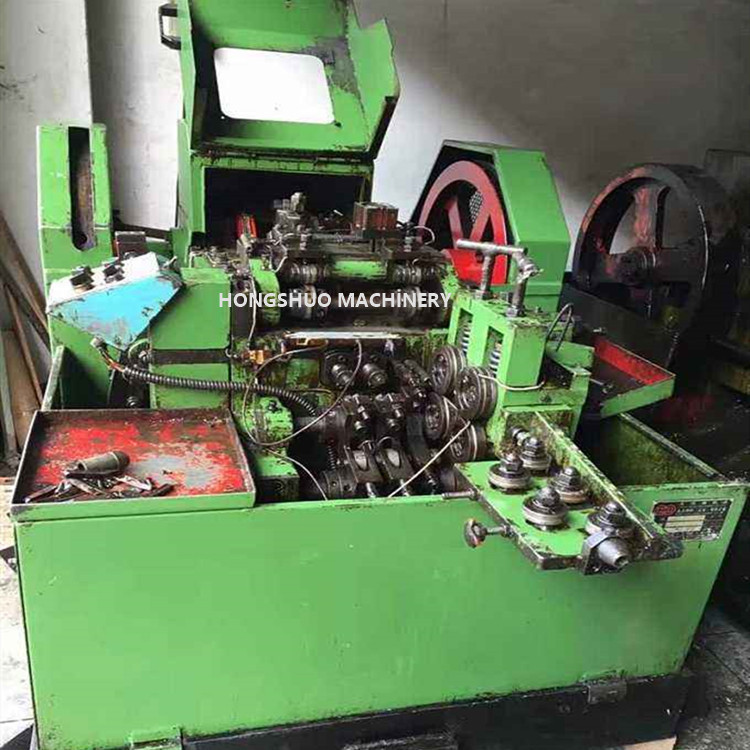

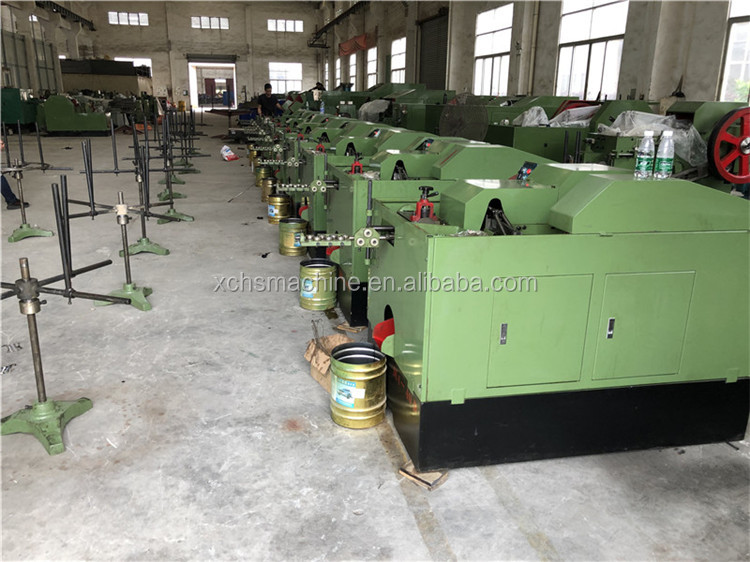

1. Automatic cold heading machine Using the cold heading method, the wire rod is upsetting by double-clicking the entire mold form. One machine completes feeding, straightening, cutting, forming and discharging.
Model | Max screw Diameter (mm) | Maximum screw length (mm) | capacity (pcs/min) | motor (kilowatt) | weight (Ton) | Overall size (m) |
M3-18A/B | 3 | 18 | 160-180 | 0.75/0.37 | 0.6 | 1.3*0.75*0.9 |
M3-28A/B | 3 | 28 | 160-180 | 0.75/0.37 | 0.6 | 1.3*0.75*0.9 |
M4-28B | 4 | 28 | 120-160 | 1.5/0.37 | 0.97 | 1.5*0.9*0.9 |
M4-28D | 4.5 | 28 | 180-200 | 1.5/0.37 | 1.2 | 1.6*1*1.2 |
M4-40B | 4 | 40 | 120-150 | 1.5/0.37 | 0.97 | 1.5*0.9*1 |
M4-40D | 4.5 | 40 | 180-200 | 1.5/0.37 | 1.2 | 1.6*1.1*1.1 |
M5-40B | 6 | 40 | 120-150 | 2.2/0.37 | 1.8 | 1.8*1.1*1.1 |
M5-60B | 6 | 60 | 110-140 | 2.2/0.37 | 1.8 | 1.8*1.1*1.1 |
M5-80B | 6 | 80 | 80-100 | 2.2/0.37 | 1.9 | 2*1.1*1.2 |
M5-120B | 6 | 120 | 50-70 | 3.6/0.37 | 2.3 | 2.8*1.3*1.3 |
M6-60B | 8 | 60 | 80-110 | 4/0.37 | 2.8 | 2.3*1.3*1.3 |
M6-100B | 8 | 100 | 60-90 | 4/0.37 | 2.7 | 2.3*1.3*1.3 |
M6-120B | 8 | 120 | 60-70 | 4/0.37 | 3 | 2.4*1.3*1.4 |
M6-170B | 8 | 170 | 40-70 | 4/0.37 | 3.7 | 3*1.3*1.5 |
M6-200B | 8 | 200 | 40-55 | 4/0.37 | 3.7 | 3*1.3*1.5 |

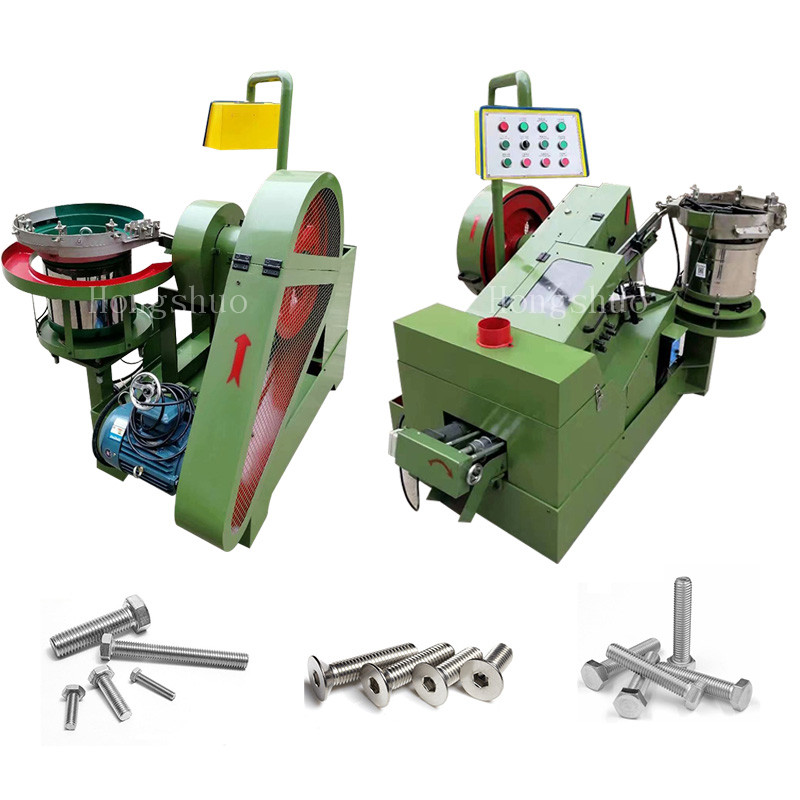

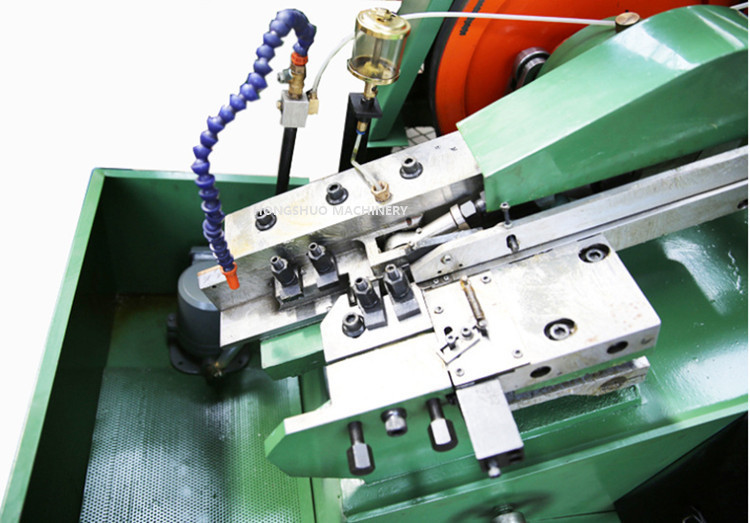

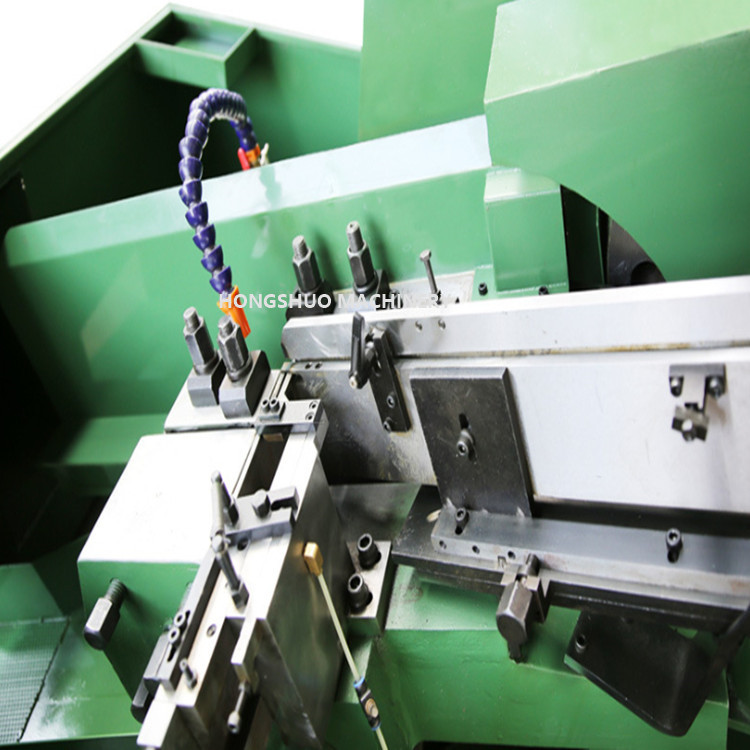

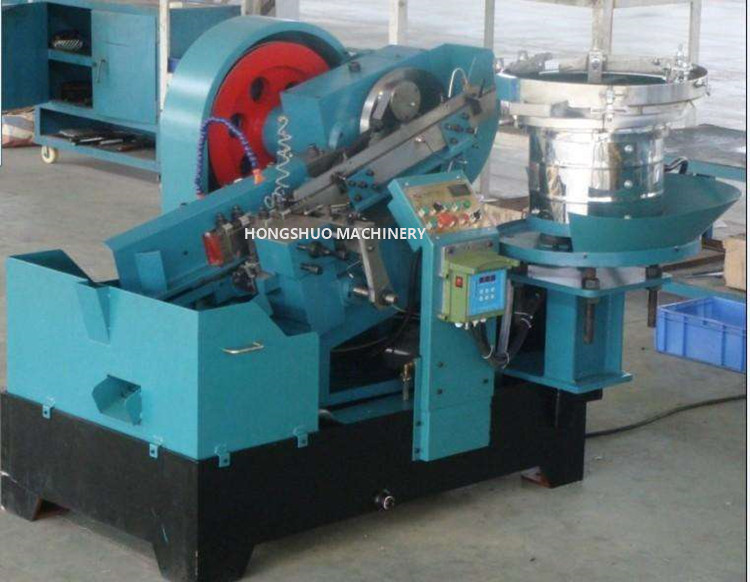

2.Automatic thread rolling machine Two thread profile thread rolling plates are designed with staggered 1/2 pitch, the rigid plate is fixed, and the moving plate is equal to the rigid plate to move back and forth in a straight line. When the workpiece is fed between the two plates, the moving plate moves forward and twists the workpiece to make its surface Plastic deformation into threads. Thread rolling machine isPortable, flexible and efficientCompared with similar equipment, it has some irreplaceable advantages, avoiding the limitations of lathes, drills or hand tapping, saving time and effort, not easy to rot teeth, and not easy to break taps. machine isSimple operation and easy maintenance, greatly reducing the technical requirements for workers.
Model | Max screw Diameter (mm) | maximum. tighten Length (mm) | motor (kilowatt) | capacity (pcs/min) | weight (Ton) | Overall size (m) |
R3-20A | M2.6 | 20 | 1.1 | 350 | 0.3 | 1.1*0.53*1.2 |
R3-20B | M2.6 | 20 | 1.1 | 350 | 0.3 | 1.1*0.53*1.2 |
R4-25A | M4 | 25 | 1.5 | 320 | 0.45 | 1.3*0.63*1.32 |
R4-25B | M4 | 25 | 1.5 | 320 | 0.45 | 1.3*0.63*1.32 |
R4-40A | M4 | 40 | 2.2/0.37 | 280 | 0.97 | 1.5*1.15*1.35 |
R4-40B | M4 | 40 | 2.2/0.37 | 280 | 0.97 | 1.5*1.15*1.35 |
R5-55B | M5 | 55 | 3+0.37 | 160 | 1.2 | 1.6*1.35*1.7 |
R5-65A | M5 | 65 | 3+0.37 | 130 | 1.3 | 1.75*1.4*1.65 |
R5-65B | M5 | 65 | 3+0.37 | 130 | 1.3 | 1.75*1.4*1.65 |
R6-60A | M6 | 60 | 4/0.37 | 180 | 1.5 | 1.7*1.65*1.3 |
R6-60B | M6 | 60 | 4/0.37 | 180 | 1.5 | 1.7*1.65*1.3 |
R6-100B | M6 | 100 | 5.5+0.37 | 110 | 1.9 | 2.7*1.3*1.3 |
R8-80B | M8 | 80 | 5.5/0.37 | 110 | 1.8 | 2.1*1.55*1.3 |
R8-100B | M8 | 100 | 7.5+0.37 | 100 | 2.1 | 2.7*1.7*1.3 |
pre-sale service
*Inquiry and consultation support.
*Sample test support.
* View our factory.
After-sales service
* Engineers can repair machinery overseas.
