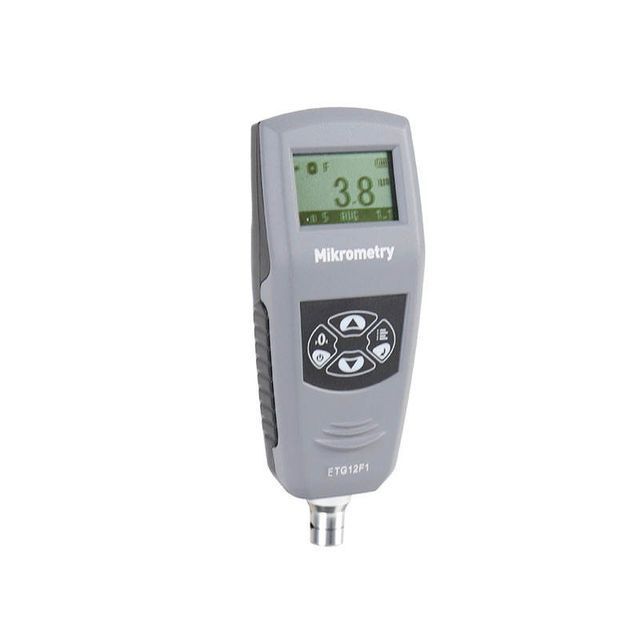

Automotive Paint Tester Coating Thickness Gauge Paint Checker Coating Thickness Gauge Measurement FE Digital Coating Thickness Gauge
- $80.00 / 1 - 5 units
$75.50 / >=6 units - 1 unit
- Mikrometry instruments limited
- Guangdong, China
- Ms Amanda Li
PRODUCT DETAIL
| model: | ETG12F1 | Warranty: | 1 year |
| design: | Integrated design of sensor and host | type: | Handheld |
| working environment: | Temperature: 0°C~+40°C Humidity: 20%~90% | weight: | 110 grams |
| Gross weight per piece: | 1.000 kg | brand: | Micrometer |
| Sales unit: | single product | color: | grey |
| power supply: | 3 AAA dry batteries | Origin: | Guangdong, China |
| exhibit: | Graphical LCD with backlight | product name: | Car Paint Thickness Gauge Pen ETG12F1 |
| Customization support: | OBM | size: | 150X50.5X29mm |
| Single package size: | 34X11X16 cm | Data storage: | 500 readings |
| Test Methods: | magnetic induction |
feature
MicrometerCoating Thickness Gauge PositectThe ETG12F1 is an economical choice for high quality automotive paint thickness measurement. This portable meter is designed for non-intrusive coating thickness measurement. You will be able to use dual technology to automatically identify ferrous (magnetic induction measurement) substrates.
feature:
* Very compact size with integrated probe
* Magnetic induction method (ISO 2178, ASTM D7091), measuring non-magnetic coatings on magnetic substrates
* Data memory up to 500 readings
* Measures immediately without calibration
* Easy-to-perform zero-point calibration provides correct measurement results for measurement applications with little variation
Shape and Substrate
* Single-point calibration feature allows adjustments in case of severe changes in shape or substrate material,
High-precision measurement in the selected measurement range
* Statistical functions allow to evaluate measurement series and display the most important characteristics
Statistics.
* Very compact size with integrated probe
* Magnetic induction method (ISO 2178, ASTM D7091), measuring non-magnetic coatings on magnetic substrates
* Data memory up to 500 readings
* Measures immediately without calibration
* Easy-to-perform zero-point calibration provides correct measurement results for measurement applications with little variation
Shape and Substrate
* Single-point calibration feature allows adjustments in case of severe changes in shape or substrate material,
High-precision measurement in the selected measurement range
* Statistical functions allow to evaluate measurement series and display the most important characteristics
Statistics.
Product Description
Test Methods | magnetic induction |
Measuring range | 0-1250μm (0~50 million) |
solve | 0~999 microns: 0.1 microns |
≥1000μm: 1μm | |
accuracy | 0~100: ±2.0μm |
101～1250μm: ≤2.5% | |
data storage | 500 readings |
exhibit | Graphical LCD with backlight |
Operating temperature | 0 ~ 50°C |

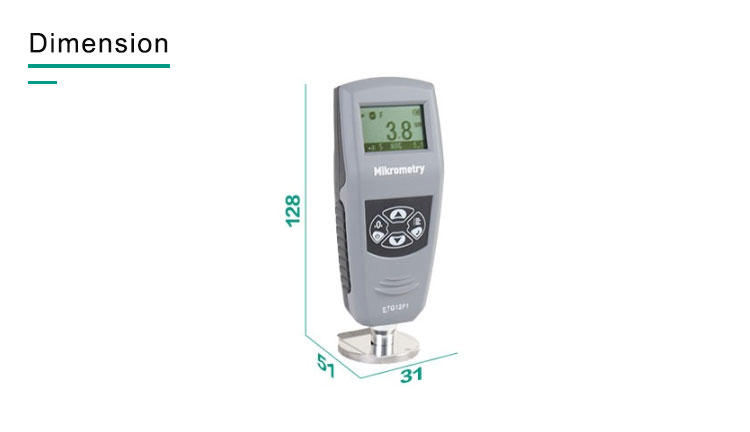

aspect | 150X50.5X29mm |
weight | 170 grams |

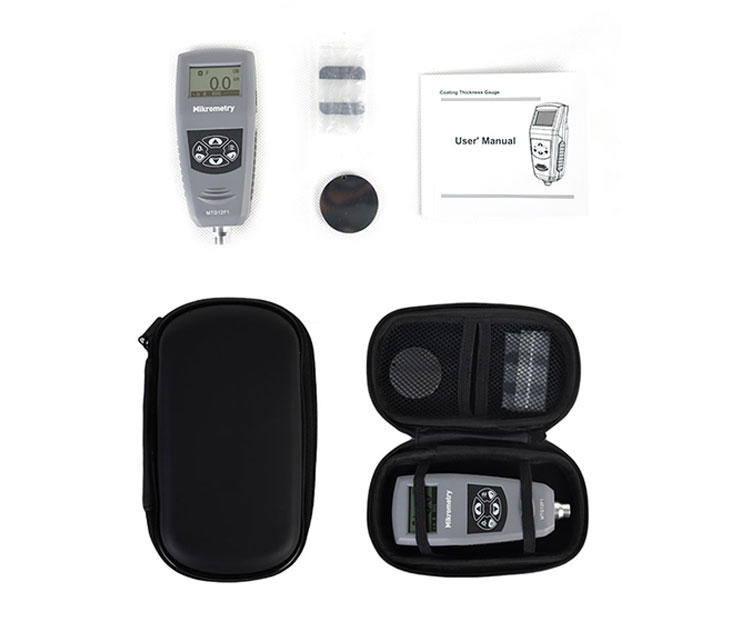

Accessories | Thickness gauges, base plates, certified foil sets, chargers User Manual, Manufacturer's Certificate. |
