Testing Instrument JT150 NDT Portable Ultrasonic Metal Wall Thickness Measuring Instrument Wholesale
- $125.00 /piece
- 1 piece
- Zhejiang Dana Automation Technology Co., Ltd.
- Zhejiang, China
- Mr Sunny Wen
| Storage: | 40 saved data values | type: | Ultrasonic Thickness Gauge |
| operating hours: | more than 50 hours | Packaging Details: | carton |
| solve: | 0.01mm | Warranty: | 2 years |
| Origin: | Beijing China | Single package size: | 28X25X8 cm |
| Customization support: | OEM production | Dimensions: | 145*74*32 mm |
| brand: | Jitai | exhibit: | 128*64 LED backlit LCD screen |
| Speed range: | (1000~9999) m/s | weight: | 245 grams |
| Energy source: | 2pcs 1.5V AA size | Gross weight per piece: | 1.000 kg |
| measurement accuracy: | ±(0.5%H+0.04mm) | Measuring range: | (0.75~600)mm (steel) |
| model: | JT150 | Sales unit: | single product |

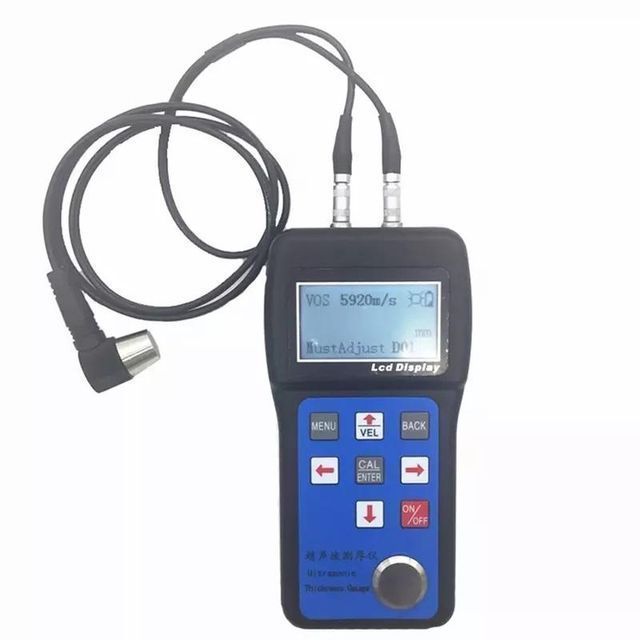

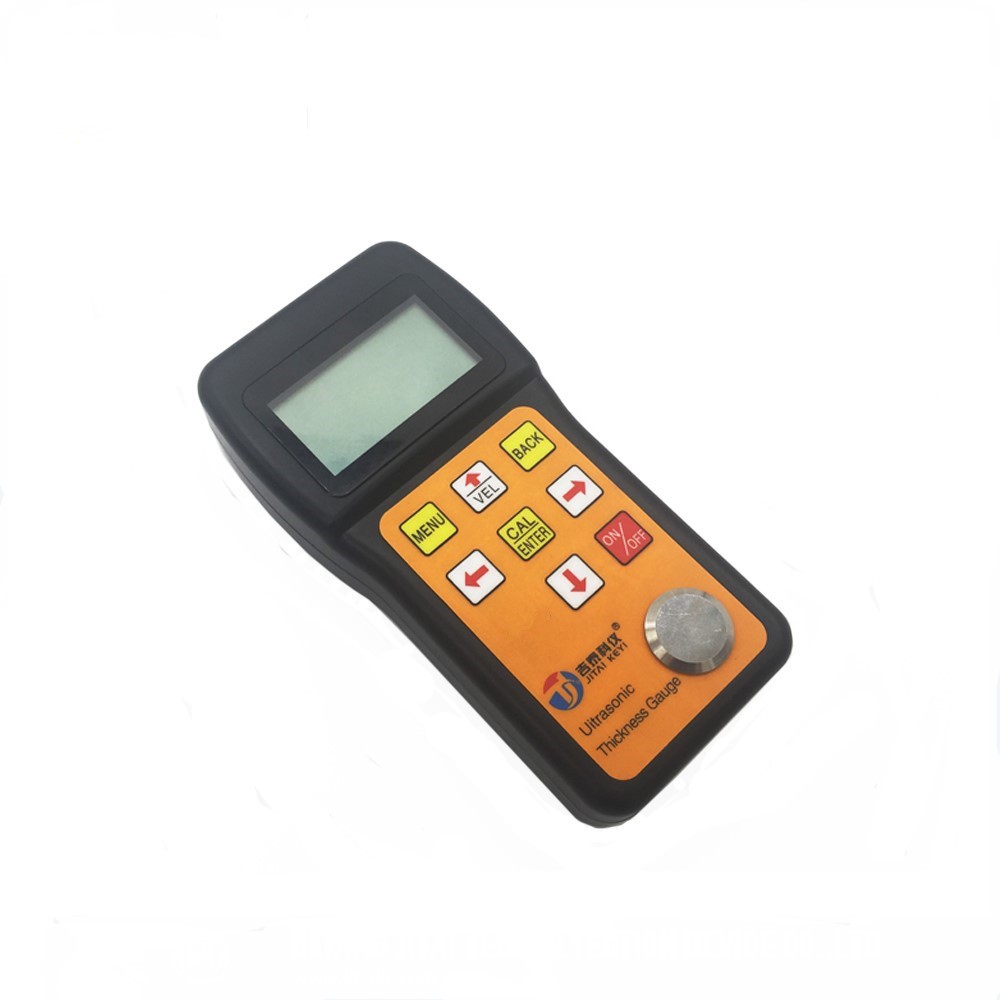

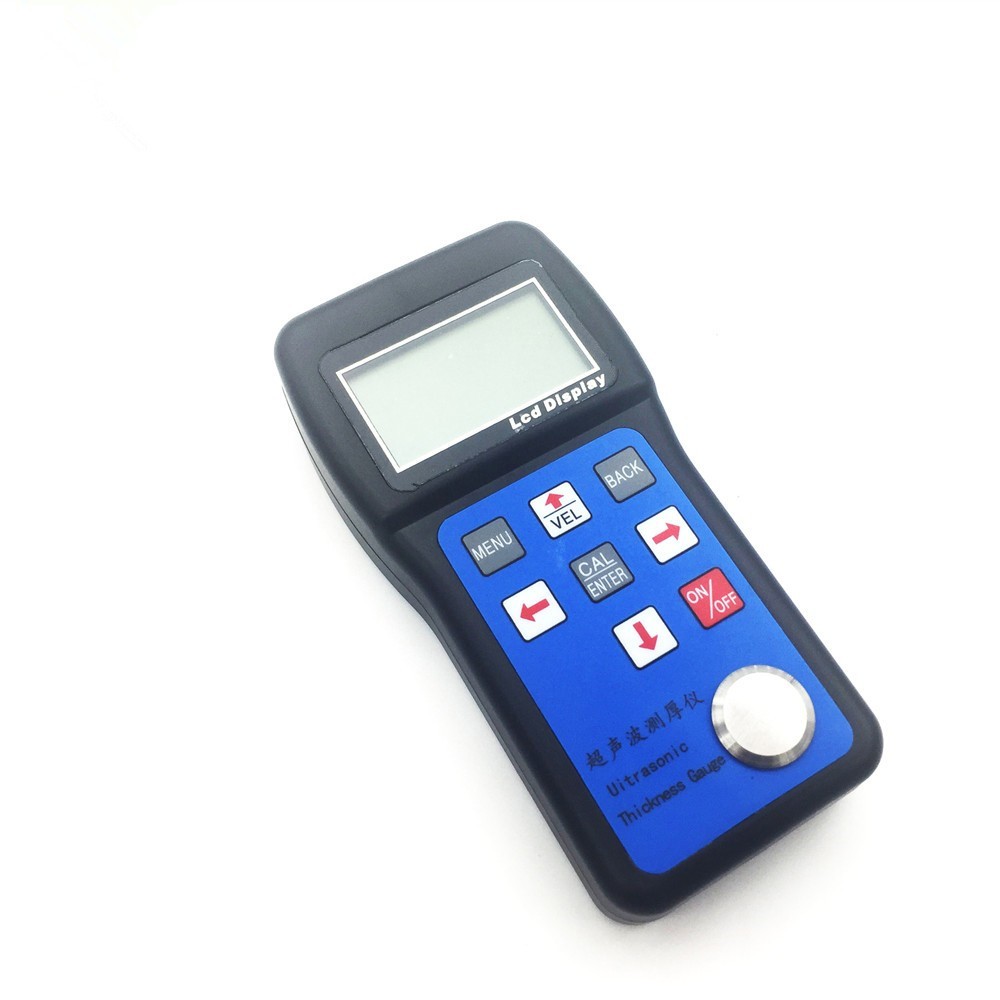

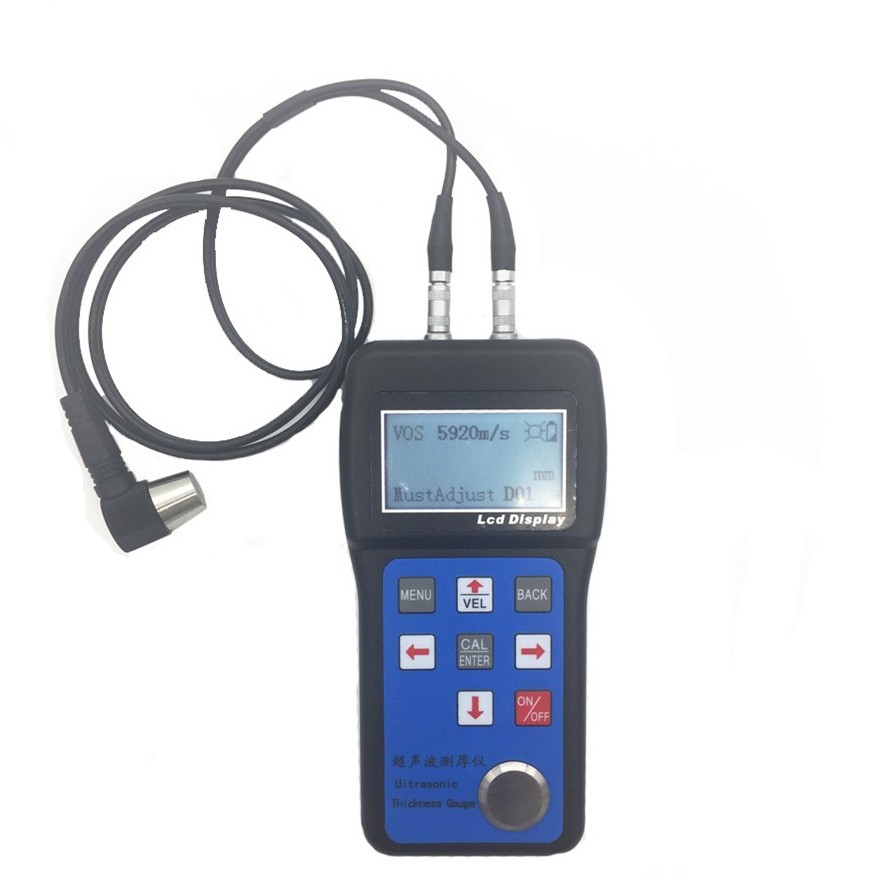

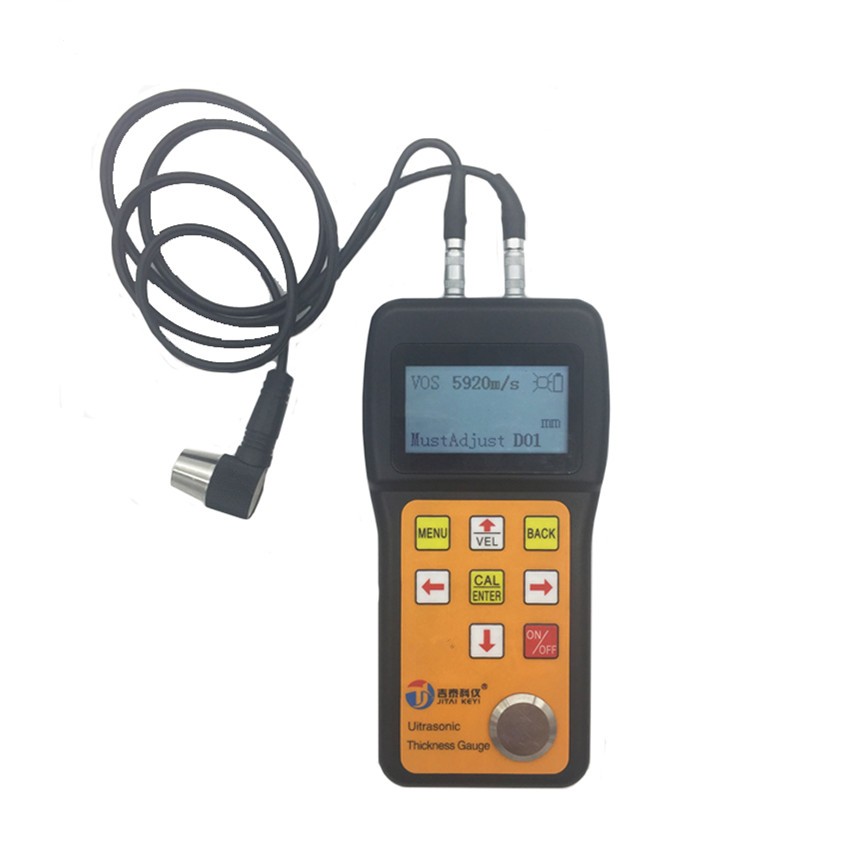

JT150 non-destructive testing ultrasonicThickness gauge
Ultrasonic thickness gauges measure with ultrasonic waves and are suitable for measuring the thickness of any material that can emit ultrasonic waves and reflect them back from the other side.

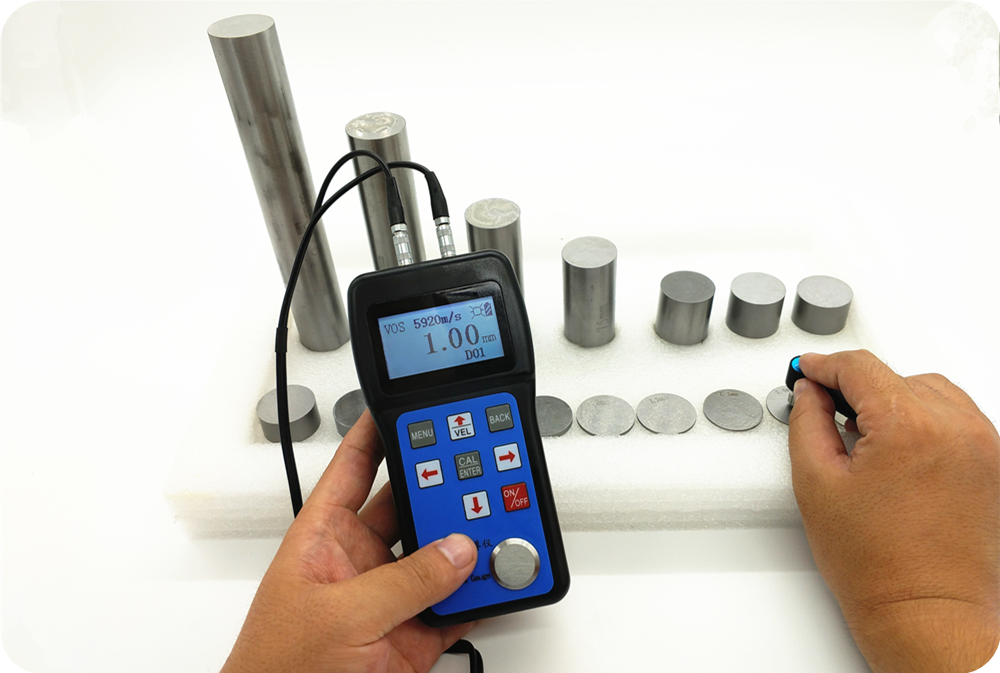

The gauge can quickly and accurately measure various workpieces such as plates and machined parts. Another important application of this instrument is to monitor various pipelines and pressure vessels in production equipment, and to monitor the degree of thinning during use. Can be widely used in petroleum, chemical industry, metallurgy, shipbuilding, aerospace, aviation and other fields.
|
technical specifications
|
||
|
exhibit |
128*64 LED backlit LCD screen |
|
|
Measuring range |
(0.75~600)mm (steel) |
|
|
speed range |
(1000~9999) m/s |
|
|
solve |
0.01mm |
|
|
measurement accuracy |
±(0.5%H+0.04mm) |
|
|
Measurement cycle |
Single point measurement 6 times/time |
|
|
Calibration function |
Zero calibration and two-point calibration |
|
|
storage |
40 saved data values |
|
|
energy source |
2pcs 1.5V AA size |
|
The main function:
1. Capable of measuring a variety of materials, including metals, plastics, ceramics, composites, epoxy resins, glass and other materials with good ultrasonic conductivity.
2. It can be matched with a variety of probes with different frequencies and wafer sizes;
3. Sound velocity calibration function with known thickness;
4. The coupling status indicator light shows the coupling status;
5. EL backlight, easy to use in dark environment;
6. With power indicator function, it can display the remaining power in real time
7. Automatic sleep and automatic shutdown function to save battery life;
Smart, portable, high reliability, suitable for harsh environments, resistant to vibration, shock and electromagnetic interference.
Standard configuration:
|
No. |
thing |
quantity |
|
1 |
main body |
1 set |
|
2 |
Standard probe (5MHz, D10mm) |
1 |
|
3 |
Coupling agent |
1 |
|
4 |
ABS shell |
1 |
|
5 |
Product Certificate |
1 |
|
6 |
Warranty Card |
1 |
|
7 |
manual |
1 |
|
8 |
1.5V AA size |
2 |
Optional:
|
No. |
thing |
notes |
|
1 |
Large aperture probe (2.5MHz) |
|
|
2 |
Wide Range Probe (2MHz) |
|
|
3 |
Micro-diameter probe (7MHz) |
|
|
4 |
High temperature probe (5MHz) |
|
|
5 |
High temperature couplant |
