Portable Ultrasonic Thickness Gauge for Thickness Measurement of Metal itself
- $60.00 /set
- 1 set
- Hangzhou Pulani Electronic Technology Co., Ltd.
- Zhejiang, China
- Ms Demi Guo
| Supply capacity: | 20000 pieces/year | brand: | Plani |
| place of origin; place of origin: | Zhejiang, China | exhibit: | 4.5 digit LCD with EL backlight. |
| Measuring Range (Metric/Imperial): | 1.0-280mm, 0.05-11.0inch (steel) | Packaging Details: | plastic suitcase, 1 |
| Resolution: | 0.1 mm; | port: | Ningbo/Shanghai |
| payment terms: | Wire Transfer, Western Union, Paypal | Operating conditions: | 0-+45℃(32℉-104℉),≤90%RH |
| Delivery Details: | Within 7 working days, depending on the order | working principle: | Ultrasound |
| unit: | Metric/Imperial units optional | model: | UTM-6700 |
| Sound speed range: | (500~9000) m/s |

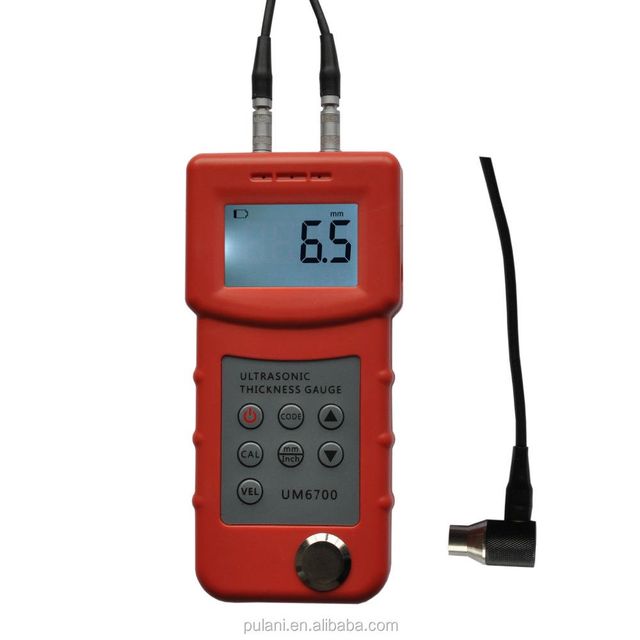

High Performance Portable Ultrasonic Thickness Gauge Tester Equipment
Introduction and application:
It is used for thickness and corrosion measurement of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in petroleum, shipbuilding, power stations, machinery manufacturing and other industries. Tested material: any hard material, including steel, cast iron, aluminum, copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, ductile iron and other materials with good ultrasonic conductivity.
Specification:
| exhibit: | 4.5 digit LCD with EL backlight |
| working principle: | Ultrasound |
| Measuring Range (Metric/Imperial): | 1.0-280mm, 0.05-11.0inch (steel) |
| Resolution: | 0.1mm |
| accuracy: | ±(0.5%H+0.1)mm, depending on material and conditions |
| unit: | Metric/Imperial units optional |
| power supply: | 4x1.5 AAA size (UM-4) battery 1 |
| Battery indicator: | low battery indicator |
| Operating conditions: | 0-+45°C(32°F-104°F),≤90%RH |
| Standard Shipping: | Main unit, 8mm probe, coupling oil, user manual, carrying case |
Function:
1. High-resolution measurement
2. The probe is automatically zeroed for system error correction
3. Two-point calibration function. Sound velocity calibration function
4. Measure the speed of sound from the known thickness.
5. Capture the value of the minimum thickness.
6. Coupling and low battery status indication.
7. Auto hibernate and auto power off function to save battery life.
8. Humanized shape design, small and portable, can be used in harsh environments.
Thanks for reading, please feel free to contact Ms. Shelley if you are interested, have a nice day.
