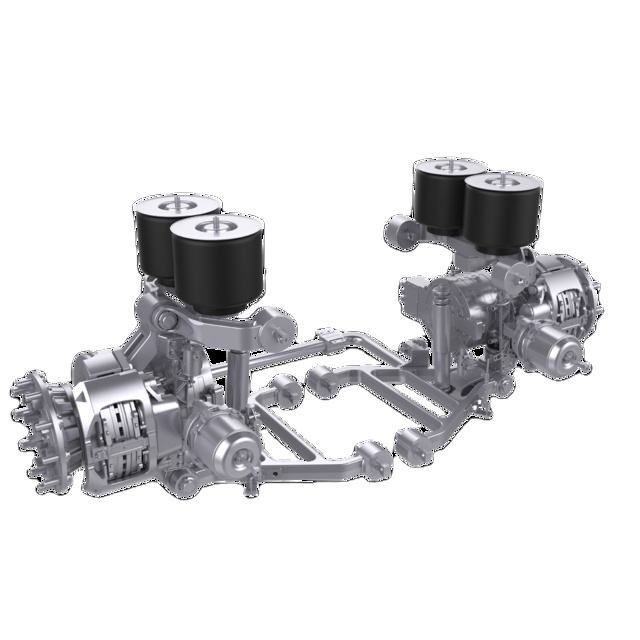

Brogen hot sale 130 kw 200 kw new 9 T wheel side PMSM motor axle electric rear axle for 10.5 M electric bus
- $36000.00 / 1 - 99 sets
$29000.00 / >=100 sets - 1 set
- Shanghai OE Industrial Co., Ltd.
- Shanghai, China
- Mr Henry Liao
PRODUCT DETAIL
| R: | 9000 kg | Motor rated power: | 2*65kW |
| port: | Shanghai Ningbo | battery voltage: | 540 VDC |
| Supply capacity: | 10000 sets per month | Motor peak power: | 2*100kW |
| Motor rated torque: | 2*170Nm | Motor peak torque: | 2*450Nm |
| Maximum output torque: | 2*7897 Nm | Packaging Details: | Plastic bag/bulk carton/wooden case |
| Speed (RPM): | 8500 rpm | Axle width: | 1000 mm |
| Motor peak speed: | 8500 rpm | Voltage: | 540VDC |
| payment terms: | L/C,Western Union,T/T,MoneyGram | type: | Permanent magnet synchronization |
| Packaging Preview: |
Product Description

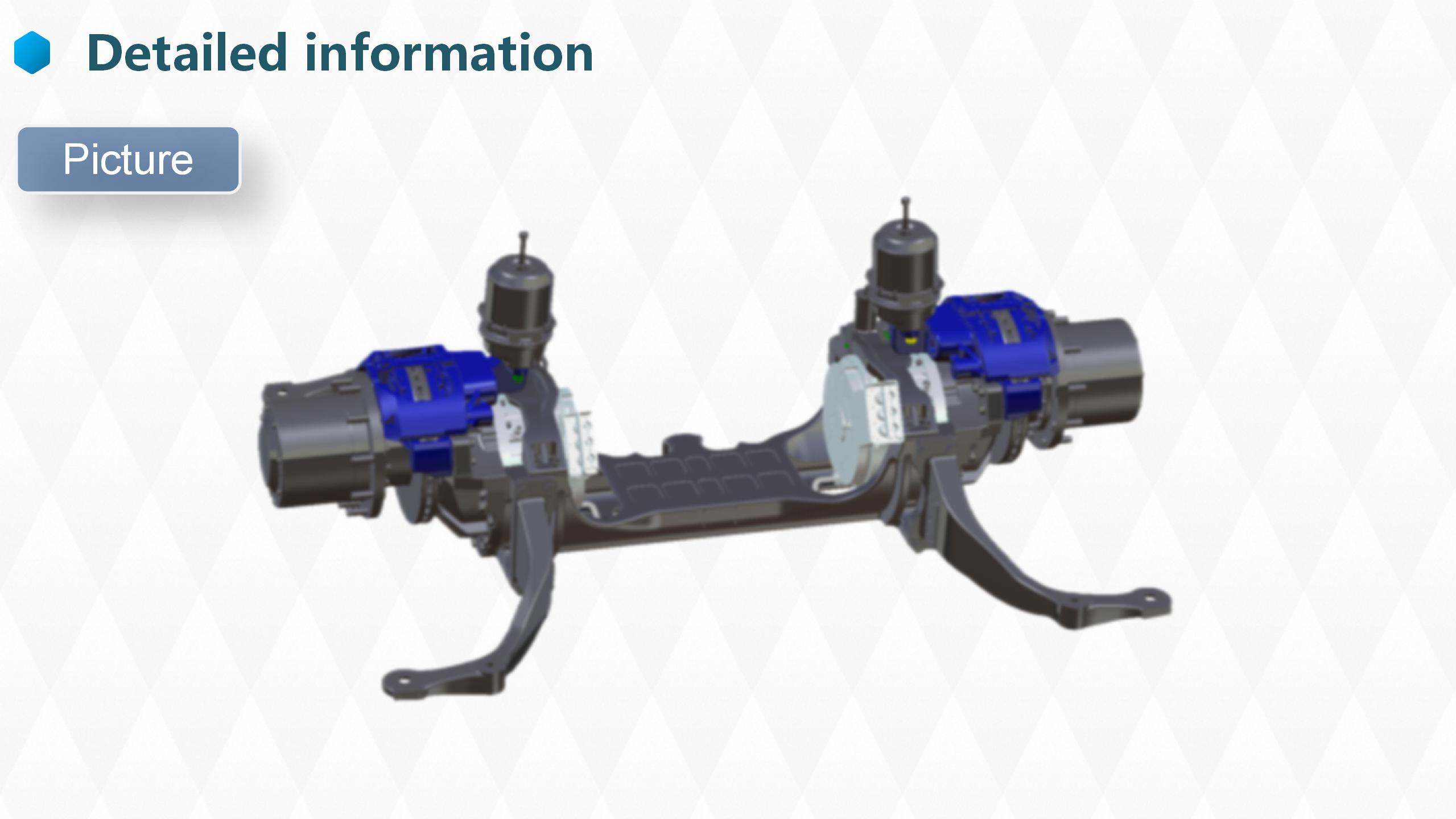

Brogen hot sale 130 kw 200 kw new 9 T wheel side PMSM motor Axle Bus electric rear axle for 10.5 M electric bus

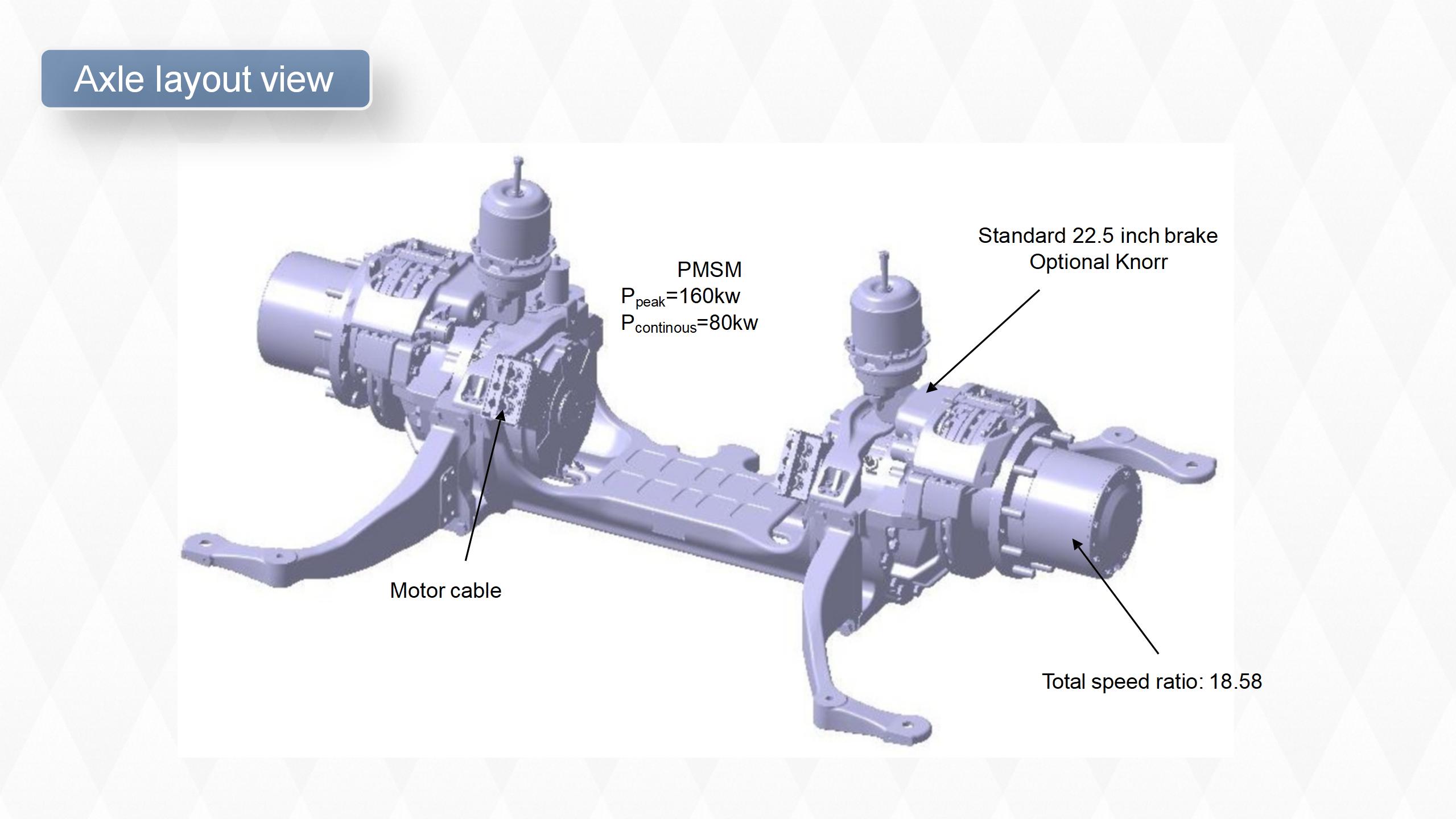

9 T wheel motor shaft parameters
voltage platform | 540 VDC | top wheel speed | 430 rpm |
Motor peak power | 2×100kW | Maximum speed | 85 km/h |
Motor rated power | 2 x 65kW | Axle width | 1000 mm |
peak wheel torque | 2×7897Nm | R | 9000kg |

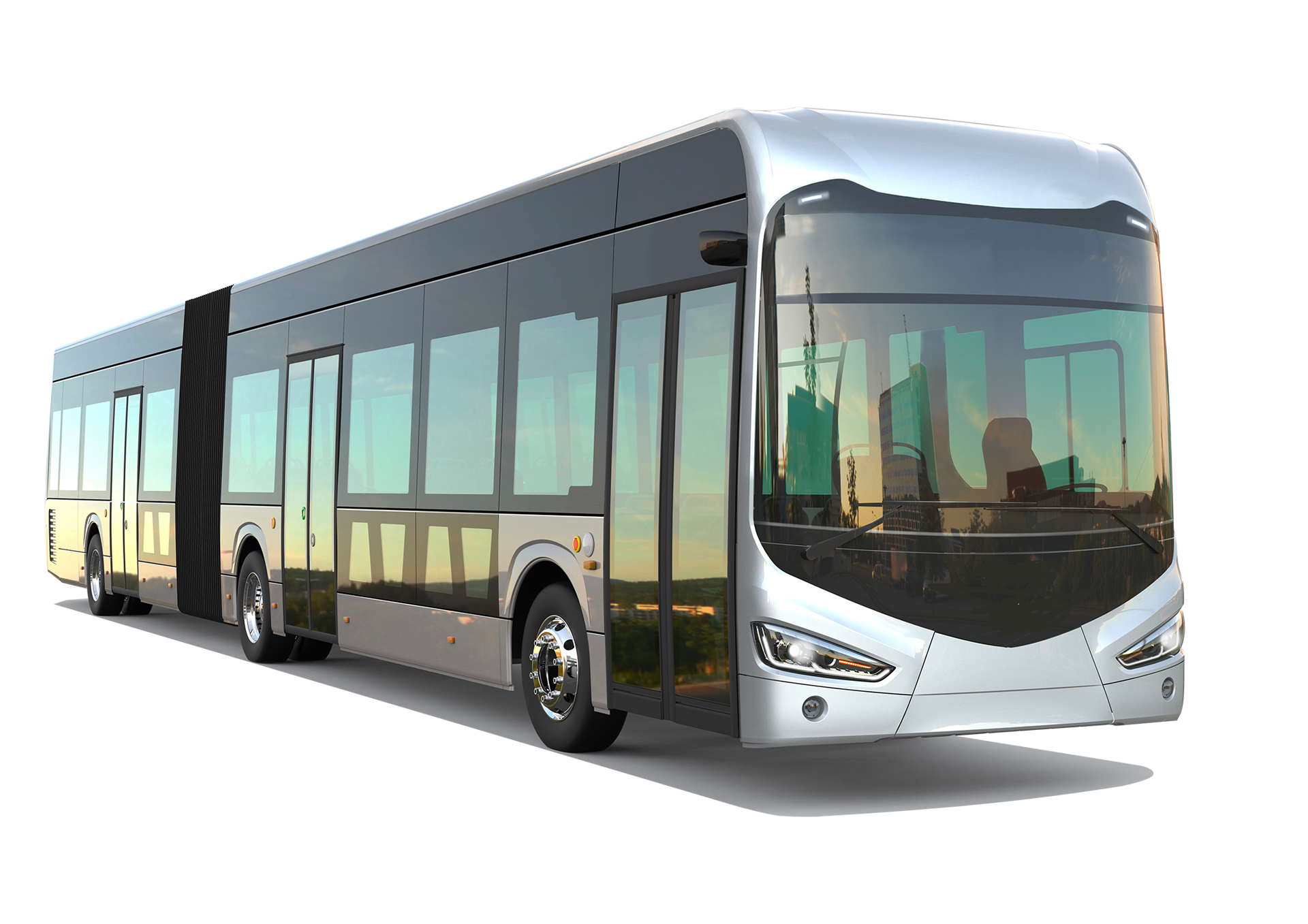

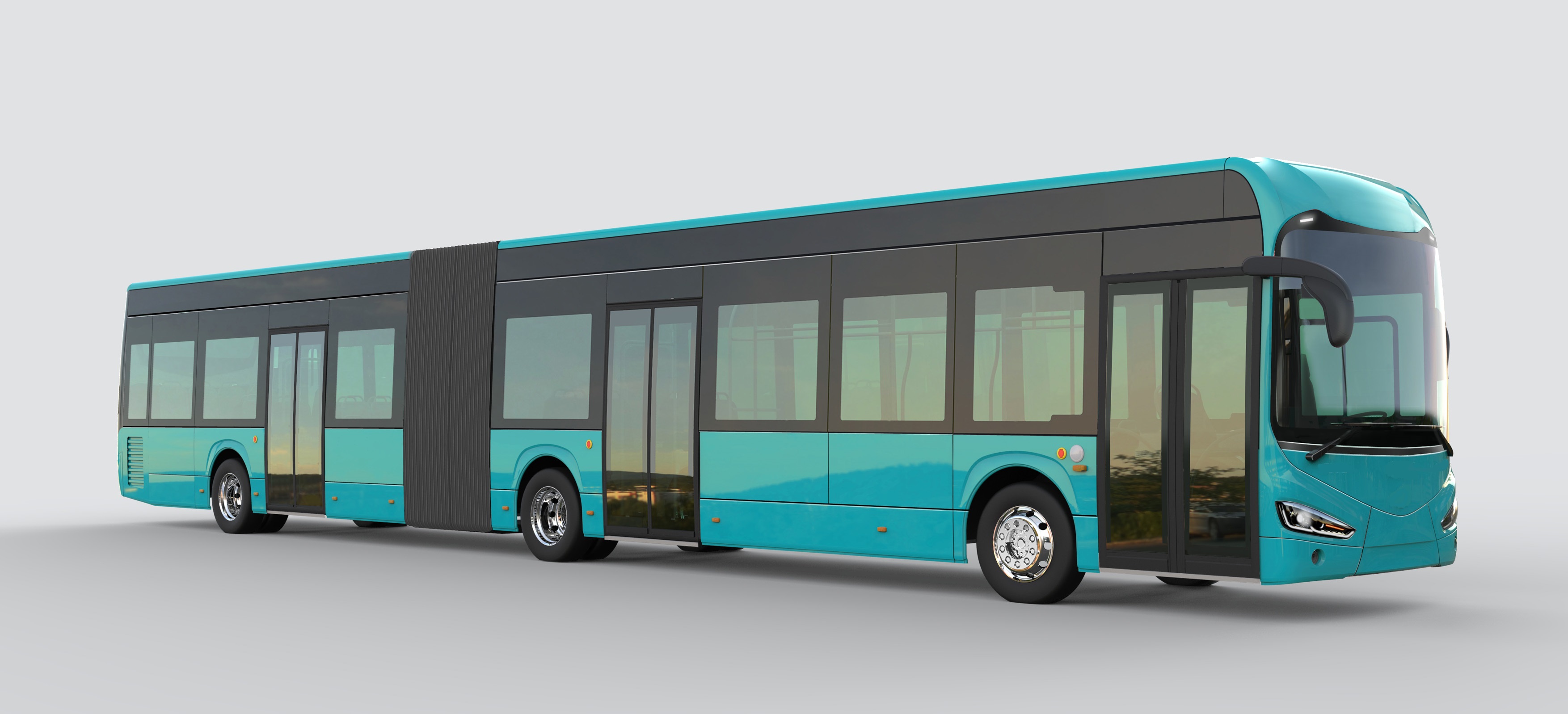

application
