Wuling Hongguang Mini EV Motor 40KW with Control Unit Electric Drive Complete EV Complete Conversion Kit

  • $1000.00 / 1 - 9 pieces
    $990.00 / 10 - 99 pieces
    $950.00 / 100 - 99999999 pieces
    $300.00 / >=100000000 pieces
  • 1 piece
  • Shenzhen Asia Technology Co., Ltd.
  • Guangdong, China
  • Mr
PRODUCT DETAIL
motor:Permanent Magnet Synchronous Motorrated power:20kW
Speed ​​(RPM):16000 rpmVoltage:220V
product name:Electric vehicle modification kitVehicle Type:Battery
Peak power:40kWpayment terms:wire transfer





Wuling MINI EV Concealed Kit Specification Sheet

Product Description and Specifications

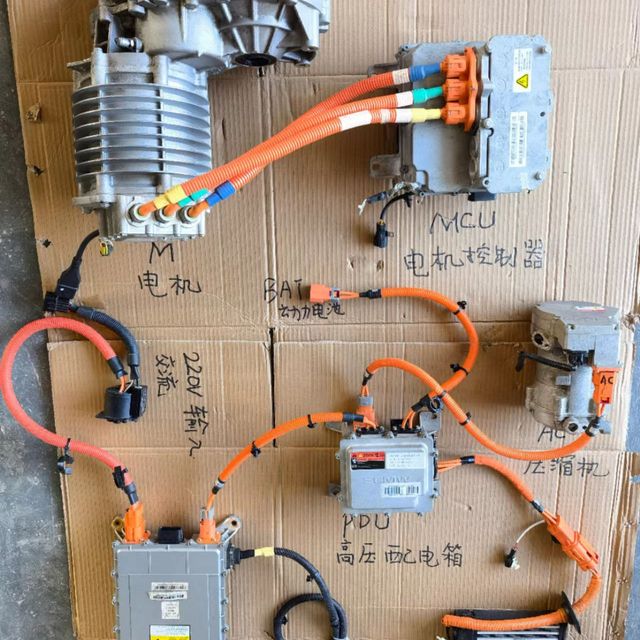

Pictured below, from right

Bottom right: three-phase variable frequency motor drive,

Top Right: Air Conditioning Compressor

Second from the right: three-phase motor

Right 3 lights up: battery charger,

Right 3 Next: DC-DC

Left: LiB





The 2020 Baojun E300 is available in 2- and 3-seat versions. In terms of body size, length: 2625 width: 1647 height: 1588 mm, and the wheelbase reaches 1750 mm. Curb weights range from 920 to 940 kg. Tire size 145/70 R12

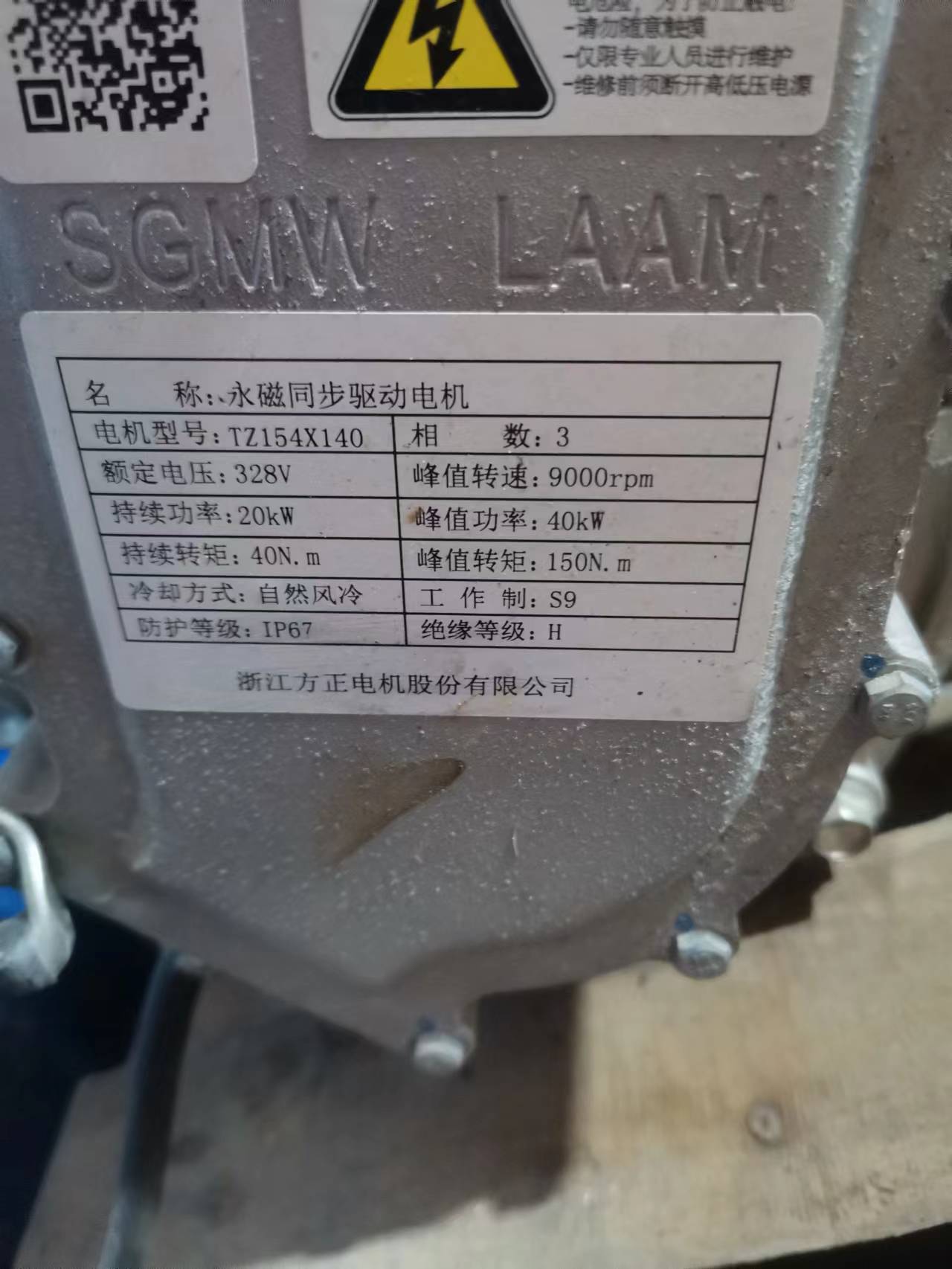

The motor series is TZ154X140 produced by Zhejiang Fangzheng Motor Co., Ltd. Power 40 Kw (54 Ps)/150 Nm, maximum speed 100 km/h









Technology Spectoral muscles

Model

TZ154X140

Powertrain size

251*255*250mm

Peak torque/speed (Nm/rpm)

150@0-9000rpm

Peak power (kW)

40KW@

Working voltage/rated voltage (V)

328V

Rated power (kW)

20

Rated torque (Nm)

40

Maximum speed (rpm)

9000 rpm

Protection class

IP67

Overall efficiency

89 % / 93% peak

cooling method

natural air cooling

weight

25 kg
