Wuling Hongguang Mini EV motor 30KW with control unit electric drive full ev complete conversion kit

  • $900.00 / 1 - 9 sets
    $850.00 / 10 - 99 sets
    $800.00 / 100 - 99999999 sets
    $250.00 / >=100000000 sets
  • 1 set
  • Shenzhen Asia Technology Co., Ltd.
  • Guangdong, China
  • Mr
PRODUCT DETAIL
product name:EV conversion kitRated torque:30
Peak torque:150rated power:15 kW
Voltage:115Vmotor:Permanent Magnet Synchronous Motor
Speed ​​(rev/min):7500 rpmVehicle Type:Battery
payment terms:wire transferPeak power:29 kW





Wuling MINI EV Concealment Kit Spec Sheet

Product Description and Specifications

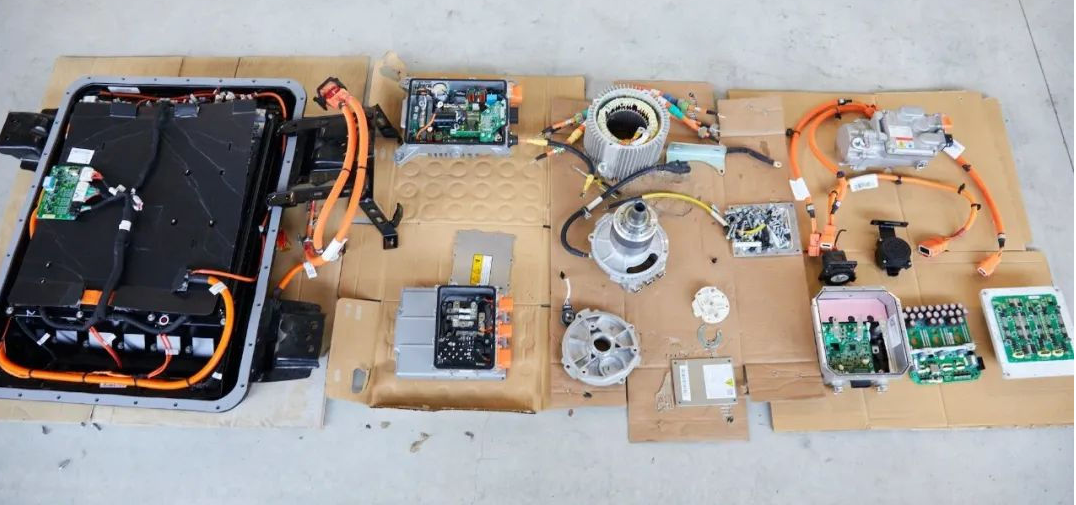

Below, starting from the right

Bottom right: three-phase variable frequency motor drive,

Upper right: air conditioner compressor

Second from the right: three-phase motor

Right 3 open: battery charger,

Right 3 Next: DC-DC

Left: LiB





The 2020 Baojun E200 has 2-seater and 3-seater versions. In terms of body size, length: 2625 width: 1647 height: 1588 mm, and the wheelbase has reached 1750 mm. Curb weights range from 920 to 940 kg. Tire size 145/70 R12

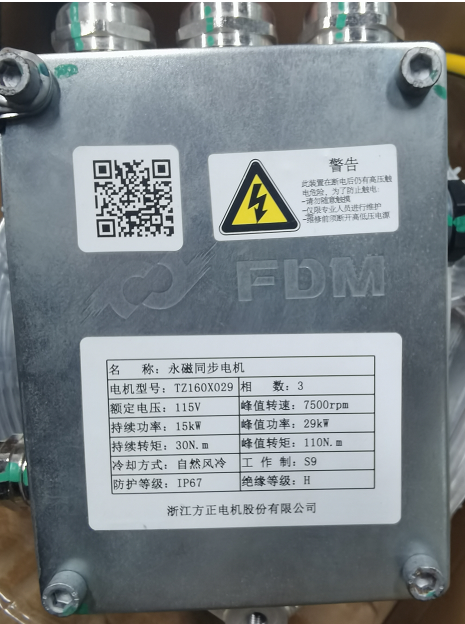

The motor series is TZ160X029 produced by Zhejiang Fangzheng Motor Co., Ltd. Power 29Kw (39Ps)/150Nm, maximum speed 100km/h









Technical Supportpectoralis

Model

TZ154X140

Powertrain Dimensions

251*255*250mm

Peak torque/speed (Nm/rpm)

150@0-9000rpm

Peak power (kW)

40KW@

Working Voltage/Rated Voltage (V)

328V

Rated power (kW)

20

Rated torque (Nm)

40

Maximum speed (rpm)

9000 rpm

degree of protection

IP67

overall efficiency

89 % / 93 % peak

cooling method

natural air cooling

weight

25 kg
