Built-in electric motor Brogen VAN Haice Hiace motor 60kw 110kw AC electric conversion kit for VAN

Price:$6900.00 / 1 - 99 sets
$5800.00 / >=100 sets
Min. Order:1 set
Supplier:Shanghai OE Industrial Co., Ltd.
Region:Shanghai, China
Contact:Mr Henry Liao

PRODUCT DETAIL

type:	Permanent magnet synchronization	Protection class:	IP67
payment terms:	Letter of Credit, Telegraphic Transfer, MoneyGram	product name:	Brogen integrated motor shaft powertrain ev conversion kit
Packaging Preview:		Packaging Details:	Plastic bag/bulk carton/wooden case
Maximum output torque (Nm):	290	Speed (RPM):	9600 rpm
cooling method:	50% Glycol + 50% Water	Peak speed (rpm):	9600
port:	Shanghai Ningbo	Maximum output power (kW):	100
Axle load(kg):	3500	Supply capacity:	10000 sets per month
Voltage:	540V	Vehicle Type:	light truck

Brogen Integrated Motor Electric VAN Hayes Hiace Motor 60kw 110kw Motor AC Electric Powertrain ev Conversion Kit for VAN

Product Description

EV Conversion Kit

1. Electric Powertrain
2. Battery
3. Electric power steering rack/electric power steering pump
4. Vacuum pump/air brake compressor
5. Auxiliary drive controller

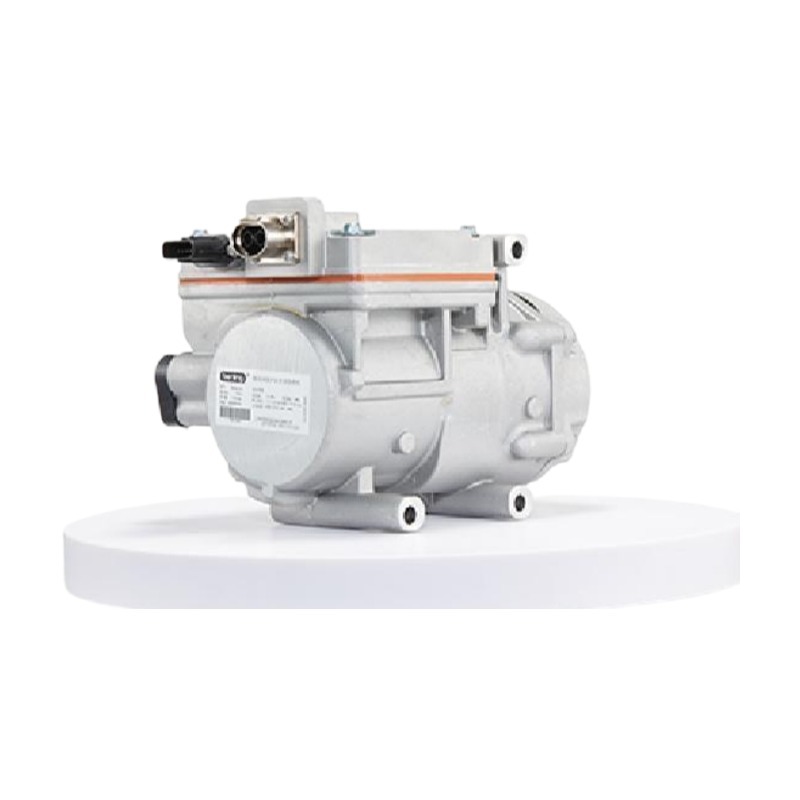

6. Air conditioner compressor

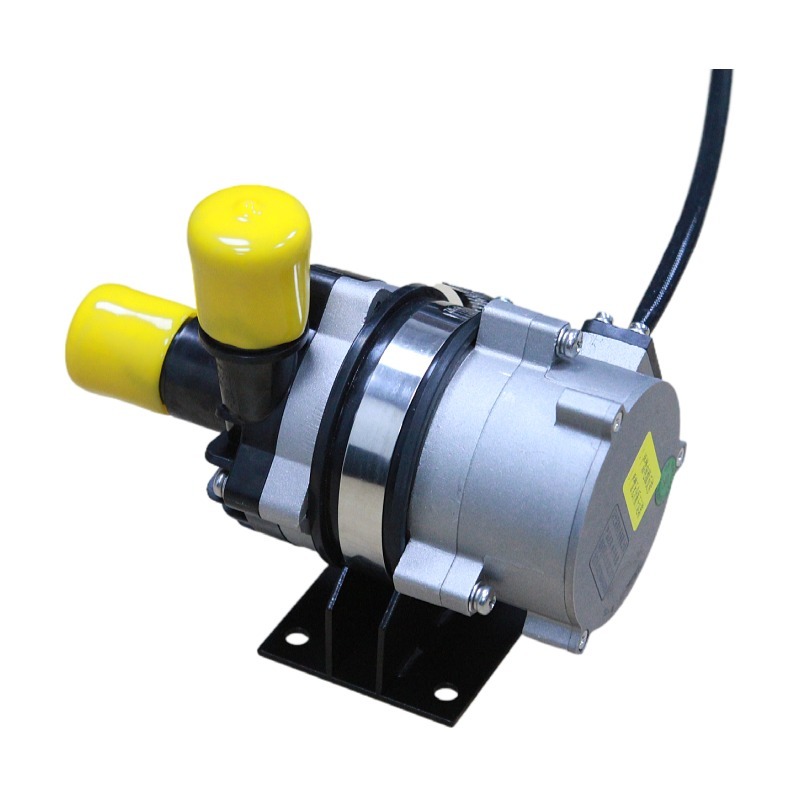

7. Electric drive cooling system
8. Battery thermal management system

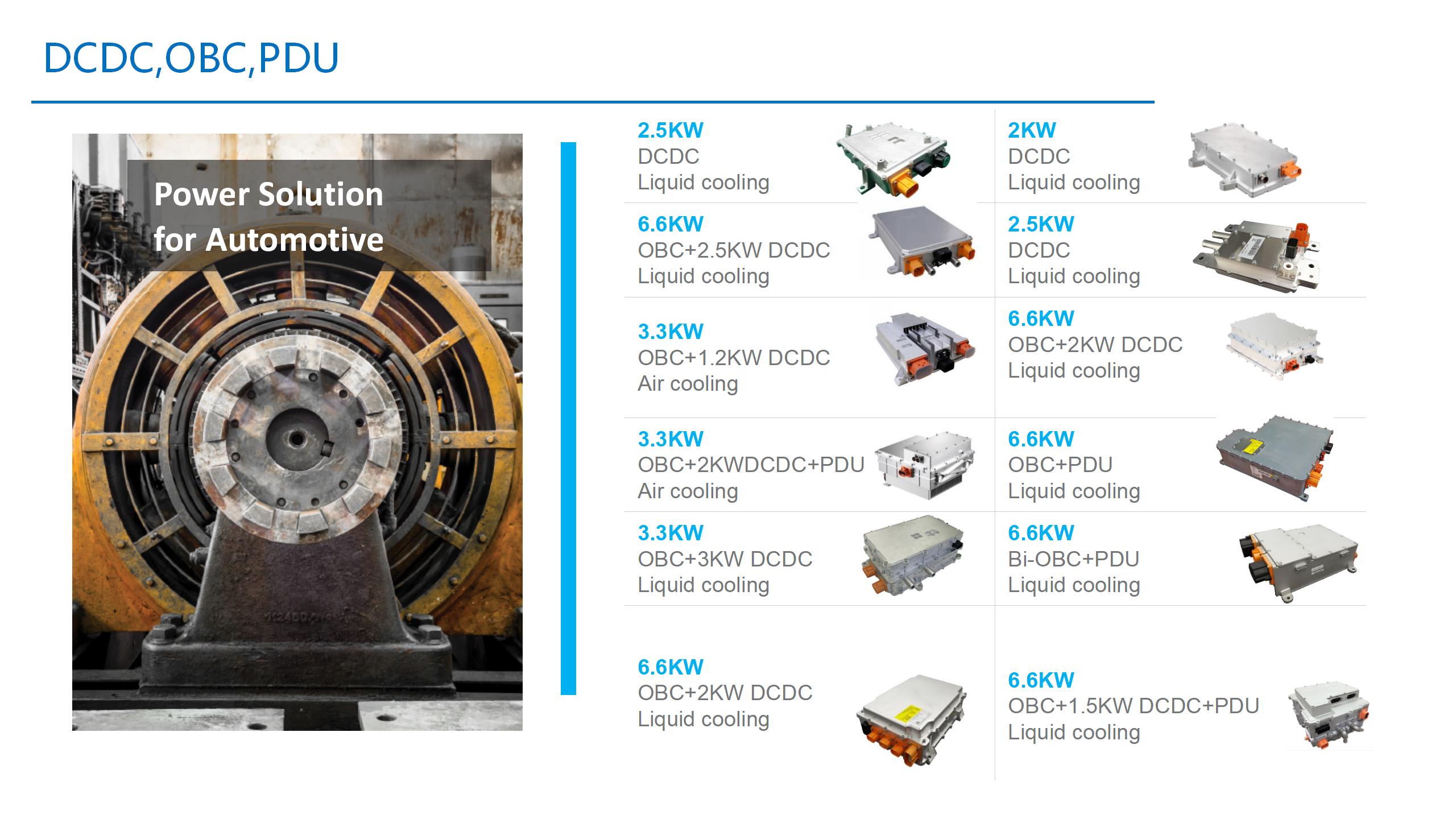

9. OBC+DCDC+PDU

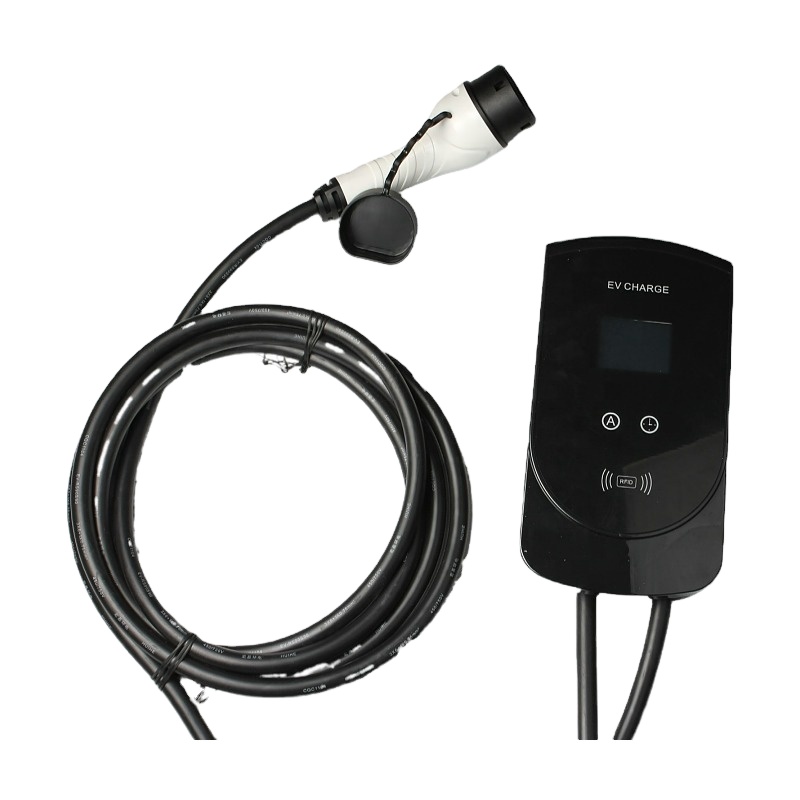

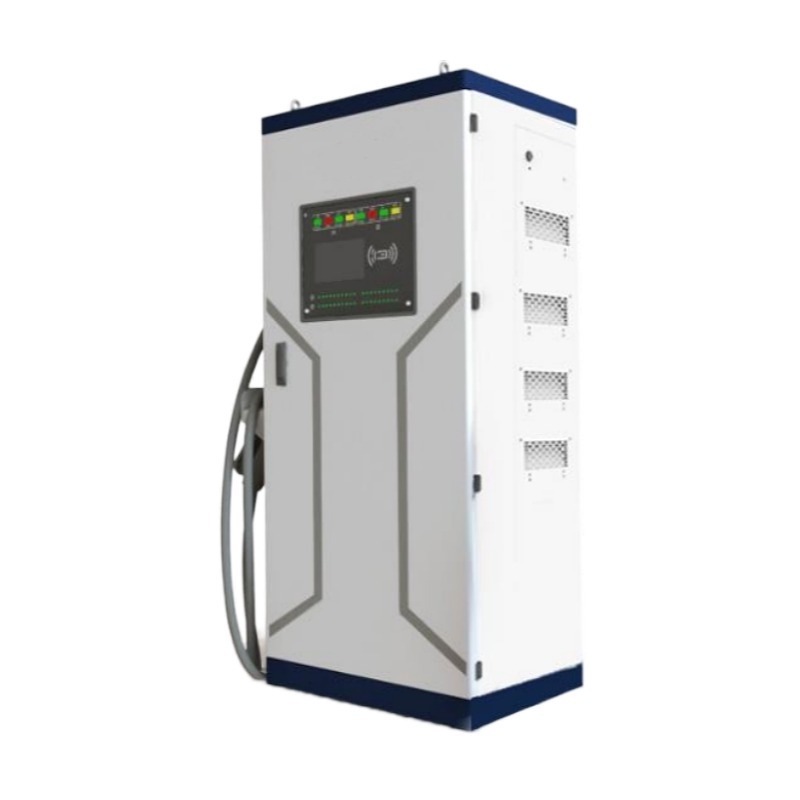

10. Charger

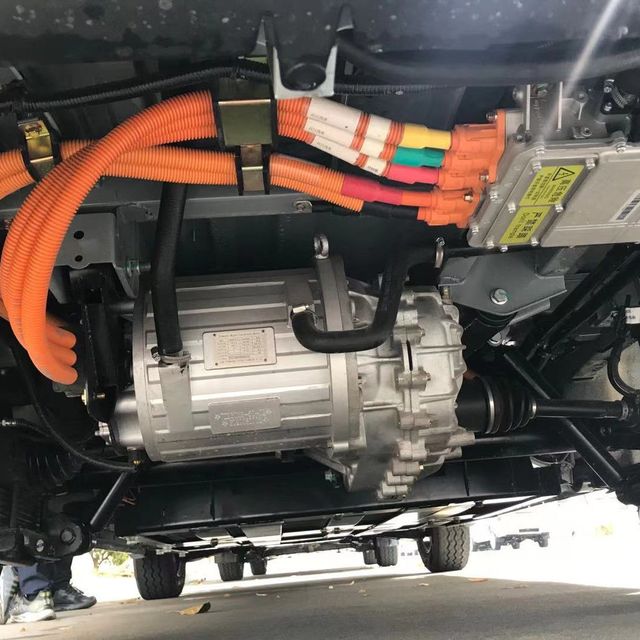

Light Truck Electric Powertrain

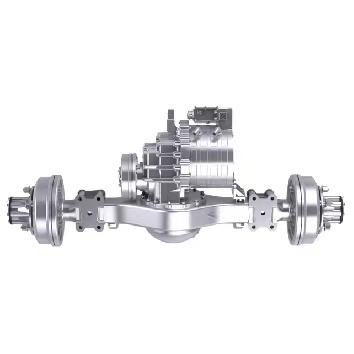

Integrated electric drive axle

C635E

Project parameters
Axle load (kg)3500

Maximum output torque (Nm) 6335

Maximum output power (kW) 160

Maximum wheel speed (rpm) 789

Speed ratio 12.67
Brake Type Hydraulic/Pneumatic

Brake drum

Installation distance (mm) 860-940

Rail (mm) 1370-1580

Battery pack with BMS

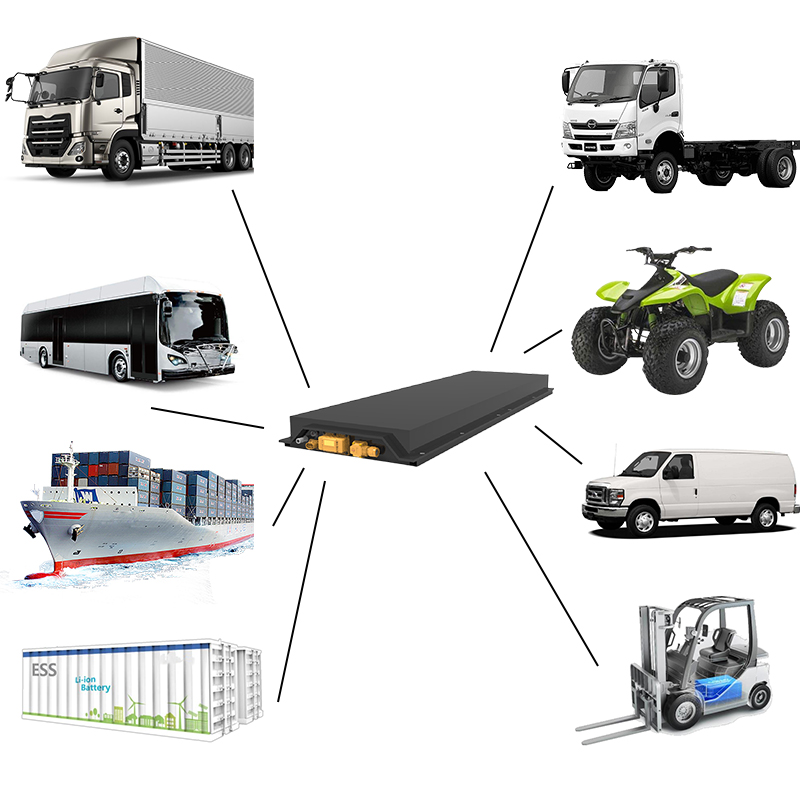

Battery pack application:

Battery pack with BMS

for light trucks

for heavy trucks

For electric bus

For vans

For UTVs/ATVs

for boat/boat propulsion

For forklift

Auxiliary Drive Products

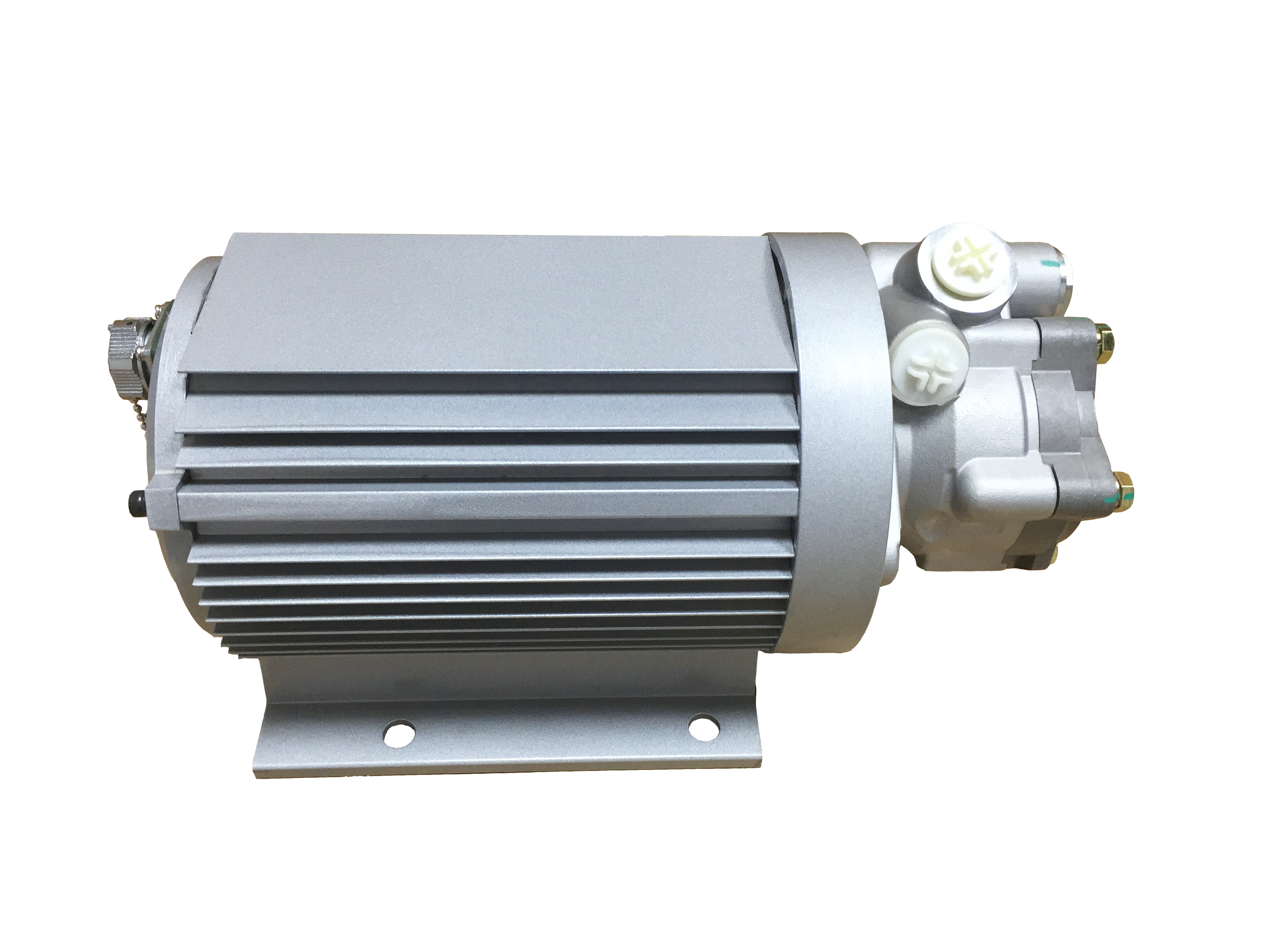

Electric power steering pump

The title is here.

1.5 KW 380VAC pressure 13Mpa, flow 12L/min

Rated power 1.5 KW Peak power 3 KW
Rated voltage AC380V Back EMF (rated speed) 334V Rated current 3.5A
Peak current 7A Rated torque 9.55 Nm
Peak torque 19.1 Nm Rated speed 1500r/min
Working speed 1500 r/min

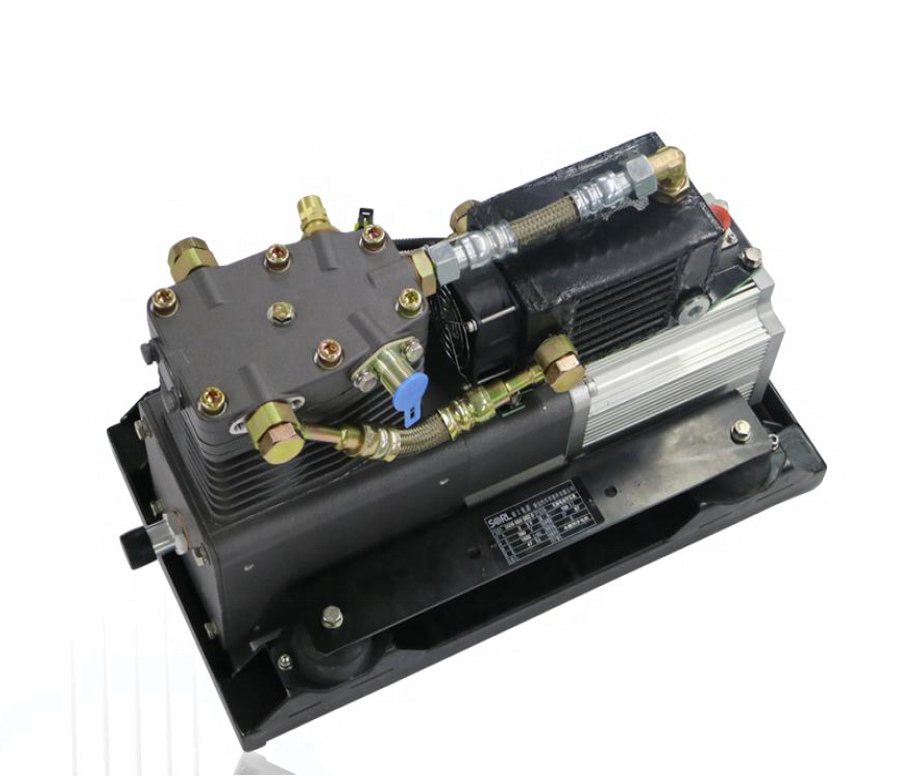

air brake compressor

Rated air volume 120L/min
Motor power 1.5 KW
Rated exhaust pressure 1Mpa
Weight 26 kg
Exhaust pressure 1.2Mpa
Working temperature -40℃~ +60℃
Dimensions 340x275x275 mm
Protection class IP67

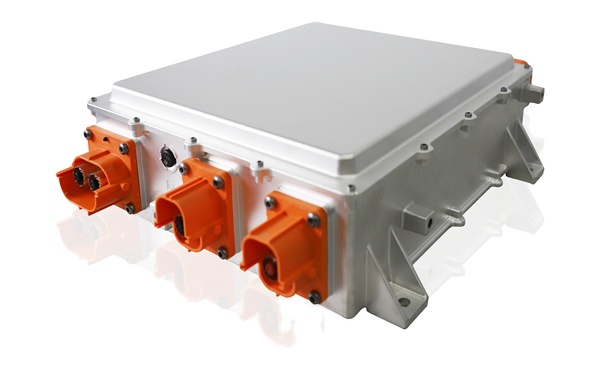

Auxiliary inverter
