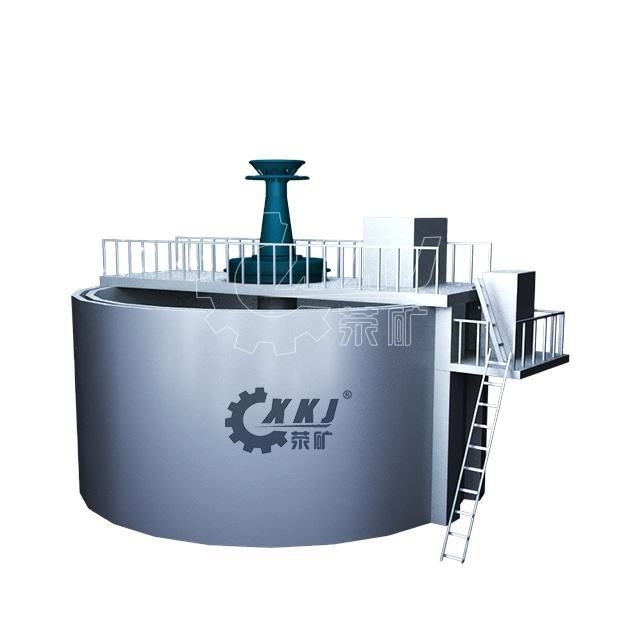

China Thickener Thickener Supplier Central Drive Automatic Hydraulic Mineral Sludge Thickener

PRODUCT DETAIL
Production capacity:85% or moreWarranty:1 year
Core components:PLC, bearings, gearboxes, motors, gears, pumpstype:Central drive, mine thickener
Supply capacity:35 sets per monthMechanical test report:if
brand:New KejieWeight (kg):5
Manufacturing Standards:Meet industry standardsCore component warranty:1 year
Showroom location:not anyOrigin:Henan, China
payment terms:L/C, Western Union, T/TVideo outbound inspection:if
Dimensions (L*W*H):SpecificationCompany experience:over 35 years
spare parts:supplied by usHealth status:new
work process:Designed by our engineersService life:more than 10 years
Marketing Type:normal productApplicable industries:Manufacturing plants, machinery repair shops, retail, energy and mining
Packaging Details:Seaworthy container or as your requestQC:After five checks
port:Qingdao/Shanghai/Tianjinapplication:Water removal, dehydration, desliming, etc.
Motor type:AC motorPackage preview:

describe:

Thickener is a kind of solid-liquid separation equipment based on gravity settling.

The pulp with a solid content of 10%~20% can be concentrated into an underflow pulp with a solid content of 45%~55% by gravity sedimentation, and the concentrated underflow pulp is discharged from the underflow port of the machine. The thickener is operated slowly by a rake installed inside the thickener. The upper part produces a cleaner clarified liquid (overflow), which is discharged from the top annular chute.



Model

Concentrator

Precipitation

(rice2)

harrow part

engine

(kilowatt)

Capacity (ton/day)

Weight (tons)

diameter

(rice)

depth

(rice)

method

high

(rice)

speed

(rev/min)

drive

(kilowatt)

lifting

(kilowatt)

NZS-1

1.8

1.8

2.54

manual

0.16

2

1.1

/

5.6

1.8

NZS-3

3.6

1.8

10.2

manual

0.35

2.5

1.1

/

22.4

4.1

NZS-6

6

3

28.3

manual

0.2

3.7

1.1

/

62

10.2

NZS-9

9

3

63.6

manual

0.25

4.34

3

/

140

7.1

NZS-12

12

3.5

113

manual

0.25

5.28

3

/

250

10.5

NZ-15

15

4.4

176

car

0.4

10.4

5.2

2.2

350

24.7

NZ-20

20

4.4

314

car

0.4

10.4

5.2

2.2

960

27.5

NG-15

15

3.5

177

/

/

8.4

5.5

/

390

12

NG-18

18

3.5

255

/

/

10

5.5

/

Chapter 560

11

NG-24

twenty four

3.4

Chapter 452

/

/

12.7

7.5

/

1000

25.3

NG-30

30

3.6

707

/

/

16

7.5

/

Chapter 1570

29.4

NT-38

38

4.9

1134

/

/

10-25 days

11

7.5

1600

60.2

NT-45

45

5.05

1590

car

/

19.3

11

/

2400

63.6

NT-53

53

5.07

2202

/

/

23.18

15

/

6250

84.8





Contact Supplier



Center drive type:

Usually this type of concentrator has a small diameter, generally within 24 meters.

The central drive thickener is suitable for concentrate concentration below 20 meters and dehydration of tailings before filtration. It can also be widely used in industries such as coal, chemical industry, building materials, water source and sewage treatment to concentrate and purify the slurry containing solid materials.



feature:

1. The settlement speed is fast.

Adding flocculants to increase the size of the settling solid particles can speed up the settling rate.

2. Large settlement area.

Installing inclined plates can shorten the settlement distance and increase the settlement area.

3. Large quantity.

It plays the role of flocculation, filtration and compression, and increases the processing capacity of thick phase layer of mud deposition.

4. Simple operation.

Equipped with complete automatic control facilities.



Efficient concentrator:

The diameter of this kind of concentrator is small, generally 3-15 meters.

The high-efficiency thickener is a new type of solid-liquid separation equipment, which is suitable for the dehydration treatment of ore concentrate and tailings in mineral processing plants. It can increase the pulp from 20-30% to 40-70%. Concentration smelting, environmental engineering mineral processing, environmental engineering and many other fields.



feature:

1. Add flocculants to increase the particle size of settled solid particles and accelerate the settling process.

2. Install the inclined plate to shorten the falling distance of ore particles and increase the falling area.

3. Play the role of flocculation, filtration, concentration and increase the processing capacity.

4. The high-efficiency concentrator is equipped with a complete automatic control device.



Peripheral driver type:

The relatively common medium and large thickeners are usually around 15-30 meters in diameter.

The peripheral transmission thickener is mainly used for dehydration treatment of wet separation in the mineral processing process. It is generally installed between sorting and filtering equipment, sometimes used for pre-selection dehydration, and can also be used for dehydration in chemical and coal preparation plants.



feature:

1. Add a degassing tank to prevent solid particles from adhering to the air bubbles, similar to "parachute" deposition.

2. The feeding pipe is located below the liquid level to prevent gas from being brought into the mine.

3. The feeding sleeve is moved down, and the receiving plate is set to make the feeding pulp fall evenly and stably, effectively preventing the overpressure of the ore from turning over.

4. An overflow weir is added inside to make the material flow according to the specified stroke and prevent "short circuit" phenomenon.

5. The overflow weir is changed to a zigzag shape, which improves the phenomenon of partial drainage and water absorption caused by the overflow weir being not level.

6. Change the shape of rake teeth from inclined to curved, so that the slurry not only flows to the center of the rake, but also gives the center a "backlog" force, so that the concentration of the discharged ore underflow is high, thereby improving the processing capacity.



Packaging Details:

Standard containers, bare hosts, motors and small parts are all packed in wooden boxes.



Delivery port:

Qingdao, Shanghai, Tianjin and other ports within 45 days.
