high quality! Deep Cone Thickener/Thickener (GSNG)
- $12000.00 / 1 - 5 sets
$11500.00 / >=6 sets - 1 set
- Shandong Xinhai Mining Technology & Equipment Inc.
- Shandong, China
- Ms Feifei Liu
PRODUCT DETAIL
| brand: | Xinhai | Supply capacity: | 70 sets per month |
| Weight (kg): | Chapter 1479 | Mechanical test report: | if |
| After-sales service provided: | Engineers available to repair machinery overseas | application: | mining |
| After-sales service: | entire service life | Key words: | thickener |
| Health status: | new | price: | negotiable |
| Install: | Technical support | Core component warranty: | 1 year |
| Warranty: | 1 year | Core components: | engine |
| Packaging Details: | By container, in bulk or according to customer requirements | Production capacity: | 60~880 cubic meters/hour |
| Video outbound inspection: | if | Material: | Cast Iron/SS304 |
| usage: | mining separation | Dimensions (L*W*H): | depends on model |
| color: | customize | Function: | Concentrator equipment |
| Origin: | Shandong Province, China | type: | Mine concentrator |
| payment terms: | L/C, D/P, D/A, T/T | capacity: | 100-25000 tons/day |
| Applicable industries: | Energy and Mining | port: | Qingdao |
| Showroom location: | not any | Marketing Type: | hot product |
| Motor type: | AC motor |
notes! ! !The current price is not the actual price, and the specific price is subject to the sales quotation.
Product Description
Deep Cone Concentrator---Product Description
【Product Introduction】: Self-developed deep cone thickener, the underflow concentration can reach 70%.
【Production capacity】: 60～2600m3/h
[Improvement]: large cone angle, high underflow concentration
【Production capacity】: 60～2600m3/h
[Improvement]: large cone angle, high underflow concentration
Product advantages
Deep Cone Thickener---Product Advantages
Small footprint, large capacity;
The fuselage is slender, and flocculant is added during the thickening process; to accelerate the sedimentation and dehydration process of particles;
Reasonable structure, low energy consumption, high efficiency, low operation and maintenance costs.
The fuselage is slender, and flocculant is added during the thickening process; to accelerate the sedimentation and dehydration process of particles;
Reasonable structure, low energy consumption, high efficiency, low operation and maintenance costs.

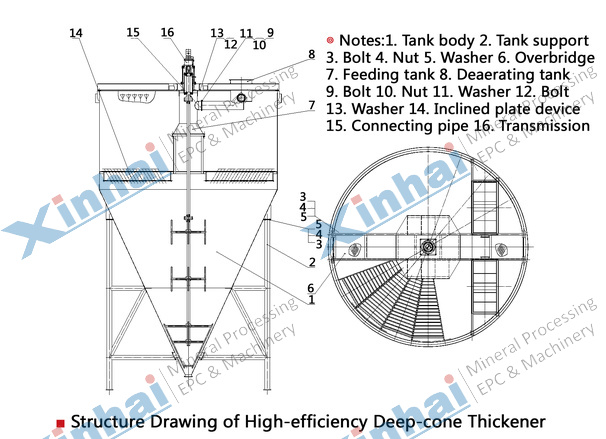

product structure
Sludge Thickener---Product Structure
Deep cone concentrator, also known as paste concentrator, has higher performance than other concentrators, and is composed of deep cone, feeding device, stirring device, control box, reagent adding device, automatic control system, etc.
The high-efficiency deep cone thickener is mainly used for the concentration of minerals or other fine-grained materials.
The high-efficiency deep cone thickener is mainly used for the concentration of minerals or other fine-grained materials.
Technical Parameters
Model | Tank diameter(mm) | Tank Depth (mm) | Sedimentation area (m2) | Processing capacity (cubic meter/hour) |
GSNG-3 | 3000 | 4404 | twenty one | 60-70 |
GSNG-6 | 6000 | 8810 | 85 | 210-260 |
GSNG-9 | 9000 | 13500 | 310 | 570-700 |
GSNG-12 | 12000 | 17500 | 510 | 800-1200 |
GSNG-15 | 15000 | 19000 | 1200 | 1000-1500 |
