Factory price sedimentation tank NZS-3 slime thickener for sale
- $5300.00 /set
- 1 set
- Henan Xingyang Mining Machinery Manufactory
- Henan, China
- Mr Andy Zhang
| Packaging Details: | standard container. Bare metal, motors and small parts are packed in wooden boxes. | type: | Mine concentrator |
| Dimensions (L*W*H): | 3600*1800 | spare parts: | lifetime time |
| color: | client needs | Supply capacity: | 60 sets per month |
| brand: | Xu Kejie, | Weight (kg): | 100 |
| Video outbound inspection: | if | Install: | Technical support |
| application: | mining | payment terms: | L/C, T/T |
| Mechanical test report: | if | Marketing Type: | Hot Products of 2019 |
| Deposition area: | 10.2 cubic meters | Health status: | new |
| structure: | Simple and reasonable | Thickener weight: | 3T |
| Package preview: | Core component warranty: | 1 year | |
| port: | Qingdao, Tianjin, Shanghai, etc. | Showroom location: | United States, South Korea, South Africa |
| Warranty: | 12 months | Applicable industries: | Mechanical repair shops, energy and mining |
| Mining concentrator price: | Negotiable | aspect: | 3600x1800 |
| product: | Mine concentrator | Core components: | Bearings, Motors |
| market: | Africa, Asia, Europe | Origin: | Henan, China |
| Motor type: | AC motor | Production capacity: | 5-22 tons/day |
Sincerely invite you to visit our factory and inspect the machines.
NZS thickener is a new type of central transmission, automatic lifting rake type high-efficiency thickener developed by our company on the basis of absorbing foreign technology. It is widely used in coal, metal mineral processing water, metallurgy, chemical industry, tailings treatment, environmental protection, etc.

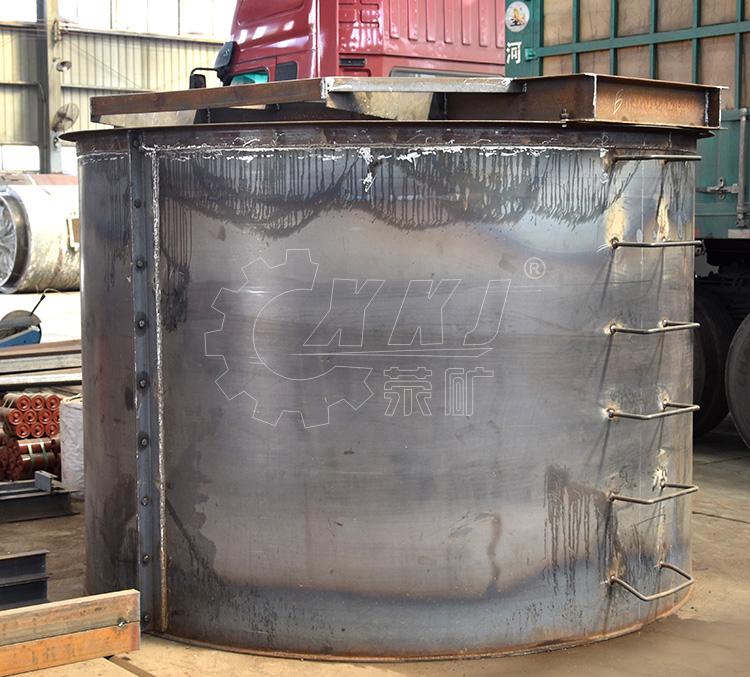

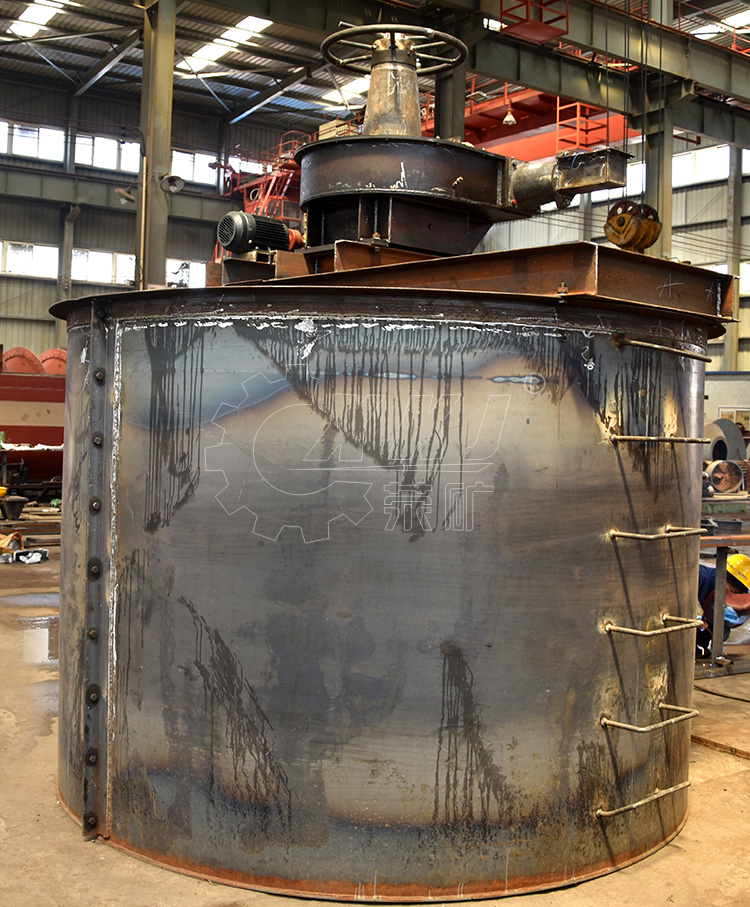

NZS-3 concentrator
The high-efficiency thickener produced by our company is suitable for mineral processing plants to remove water in concentrates and tailings, and can concentrate ore pulp from 20-30% to about 40-70%. This high-efficiency concentrator is widely used in metallurgy, chemical industry, coal, non-metallic ore dressing, environmental protection and other industries.
Features
(1) Add flocculants to increase the particle size of settled solid particles and accelerate the settling process.
(2) Install a slant plate to shorten the falling distance of ore particles and increase the falling area.
(3) Play the role of flocculation, filtration, concentration, and increase the processing capacity.
(4) The high-efficiency concentrator is equipped with a comprehensive automatic control device.
structure

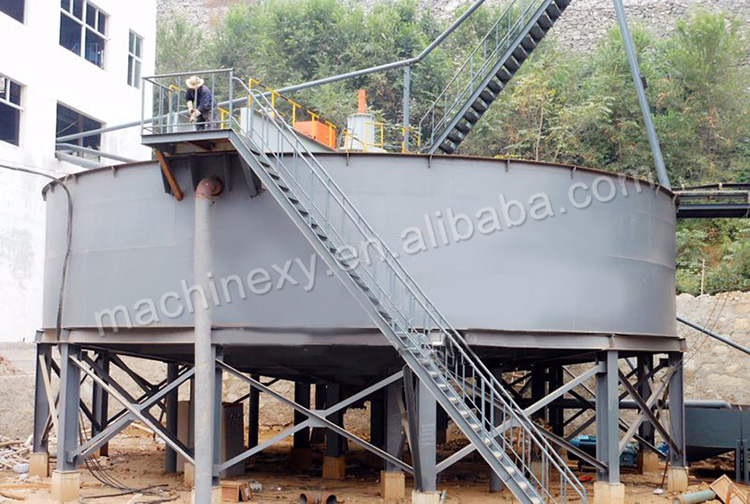

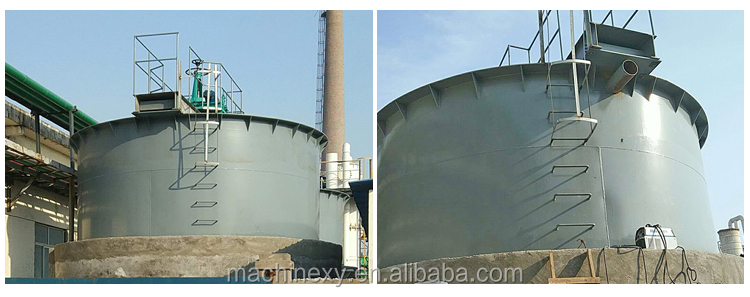

NZS-24m concentrator exported to Mexico for copper ore processing

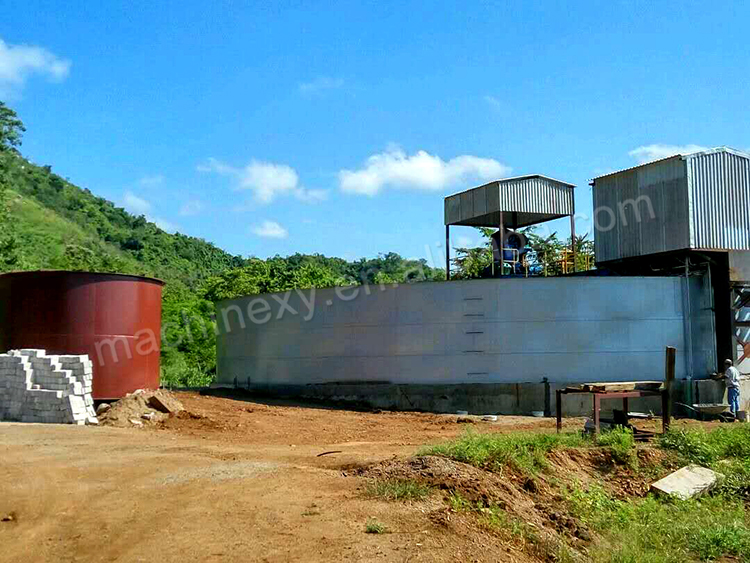

NZS-24m concentrator exported to Armenia for copper ore processing

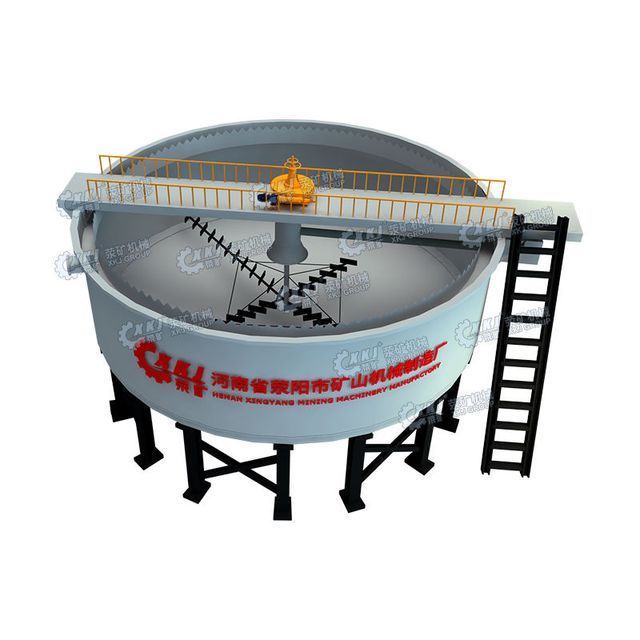

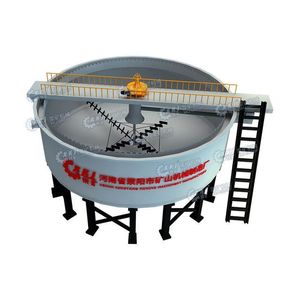

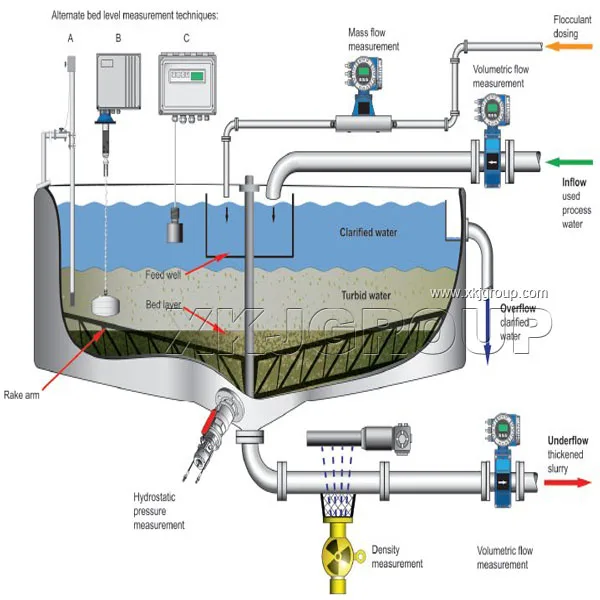

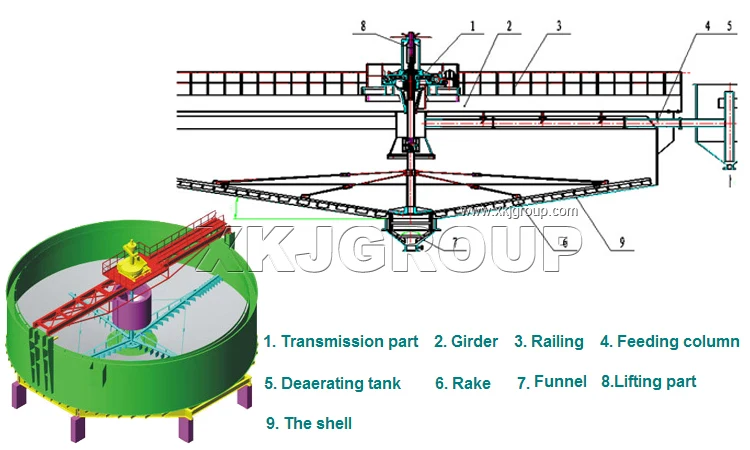

The high-efficiency concentrator is mainly composed of a circular concentrator pool and a rake scraper. The solid particles suspended in the slurry in the thickening tank fall under the action of gravity, and the upper part is clear water, so that the solid particles are separated from the liquid. The ore pulp deposited at the bottom of the thickening tank is continuously scraped by the rake scraper to the discharge port at the center of the bottom of the tank, and the clean water overflows along the upper edge of the thickening tank.
| Specification | Concentration pool (m) | Deposit square (m2) | harrow part | engine | Processing capacity (t/d) | Total weight (t) | |||||
| Model | Specification | the inside diameter of | depth | pond degree | method | Height (m) | Rotation time(min/r) | drive | lifting | ||
| NZS-1 | Φ1.8m | 1.8 | 1.8 | 2.54 | manual | 0.16 | 2 | Y90L-6 1.1KW | ---- | 5.6 | 1.8 |
| NZS-3 | Φ3.6m | 3.6 | 1.8 | 10.2 | manual | 0.35 | 2.5 | Y90L-6 1.1KW | ---- | 22.4 | 4.1 |
| NZS-6 | Φ6m | 6 | 3 | 28.3 | manual | 0.2 | 3.7 | Y90S-4 1.1KW | ---- | 62 | 10.2 |
| NZSF-6 | Φ6m | 6 | 3 | 28.3 | manual | ---- | 3.7 | Y90S-4 1.1KW | ---- | 62 | 4.8 |
| NZ-9 | Φ9m | 9 | 3 | 63.6 | car | 0.25 | 4.34 | Y132S-6 3KW | XWD0.8-3 0.8KW | 140 | 8.1 |
| NZS-9 | Φ9m | 9 | 3 | 63.6 | manual | 0.25 | 4.34 | Y132S-6 3KW | ---- | 140 | 7.1 |
| NZS-12 | Φ12m | 12 | 3.5 | 113 | manual | 0.25 | 5.28 | Y132S-6 3KW | ---- | 250 | 10.5 |
| NZ-15 | Φ15m | 15 | 4.4 | 176 | car | 0.4 | 10.4 | JTC752A-44 5.2KW | Y112M-6 2.2KW | 350 | 24.7 |
| NZ-20 | Φ20m | 20 | 4.4 | 314 | car | 0.4 | 10.4 | JTC752A-44 5.2KW | Y112M-6 2.2KW | 960 | 27.5 |
| NZ-30 | Φ30m | 30 | 7.165 | 707 | ---- | 0.61 | 13.7 | Y100L1-4 2.2×2KW | YCJ132-S 1.5KW | ---- | 34.8 |
| NZS-45 | Φ45m | 45 | 4.636 | 1590 | manual | ---- | 20 | JTC672A-44 5.2KW | YCJ160-S 2.2KW | 515 | 51.8 |
| NT-15 | Φ15m | 15 | 3.5 | 177 | ---- | ---- | 8.4 | Y132M2-6 5.5KW | ---- | 390 | 12 |
| NQ-18 | Φ18m | 18 | 3.5 | 255 | ---- | ---- | 10 | Y132M2-6 5.5KW | ---- | Chapter 560 | 11 |
| NQ-24 | Φ24m | twenty four | 3.4 | Chapter 452 | ---- | ---- | 12.7 | Y160M-6 7.5KW | ---- | 1000 | 25.3 |
| NG-30 | Φ30m | 30 | 3.6 | 707 | ---- | 16 | Y160M-6 7.5KW | ---- | Chapter 1570 | 29.4 | |
| New Jersey-38 | Φ38m | 38 | 4.9 | 1134 | ---- | ---- | 10-25 days | JZT252-4 11KW | Y160M-6 7.5KW | 1600 | 60.2 |
| NT-45 | Φ45m | 45 | 5.05 | 1590 | car | ---- | 19.3 | Y160L-6 11KW | ---- | 2400 | 63.6 |
| NTJ-53 | Φ53m | 53 | 5.07 | 2202 | ---- | ---- | 23.18 | Y180L-6 15 kW |
---- | 6250 | 84.8 |
| NT-100 | Φ100m | 100 | 5.65 | 7846 | ---- | ---- | 43 | Y180L-6 15KW | ---- | 3030 | 204.6 |
