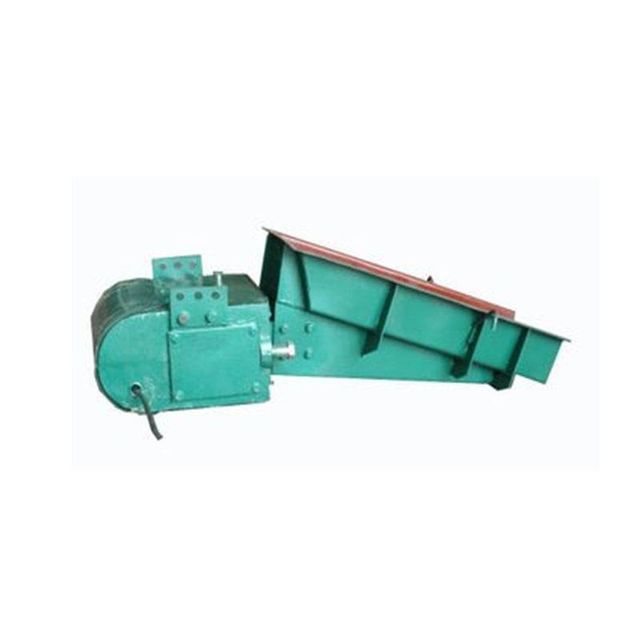

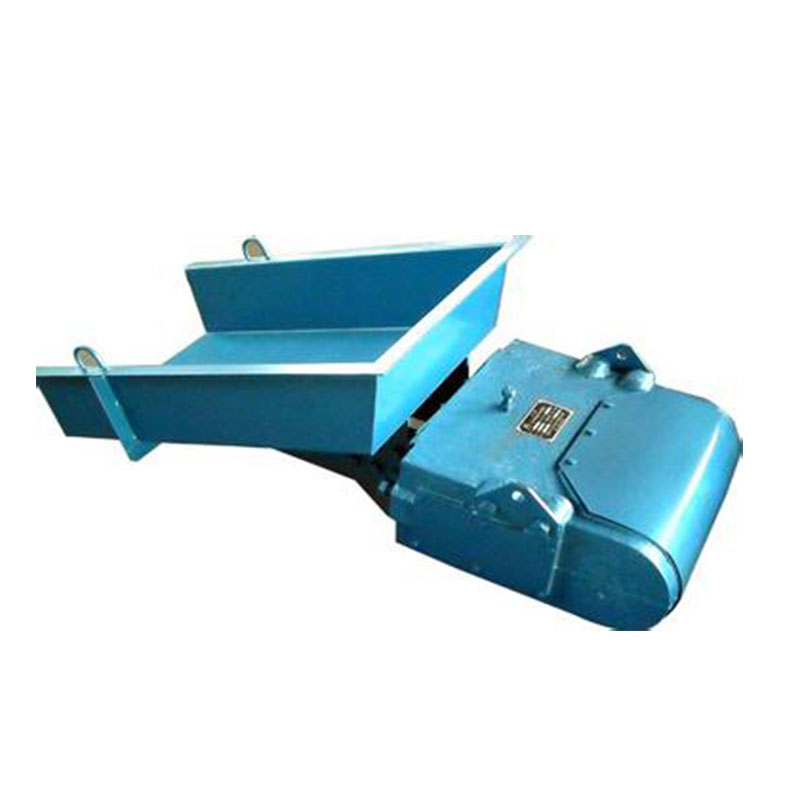

Electromagnetic vibrating feeder
- $1500.00 /set
- 1 set
- Weifang Yunhai Mechanical Equipment Co., Ltd.
- Shandong, China
- Ms Darcy Wang
PRODUCT DETAIL
| Function: | uniform feeding | Warranty: | 1 year |
| type: | GZ series | port: | Qingdao |
| Showroom location: | not any | weight: | 1800 kg |
| Voltage: | 220V/380V/400V/415V/460V | Core component warranty: | 1 year |
| Power type: | electrical | Dimensions (L*W*H): | According to customer requirements |
| frequency: | 50/60 Hz | Mechanical test report: | if |
| color: | According to customer requirements | Card: | rich |
| brand: | YHM | place of origin; place of origin: | Shandong China |
| Supply capacity: | 200 sets per month | product name: | Electromagnetic vibrating feeder |
| Video shipment inspection: | if | Capacity(t/h): | 200 sets/month |
| Marketing Type: | hot product | Core components: | Bearings, motors, gears |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Package preview: | |
| After-sales service: | entire service life | Health status: | new |
| Applicable industries: | Building material stores, manufacturing plants, construction, energy and mining | Packaging Details: | wooden box |
| speed: | adjustable | Key words: | vibrating feeder |
| application: | mining industry |
Product Description
Product Application The electromagnetic feeding machine is suitable for products that are easily broken, easy to separate, and coated with seasonings, such as: baked food, snack food, potato chips, quick-frozen food, peanuts, candies and other foods that require high conveying systems. The unit is undamaged. Compared with ordinary vibrating conveyors, the product damage rate is reduced by about 50%, and the seasoning loss rate is reduced by 70%. Dynamic allocation of each delivery point of the product, multi-conveyor linkage long-distance transportation, multi-conveyor synchronous and in-phase transmission main features
Electromagnetic vibrating feeder is a new type of feeding equipment, compared with other feeding equipment, it has the following characteristics:
1) Small size, light weight, easy installation, low noise;
2) High precision and strong feeding capacity;
3) Low energy consumption;
4) Simple structure, easy to carry and adjust; 5) Little damage to the feeder.
Instructions for use
1. Design and installation of hopper feeder
In order to ensure the normal operation of the feeder, several points should be paid attention to when installing the hopper.
There should be a gap of 5mm between the discharge port and the feed trough to ensure that the hopper is not affected during the feed process.
The outlet of the chute should be designed to be oblique to avoid vertical pressure directly pressing on the feeder, otherwise it will seriously affect the
feeder efficiency.
2. Installation
The size of the hopper opening should ensure that enough material is obtained so that the quantity of material can be adjusted
There should be a door.
GZV series vibrating feeder is a seat structure, flat mounted on the support plate
In order to ensure the normal operation of the feeder, several points should be paid attention to when installing the hopper.
There should be a gap of 5mm between the discharge port and the feed trough to ensure that the hopper is not affected during the feed process.
The outlet of the chute should be designed to be oblique to avoid vertical pressure directly pressing on the feeder, otherwise it will seriously affect the
feeder efficiency.
2. Installation
The size of the hopper opening should ensure that enough material is obtained so that the quantity of material can be adjusted
There should be a door.
GZV series vibrating feeder is a seat structure, flat mounted on the support plate
It is suitable for feeding/conveying powdery, granular and flake materials. Applied to automated production lines.
food industry
chemical industry
drug
metallurgy
mining industry
building materials
food industry
chemical industry
drug
metallurgy
mining industry
building materials

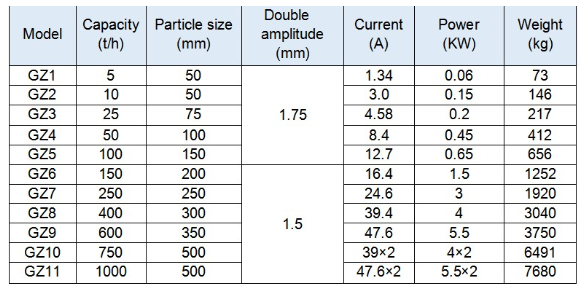

Size Information

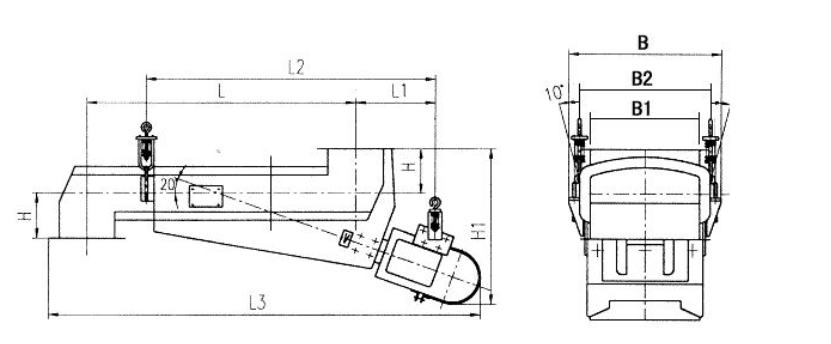

detailed drawing
