Multi-function Vibrating Feeder/Automatic Mineral Disk Feeder For Ore Processing Machine
- $7720.00 /set
- 1 set
- Hebei Shantai Machinery Equipment Co., Ltd.
- Hebei, China
- Mr victor zhang
PRODUCT DETAIL
| Condition: | New; | Video outgoing-inspection: | Provided; |
| After-sales Service Provided: | Video technical support,Online support; | Warranty of core components: | 1 Year; |
| Application: | Construction; | Processed Materials: | River Stone; |
| Payment Terms: | T/T,Western Union; | Advantage: | High Efficiency Low Energy; |
| Warranty: | 1 Year; | Function: | Crushing Material; |
| Core Components: | Engine; | The Machines classification: | Building Stone Production Line; |
| Local Service Location: | None; | Packaging Detail: | Selling Units: Single item Single package size: 72X66X85 cm Single gross weight: 800.000 kg Package Type: according to the requirement of customers.; |
| Brand Name: | SHANTAI; | Certification: | ISO9001:2008; |
| Applicable Industries: | Machinery Repair Shops,Food & Beverage Factory,Construction works ,Energy & Mining; | Weight: | 5050; |
| Keyword: | vibrator feeder; | Marketing Type: | New Product 2020; |
| After Warranty Service: | Video technical support,Online support; | Capacity(t/h): | 170-250t/h; |
| Port: | tianjin port; | Power Type: | Electric; |
| Place of Origin: | Hebei China; | Color: | Customer Requirement; |
| Showroom Location: | None; | Product name: | vibrator feeder; |
| Machinery Test Report: | Provided; | Dimension(L*W*H): | 3770x2000x1060; |
| Name: | vibration feeder machine; |
Products Description

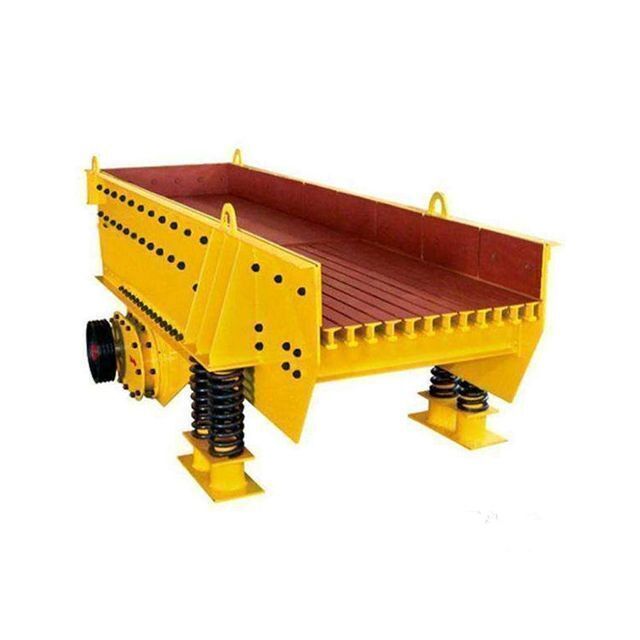

ZSW series vibrating feeder
Vibrating feeder is also called vibrating feeder. This series of products is configured before the primary crushing equipment. While continuously and uniformly transporting large pieces of material, it removes soil and impurities in the material, and controls the feeding amount to make it compatible with subsequent crushing and crushing. The processing capacity of the screening production line matches, and it is a necessary equipment for the complete production line.
Main Features:
◆The latest ultra-short model, strong structure;
◆Strong impact resistance, uniformly transporting large pieces of materials;
◆Sieving while feeding;
◆The wearing parts are wear-resistant and easy to maintain.
Model | Chute Size mm | Max. Feeding Size | Capacity t/h | Speed r/m | Power kw | Weight kg | Overall Dimension mm |
ZSW-370×130 | 3700×1300 | 650 | 170-250 | 750 | 15—6 | 5050 | 3770x2000x1060 |
ZSW-420×125 | 4200×1250 | 650 | 190-450 | 800 | 15—6 | 5300 | 4275x1950x1060 |
ZSW-380×96 | 3800×940 | 500 | 95-160 | 710 | 11—6 | 4100 | 3870x1670x1065 |
ZSW-490×96 | 4900×960 | 500 | 120-245 | 750 | 15—6 | 5080 | 4957x1670x1060 |
ZSW-490×110 | 4900×1100 | 580 | 115-280 | 750 | 15—6 | 5360 | 4957x1830x1060 |
ZSW-590×110 | 5900×1100 | 600 | 290-405 | 750 | 22—6 | 5780 | 6000x1830x1070 |
ZSW-600×130 | 6000×1300 | 750 | 390-570 | 750 | 30—6 | 7559 | 6180x1980x1110 |
GZD-300×90 | 3000×900 | 500 | 40-105 | — | 2×2.2 | 1510 | 3075x1280x1670 |
Company Profile
Hebei Shantai Machinery Equipment Co., LTD. Is a high-tech enterprise of building materials industry in Hebei province, which is a professional crusher manufacturing company integrating r&d, design, manufacturing, product sales and after-sales service. The company has modern office space, r & D center and standardized workshop, with a construction area of more than 15,000 square meters. It has more than 30 senior engineers and technicians, and has cultivated a production and service team with excellent technology and mature skills.
Packing & Shipping
Packaging Details:
We will load different sizes of packing according to different machine sizes, and the normal packing is in wooden cases. If exported to European countries, wood frame will be fumigation. If the container is too tight, we will use the PE film according to the customer's special requirements.
Delivery Time:
We are based on the actual needs of customers, to carry out tailor-made sales. By senior engineer to design scheme, after receipt of customer deposits began production, regardless of the size of the equipment we can deliver the goods in two weeks, delivered the balance after delivery.
Why Choose Us
Pre-Sale Service:
1) Inquiry and consulting support.
2) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.
3) View our Factory. Field trips to sell products.
After-Sale Service:
1) After acceptance of the equipment, we will draft the construction program and detailed process, and complete the export process.
2) After-sales service: We sent engineer to the scene to guide installation, debugging and training operators.
FAQ
1. Installation:
If the buyer ask the seller to send the technicians to guard to install the machines in the site, the buyer should take all the charges for the technicians and pay the salary.
2. What about warranty?
Hi, Ours Warranty is 1 year for whole machinery.
Spare parts. For wear parts, we guarantee the high quality parts for long-term supply for Crusher.
3. Payment Method:
By L/C, D/A, D/P, T/T, Western Union, MoneyGram, and so on.
4. If you want us recommend a suitable type and best offer for you ,please let us know as follows:
1). you only need one cone crusher or a whole crushing line? (Include the feeder ,crusher, screen, conveyor and so on)
2).what is the max size of the stone (mm/inch)?
3).what is the output size you need?
5. what could you help me to do for the business?
Many thanks for your trust, we can provide you with proposal chart for complete production lines Crusher, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipment, drilling rig, loader, trucks, excavators and so on.
If the buyer ask the seller to send the technicians to guard to install the machines in the site, the buyer should take all the charges for the technicians and pay the salary.
2. What about warranty?
Hi, Ours Warranty is 1 year for whole machinery.
Spare parts. For wear parts, we guarantee the high quality parts for long-term supply for Crusher.
3. Payment Method:
By L/C, D/A, D/P, T/T, Western Union, MoneyGram, and so on.
4. If you want us recommend a suitable type and best offer for you ,please let us know as follows:
1). you only need one cone crusher or a whole crushing line? (Include the feeder ,crusher, screen, conveyor and so on)
2).what is the max size of the stone (mm/inch)?
3).what is the output size you need?
5. what could you help me to do for the business?
Many thanks for your trust, we can provide you with proposal chart for complete production lines Crusher, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipment, drilling rig, loader, trucks, excavators and so on.
