XGOM underground mining scssior lift platform truck UC-6 6 ton with Deutz Engine Dana Alxe or Kessler
- $150000.00 /piece
- 1 piece
- Xian Xiangong Import Export Trade Co., Ltd.
- Shandong, China
- Mr sasha yan
PRODUCT DETAIL
| Single package size: | 10X10X10 cm | Applicable industries: | mine |
| Health status: | new | Power Type: | diesel engine |
| Gross weight per piece: | 10.000 kg | Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump |
| Warranty: | 1 year | Video external inspection: | Not available |
| Marketing Type: | New Products 2020 | Showroom location: | Russia, Kazakhstan, Uzbekistan |
| Capacity (tons/hour): | 6 tons | Sales unit: | single product |
| weight: | 9500kg | place of origin; place of origin: | China |
| brand: | XGOM | Mechanical test report: | Not available |
| Dimensions (L*W*H): | 7600*2000*2200mm | application: | mining |
| Core Components Warranty: | 1 year |
product description
UC-6 underground lifting platform
This mini excavator delivers power and performance in a compact size to help you work in the tightest of applications. Its ability to pass through narrow doorways makes it an excellent machine for indoor demolition work.
Function list
1. Engine Deutz BF4M1013CE 115KW (made in Germany) or Cummins
2. DANA Transport and Alxe
3. Allison Transmission
4. Rops/Fops Cabin with Air Conditioning
5. Automatic system flameout (copy Ansul), automatic system centralized lubrication
5. Automatic system flameout (copy Ansul), automatic system centralized lubrication

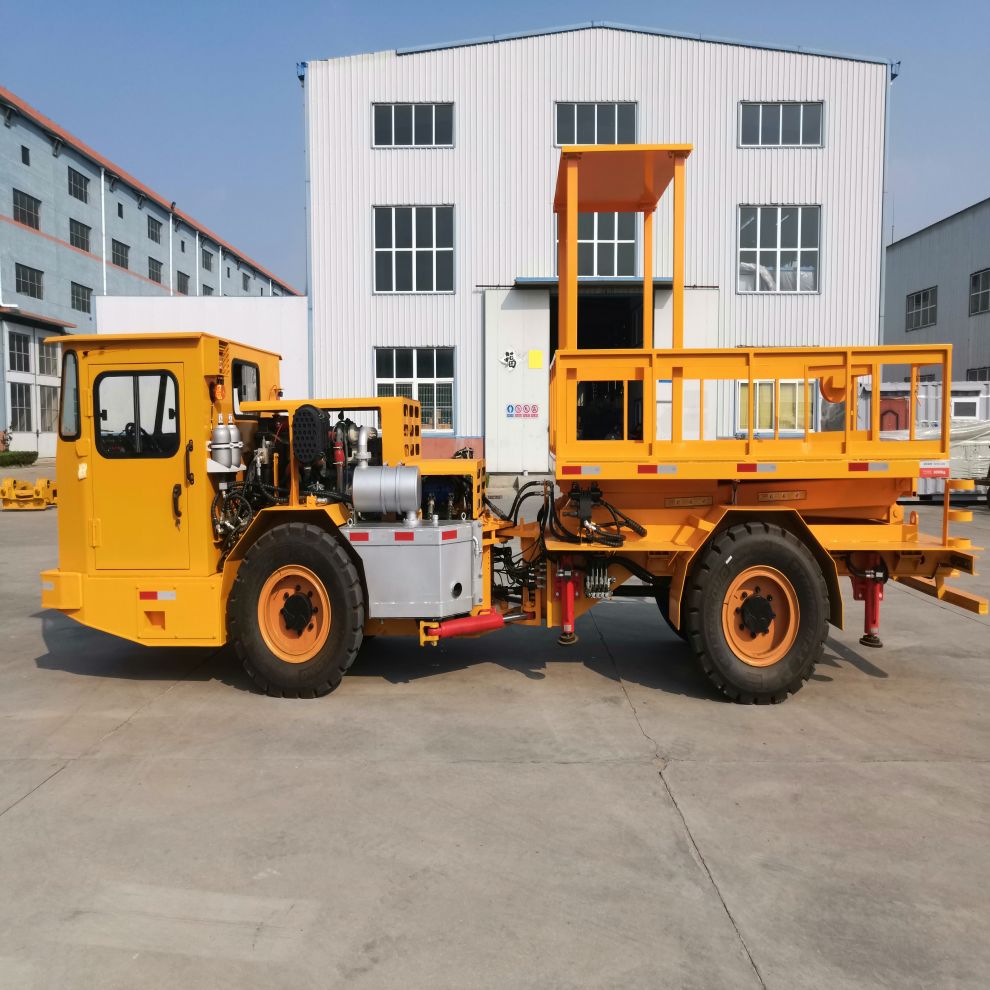

right façade
left facade
Front view
Product Specifications
thing | unit of measurement | UC-6 scissor lift platform truck | |||
Rated load capacity | Kilogram | 1000 | |||
maximum. Grade ability | ° | 12 | |||
Travel speed (forward and reverse) | shift one | km/h | 4.5 | ||
shift two | km/h | 10 | |||
Shift Three | km/h | twenty two | |||
strength | drive method | diesel engine | |||
type | F6L914W/Deutz | ||||
strength | kW/rev | 112/2300 | |||
Exhaust purification method | Meter | Catalytic oxidation + muffler | |||
Transmission system | type | Hydraulic + Mechanical | |||
torque converter | 1201FT20321/ DANA | ||||
variable transmission | 1201FT20321/ DANA | ||||
Drive axle | 112/Dana | ||||
service brake type | Wet Multiple Disc Brakes | ||||
Parking Brake Type | hydraulic release spring | ||||
steering | Hydraulic Power Steering | ||||
maximum. Platform height | mm | 4000 | |||
Platform size | length | mm | 2540 | ||
width | mm | 1680 | |||
high | mm | 860 | |||
Dimensions | length | mm | 7050 | ||
width | mm | 1800 | |||
high | mm | 2400 | |||
Product configuration
Deutz high power engine
DANA transport
Kessler
Sales and Service Network
successful project
Thailand project
Indian project
Russian project
