FH34SRJ-20S-0.5SH(50) original FFC FPC connector CONN FPC/FFC 20POS 0.5MM spacing SMD R/A electronic components spot

  • $0.14 / 500 - 999 pieces
    $0.13 / 1000 - 4999 pieces
    $0.12 / 5000 - 9999 pieces
    $0.11 / >=10000 pieces
  • 500 pieces
  • Shenzhen Xinqihao Technology Co., Ltd.
  • Guangdong, China
  • Ms Chloe Chen
PRODUCT DETAIL
model:FH34SRJ-20S-0.5SH(50)Packaging Details:Tape and Reel (TR) Standard Pack Quantity: 5,000
pack:Tape and Reel (TR)type:FFC & FPC Connectors
Connector type:contacts, top and bottomOrigin:Japan
Installation type:Surface Mount, Right Anglemanufacturer:Hirose Electric
asphalt:0.020 in (0.50 mm)series:FH34
Package:Standard package: 5,000Number of positions:20
brand:HRSFFC, FCB thickness:0.30 mm
Flat flexible type:Flexible cable, soft boardpayment terms:L/C, Western Union, T/T, Paypal
port:Shenzhentermination:welding
describe:FFC & FPC Connector FH34 Series
Specification
manufacturer. product number
FH34SRJ-20S-0.5SH(50)
Product Categories
Connectors, Interconnectors
FFC, FPC (Flat Flexible) Connectors
FFC, FPC (Flat Flexible) Connector Assemblies

delivery time
1-3 working days
payment terms
Paypal, Western Union, T/T, L/C
mode of transport
By UPS, FedEx, DHL express or by sea
Product Description

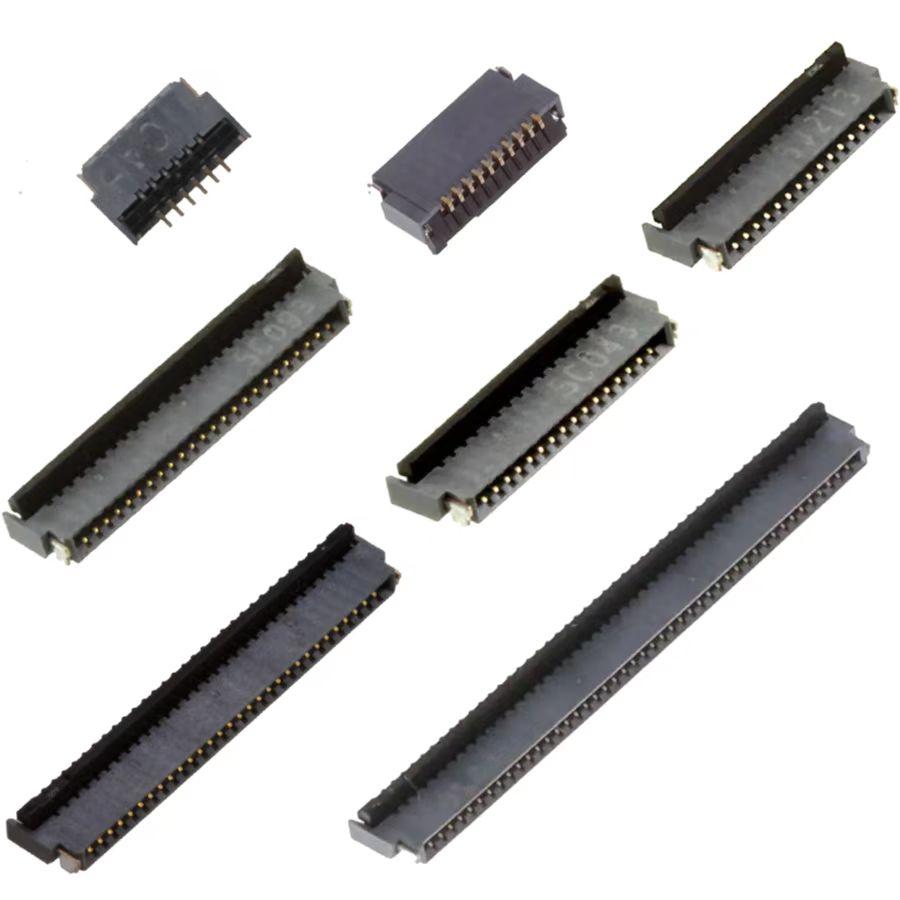

20 Position FFC, FPC Connector Contacts, Top & Bottom 0.020" (0.50mm) Surface Mount, Right Angle

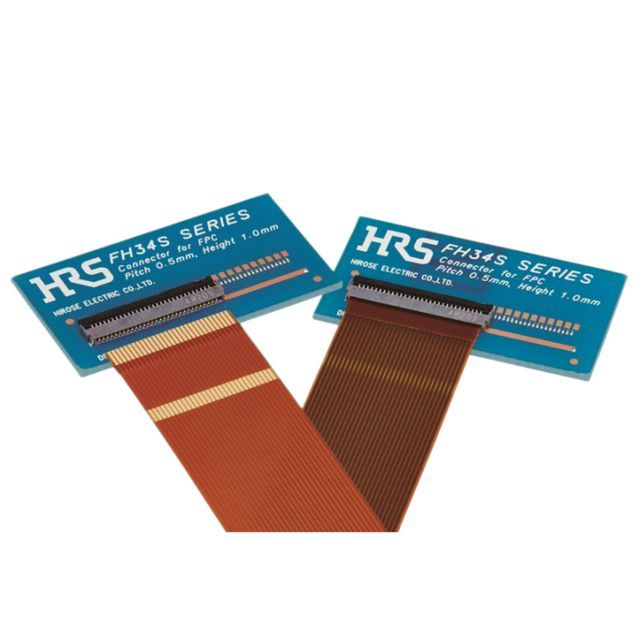

FH34 series features
0.5mm pitch, 1.0mm above board top and top/bottom contact, back flip
Actuator Flexible Printed Circuit and Flexible Flat Cable ZIF Connectors

1. Low profile
2. FH34SRJ: Increase FPC/FFC holding force
3. FH34D : mechanical lock type
4. Unique Back-Flip Rotary Actuator
5. FPC is easy to insert, and the electrical connection is reliable
6. Actuator is delivered open
7. Accept standard FPC thickness
8. Conductive traces on the PCB can be routed under the connector
9. Halogen free*
10. Automatic equipment lamination
