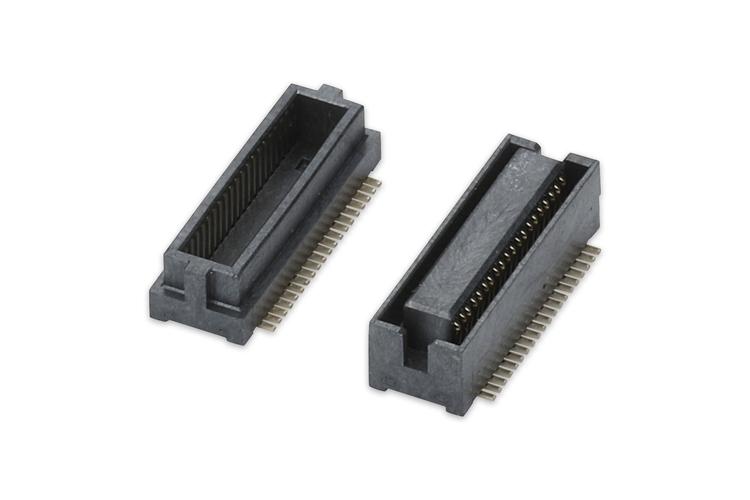

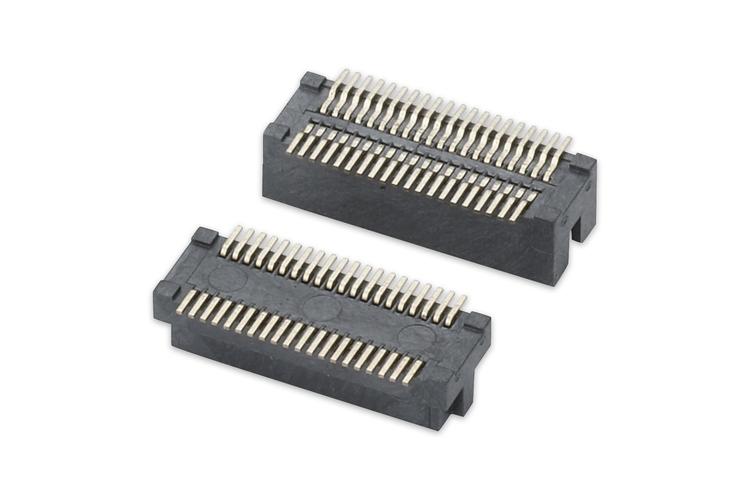

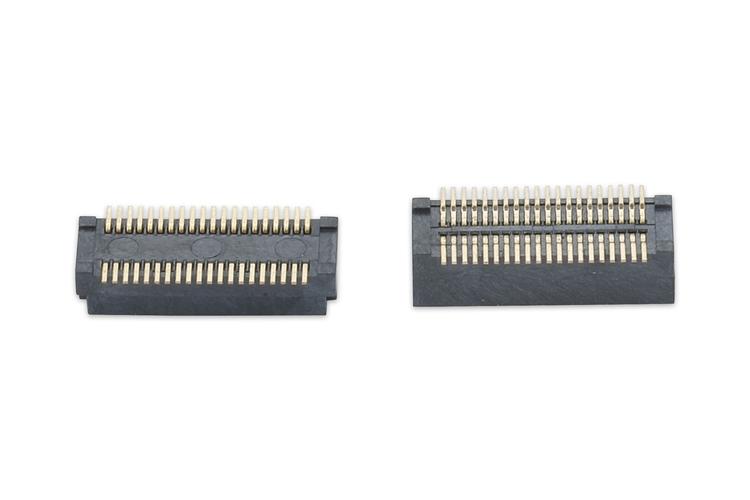

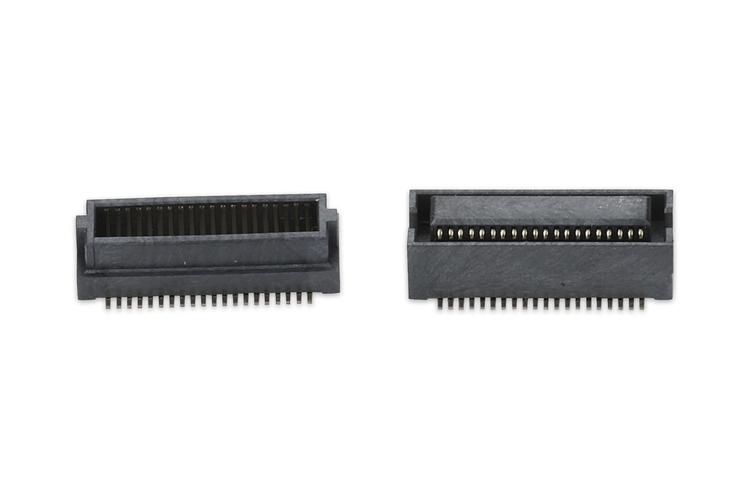

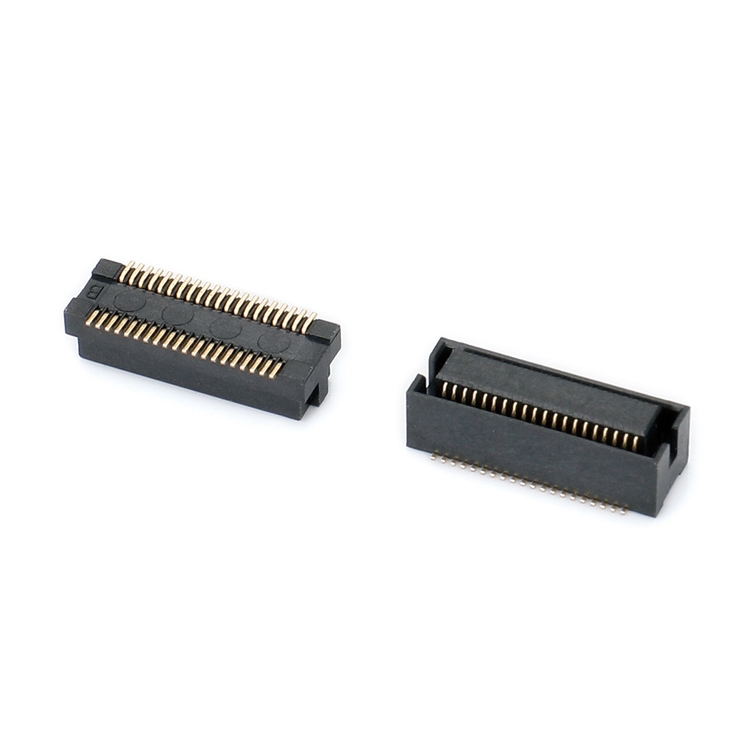

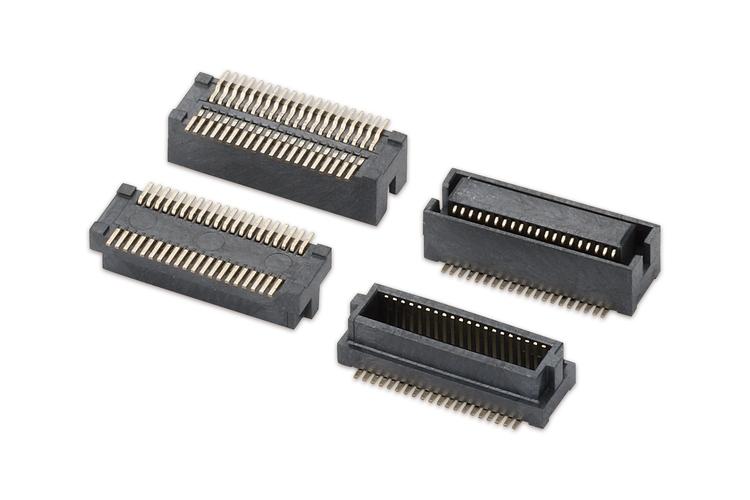

Lc232-G40p-B0r01 0.5mm Pitch 40p Male H3.2 Female H4.1 Btb Board to Board Connector
- $1.00 / >=1000 pieces
- 1000 pieces
- Shenzhen Lianchang Precision Electronics Co., Ltd.
- Guangdong, China
- Ms Cynthia Hsu
PRODUCT DETAIL
| model: | LC232-G40P-B0R01 0.5mm pitch 40P | brand: | LCD Monitor |
| custom made: | Custom new mold design | Payment/Payment: | not any |
| gender: | Female | Certification: | ISO14001/ISO9001/UL/CE/ROHS/REACH |
| asphalt: | 0.5mm | application: | PCB board |
| payment terms: | wire transfer | pin: | 40Pin |
| Package: | other | describe: | not any |
| delivery time: | 5-15 days, to be negotiated | type: | BTB connector, BTB connector |
| port: | Shenzhen | Origin: | Guangdong, China |
| Material: | PA6T LCP PPS PA9T | plating: | gold or tin |
| Supply capacity: | 1,000,000 pieces per day |

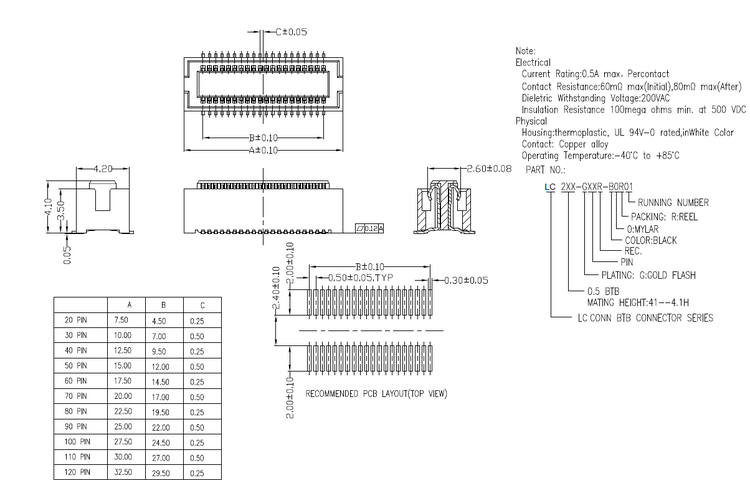

Specification
Position | 40 pins available |
plastic height | Elective |
plastic width | Elective |
asphalt | 2.0mm 1.0mm 0.3mm 0.5mm 0.8mm available |
current rating | 3A |
Insulation resistance | Minimum 1000MΩ |
Dielectric withstand voltage | 1000V AC |
09. Contact resistance | 20mΩ max |
Operating temperature | -30 to +80°C |
Insulation Materials | Polyester UL94V-0 |
contact material | copper alloy |
plating | gold or tin |
Maximum processing temperature | 260°C |
Insertion force | 80-200g |
Pull out force | 70-200g |
Product Description
