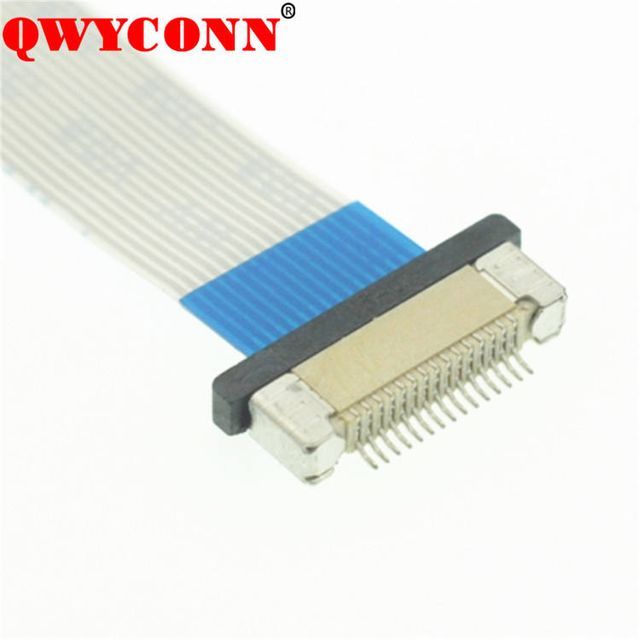

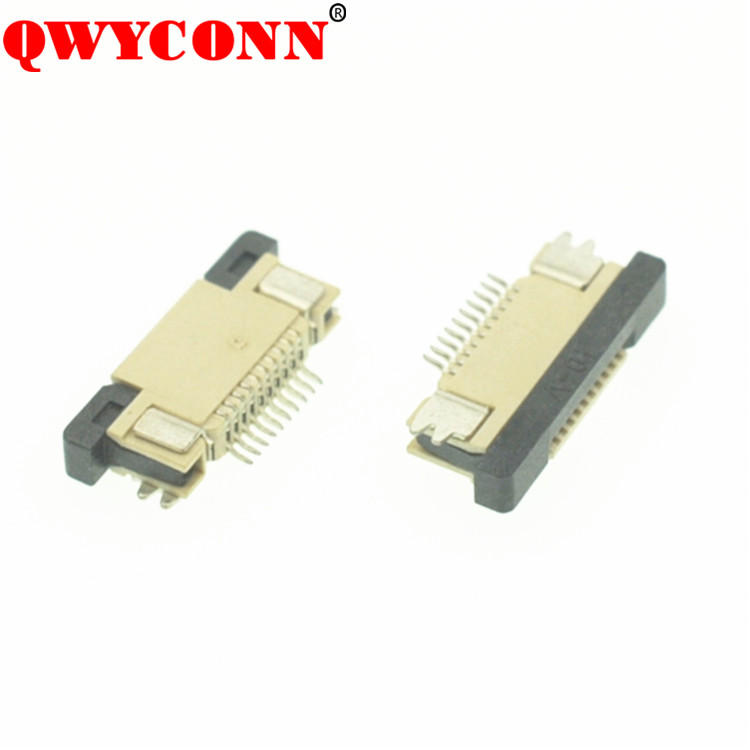

Ffc/Fpc Connector 4-60 Pin 0.3/ 0.5/ 0.8/ 1.0/ 1.25mm Pitch SMT ZIF DIP Top Type Bottom Fpc
- $0.06 / 100 - 4999 pieces
$0.05 / 5000 - 9999 pieces
$0.04 / 10000 - 49999 pieces
$0.03 / >=50000 pieces - 100 pieces
- Shenzhen Qiweiyuan Electronic Co., Ltd.
- Guangdong, China
- Mr Kevin Tom
PRODUCT DETAIL
| Packaging Details: | Tube/tape and reel, of course, we can negotiate with each other | Pressure resistance: | 500V |
| Contact resistance: | ≤20 milliohms | type: | FFC & FPC Connectors |
| Rated voltage: | 50V | sample: | free |
| port: | Shenzhen/Hong Kong | Insulation resistance: | 800 milliohms |
| brand: | QWYCONN | Rated current: | 0.5A |
| Operating temperature: | -20℃～+85℃ | Package preview: | |
| Contact information (material): | Phosphor bronze, tin nickel | Origin: | Guangdong, China |
| sit uip (material): | Phosphor bronze, tin nickel | model: | 1.0-sj-nbw |
| payment terms: | L/C, Western Union, T/T, MoneyGram, PayPal | Supply capacity: | 10000000000 pieces per month |
| Body (Material): | LCP, 94V-0 |
FPC connector | Specification | ||||||
asphalt | 0.3mm, 0.5mm, 0.8mm, 1.0mm, 1.25mm, 2.54mm | ||||||
type | Flip-lock, top/bottom contact, vertical/horizontal, etc. | ||||||
pin | 4-60 needles (according to customer needs) | ||||||
current rating | 0.5A | ||||||
Rated voltage | 50V | ||||||
Contact resistance | 40 milliohms max | ||||||
Insulation resistance | 50 megohms minimum | ||||||
Durability (minimum) | 25 cycles | ||||||
housing | LCP UL94V-0, beige | ||||||
cover | PA6T UL94V-0, black | ||||||
touch | Phosphor Bronze, Gold/Nickel | ||||||
Operating temperature | -40℃～+125℃ | ||||||
payment terms | MIL-STD-202 Method 204 | ||||||
Corrosion resistance | T/T, PayPal, Western Union, L/C | ||||||
delivery time | 7-10 days | ||||||
Certificate | ISO9001, ISO14001:2004 Environmental Management System, REACH, SGS, CQC. | ||||||
sample | free sample | ||||||
