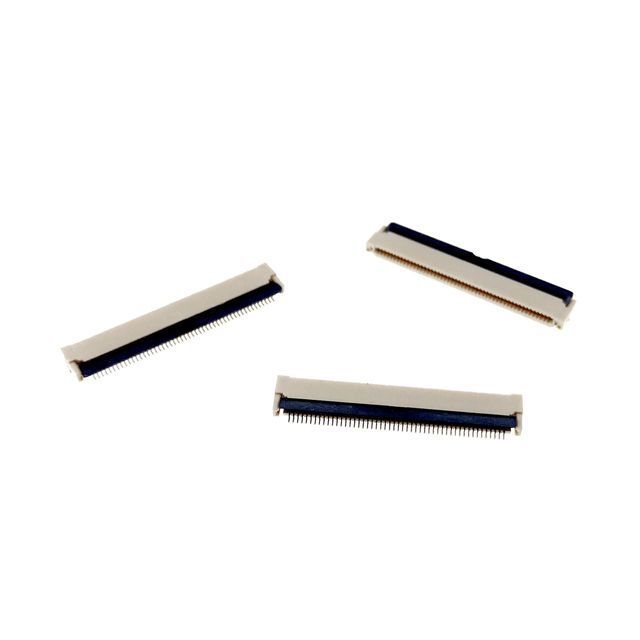

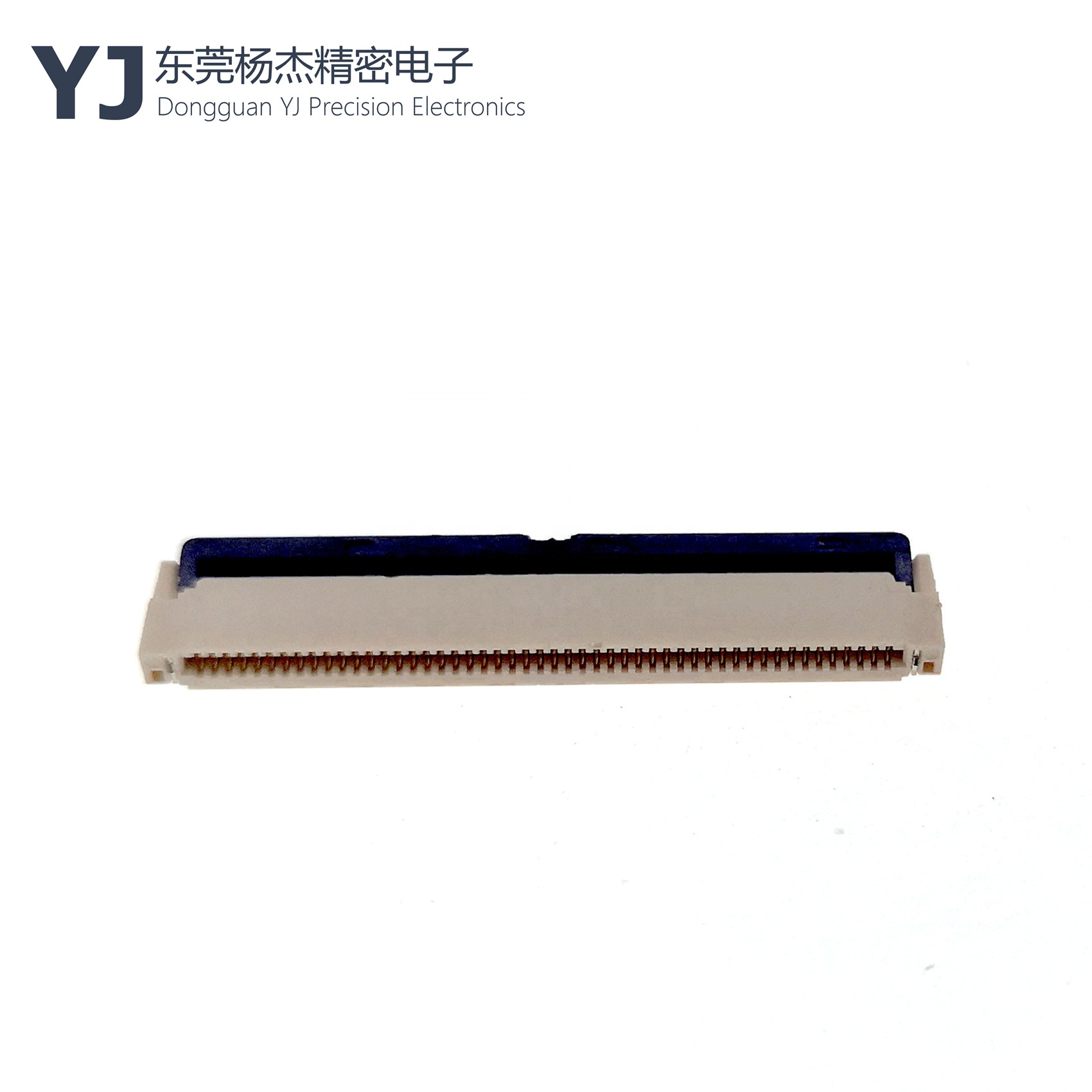

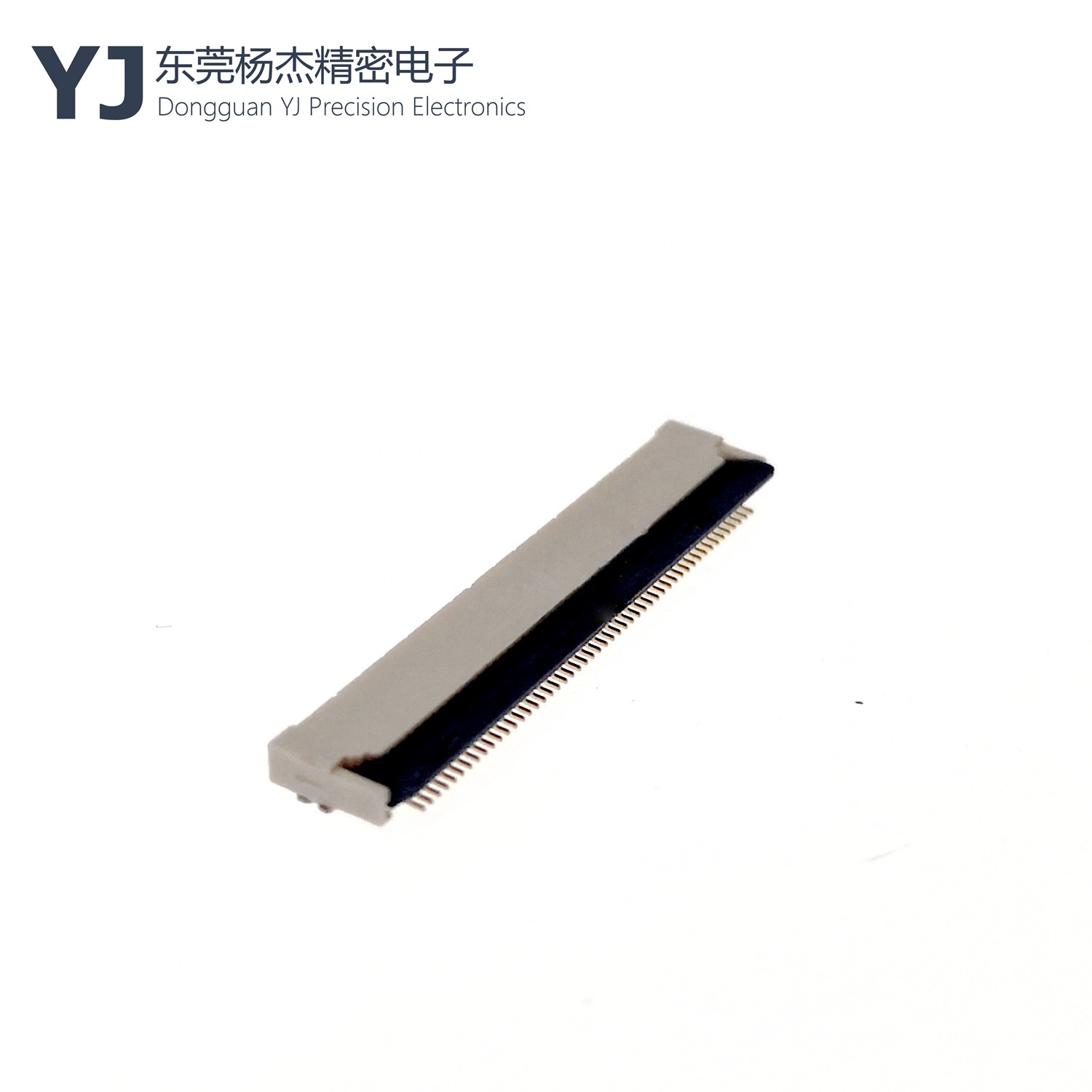

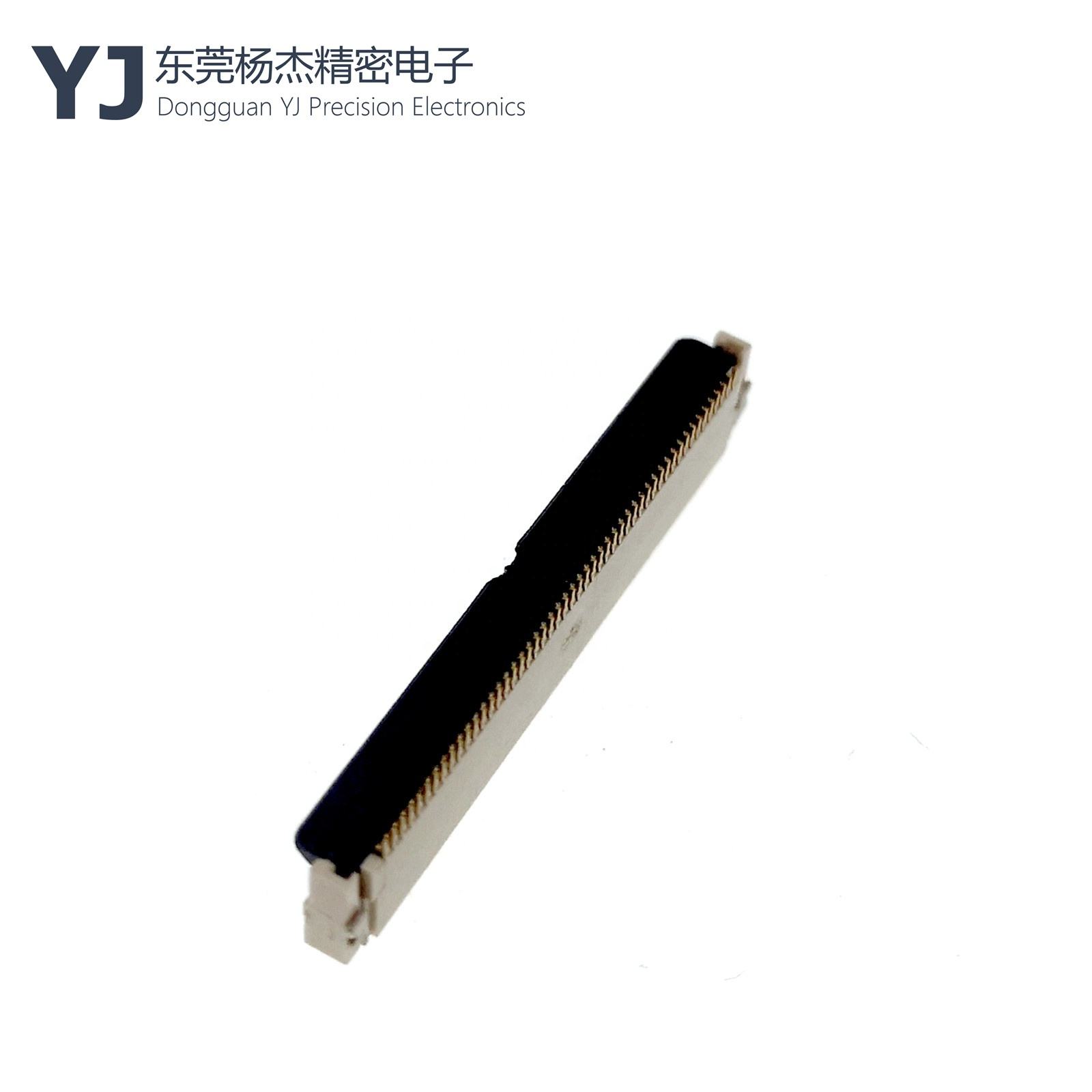

YJ FPC 0521 SERIES 0.5mm Pitch 2.1mm Height Horizontal SMT Lower Contact Type Connector 4-96pin for PCB

PRODUCT DETAIL
Payment Terms:L/C,D/P,D/A,T/T;Brand:Yangjie;
Place of Origin:Guangdong, China;Model Number:YJ-0521-XXCL-SN;
Type:FFC & FPC Connector;D/C:/;
Packaging:Standard Packging;Description:YJ05021 FPC;
Product Specification
YJ-0521 All Series
Applicable Range: This specification is applicable to YJ0521 series

  FPC Connector
-YJ0521 Series
Contact Pitch
0.5mm
Number of Contacts
(Pin Count)
4 to 100
Installation Type
Horizontal SMT
Ratings
Rated Voltage (MAX)
50V AC
Rated Current (MAX)
0.5A DC
Operating Temperature Range
-55°C ~ +85°C（Including terminal temperature rise）
Materials
Housing
(Main Body)
L.C.P(UL94V-0)
Surface Treatment
Beige
Actuator
(Flip-lock)
L.C.P(UL94V-0)
Flip-lock
Surface Treatment
Black
 Terminal
(FFC Contact Pin)
Copper Alloy
Fitting nail
(PCB Solder Pin)
Copper Alloy
Electroplating
Tin over Nickel

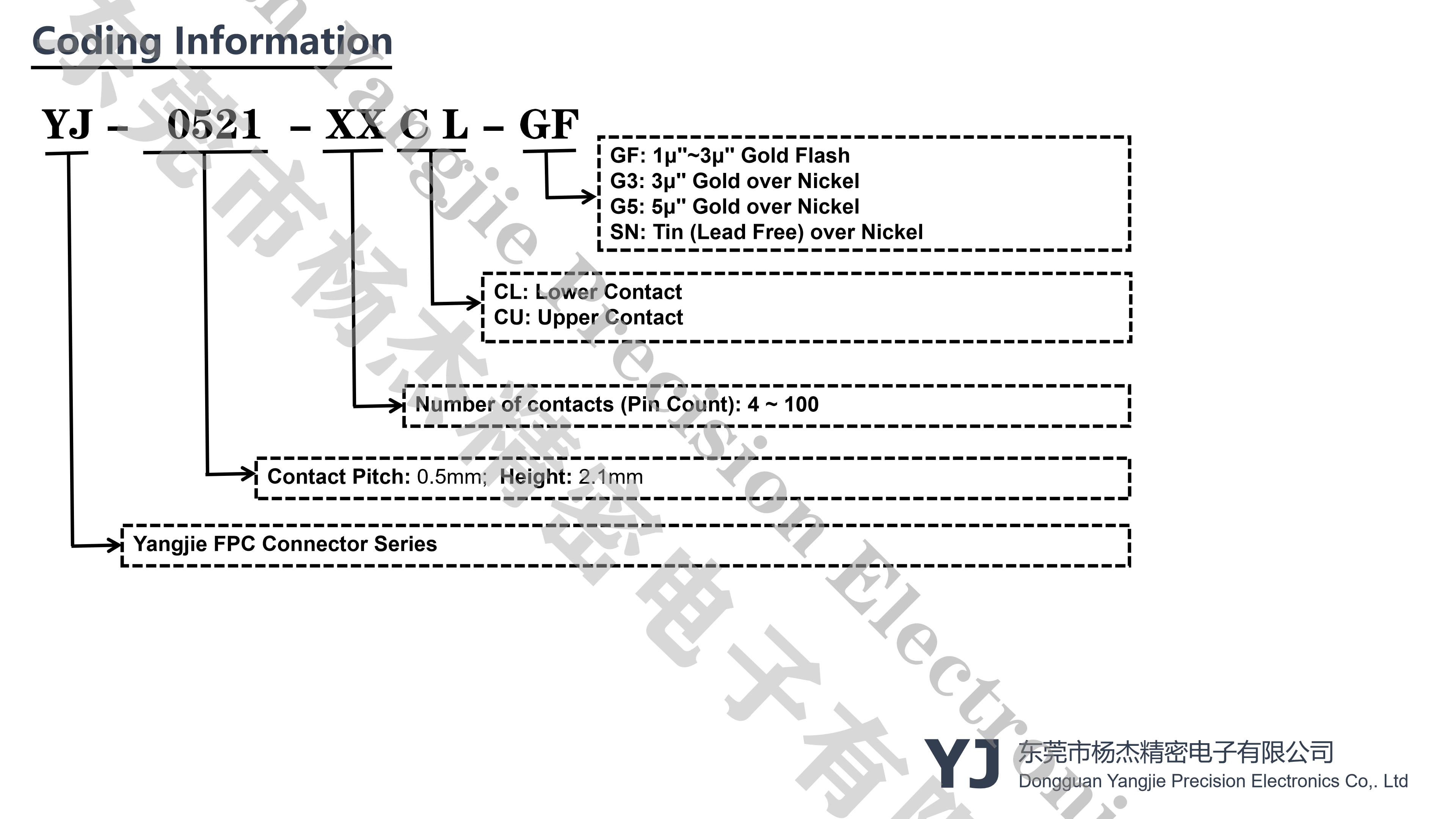

YJ-0521-XXCL-SN
Housing
(Main Body)
L.C.P. High-temp Thermoplastic UL94V-0
Color
Beige
Actuator
(Flip-lock)
L.C.P. High-temp Thermoplastic UL94V-0
Color
Black
 Terminal
(FFC Contact Pin)
Copper Alloy
Plating
Tin over Nickel
Fitting nail
(PCB Solder Pin)
Copper Alloy
Plating
Tin over Nickel
Rating
Operating Voltage
50V AC,DC
Current Rating
0.3A AC,DC
Operating Temperature
-25°C ~ +85°C（Including terminal temperature rise）

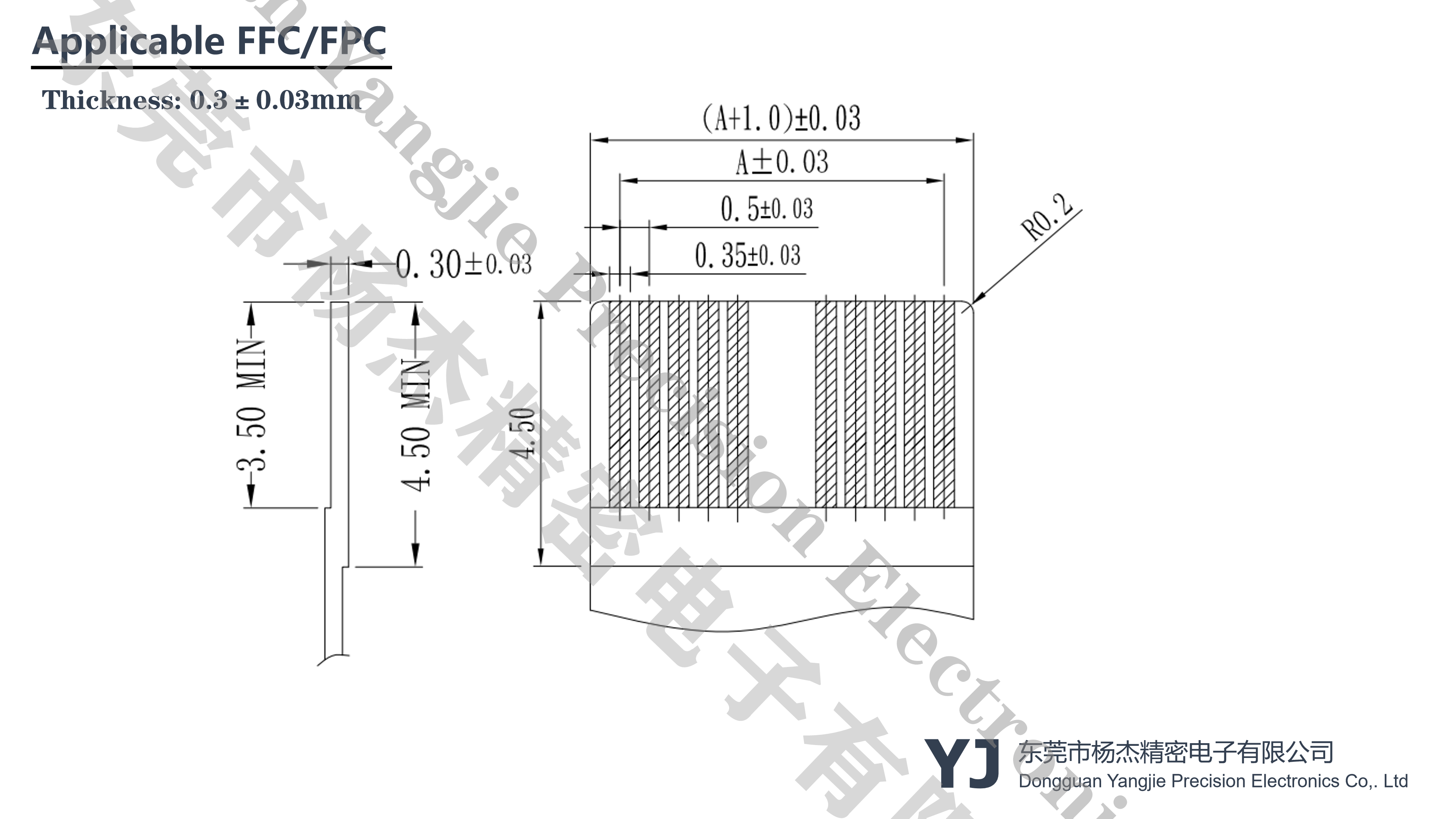

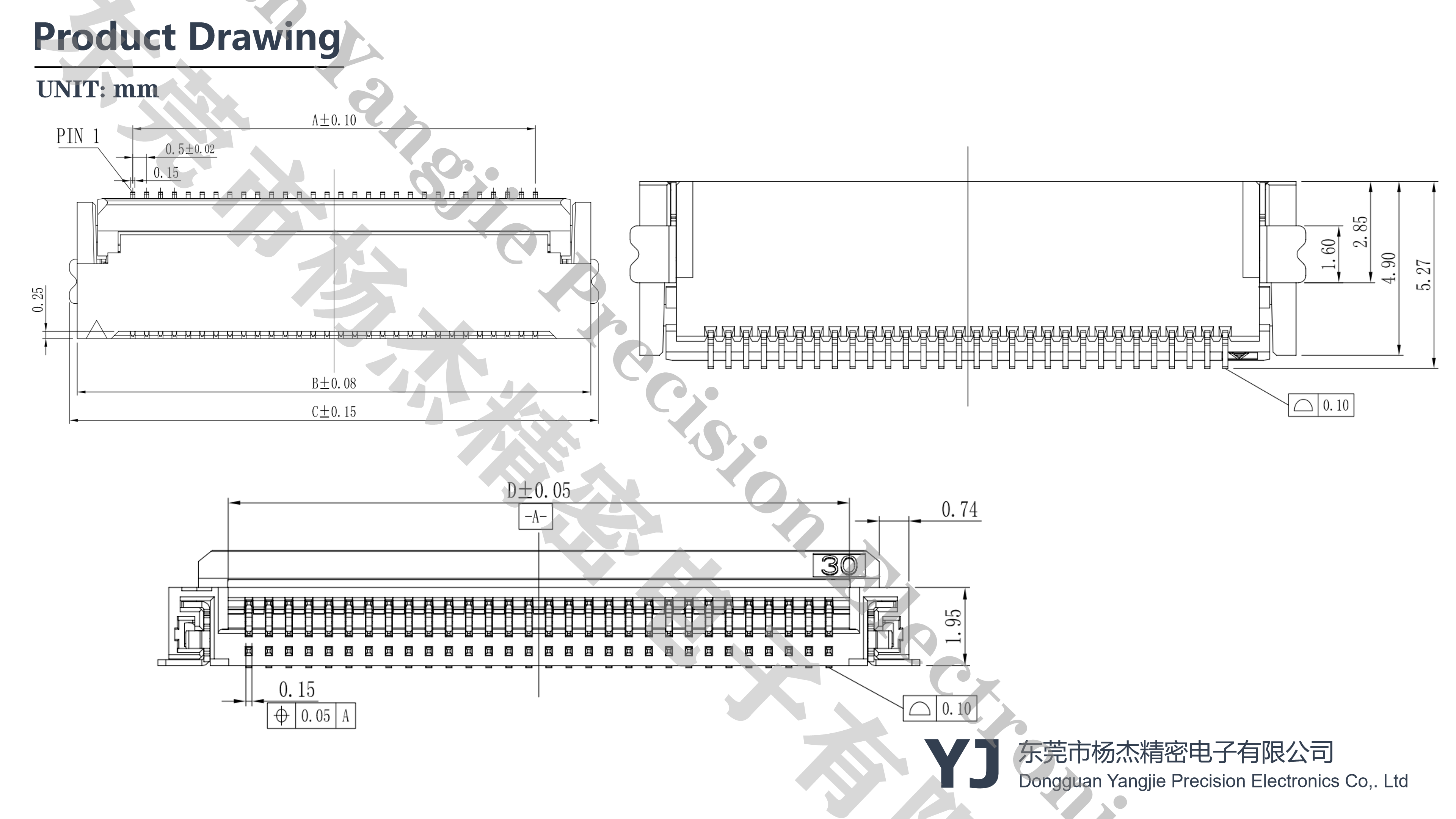

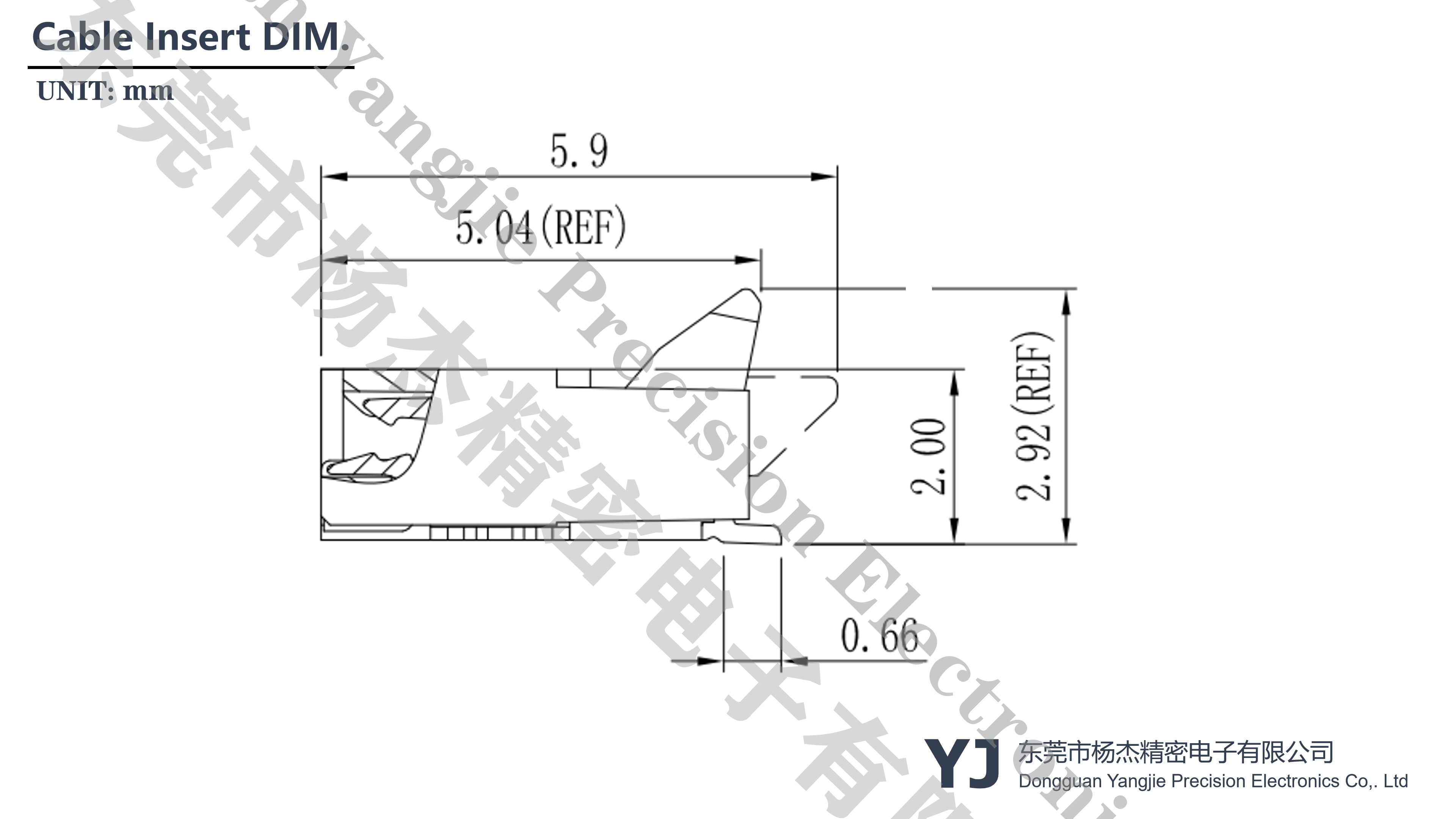

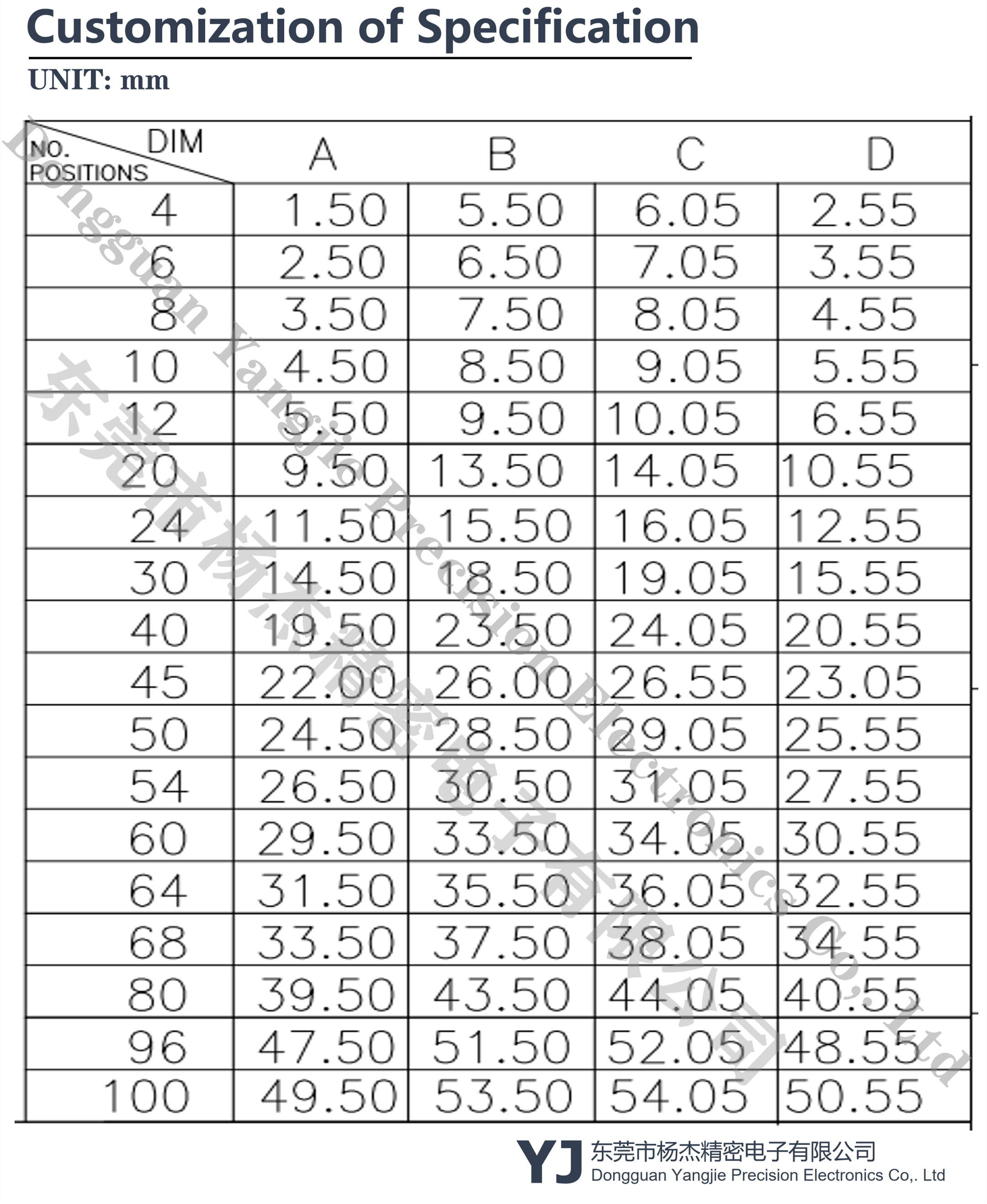

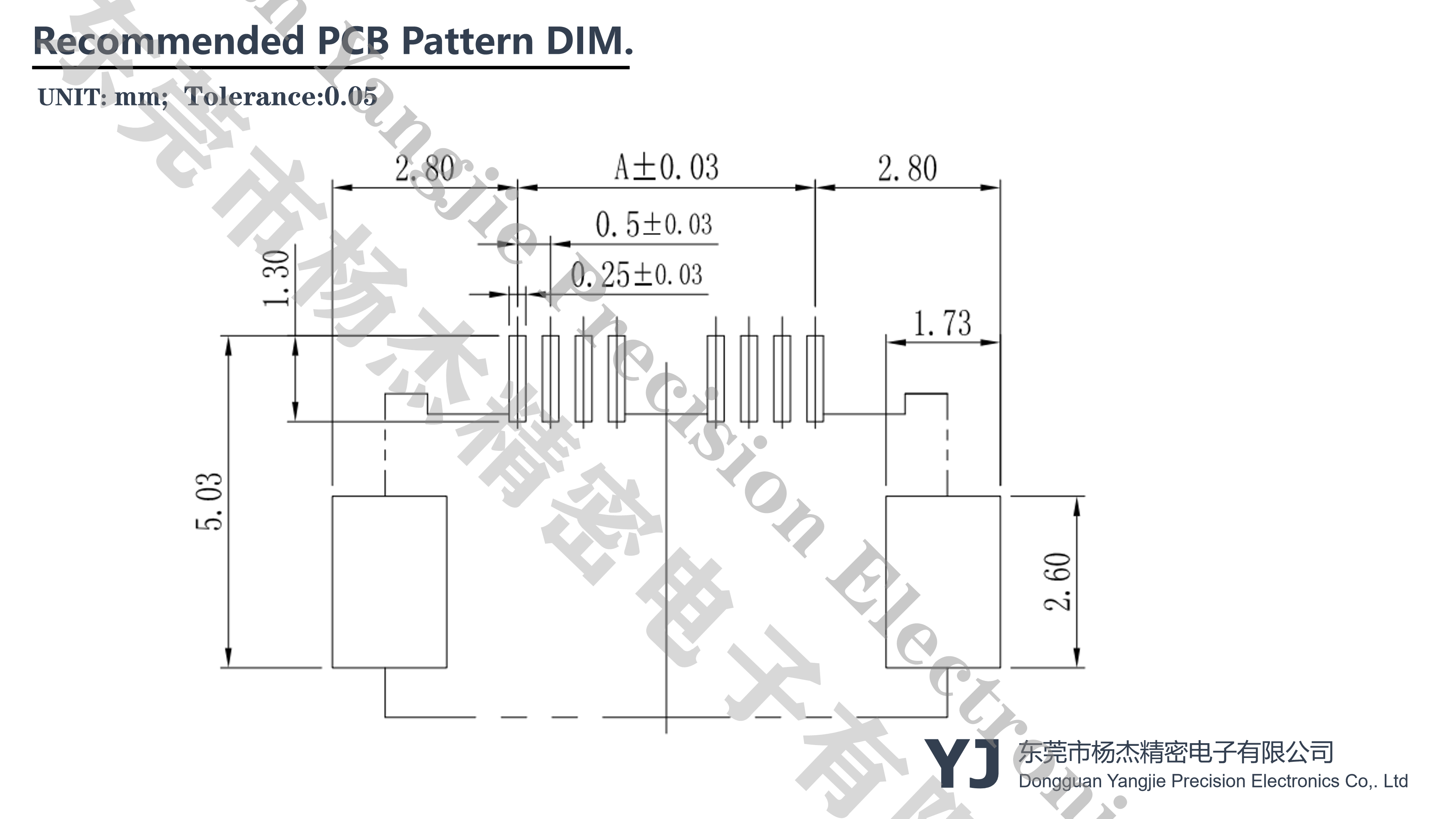

PRODUCT DRAWINGS
* If you not found a suitble product, please contact us. >> >> https://yj04121.en.alibaba.com/contactinfo.html?spm=a2700.shop_cp.88.49
