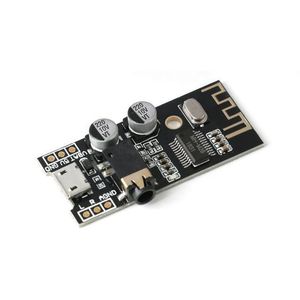

HIFI M28 Stereo DIY MP3 Decoder Board M28 4.2 Wireless Audio Receiver board Module MH-M28
- $1.19 / 10 - 99 pieces
$1.09 / 100 - 199 pieces
$0.99 / >=200 pieces - 10 pieces
- Shenzhen Gui Yi Technology Co., Ltd.
- Guangdong, China
- Ms Candy Wang
PRODUCT DETAIL
| Application: | DIY; | Single gross weight: | 0.011 KG; |
| Selling Units: | Single item; | Type: | LOGIC ICS,Bluetooth 4.2; |
| Temperature: | -40~+85℃; | Single package size: | 10X10X1 cm; |
| BT Version: | BT V4.2; | Package Preview: | ; |
| Model Number: | 70261; | Country of Origin: | CHINA; |
| Brand: | Yourcee; | Chipset: | MH-M28; |
| Packaging Detail: | box; | Voltage: | 5V; |
Products Description
MH-M28

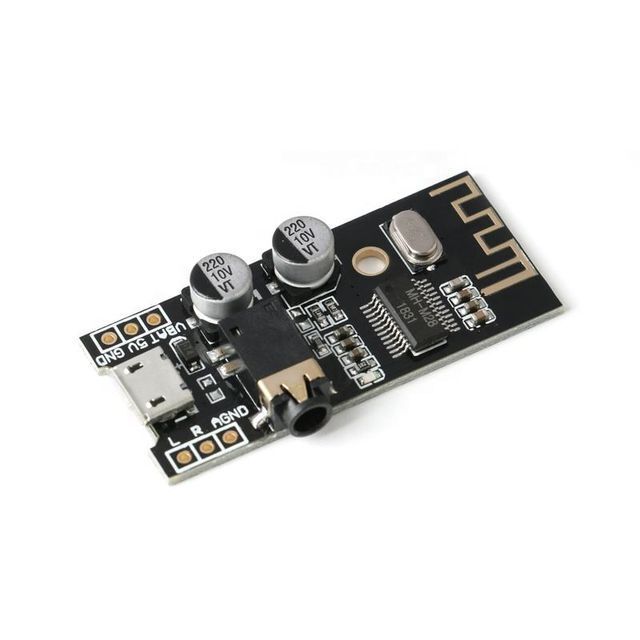

Pin definition:
5V: Power positive 5V
GND: Negative power supply
VBAT: Lithium battery positive 3.7-4.2V
L: Left channel output
R: Right channel output
AGND: audio ground
Feature:
Power supply: It can be directly powered by the MICRO USB Android cable 5V, or it can be connected to a 5V power supply or a 3.7V lithium battery. Note that the 5V and 3.7V power supply interfaces are different. The 5V voltage is connected to 5V and GND, and mthe 3.7V lithium battery is connected to VBAT and GND.
Audio output: The earphone can be directly connected to the 3.5mm audio interface, or it can be wired for the audio input of the power amplifier board (interface L/R/AGND can be directly wired).
Pin definition:
5V: Power positive 5V
GND: Negative power supply
VBAT: Lithium battery positive 3.7-4.2V
L: Left channel output
R: Right channel output
AGND: audio ground
Feature:
Power supply: It can be directly powered by the MICRO USB Android cable 5V, or it can be connected to a 5V power supply or a 3.7V lithium battery. Note that the 5V and 3.7V power supply interfaces are different. The 5V voltage is connected to 5V and GND, and mthe 3.7V lithium battery is connected to VBAT and GND.
Audio output: The earphone can be directly connected to the 3.5mm audio interface, or it can be wired for the audio input of the power amplifier board (interface L/R/AGND can be directly wired).
Detailed Images
product Model | MH-M28 |
BT | BT 4.2 |
Voltage | 5V |
Temperature | -40~+85℃ |
