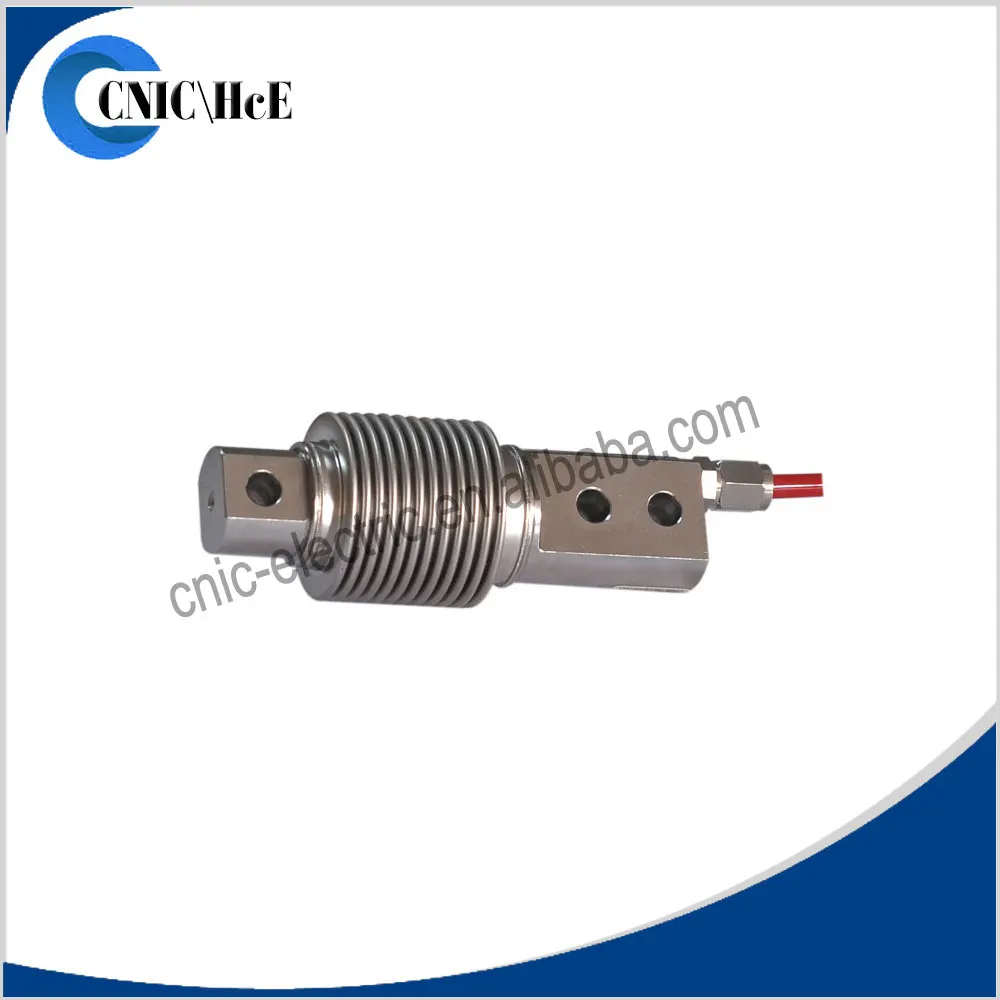

High Accuracy Bending Beam Load Cell Z6 (MTB) From 50N To 10KN For Weaving Machine

PRODUCT DETAIL
Water proof:IP68;Output resistance:352±3Ω;
Packaging Detail:Neutral packing or according to customers' requirements;Input resistance:400±20Ω;
Delivery Detail:25days;Rated output:2.0±0.002 mV/V;
Cable:dia.5mmX3m;Port:NingBo, ShangHai;
Payment Terms:L/C,T/T;Model Number:Z6;
Material:Alloy Steel, Stainless steel;Accuracy:0.02%FS;
Brand Name:HcE;Supply Ability:500 Piece/Pieces per Day;
Insulation resistance:≥5000MΩ/50V DC;Temperature Range,compensated:-10~+40℃;
Place of Origin:Zhejiang China;

  High Accuracy Bending Beam Load Cell Z6(MTB) From 50N To 10KN For

Weaving Machine





FEATURES

1.Capacities 50N~10KN

2.Nickel plated alloy steel or stainless steel construction

3.IP68 protection

4.Tension or compression applications



DESCRIPTION

Model Z6 is ideally suited to work under the most stringent environmental requirements, where the exposure to aggressive chemical additives, high temperatures and humidity are factors. Thanks to its special compact and durable design these sensors are effectively used in harsh environments.

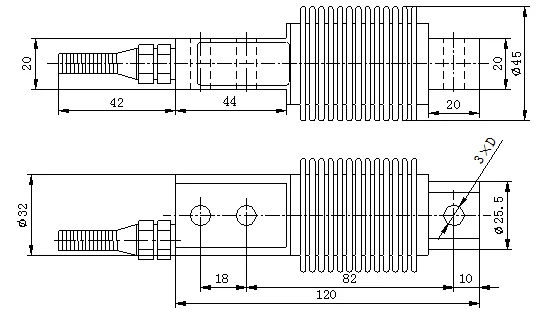

OUTLINE DIMENSIONS(mm)









Rated capacityD
5~250Φ8.2
300~500Φ10.2

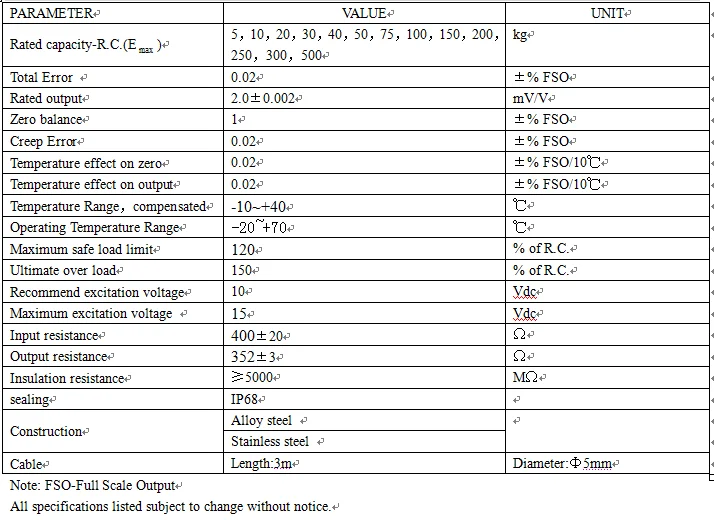

SPECIFICATIONS
