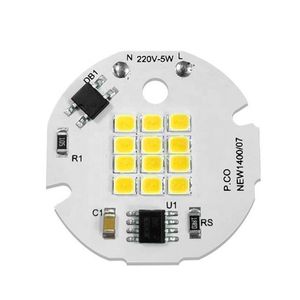

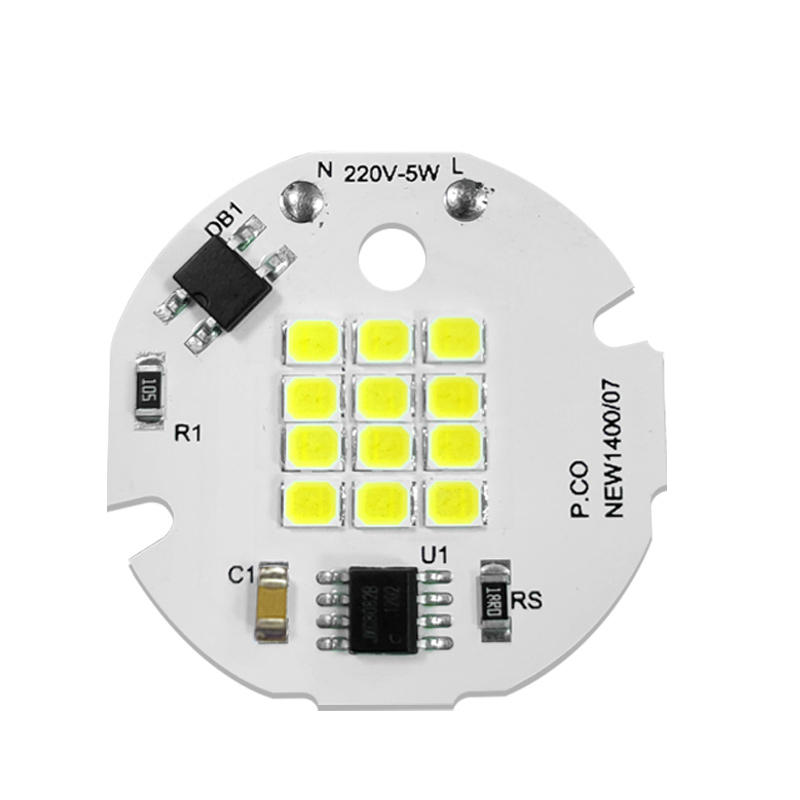

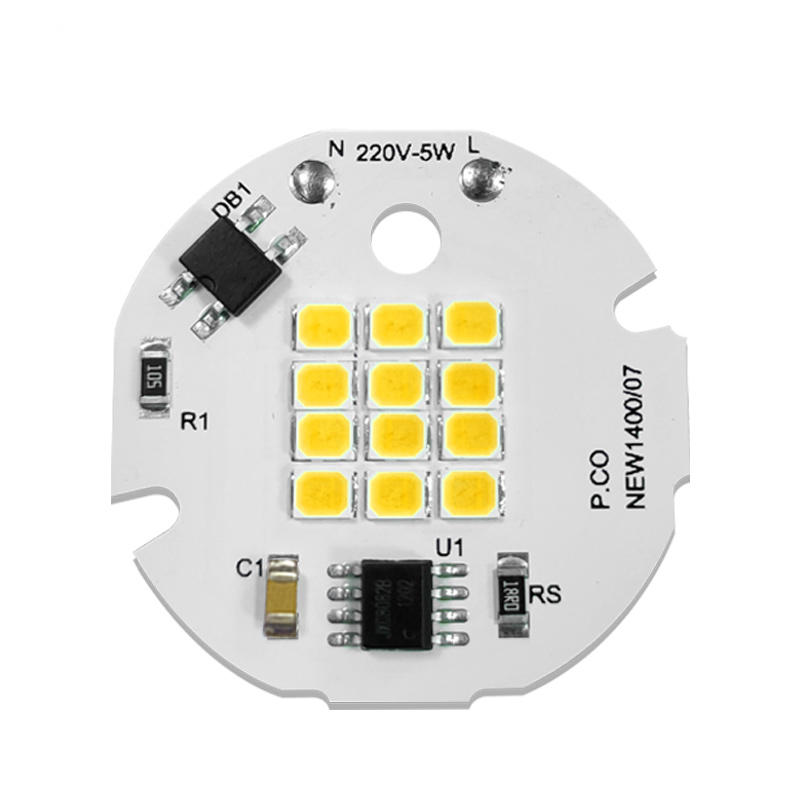

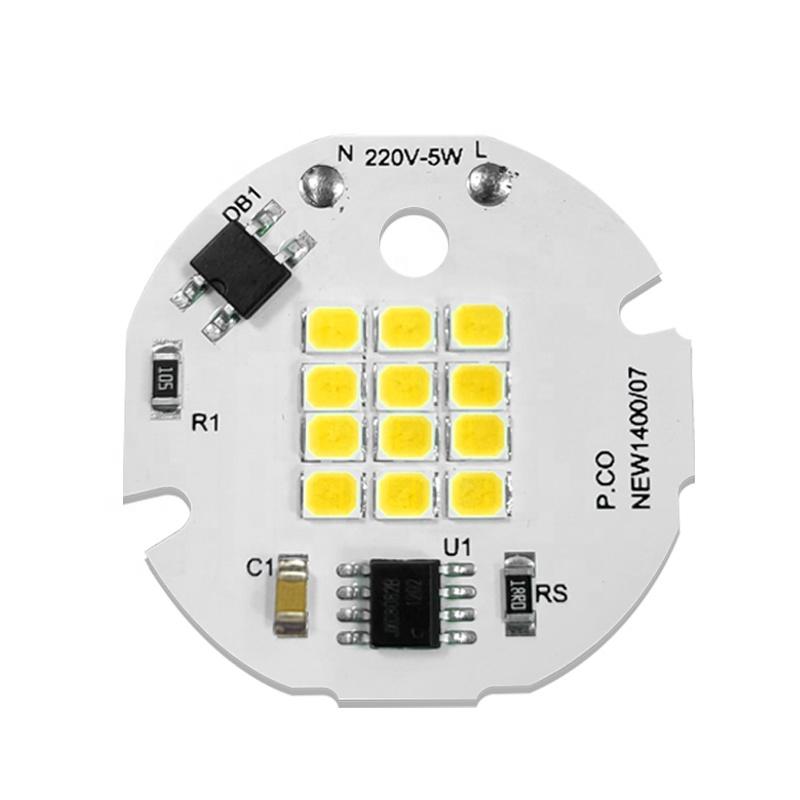

High Quality 35mm Round Size DOB LED Lamp Chip Fit for GU10 Downlight Spotlight 3000K 4000K 220V 5W 7W 9W
- $0.27 / 10 - 999 pieces
$0.25 / 1000 - 4999 pieces
$0.23 / >=5000 pieces - 10 pieces
- Shenzhen Colighting Ltd.
- Guangdong, China
- Mr Bon Zhang
PRODUCT DETAIL
| strength: | 5W, 7W, 9W | Power consumption: | 0.01 |
| Color rendering index (Ra): | 80 | Viewing angle (°): | 120 |

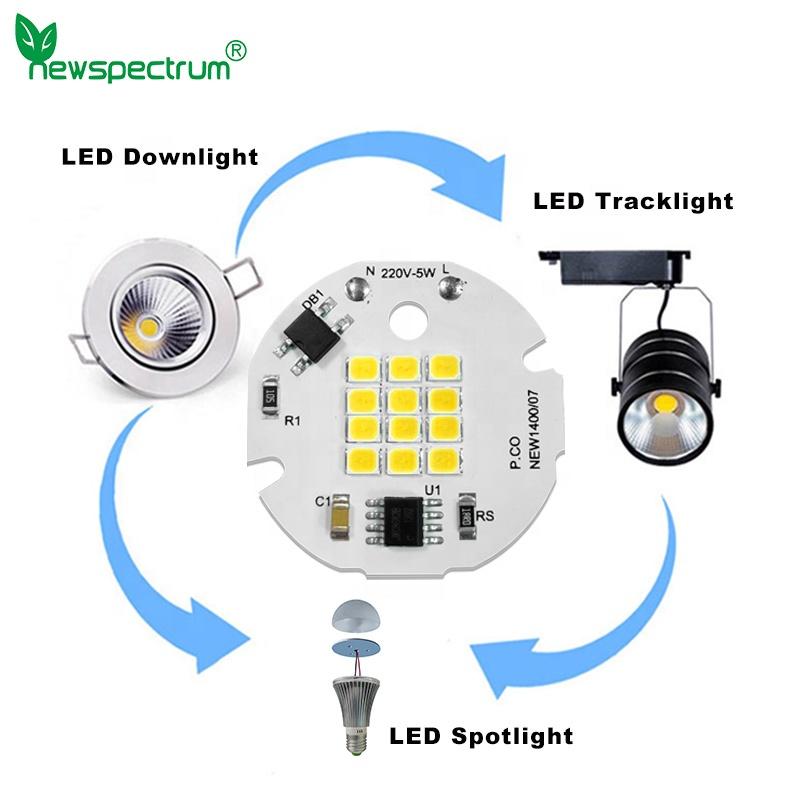

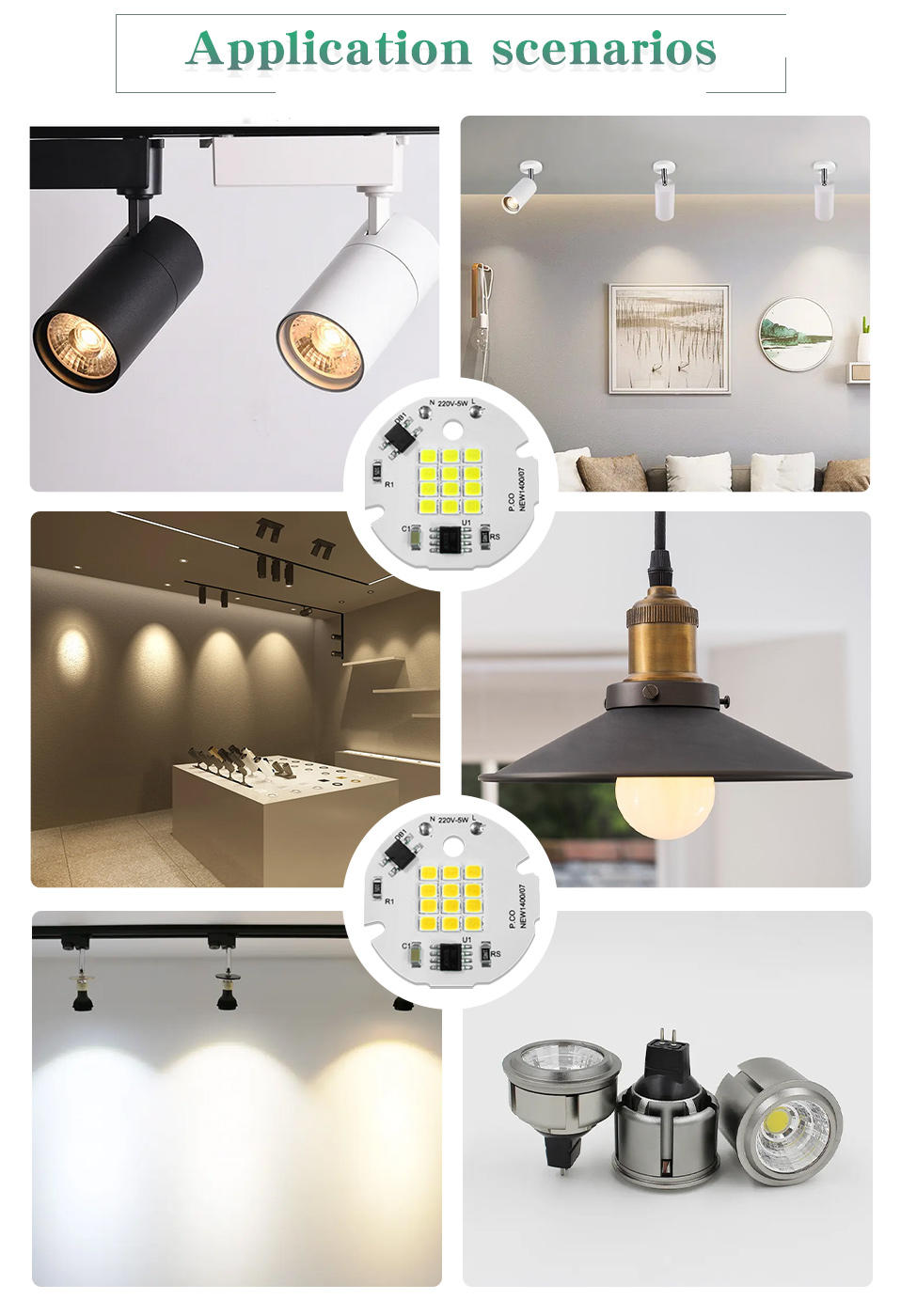

| Chip material: | Ingan | application: | Floodlights, Spotlights, Downlights |
| Storage temperature (℃): | -45 - 100 | Supply capacity: | 100,000 pieces per day |
| type: | High power LED | Certification: | ce, RoHS |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | place of origin; place of origin: | Guangdong, China |
| Dimmers supported: | Do not | Lifetime (hours): | 50000 |
| Lamp luminous efficiency (lm/w): | 100 | Provident fund: | >0.9 |
| Working temperature (℃): | -20 - 80 | Packaging Preview: | |
| Warranty Period (Years): | 2 years | Luminous color: | natural white |
| Packaging Details: | Anti-static bag, carton packaging. | Light Attenuation (%): | 2,0.1 |
| Light Efficiency (lm/w): | 100 | Working hours (hours): | 50000 |
| Lighting Solutions Services: | Lighting and Circuit Design | port: | Yantian |
| Luminous flux (lm): | 900 | Input voltage (V): | AC 220V(±10%) |
| brand: | new spectrum | product name: | 220V 5W 7W 9W LED chip |
| Color temperature: | 1400-6500K | Color Temperature (CCT): | 3000K/4000K/6000K |
Product Description

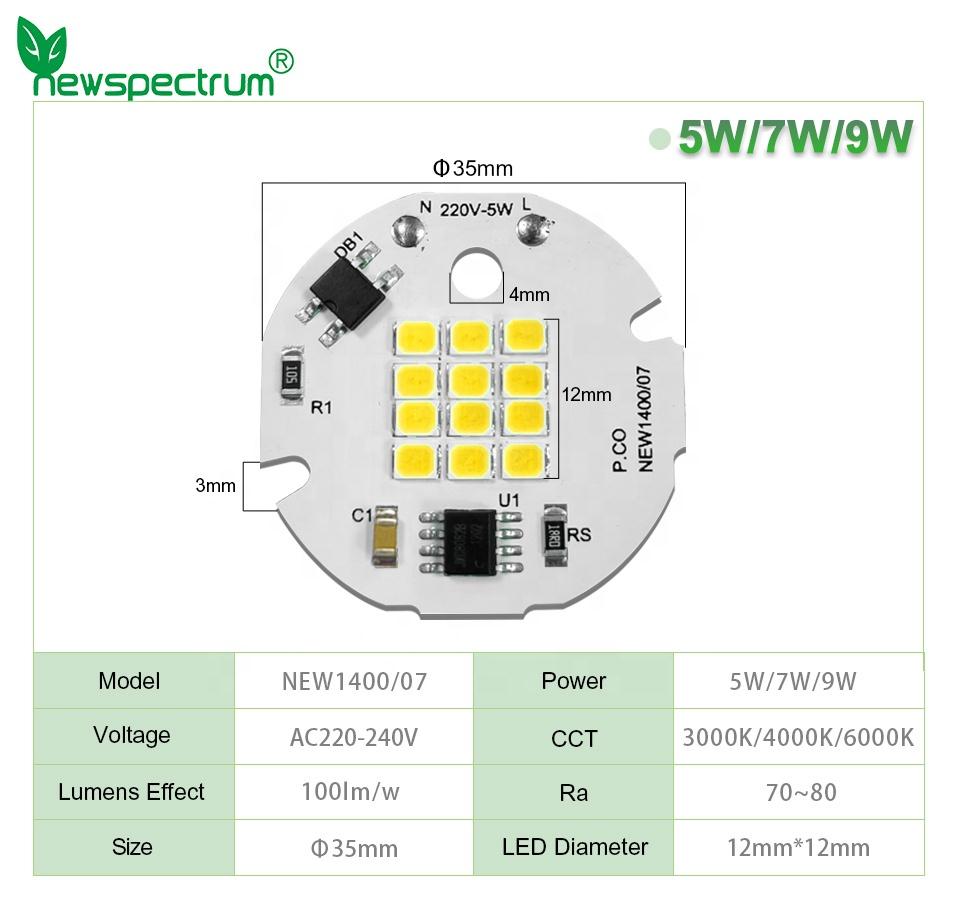

class | thing | DOB1235-5W | DOB1235-7W | DOB1235-9W | |||||||
Electrical parameters | Operating Voltage | AC 220-240V (50/60 Hz) | |||||||||
strength | 5W | 7W | 9W | ||||||||
power factor | >0.9 | >0.9 | >0.9 | ||||||||
surge tolerance | 1 KV L/N PE | 1 KV L/N PE | 1 KV L/N PE | ||||||||
Optical parameters | Luminous efficiency | 100 lumens/watt | 100 lumens/watt | 100 lumens/watt | |||||||
CCT | 3000K/4000K/6000K | ||||||||||
pull | 70-80 | ||||||||||
Beam angle | 120° | 120° | 120° | ||||||||
scope | size | 35mm | |||||||||
light-emitting area | 12mm*12mm | ||||||||||
thickness | 0.9mm | 0.9mm | 0.9mm | ||||||||
surroundings | Operating temperature | -40～60°C (temperature) (PCB temperature) | |||||||||
life | >50000 (hours) | ||||||||||

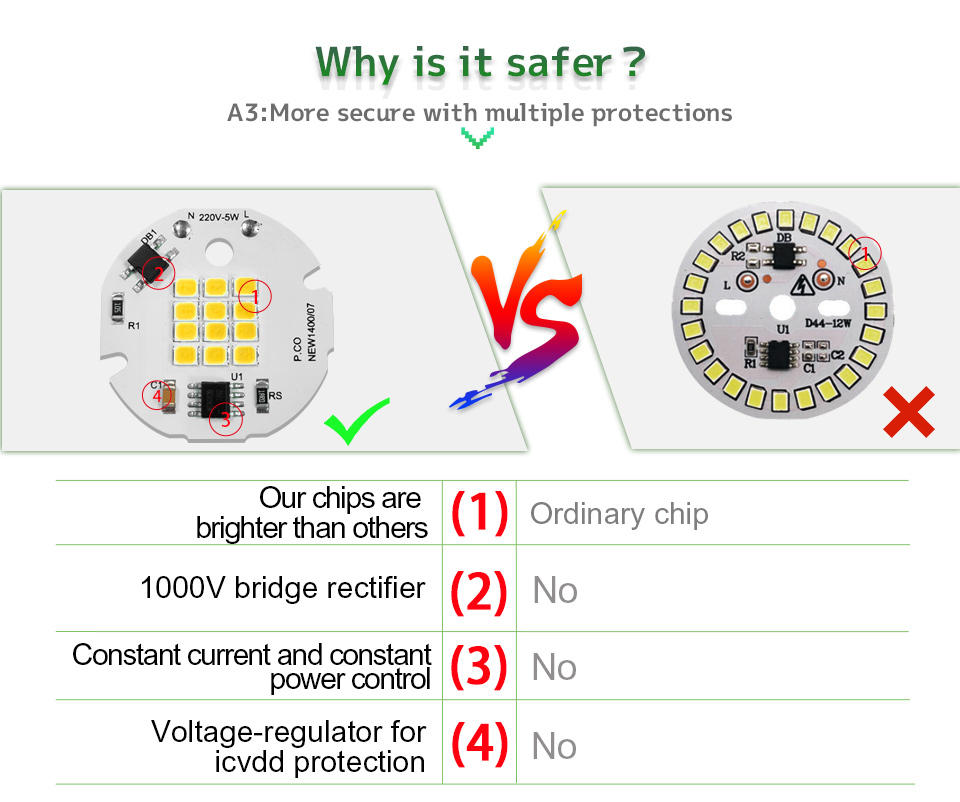

feature

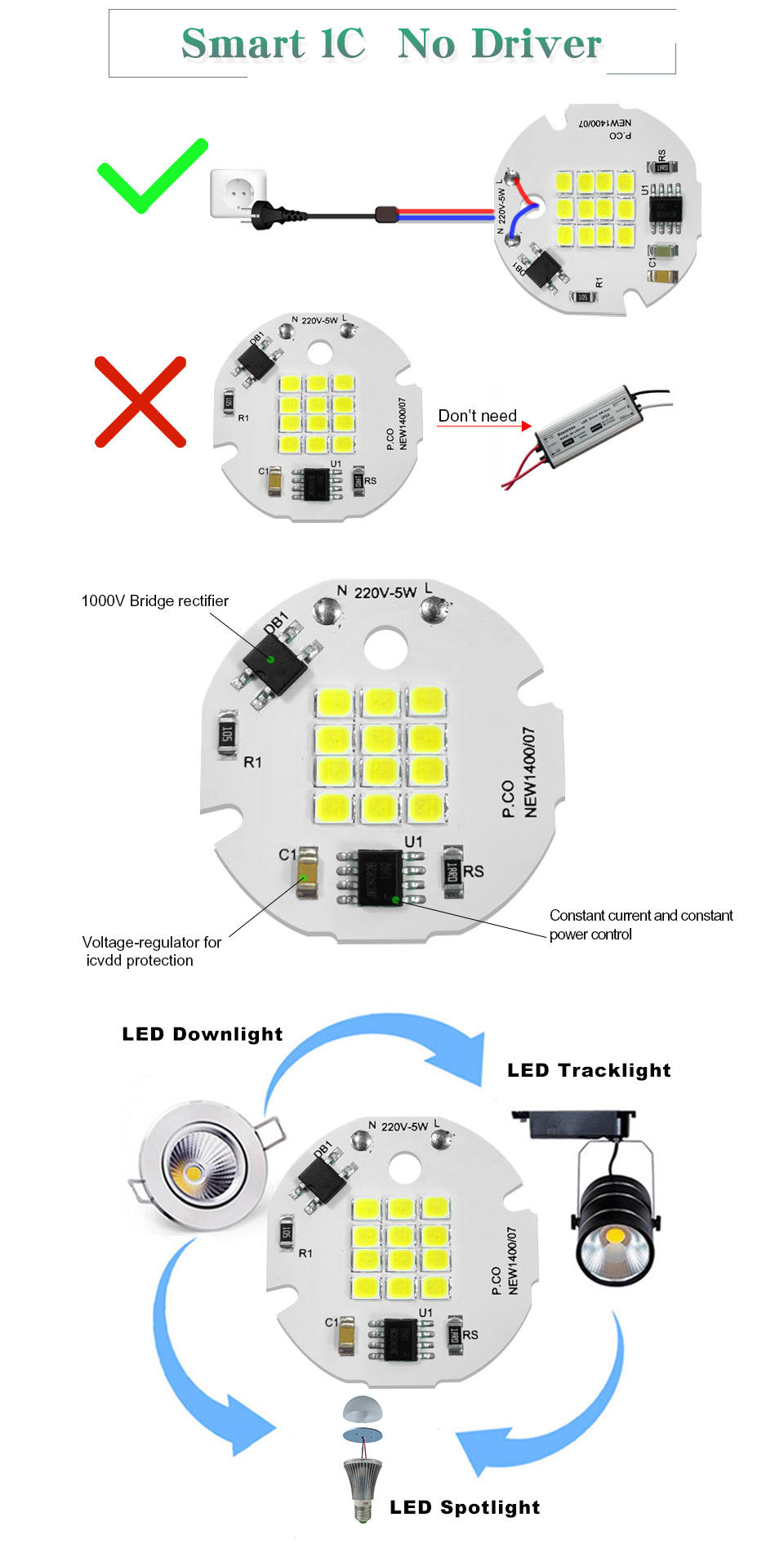

①: LED chip assembly technology. Good heat dissipation effect, higher light output rate and long service life②:High brightness, our led chip is bigger than others③:Smart IC adapts without driver

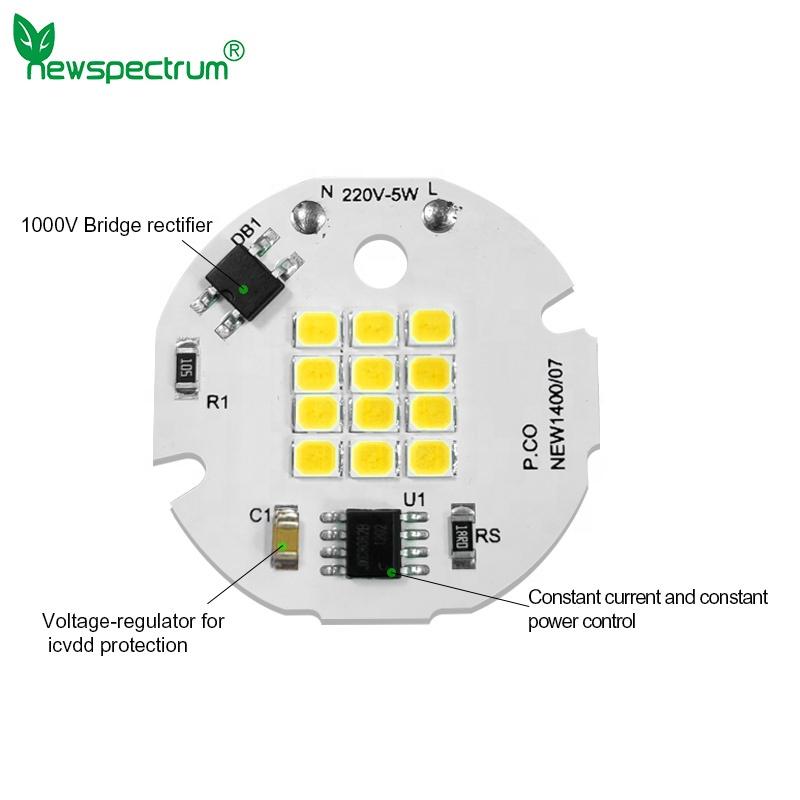

④:Constant current and constant power control
⑤:NTC sensor for PCB overheating protection
⑥:voltage regulator for ic vdd protection
⑦:Driver IC, overvoltage and overcurrent control
⑧:It can be dimmed with led dimmers or thyristor dimmers
⑨: 1000V bridge rectifier
Focus on AC/COB10 years
Different spectrums can be customized for different plants.
Professionally customized full-spectrum LED plant photosensitive lamp beads have higher PPFD and PAR than conventional full-spectrum,
And it's more efficient.
And it's more efficient.

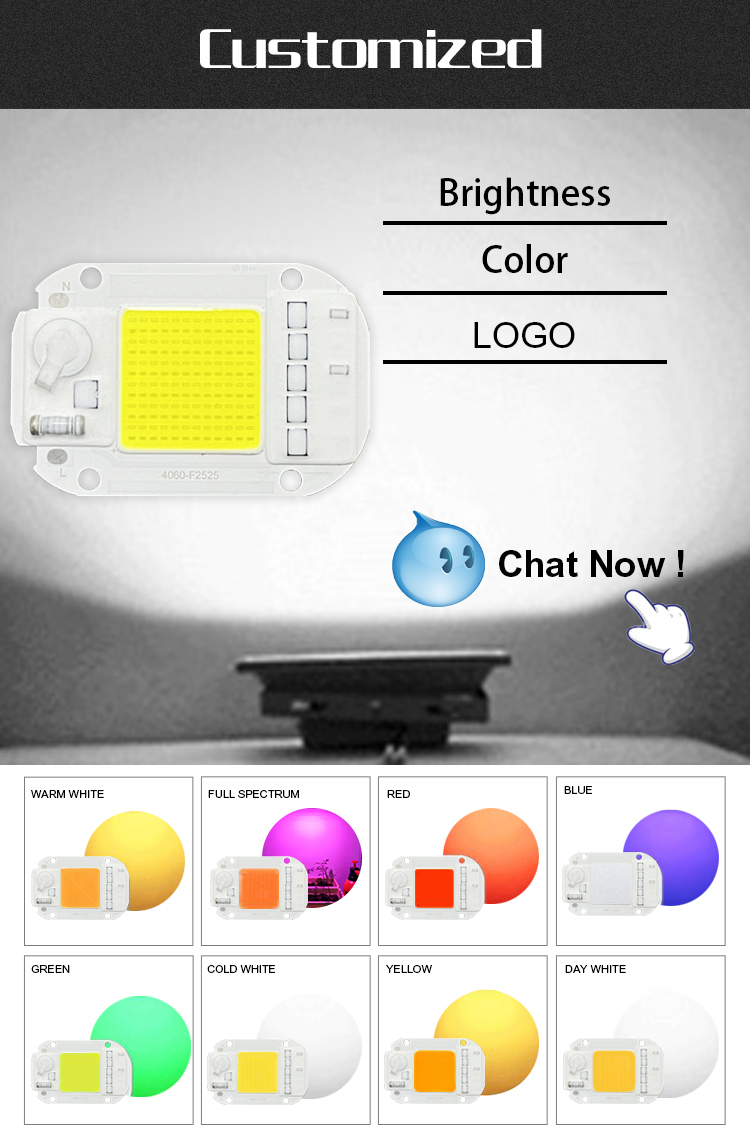

For customization,
