Wholesale 3watts 3535 SMD 3W High Power LED Bead Emitter with 20mm Star Heatsink

PRODUCT DETAIL
Viewing Angle(°):120;Color Temperature:2700-6500k;
Selling Units:Single item;Storage Temperature(℃):-30 - 85;
Operating Temperature(℃):-25 - 65;Color Rendering Index(Ra):75;
Place of Origin:Guangdong, China;Luminous Flux(lm):300lm;
Power Dissipation:0.01;Chip Material:INGAN;
Single gross weight:0.010 KG;Single package size:10X5X5 cm;
Type:High Power LED;Emitting Color:COOL WHITE;
Optical Attenuation(%):0.3;Packaging Detail:strong export standard carton box;
Luminous Intensity:30000-40000mcd;Brand Name:Greenlantern;
Certification:RoHS;Power:3W;

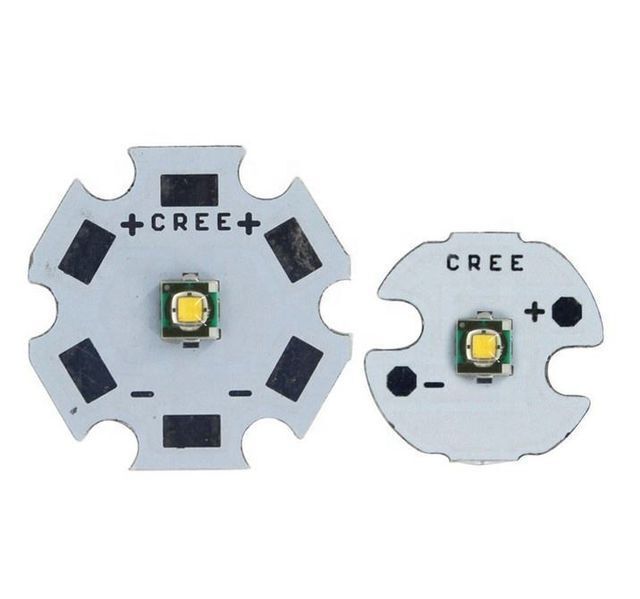

Wholesale 3watts 3535 SMD 3W High Power LED Bead Emitter with 20mm Star Heatsink

 you are bidding 20mm PCB

Product Description

 High Power 3w 3535 IR 970-980nm LED

1W 3W 3535 LED White color
Part No.Intensity (lm)Current (mA)Voltage (v)Emitting angle
(Degree)
GL-3535W120-130lm300-700mA3.0-3.6V160degree
140-160lm300-700mA3.0-3.6V
1W 3W 3535 LED Blue color
Part No.Wavelength ( nm)Current (mA)Voltage (v)Emitting angle
(Degree)
GL-3535B460-470nm300-700mA3.0-3.6V160degree
440-450nm300-700mA3.0-3.6V
450-455nm300-700mA3.0-3.6V
1W 3W 3535 LED Green color
Part No.Wavelength ( nm)Current (mA)Voltage (v)Emitting angle
(Degree)
GL-3535G520-525nm300-700mA3.0-3.6V160degree
500-505nm300-700mA3.0-3.6V
490-495nm300-700mA3.0-3.6V
495-500nm300-700mA3.0-3.6V
515-520nm300-700mA3.0-3.6V
1W 3W 3535 LED Yellow color
Part No.Wavelength ( nm)Current (mA)Voltage (v)Emitting angle
(Degree)
GL-3535Y588-595nm300-700mA1.9-2.3V160degree
1W 3W 3535 LED Amber color
Part No.Wavelength ( nm)Current (mA)Voltage (v)Emitting angle
(Degree)
GL-3535A600-610nm300-700mA1.9-2.3V160degree
1W 3W 3535 LED Red color
Part No.Wavelength ( nm)Current (mA)Voltage (v)Emitting angle
(Degree)
GL-3535R620-630nm300-700mA1.9-2.3V160degree
610-650nm300-700mA1.9-2.3V
660nm300-700mA1.9-2.3V
660-670nm300-700mA1.9-2.3V
670-680nm300-700mA1.9-2.3V
680-690nm300-700mA1.9-2.3V
700nm300-700mA1.9-2.3V
730nm300-700mA1.9-2.3V
760-770nm300-700mA1.9-2.3V
720-725nm300-700mA1.9-2.3V
730-710nm300-700mA1.9-2.3V
710-750nm300-700mA1.9-2.3V
1W 3W 3535 LED UV color
Part No.Wavelength ( nm)Current (mA)Voltage (v)Emitting angle
(Degree)
GL-3535UV400-410nm300-700mA3.0-3.6V160degree
390-400nm300-700mA3.0-3.6V
410-420nm300-700mA3.0-3.6V
430-410nm300-700mA3.0-3.6V
365nm300-700mA3.0-3.6V
380-385nm300-700mA3.0-3.6V
370-375nm300-700mA3.0-3.6V
375-380nm300-700mA3.0-3.6V
1W 3W 3535 LED Infrared ( IR ) color
Part No.Wavelength ( nm)Current (mA)Voltage (v)Emitting angle
(Degree)
GL-3535IR910nm300-700mA1.6-1.9V160degree
850nm300-700mA1.6-1.9V
880nm300-700mA1.6-1.9V
770-780nm300-700mA1.5-2.0V
800-810nm300-700mA1.3-1.7V
810-820nm300-700mA1.3-1.7V
870nm300-700mA1.3-1.7V
890nm300-700mA1.3-1.7V
900-910nm300-700mA1.3-1.7V
970-980nm300-700mA1.6-1.9V
980-990nm300-700mA1.1-1.3V
1000-1050nm300-700mA1.0-1.2V

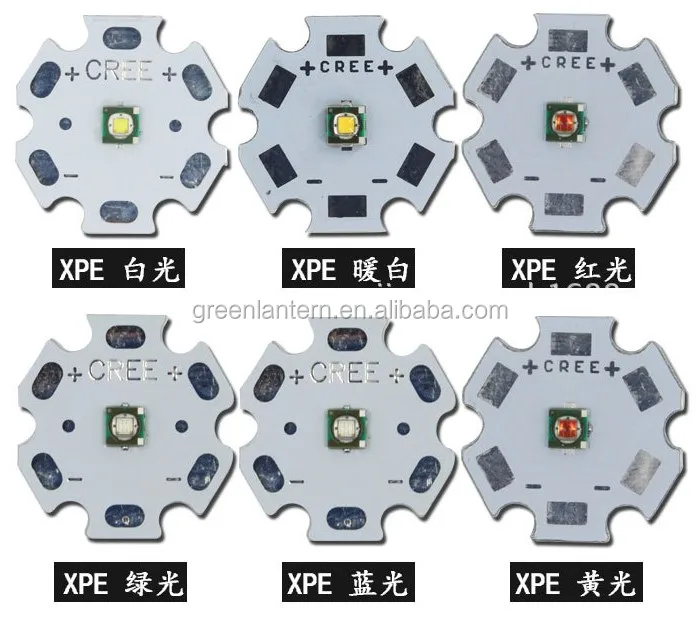

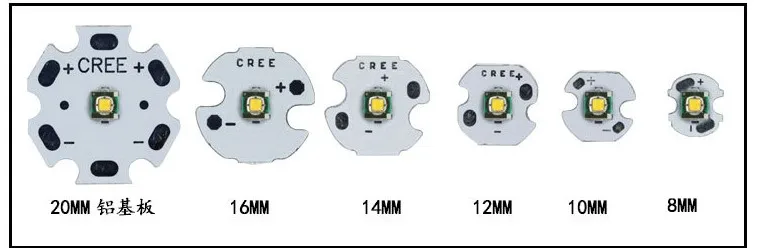

Detail Images

 Feature

 1. Well-known chip material

 2. 99.99% gold wire bonding

 3.  2 years warranty

 4Over 10 years work experience technical service team

 5. 24 hours service Professional sales team

 6. Free Sample is available

 7. Fast delivery

 8.100% QC inspection Before Shippment

 9Aiming at the consult of "high quality, zero defect”, give you the best quality, best service.




Applications



Related Products


Certifications



Company Information
