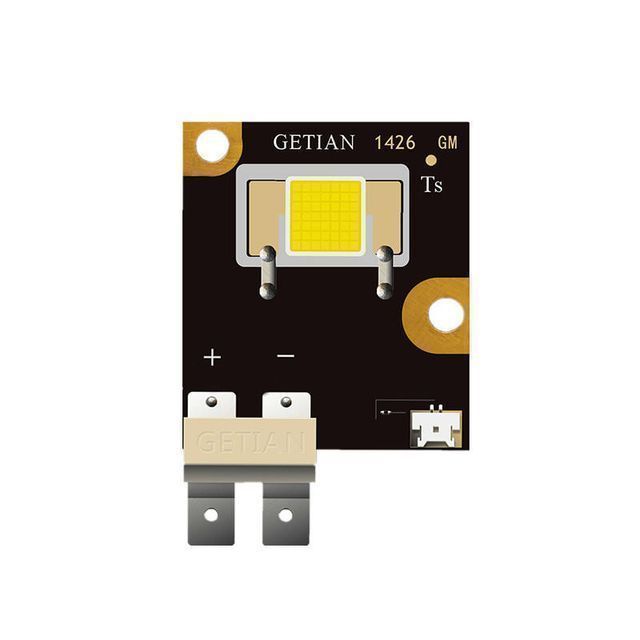

Long Working Time 60W 90W 150W 300W 500W DC Flip Chip LED 3 Years Warranty
- $6.60 /piece
- 1 piece
- Shenzhen Getian Opto-Electronics Co., Ltd.
- Guangdong, China
- Ms Jenny Liao
| Certification: | ce, RoHS | Packaging Details: | 12pcs/tray Long Working Time 60W 90W 150W 300W 500W DC Flip Chip LED, 3 Years Warranty |
| Working temperature (℃): | -40 - 60 | Luminous color: | Cold white |
| Warranty: | 3 years | type: | High Power LED, Flip Chip COB Module |
| Light Attenuation (%): | 3 | port: | Shenzhen |
| Forward Voltage: | 15-19V | Storage temperature (℃): | -40 - 85 |
| Luminous flux (lm): | 5000-35000lm | application: | high power led |
| ESD Sensitivity: | ±2,000V HBM | place of origin; place of origin: | Guangdong, China |
| brand: | Getian | light intensity: | 100 lumens/watt |
| Junction temperature: | 115℃ | Color temperature: | 8000K~9000K |
| payment terms: | T/T, Western Union | Supply capacity: | 20000 pieces per month |
| Viewing angle (°): | 120 | Chip material: | Ingan |
| current: | 3.75A | Color rendering index (Ra): | 70 |
| Original Equipment Manufacturer: | Yes | Thermal resistance: | 0.06℃/W |
| Power consumption: | 60 | LED chip: | flip chip |
Long Working Time 60W 90W 150W 300W 500W DC Flip Chip LED 3 Years Warranty

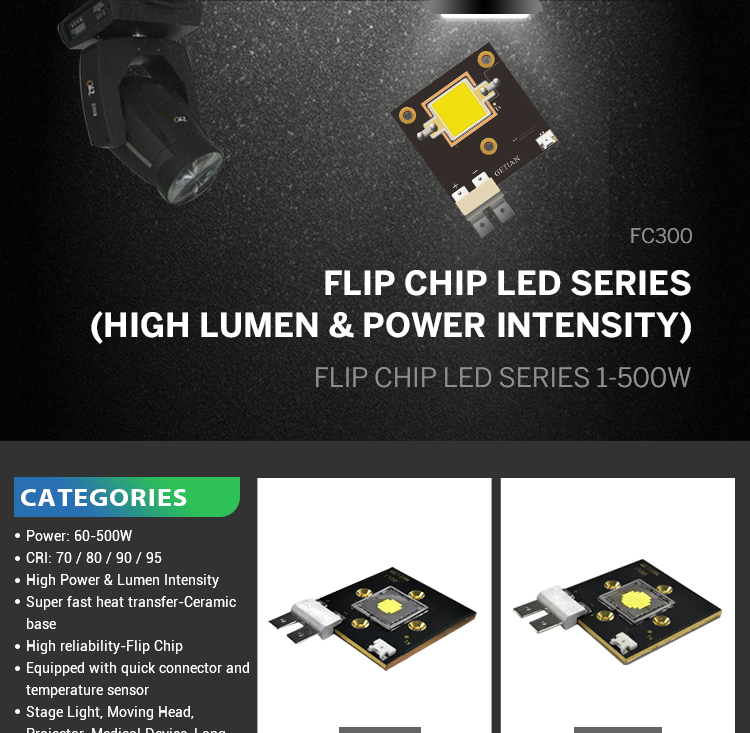

Features Flip Chip LED
Flip chip technology. No gold wires; high stability.
Low thermal resistance and faster heat dissipation
Small light-emitting area for easy optical design

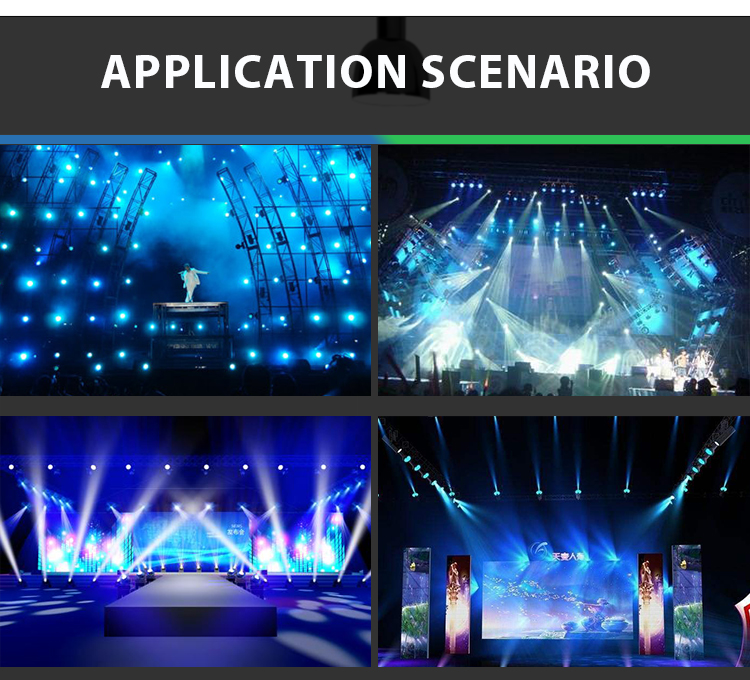

Wide power range 60-300W for stage light series

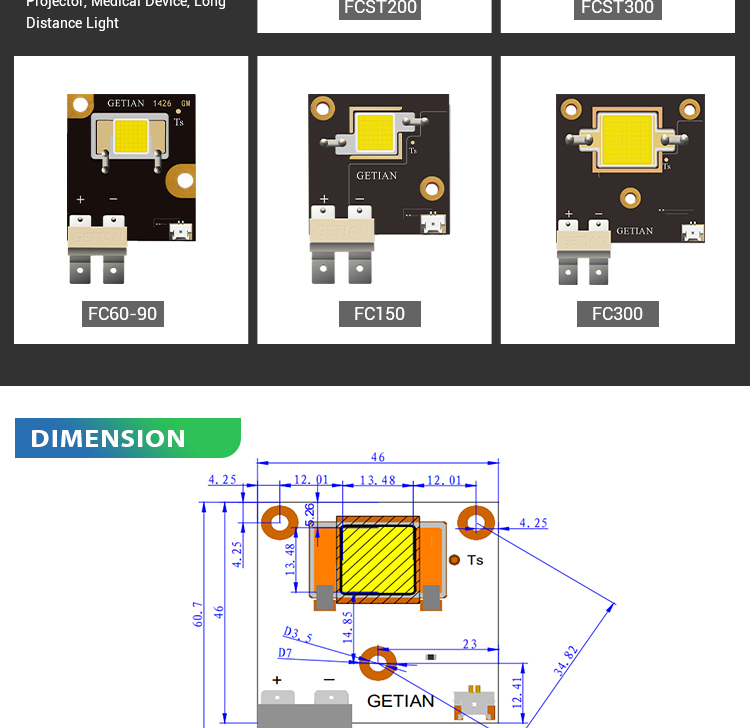

product name Flip Chip COB Module | strength | Check angle | LES | CCT | Voltage | current | Luminous flux |
| (GT-FC60) | 60W | 120° flip chip | 6.66*6.66mm | 6000-6500K 8000-9000K | 14-18V | 3.75A | 5000-5500LM |
| (GT-FC90) | 90W | 6.66*6.66mm | 5.5A | 6000-6500LM | |||
| (GT-FC150) | 150W | 9.64*9.64mm | 21-24V | 6.7A | 11000-12000LM | ||
| (GT-FC300) | 300W | 13.48*13.48mm | 30-36V | 9.3A | 20000-22000LM | ||
| (GT-FC500) | 500W | 12.84*12.84mm | 30-36V | 15.5A | 30000-35000LM |
Flip chip LED product advantages:
1. No gold wire; ; High stability.
2. Ceramic base: real separation of thermal conductivity and electrical conductivity; high thermal conductivity; high voltage resistance above 3000V.
3. New chip technology: thermal resistance as low as 0.12℃/W.
4. Small luminous area: high luminous intensity; convenient for optical design with high central luminous flux.
5. High thermal conductivity alloy welding chip:Replacing the old process epoxy resin welding, it is not easy to fall off.
6. High thermal conductivity; low thermal resistance, the single-chip microcomputer can be driven to 1000mA, and the efficiency is higher.
7. Patented phosphor technology: stable color temperature, no floating color.
8. Equipped with temperature sensor: more accurate heat dissipation and temperature control.
9. Simple installation design: easy to use.
10. Dust-proof design of luminous surface: easy to keep the surface clean.
