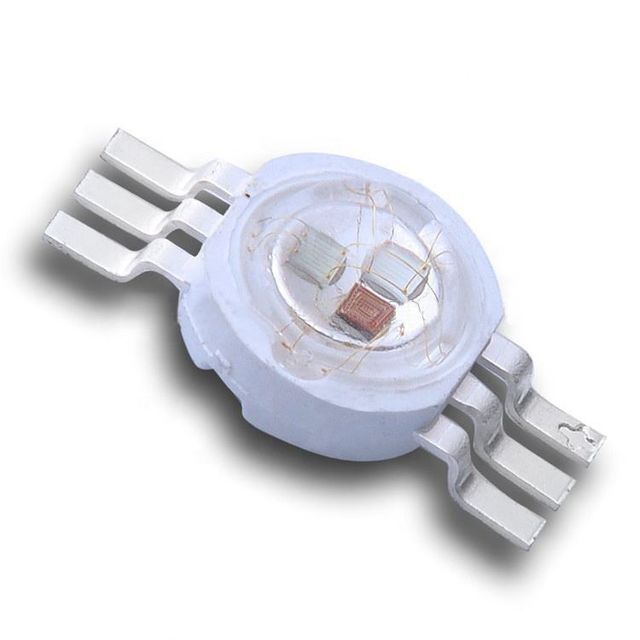

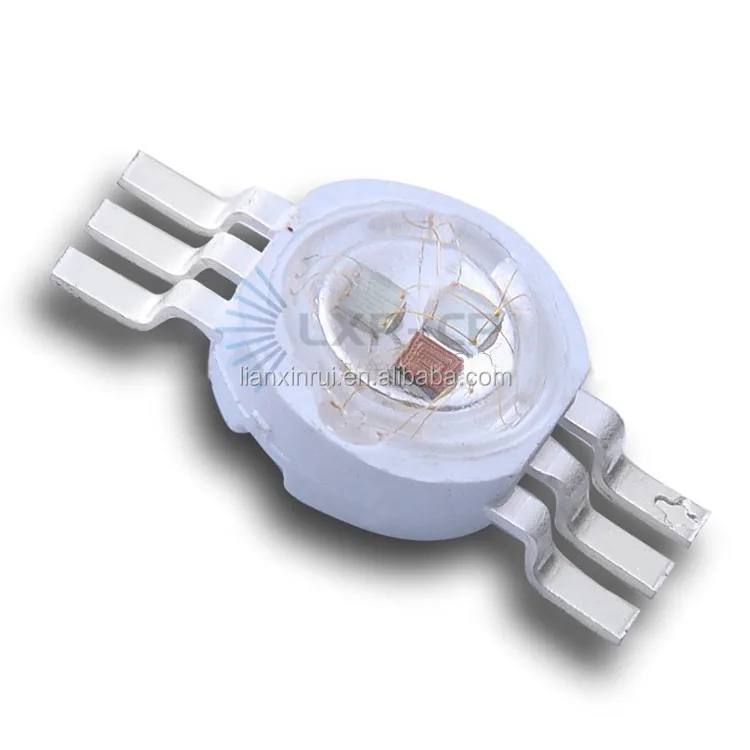

Highlight rgb Epistar Chip 1w 3w 5w Led 3 Watt High Power Led Diode
- $0.70 /piece
- 1 piece
- Shenzhen Lianxinrui Technology Co.,ltd
- Guangdong, China
- Ms Sara Yang
| Color Rendering Index(Ra): | 80; | Port: | Shenzhen; |
| Supply Ability: | 10000000 Pieces per Day; | Brand Name: | LXR-CP; |
| Chip brand: | Bridgelux Epistar Epileds; | Chip Size: | 45 Mil; |
| Lifespan (hours): | 50000; | Packaging Detail: | Inner packing by tube or tape, 50pcs per tube or tape. outside its packing by cartion Wholesale 3W 1W 6pin 350 700ma RGB High Power SMD LED Module Lamp Chip; |
| Support Dimmer: | NO; | Viewing Angle(°): | 120/140 Deg; |
| Operating Temperature(℃): | -40 - 120; | Chip Material: | INGAN; |
| Emitting Color: | RGB; | Power: | 1-3W; |
| Place of Origin: | Guangdong, China; | Voltage: | 3.0-3.4; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,Alipay,Visa; | Product name: | 3W 1W 6pin RGB High Power SMD LED Module Lamp Chip; |
| Certification: | ce RoHS; | Frame Material: | Copper; |
| Optical Attenuation(%): | 0.3; | Lifetime: | 100000hours; |
| Luminous Intensity: | R:70-80 G:140-150 B:30-40lm; | Color Temperature: | RGB; |
| Current: | 350-700; | Storage Temperature(℃): | -20 - 80; |
| Color: | RGB; | Type: | High Power LED; |
| Power Dissipation: | 1; | Warranty(Year): | 2-Year; |
| Luminous Flux(lm): | R:70-80 G:140-150 B:30-40lm; | Working Time (hours): | 50000; |
Wholesale 3W 1W 9w 6pin RGB High Power led Chip for stage light
Well-known chip material
• 99.99% gold wire bonding
• High flux per LED
• More energy efficient than incandescent and most halogen lamps
• Instant light(less than 100ns)
1. Well-known chip material
2. 99.99% gold wire bonding
3. 2 years warranty
4. Over 10 years work experience technical service team
5. 24 hours service Professional sales team
6. Free Sample is available
7. Fast delivery
8.100% QC inspection Before Shippment
9. Aiming at the consult of "high quality, zero defect”, give you the best quality, best service.
Static Electricity
• Static electricity or surge voltage damages the High Power LED. It is recommended that a wrist band or an anti-electrostatic glove be used when handing the LEDs.
• A tip soldering iron is requested to be grounded, An ionizer should also be installed where risk of static.
• All devices, equipment and machinery must be properly grounded, It is recommended that measures be taken against surge voltage to the equipment that mounts the High Power LED.
Heat generation
• When the LEDs are illuminating, operating current should be decided after be considering the ambient maximum temperature.
• Please consider the heat generation of the LED when it is designed the PCB.
• The LEDs must be mounted on metal core PCB or heat sink or applied thermal pad.
Handing LED
Lianxinrui recommends the following at all times when handing LEDs or assemblies containing the these LEDs:
• When handing the LED with tools like Tweezer or Nipper, do not apply Mechanical Forces directly on LED's Surface.
• Do not touch with hand LED Lens surface directly. It may contaminate the Lens surface and affect on optical characteristics.
• LED should be handled from side because LED's molding material may be damaged with scratching on surface, piercing molding material and broking wire.

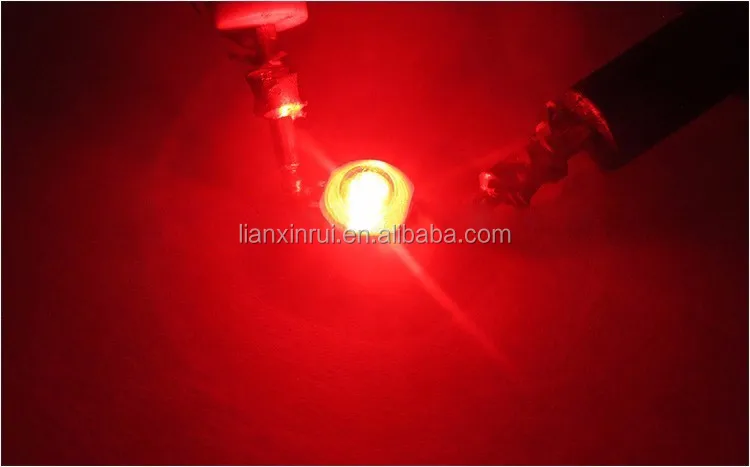

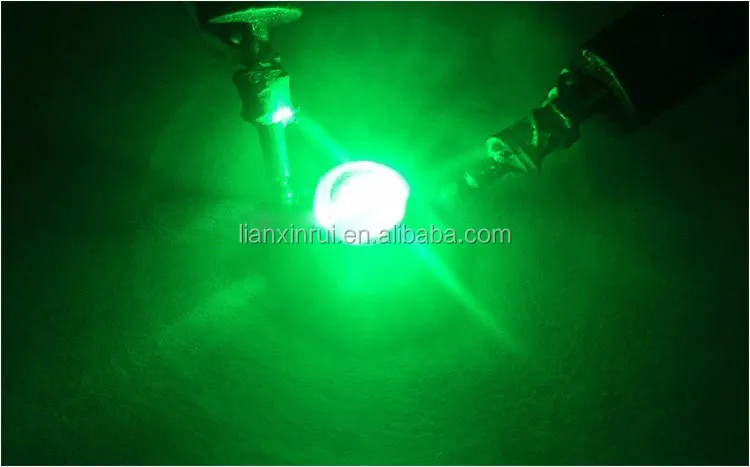

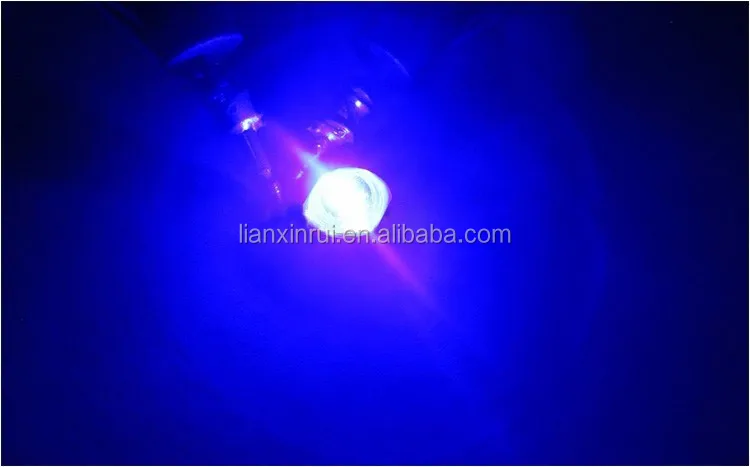

(The picture below just for reference)

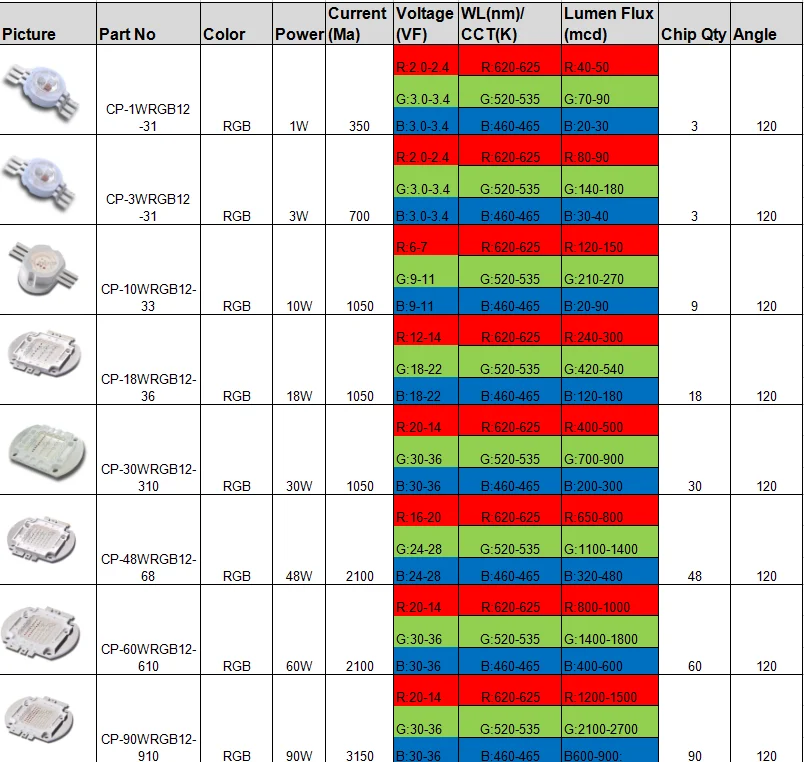

Other Chips
PS: If you want to browse more products, please click <Go>
