JM26 light weight grinder brick insulation oven lining
- $0.10 /piece
- 1 piece
- Henan Hongtai Kiln Refractory Co., Ltd.
- Henan, China
- Ms Hongtai Refractory
| MgO content (%): | 0 | product name: | Mullite insulation brick |
| Bulk density: | ≤0.5~1.3g/cm3 | size: | customer request |
| shape: | brick | CrO content (%): | 0 |
| model: | Mullite insulation brick | Silicon carbide content (%): | 0 |
| Types of: | Mullite Insulation Brick Factory | Packaging Details: | Fumigated wooden pallets, separated by paper or non-woven fabric between layers, protected by plastic shrink film outside, and then bundled. Finally, make wooden pallets (95*95cm, 95*100cm), generally 1.5T per pallet and 25T per container. Or according to your requirements for magnesia carbon bricks |
| Modulus of rupture (Mpa): | 0.8~3.5 | Supply capacity: | 5000 tons/month mullite insulation brick |
| place of origin; place of origin: | Henan, China | Al2O3 content (%): | 30~60 |
| color: | white | Material: | Mullite insulation brick |
| Refractoriness (degrees): | 1770°< refractoriness< 2000° | Processing: | yes |
| Certificate: | SGS certification | application: | kiln |
| payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram | sample: | freely |
| brand: | Hongtai | port: | Tianjin, Shanghai, Qingdao |
| Silica content (%): | 40~55 years old | CaO content (%): | 0 |

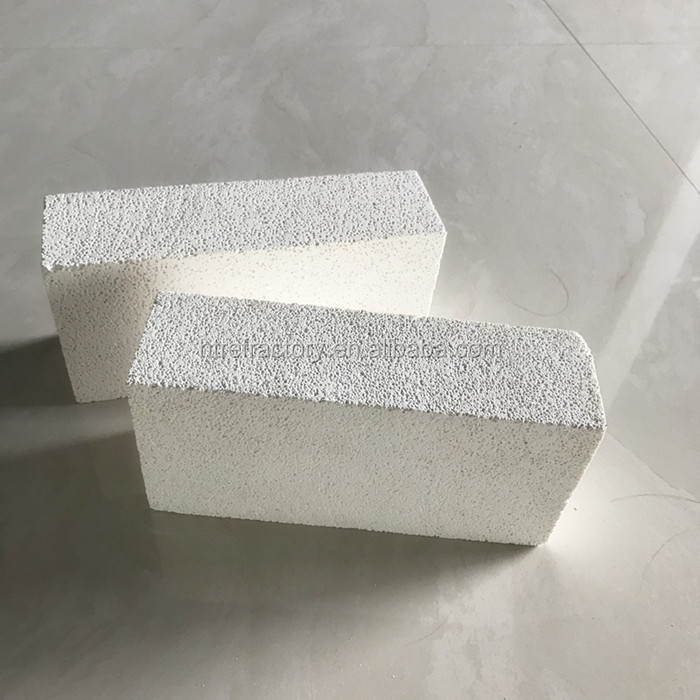

Furnace lining lightweight jm26 mullite insulation brick
Mullite insulation bricks are made of high-quality ultra-pure raw materials, and the fillers are strictly classified according to grades. These fillers are fired to form a uniform pore structure during the manufacturing process. Each grade of product is uniquely designed to meet different thermal, physical and chemical needs.
It can effectively reduce the total weight and wall thickness of the furnace body, improve thermal efficiency and working conditions, reduce energy consumption, increase productivity, and achieve significant economic benefits.
featureLightweight Mullite Insulation Refractory Brick
·Lightweight bricks are good for energy saving.
·Low thermal conductivity, excellent heat resistance.
·Excellent high temperature volume stability.
production processLightweight Mullite Insulation Refractory Brickbrick:Crushing→mixing→molding→drying→firing→inspecting→packing and shipping
Furnace lining lightweight jm26 mullite insulation brick
Physical and chemical indicators of lightweight mullite insulation bricks
| brand | AL2O3%≥ | FE2O3≤ | Blu-ray G/CM3≤ | CCS MPA≥ | PLC℃XH≤1.0% | TCS W/MK≤ | ||
| 400°C | 600°C | 900°C | ||||||
| MD-0.5 | 45 | 0.8 | 0.5 | 2 | 1350×12 | 0.18 | 0.22 | 0.26 |
| MD-0.6 | 55 | 0.8 | 0.6 | 2.5 | 1350×12 | 0.26 | 0.3 | 0.32 |
| MD-0.8 | 65 | 0.7 | 0.8 | 3 | 1450×12 | 0.28 | 0.32 | 0.36 |
| MD-1.0 | 72 | 0.6 | 1 | 4 | 1450×12 | 0.3 | 0.35 | 0.4 |
| thing | JM23 | JM26 | JM28 | JM30 |
| Alumina(%) | 38-44 years old | 50-58 | 65-70 | 70-73 |
| Ferric oxide(%) | 1 | 0.9 | 0.8 | 0.7 |
| Grading temperature (°C) | 1350 | 1430 | 1540 | 1600 |
| Bulk density (g/cm3) | 0.8-1 | 0.8-1 | 0.8-1 | 0.8-1 |
| Reheat linear change (%) | 1250°C | 1400°C | 1500℃ | 1550°C |
| CT-30℃×8H | -0.5 | -0.5 | -0.5 | -0.5 |
| Cold compressive strength (Mpa) | 3.0-4.5 | 3.0-4.5 | 3.0-4.5 | 3.0-4.5 |
| Modulus of rupture (Mpa) | 1.5 | 1.7 | 1.8 | 2 |
| Thermal conductivity 400℃(W/mk) | 0.25 | 0.27 | 0.32 | 0.41 |
| Thermal expansion 1000℃(%) | 0.5 | 0.7 | 0.8 | 0.9 |
| thing | B-1 | C-1 | C-2 |
| Alumina(%) | 25-30 | 35-40 | 45-50 |
| Ferric oxide(%) | 2 | 1 | 1 |
| Grading temperature (°C) | 1000 | 1300 | 1400 |
| Bulk density (g/cm3) | 0.8-1 | 0.8-1 | 0.8-1 |
| Cold compressive strength (Mpa) | 2-2.5 | 2.5-3.5 | 3.0-4.5 |
| Thermal conductivity 400℃(W/mk) | 0.17 | 0.23 | 0.25 |
What are the shapes and sizes of our lightweight mullite insulating refractory bricks?
| straight | Split |
arch |
wedge |
watt |
other shapes |
| Length × width × height (mm) 230×114×65 230×114×75 |
Length x width x height (mm) 230×114×25 230×114×32 230×114×37 230×114×50 |
Length × width × height / hour (mm) 230×114×65/45 230×114×65/55 230×114×75/45 230×114×75/55 230×114×75/65 |
Length × width × height / hour (mm) 230×114×65/45 230×114×65/55 220×114×75/45 220×114×75/55 220×114×75/65 |
Length x width x height (mm) 230×230×38 230×230×50 230×230×65 230×230×75 |
key brick, oblique bricks, Soap, inspector, neck, taper, |
We can also make mullite insulation bricks according to customers' drawings and requirements. |
|||||
Furnace lining lightweight jm26 mullite insulation brick
Application of Lightweight Mullite Insulation Refractory Bricks
Mullite insulation brick refractories can be used for industrial lining or insulation materials,
Such as ethylene cracking furnace, tube furnace, synthetic ammonia reforming furnace, gas generator, high temperature shuttle kiln, etc.
Furnace lining lightweight jm26 mullite insulation brick
shippingLightweight Mullite Insulation Refractory Brick
1. FEDEX/DHL/UPS/TNT for samples.
2. Bulk goods by sea.
3. The customer appoints the freight forwarder or can negotiate the shipping method.
4. Delivery time: 3 days for common samples, 15 days for special products.
5. Shape samples. Within 30 days for bulk goods.
Furnace lining lightweight jm26 mullite insulation brick
1. Payment method: T/T, Western Union, L/C; usually 30% deposit, 70% balance before delivery or negotiated settlement.
2. MOQ: usually 1 ton, customers can order a certain quantity of mullite insulation bricks.
3. Quality assurance: 1 year.

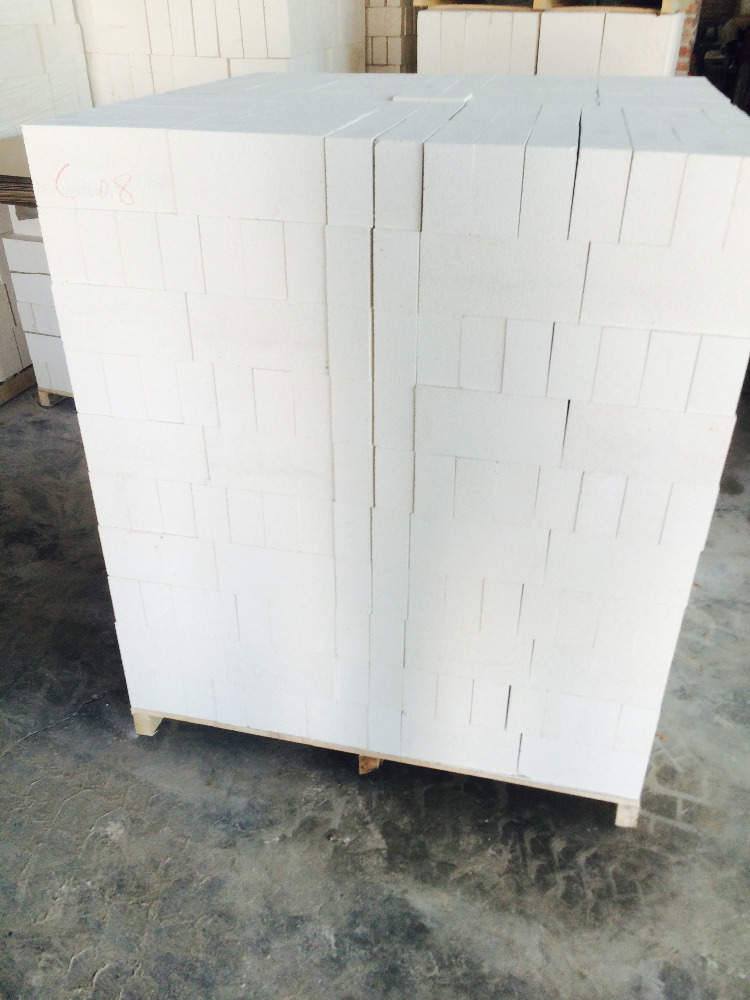

4. Packaging information:
(1) Wooden pallet size: 930*930mm, load capacity of each pallet: 1-1.5 tons.
(2) A 20-foot container can hold 25 tons, and a 40-foot container can hold 28 tons.
Furnace lining lightweight jm26 mullite insulation brick
Our competitive advantage:
1. Competitive price. Make products competitive in your market.
2. Rich experience. Prevent cracks and distortions in magnesia carbon bricks.
3. Different moulds. Save mold cost for you.
4. Strict quality control. Meet the quality requirements of customers.
5. Large inventory. Guaranteed timely delivery.
6. Professional packaging. Avoid damage and ensure the safety of your goods during transit.
