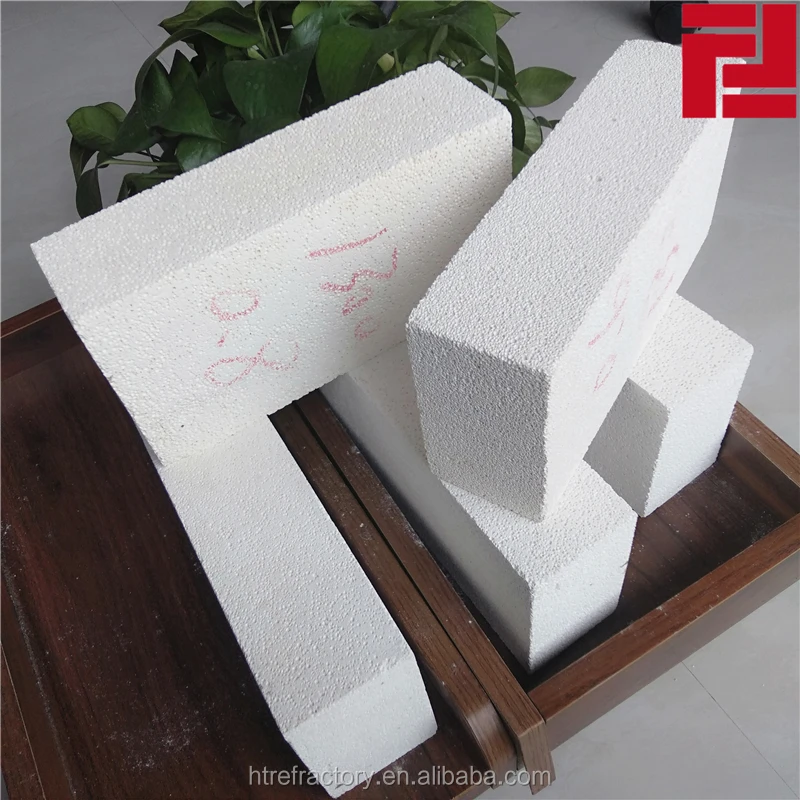

Sintered Mullite Insulating Refractory Fire Brick Light Weight Bricks JM-23

PRODUCT DETAIL
Color:white;SiC Content (%):0.1~1.4%;
Sample:Free provide;Place of Origin:Henan, China;
Application:Industrial Furnaces;Brand Name:Hong Tai;
BULK DENSITY:0.6~1.3g/cm3;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Shape of Mullite brick:brick;Material:Mullite;
Type:Facotory;Refractoriness (Degree):Common (1580°< Refractoriness< 1770°);
Product name:Light Weight Mullite Bricks;Certificate:ISO 9001;
Model Number:Light Weight Mullite Bricks;MgO Content (%):0.05%Max;
Supply Ability:1000 Tons per Month Light Weight Mullite Bricks;CrO Content (%):0.1~0.3%MAX;
CaO Content (%):0.34%;Packaging Detail:Standard export wooden pallet with cardboard and PET strap, 10 bricks for 1 carton, 48 cartons for 1 pallet.;
Port:Tianjin,Qaingdao, Lianyungang, Shanghai, Ningbo;Al2O3 Content (%):38%-75%;
Feature:refractory;Size of Mullite brick:230mm*114mm*75mm;
SiO2 Content (%):15%~45%;Shape:Brick;
Product Description

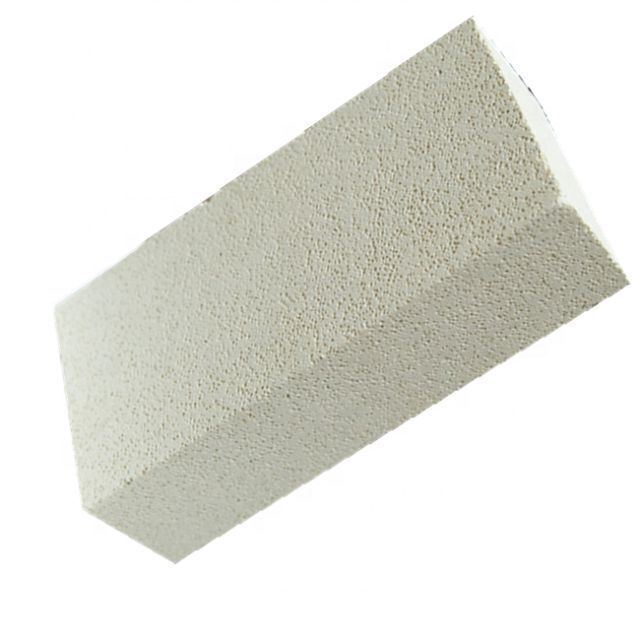

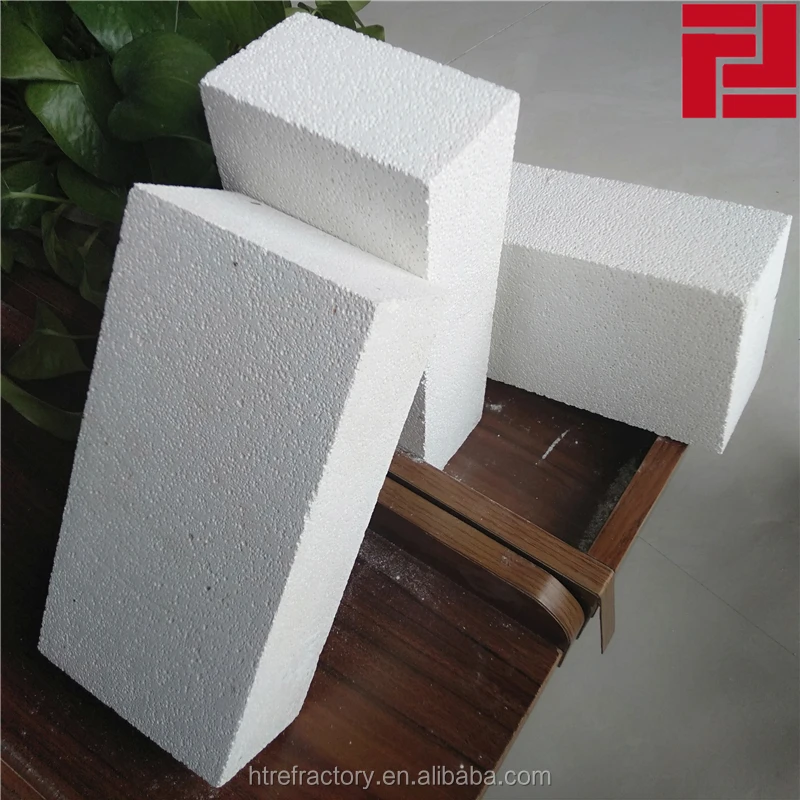

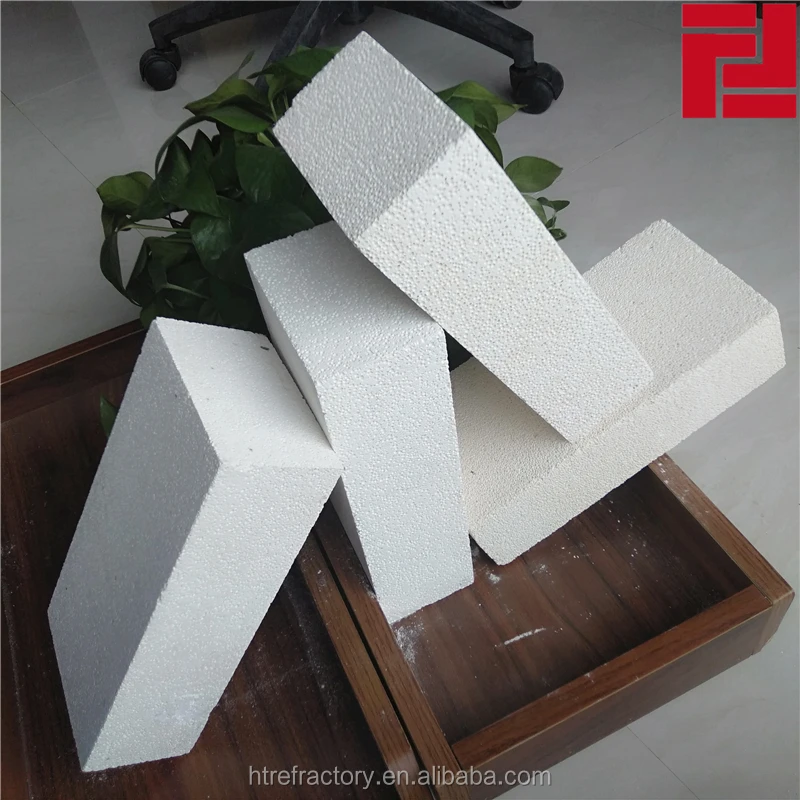

Sintered Mullite Insulating Refractory Fire Brick Light Weight Bricks JM-23

Mullite brick is a kind of quality refractory insulation materials for resisting high temperature with features of light weight, low thermal conductivity, thermal insulation and high compression strength in the high temperature furnaces or kilns. lightweight bricks are mainly used for the top of hot blast stove, stack and bottom of blast furnace, regenerative chamber of glass melting furnace, lining of ceramic high temperature furnace and so on.
Mullite brick is manufactured with mullite as the main crystal phase and contains about 65~75% alumina content. Mullite Insulation Refractory Brick has high refractoriness that reaches up to 1790 ℃. Its apparent initial softening temperature is about 1600~1700 ℃. Its cold crushing strength is about 70~260MPa.
Mullite Insulation Refractory Brick can be classified into different types of 1350 lightweight brick, 1450 lightweight brick and 1550 lightweight brick according to different service temperature and into Lightweight Mullite Brick and Heavy Mullite Brick according to different bulk density.

Characteristic

Mullite brick is a kind of quality high temperature materials with the following excellent performance.

Performance:
Low thermal conductivity and Low heat capacity
High Purity and low impurity content
Excellent high temperature strength
Good thermal shock resistance
Low expansive conductivity
Great resistance to acid and alkali erosion


Lightweight Mullite Insulating Bricks Features:
1.Excellent compression strength
2.Excellent heat stability
3.Low thermal conductivity
4.Low heat storage
5.High alumina, low iron and alkali flux content
6.Accurate dimension
7.designed packaging

Specification



Sintered Mullite Insulating Refractory Fire Brick Light Weight Bricks JM-23

Item/Index JM23 JM26 JM28 JM30 JM32
Al2O3 % 37 54 64 72 77
Fe2O3 % 1.0 0.9 0.8 0.7 0.5




Thermal Conductivity (w/m*k)

400℃ 0.14 0.27 0.32 0.41 0.49
600℃ 0.16 0.29 0.34 0.43 0.5
800℃ 0.18 0.31 0.36 0.44 0.51
1000℃ 0.20 0.33 0.38 0.45 0.53
Classification Temperature (℃) 1260 1430 1540 1650 1760
Thermal Expansion 1000℃ (%) 0.5 0.7 0.8 0.9 1.1
Bulk Density (g/cm3) 0.55-0.62 0.78-0.8 0.88 1.03 1.25
Cold Crushing Strength (Mpa) 1.2 1.6 2.1 2.5 3.5
Modulus of Rupture (Mpa) 0.9 1.4 1.6 2.1 2.1
Reheating Linear Change (%)



CT-30℃*8H

1230℃



-0.5

1400℃



-0.5

1510℃



-0.5

1620℃



-0.9

1730℃



-0.9



lightweight brick common size

size
L×W×H (mm) L×W×H/h (mm) L×W×H/h (mm)
230×114×65 230×614×64 250×640×64
230×114×76 230×614×76
Other sizes according to customer requirements



Application
Power Industry
Petrochemical industry
Metallurgical industry
Kiln insulation
Other insulation
Recommended to use as a primary hot face refractory lining or as back-up insulation behind other refractories in furnaces, kilns, flues, refining vessels and heaters, regenerators, gas producers and main, soaking pits, stress relieving furnaces, reactor chambers and similar high temperature industrial equipment.
Packaging & Shipping

Sintered Mullite Insulating Refractory Fire Brick Light Weight Bricks JM-23

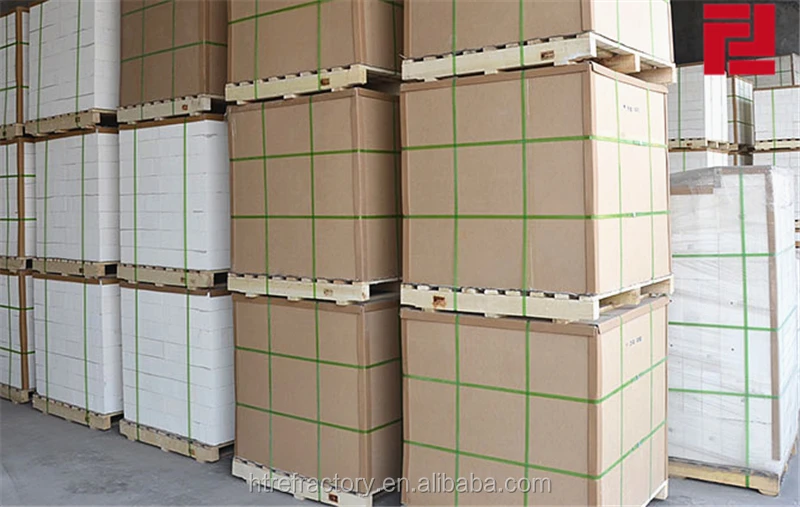

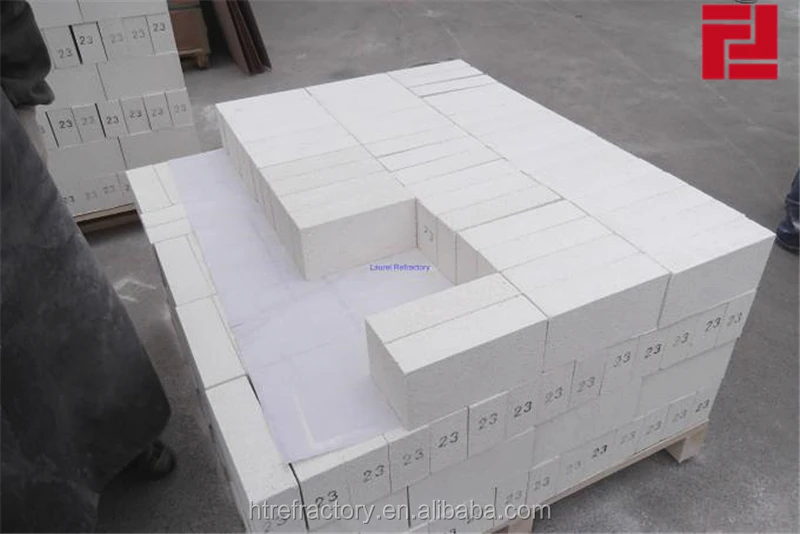

Packing

Standard export wooden pallet with cardboard and PET strap.

1. Strong packing will protect the goods from any possible damage during transit.
2. Solid packing and overall stuffing can prevent the cases from vibration and jarring.
3. We must take necessary precaution that the packing can protect goods from pilferage or rain.
4. We can confirm that we take every possible precaution to ensure that our products reach our customers all over the world in prime conditon.

Shipping

By vessel or by train from any Chinese port, Samples can be delivered by International express.



Delivery:

15-30 days working day for large quantity. The shipment we will arrange as soon as possible. Of course, if it is a custom products, the shipping time will delay.
Sample:

Usually by EMS, DHL, UPS, TNT, FedEx. Anyway you like. Bulk order: Usually by sea.

Payment:

It can be through T/T, L/C at sight. The specific terms determined according to the quantity of the goods, etc.
Your inquiry related to our product & price will be replied within 24 hours.
Export:
Our products have been exported to many countries: Australia, Chile, USA, Russia, UK, Indonesia, etc., good quality have be approved by our clients.

Our Products



Our Services

Henan hongtai kiln refractory co., LTD. Is well aware that there are thousands of demands from customers, which can be summarized in four aspects: reliable quality, timely delivery, reasonable price and considerate service.The company will continue to adhere to the corporate spirit of "contributing to society and serving customers" and the business philosophy of "mutual benefit, win-win, integrity, efficiency, preciseness and responsibility".Our company is willing to develop a wide range of technical exchanges with colleges and universities and colleagues from all walks of life at home and abroad in a flexible and diversified way.
Henan hongtai kiln refractory co., LTD. : "quality first, reputation first, customer first: it is our aim."Scientific management, strong technical force, perfect testing means, advanced technological equipment and stable product quality are the guarantee of quality service.Henan hongtai kiln refractories co., LTD sincerely hopes to cooperate with you hand in hand and in good faith.

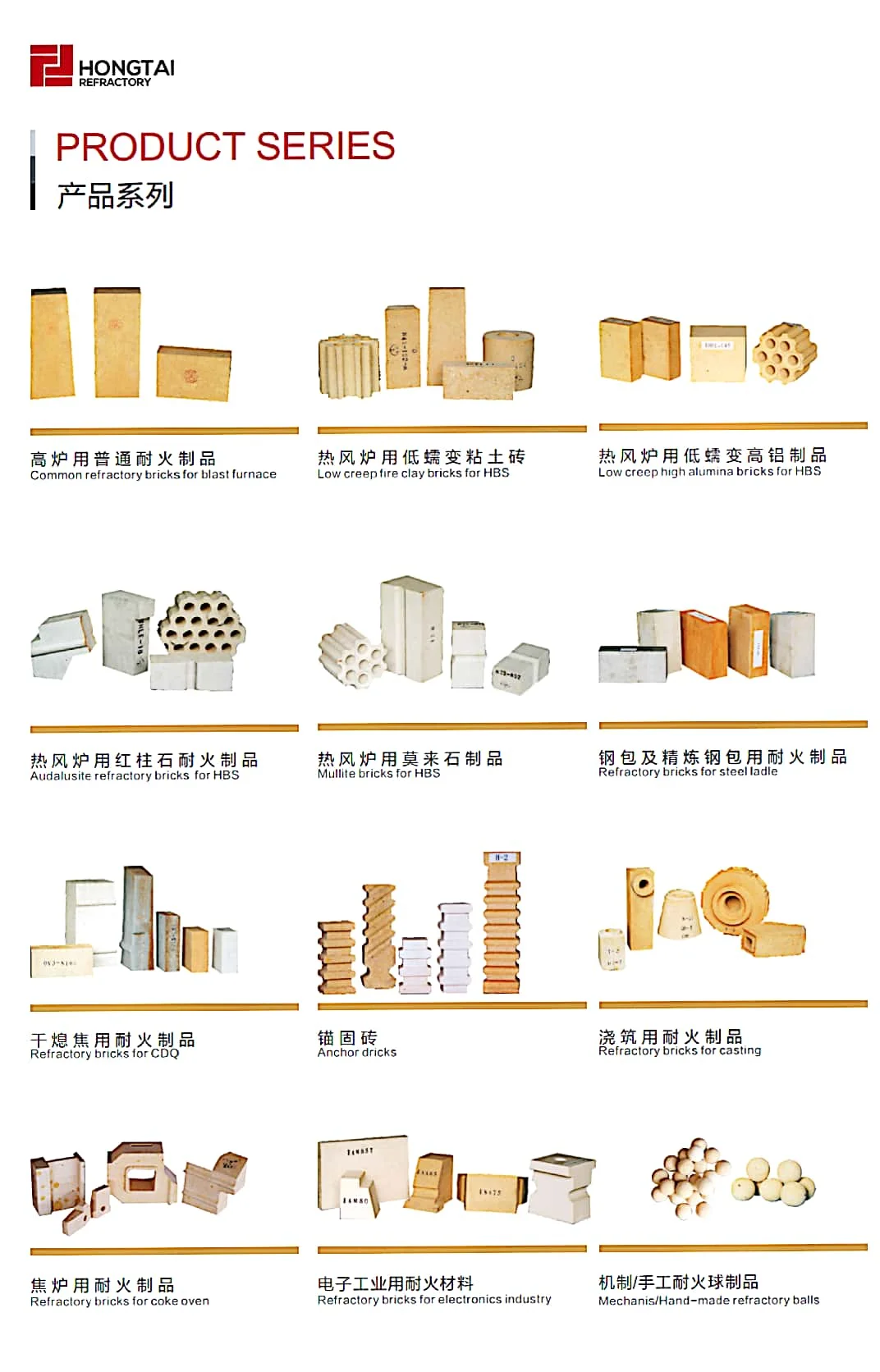

Henan hongtai kiln refractory co., LTD. Main products are high alumina brick, clay brick, fused zirconium corundum brick, fireproof ball lightweight insulation brick, wear-resistant pouring material, corundum pouring material, low cement high strength pouring material, impermeable material, self-flowing material, plastic material, and various types of refractory materials.For different industries, the cement industry with anti-flaking high-alumina bricks, alkali resistant bricks, phosphate bricks;Boiler industry USES all kinds of brand wear-resisting brick, corundum brick, mullite brick and other finalizing materials.The company insists on "product quality is the life, enterprise integrity is the foundation", in the fierce market competition, won many users' trust and praise.The products are sold all over the country, as far as Vietnam, India, Korea, Pakistan, kazakhstan, Iran and other southeast Asian countries and regions.
