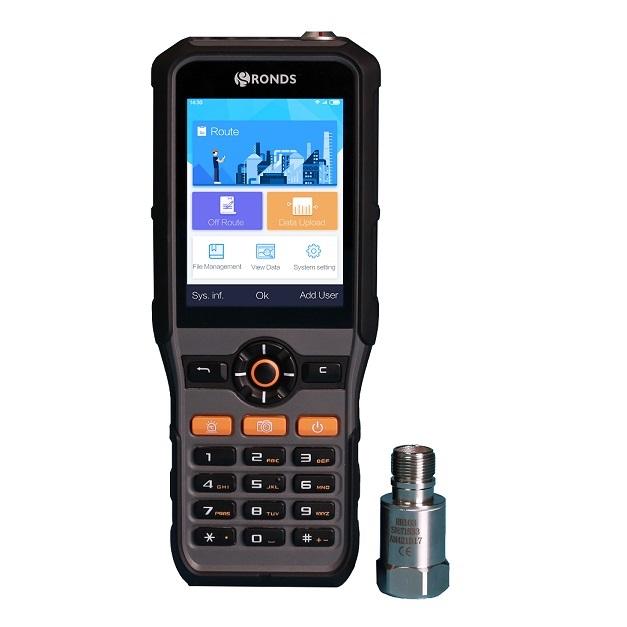

RH712 Portable Vibration Mediator from a Channel Canal

PRODUCT DETAIL

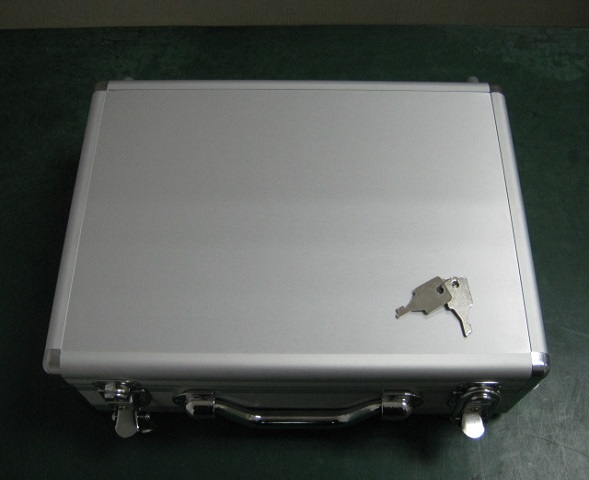

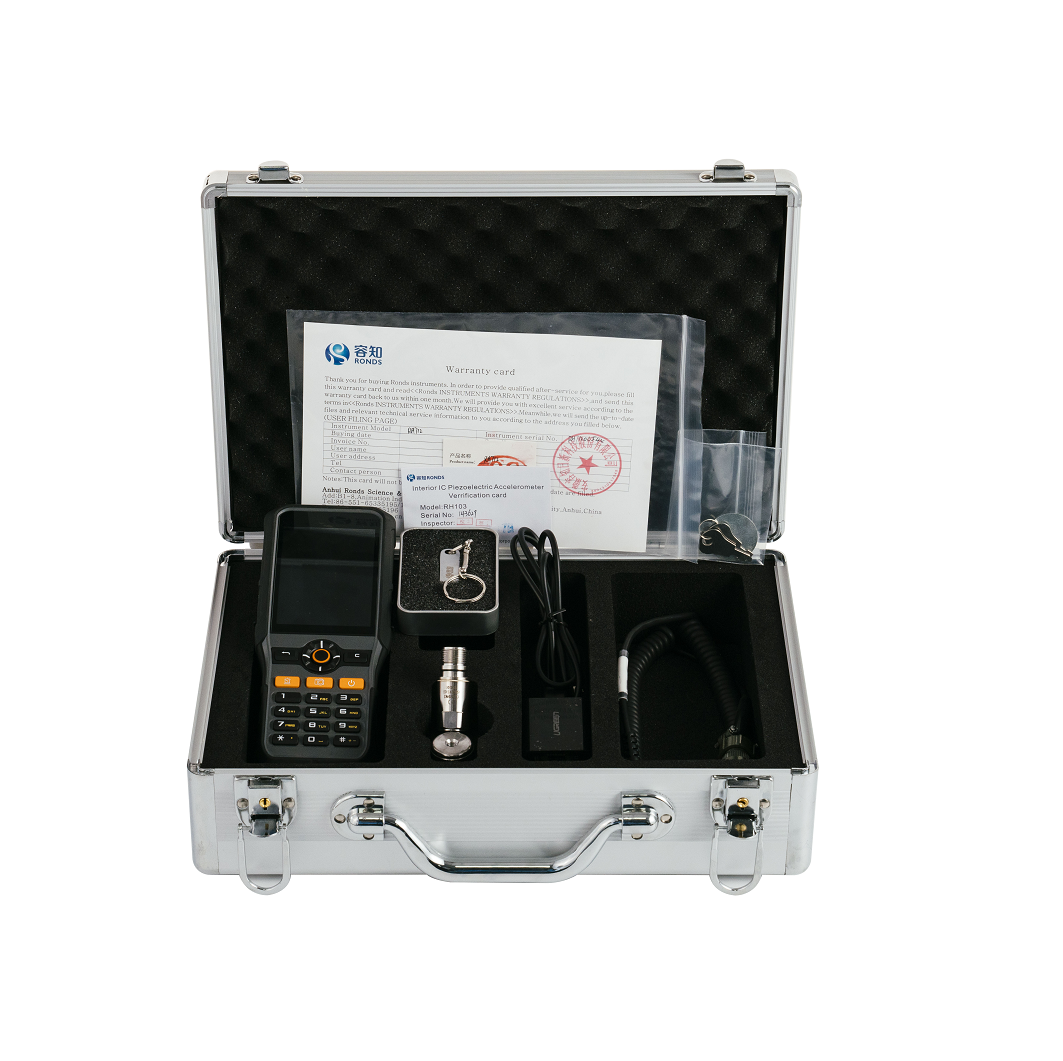

payment terms:Western Union, wire transferPackaging Details:Carrying case with Styrofoam insert
place of origin; place of origin:Anhui, Chinacolor:Black and true color LCD monitor
weight:275 gramsmodel:RH712
brand:LowndesSupply capacity:500 sets per month
Product Description

○ Touch screen

○ Route measurements downloaded from PC software

○Waveform/spectrum analysis and alarm reminder

○ Manual input function

○ Infrared temperature measurement

○ Set device status

○ Multiple communication methods with server: Wi-Fi or USB

○ Camera function

○ Professional PC analysis software

○ Explosion-proof type optional

○ Provide CE mark


thing
Specification
thing
Specification
channel
CH1: Vibration (ICP accelerometer), Voltage (±5V AC)
Infrared Thermometer
Temperature range: -30 ~ 420(℃)
Accuracy: ±2%, ±2°C max.
Emissivity: 0~1 adjustable
Distance factor: 25:1

Data Acquisition​​Parameters
Frequency span: 2~10kHz

Sampling frequency: maximum 25.6KHz

Hardware integration: integration, dual integration

A/D conversion: 16 bits
Harmonic Distortion: <-70dB

Accuracy: ±2%
Parameters: sampling frequency, high pass filter, low pass filter, sample length

Waveform length: 1024, 2048, 4096, 8192
Lines: 400, 800, 1600, 3200LINES
Average: Linear, Peak Hold
Window function type: rectangle, Hanning

aspect
H×W×D: 195×80×37(mm)

Grip size (67 wide × 30 deep): 68 × 31 (mm)

LCD Monitor
3.5 inches, 640×480 pixels, IPS TFT capacitive touch screen
weight
Normal: 465g; Example: 455g
Vibration sensor
External vibration sensor connection
working environment
Temperature: -10~50℃
Humidity: < 95% (no condensation)
Protection class IP65, dustproof, waterproof

charging time
4 hours
communicate
USB2.0; wireless Internet access
Radio Frequency Identification
UHF 900M RFID identification distance 30CM
storage
Standard configuration 1G
SD card
8Gbyte micro SD card expandable
★Camera
5.0 5-megapixel, autofocus camera
flashlight
Flashlight, convenient for dark places
lion battery
Normal version 4.5 hours, EX version 2.5 hours
Explosion-proof
ExibIIBT4Gb
CE certification
CE certified
Metrology Certification
Certified by the National Bureau of Metrology
Lowndes Factory

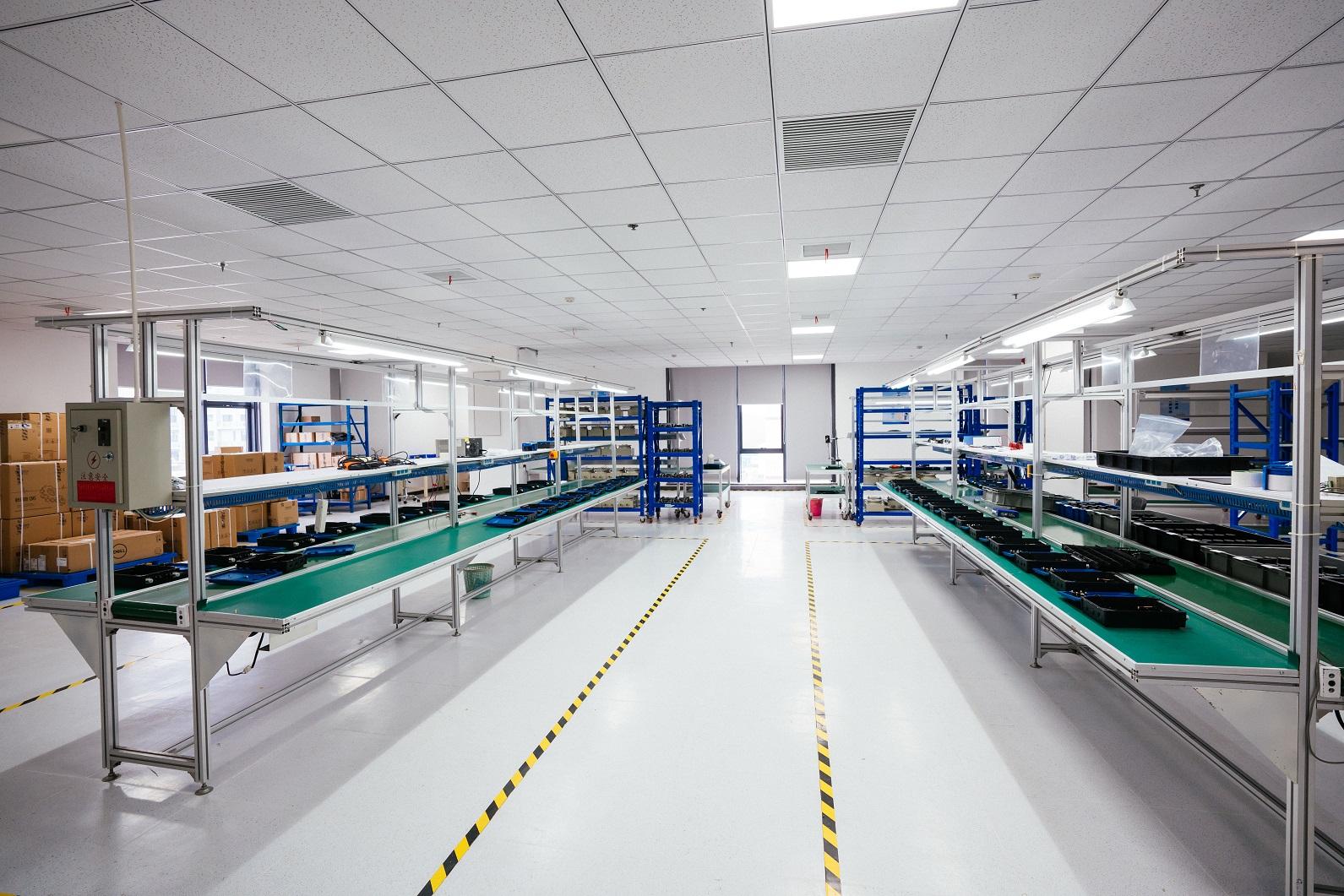

Assembly workshop

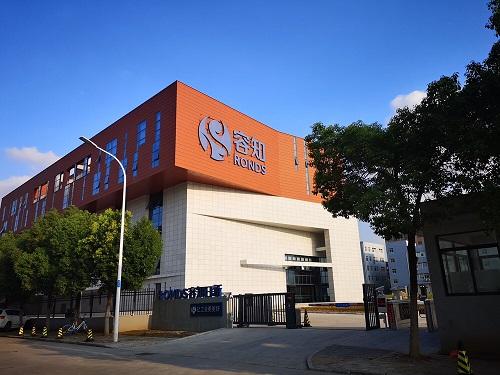

Lowndes Office

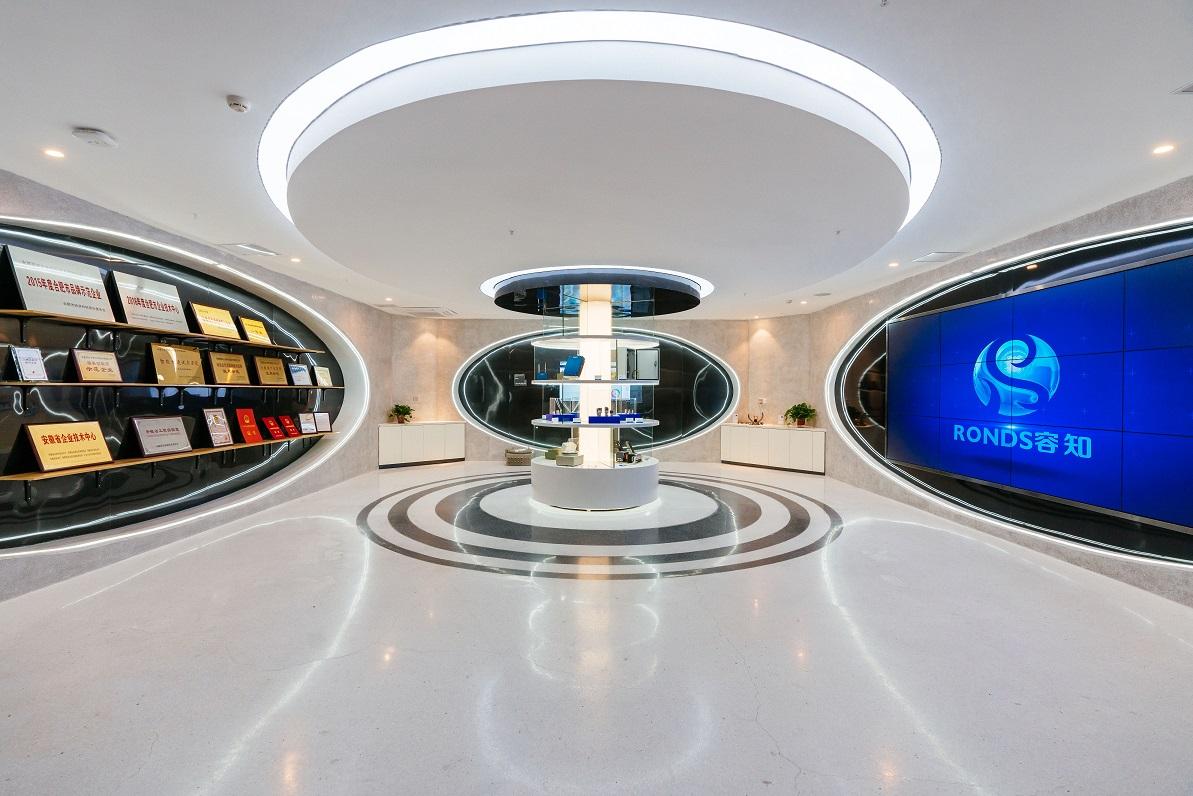

RONDS showroom

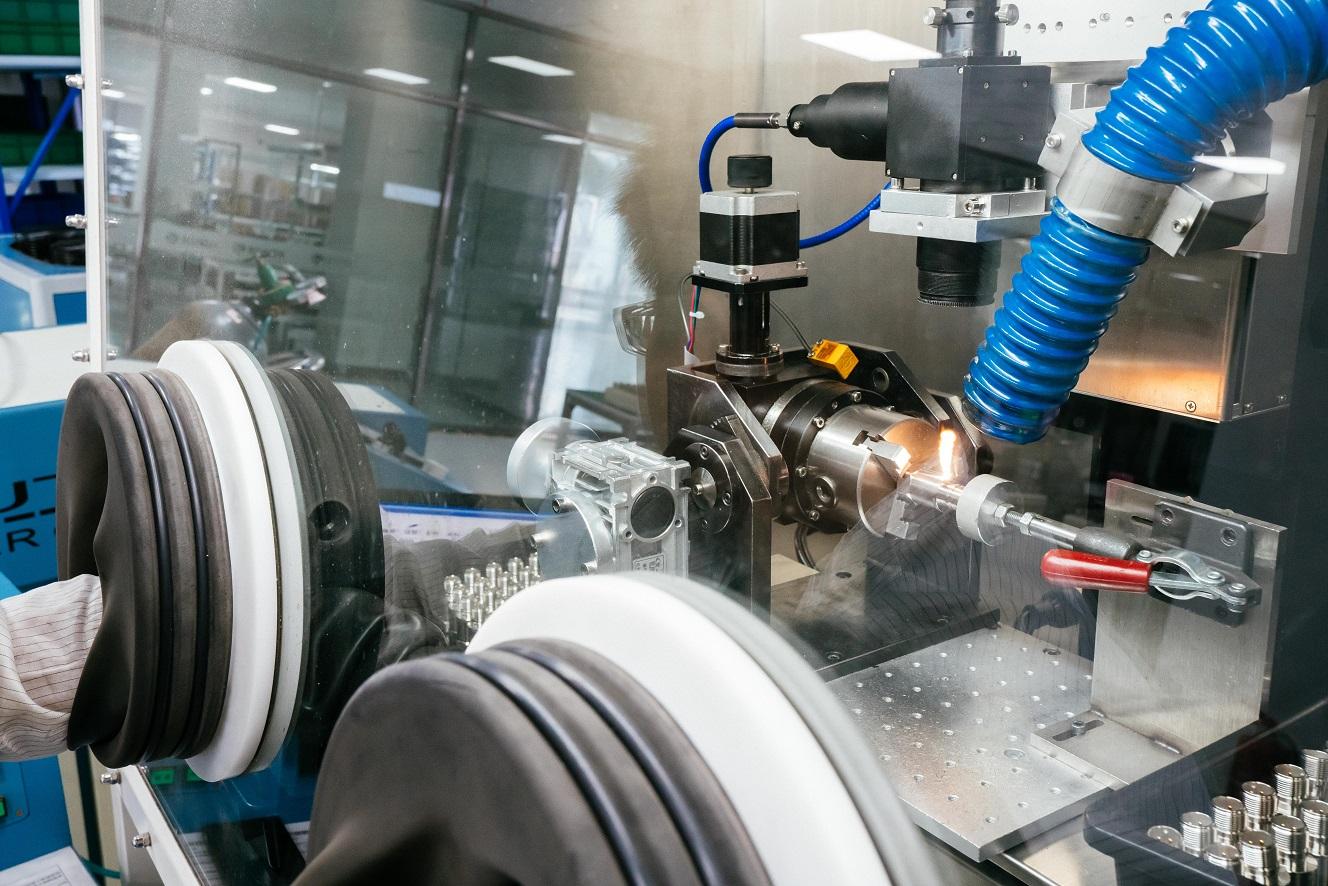

Sensor welding

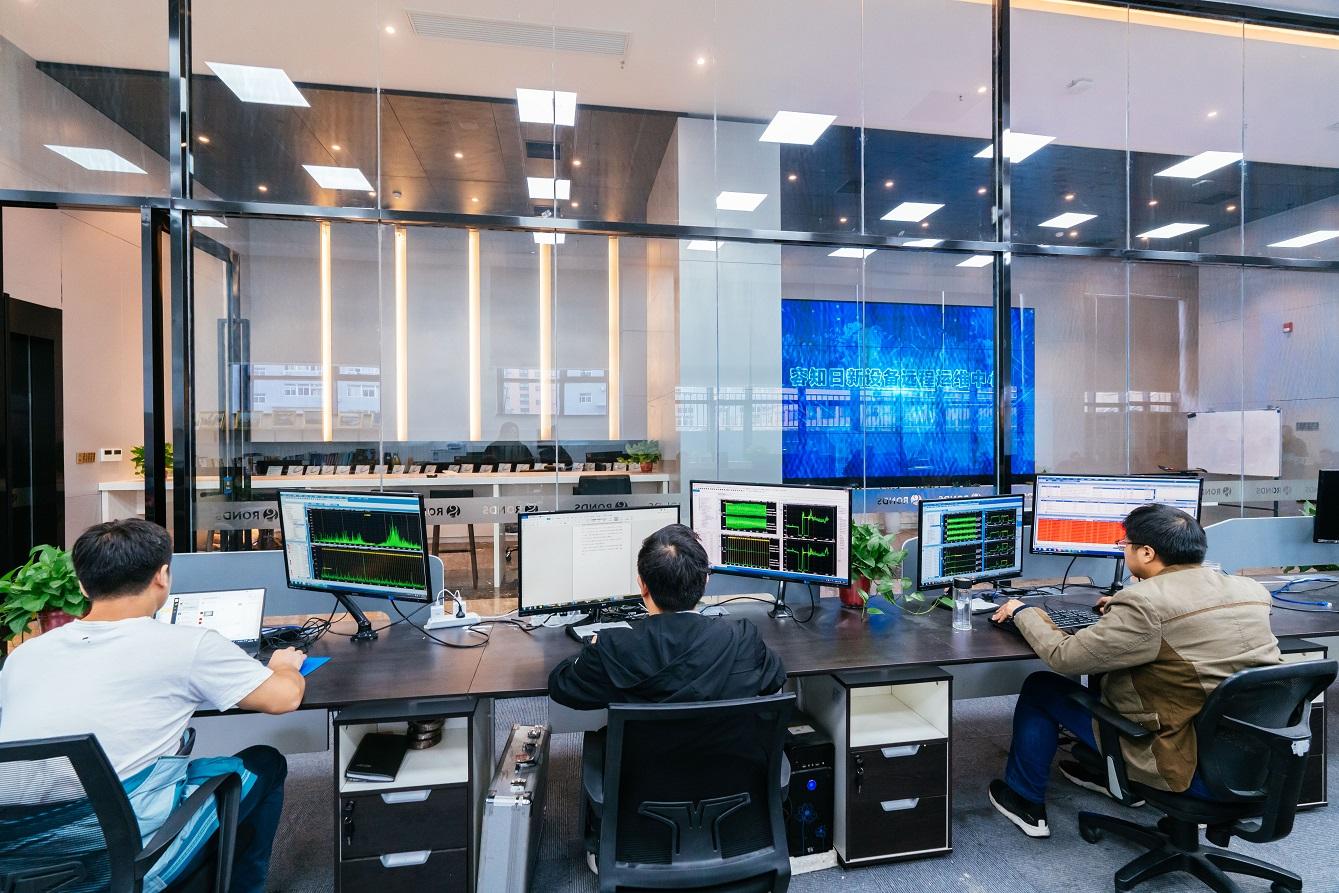

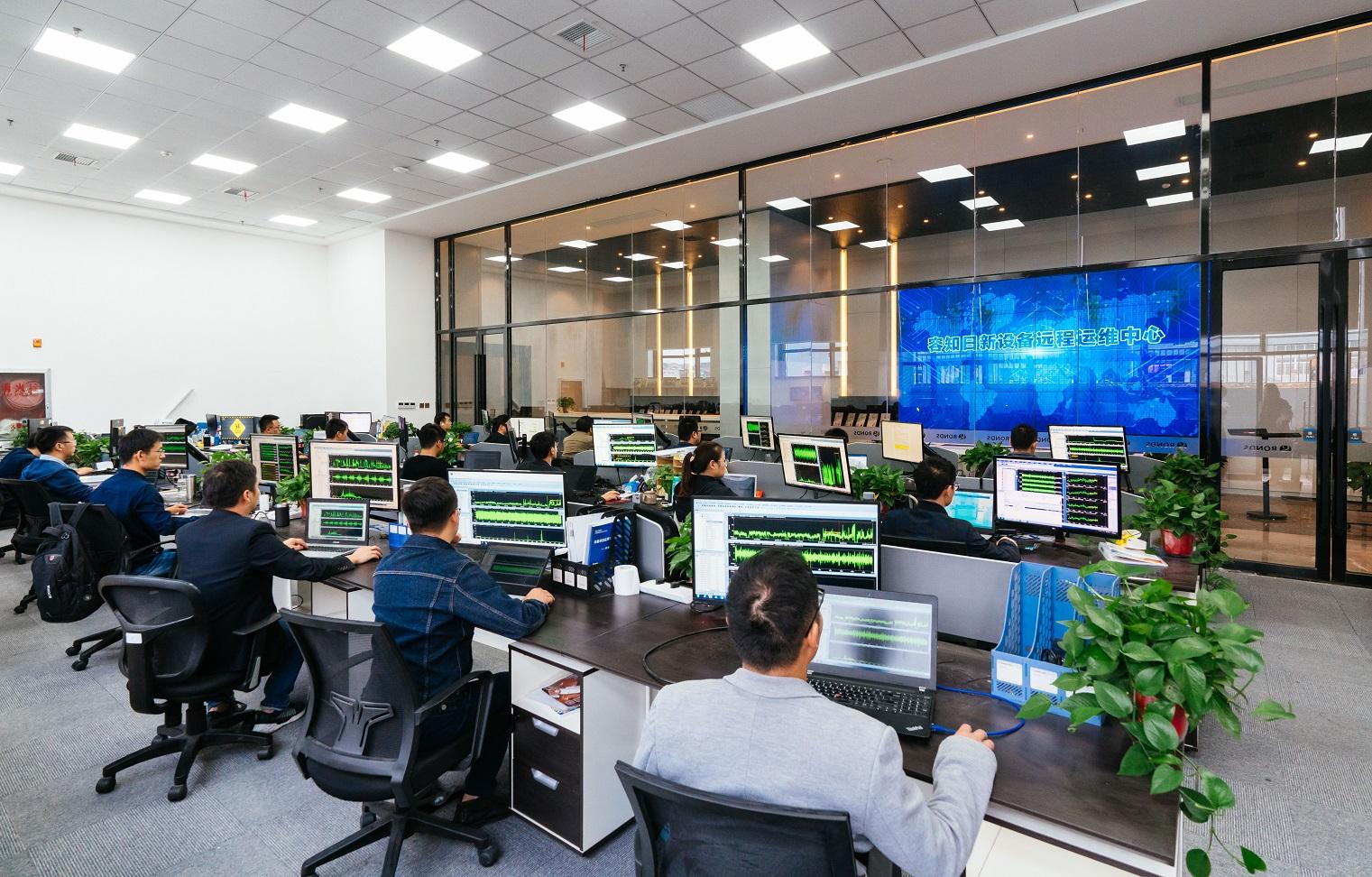

Remote diagnosis center

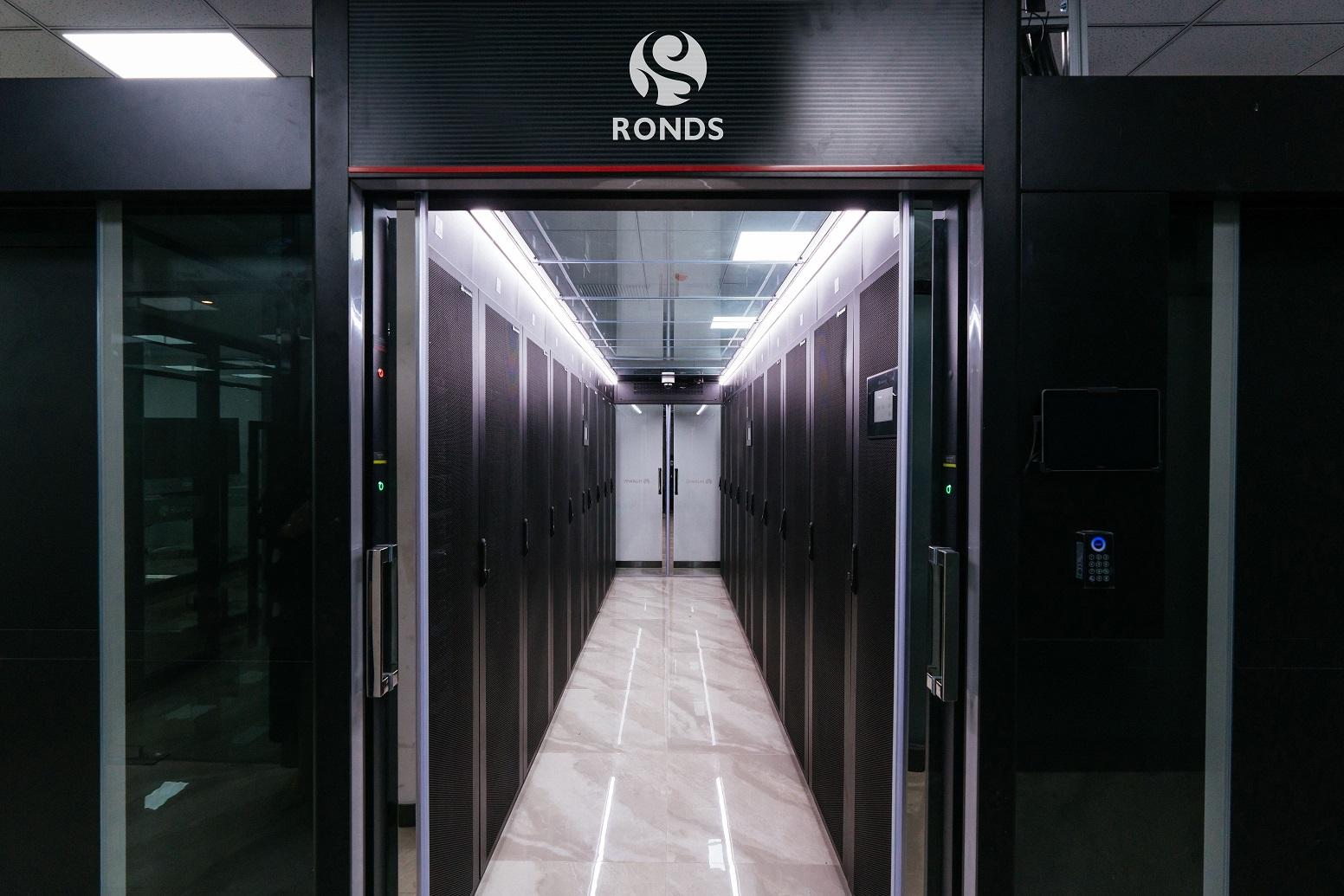

RONDS data center

our service

Pre-sale

* Technical program support.

* Inquiry and consultation support.


After the promotion

* Remote training on how to install and use hardware and software

* Professional data analysis advice.
