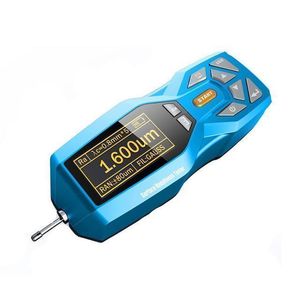

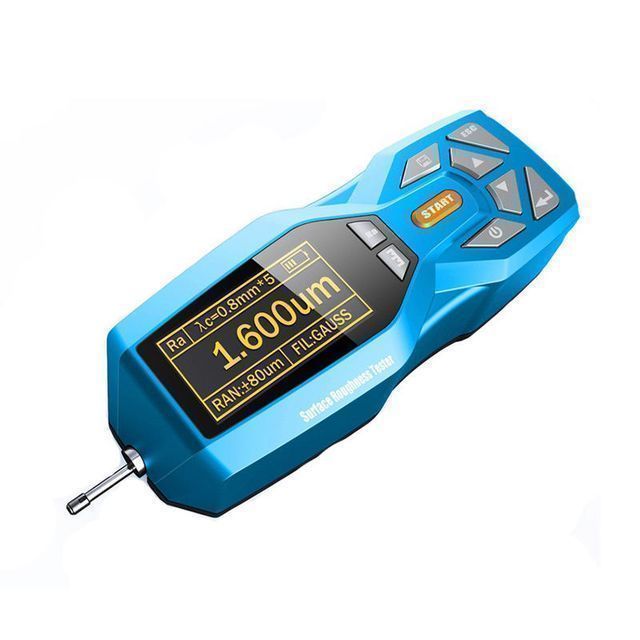

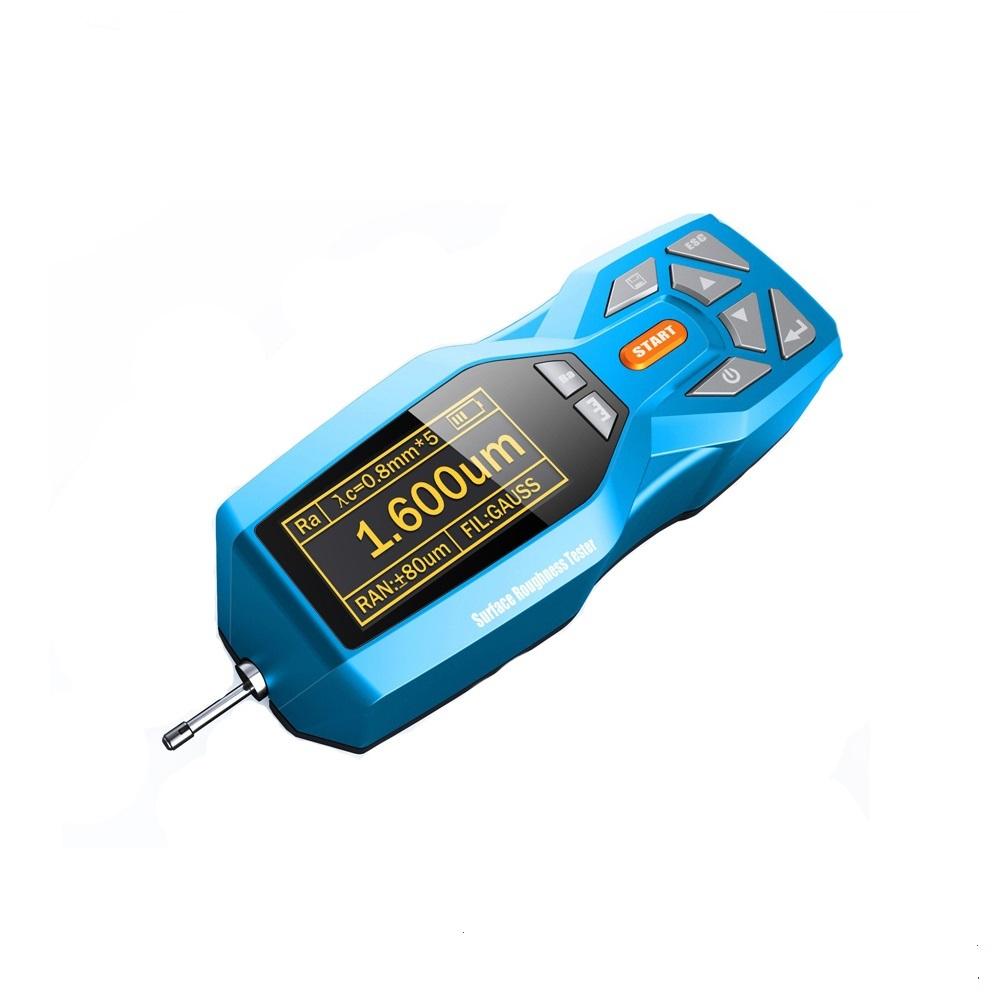

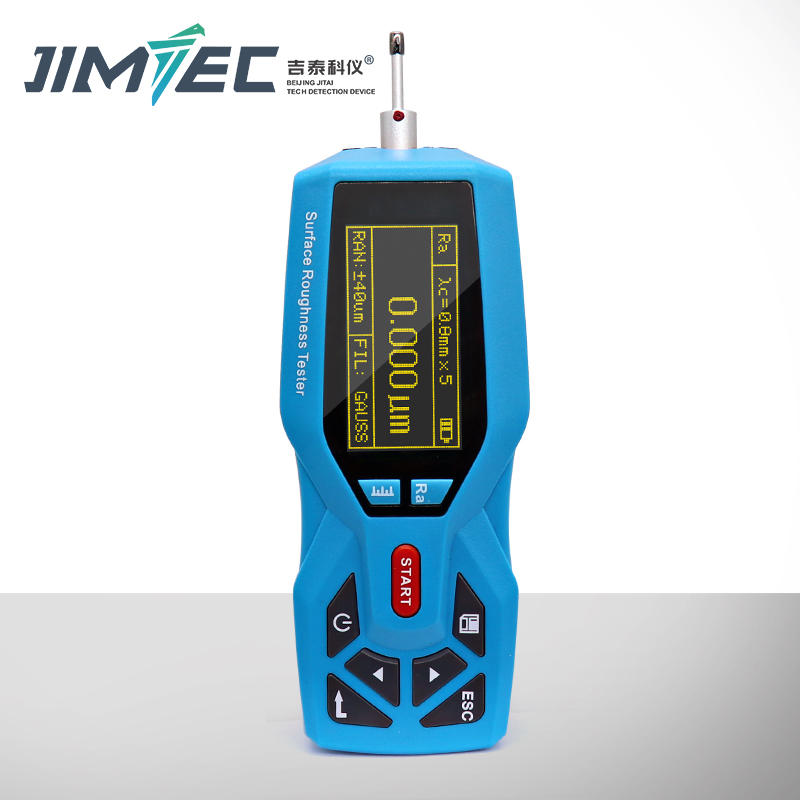

SR200 Digital Display Portable Surface Roughness Meter Price
- $400.00 /set
- 1 set
- Beijing Jitai Tech Detection Device Co., Ltd.
- Beijing, China
- Ms Kathy Liu
PRODUCT DETAIL
| accurate: | 0.001μm | place of origin; place of origin: | Beijing China |
| Supply capacity: | 1000 sets per month | Error indicating: | ≤10% |
| port: | Shanghai | Data Connections: | usb, bluetooth |
| brand: | Jitai | color: | White, black, gray optional |
| operation hours: | 10 hours | Quality Standard: | ISO, DIN, ANSI, JIS |
| parameter: | Ra, Rz, Rq, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rsm, Rmr | Energy saving: | Automatic Sleep and Shutdown |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, paypal | sensor: | SR100, SR110, SR130, SR131 optional |
| Customization support: | OEM production | Packaging Details: | Standard export packaging |
| model: | SR200 | aspect: | 140mm*52mm*48mm |
| Warranty: | 2 years |
Product Description
SR200 | |
Test parameters | Ra, Rz, Rq, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rsm, Rmr |
Measuring range (um) | Radium: 0.005-16.000 Rz: 0.02-160.00 |
Sample length (mm) | 0.25, 0.80, 2.50 |
Evaluation length (mm) | (1-5) Trombone |
Maximum driving stroke | 17.5mm/0.7in |
Indication accuracy | 0.001 |
wrong indication | ≤10% |
variability | <6% |
data storage | 100 groups |
strength | rechargeable lithium battery |
Operating temperature | -20℃~40℃ |
Relative humidity | <90% |
size | 140mm*55mm*47mm |
Host weight | 0.4 kg |
Main features:
1. Mechatronic design, small size, light weight, easy to use;
2. Adopt DSP chip for control and data processing, with fast speed and low power consumption;
3. Large measuring range, parameters RX, Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr;
4. 128 x 64 OLED dot matrix display, digital/graphic display; highlight without perspective;
5. The display information is rich and intuitive, and can display all parameters and graphics;
6. Compatible with ISO, DIN, ANSI, JIS national standards;
7. Built-in lithium-ion rechargeable battery and charging control circuit, high capacity, no memory effect;
8. The remaining quantity indicator icon reminds the user to charge;
9. Charging process indication display, the operator can understand the charging degree
10. Working time more than 20 hours in a row
11. Large-capacity data memory, which can store 100 sets of original data and waveforms.
12. Real-time clock setting and display, convenient for data recording and storage
13. With automatic sleep, automatic shutdown and power saving functions
14. Circuit and software design for reliable control of motor crashes
15. Measurement information display, menu prompt information, false information, switch information
16. All-metal shell design, strong, compact, portable and highly reliable.
17. You can freely switch between Chinese and English
18. Can be connected to computer and printer;
19. Optional accessories such as sensing surface, hole sensor, measuring platform, sensor, extension rod, etc.
Standard configuration:
1. Mechatronic design, small size, light weight, easy to use;
2. Adopt DSP chip for control and data processing, with fast speed and low power consumption;
3. Large measuring range, parameters RX, Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr;
4. 128 x 64 OLED dot matrix display, digital/graphic display; highlight without perspective;
5. The display information is rich and intuitive, and can display all parameters and graphics;
6. Compatible with ISO, DIN, ANSI, JIS national standards;
7. Built-in lithium-ion rechargeable battery and charging control circuit, high capacity, no memory effect;
8. The remaining quantity indicator icon reminds the user to charge;
9. Charging process indication display, the operator can understand the charging degree
10. Working time more than 20 hours in a row
11. Large-capacity data memory, which can store 100 sets of original data and waveforms.
12. Real-time clock setting and display, convenient for data recording and storage
13. With automatic sleep, automatic shutdown and power saving functions
14. Circuit and software design for reliable control of motor crashes
15. Measurement information display, menu prompt information, false information, switch information
16. All-metal shell design, strong, compact, portable and highly reliable.
17. You can freely switch between Chinese and English
18. Can be connected to computer and printer;
19. Optional accessories such as sensing surface, hole sensor, measuring platform, sensor, extension rod, etc.

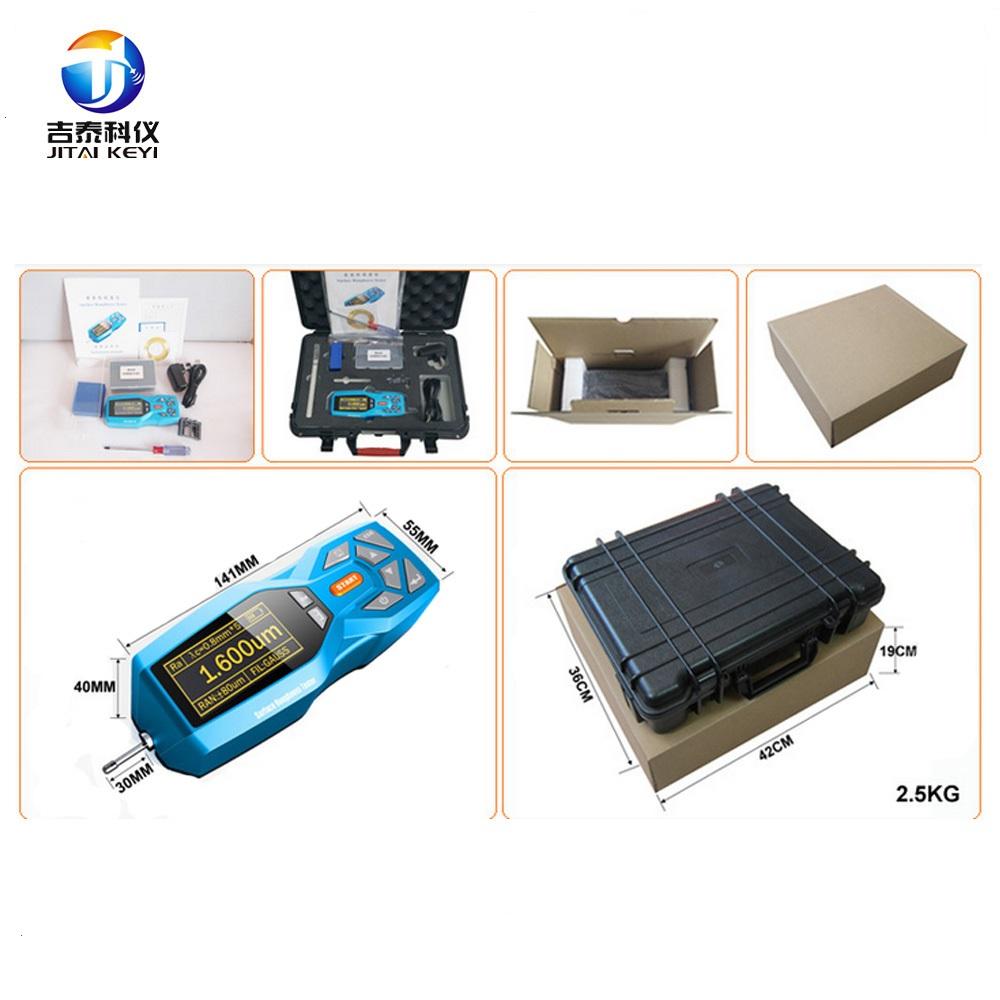

Standard configuration:
name | quantity | |
1 | host | 1 |
2 | standard sensor | 1 |
3 | Calibration Blocks and Stands | 1 |
4 | brackets | 1 |
5 | charger | 1 |
6 | adjustable support | 1 |
7 | Operation Manual | 1 |
8 | Warranty Card | 1 |
9 | Approval certificate | 1 |
10 | instrument case | 1 |
