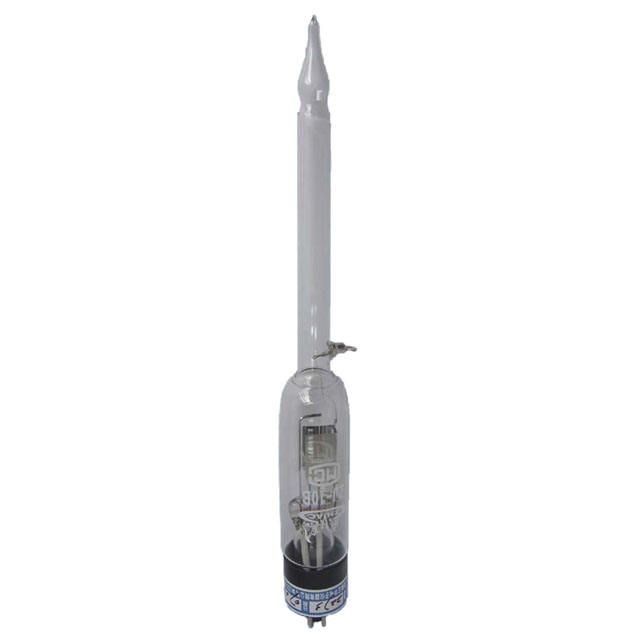

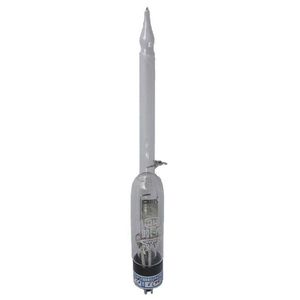

ZJ-10/ZJ-10B Vacuum Coating Machine Hot Cathode Ionization Vacuum Gauge Price/Pressure Gauge Type/Digital Display Vacuum Gauge
- $20.00 /piece
- 1 piece
- Wenzhou Cicel Vacuum Machine Co., Ltd.
- Zhejiang, China
- Mr donson zhang
| Ambient temperature: | 0-40℃ | Model: | ZJ-10/10B ionization vacuum gauge tube price |
| Material: | metal/glass | Packaging Details: | carton. |
| port: | Wenzhou | exhibit: | Digital Display |
| environment humidity: | ≤90% | place of origin; place of origin: | Zhejiang, China |
| model: | ZJ-10/10B ionization vacuum gauge tube price | Supply capacity: | 10000pcs/week ZJ-10/10B Ionization Vacuum Gauge Tube Price |
| payment terms: | Wire Transfer, Western Union, MoneyGram | application: | Vacuum coating machine high vacuum measurement |
| weight: | 0.5 kg per piece | brand: | ZHVAC |
| Measuring range: | 65~3*10-4Pa | Minimum order: | 1 |
| pack: | carton |
ZJ-10/ZJ-10B Vacuum Coating Machine Hot Cathode Ionization Vacuum Gauge Price/Pressure Gauge Type/Digital Display Vacuum Gauge
This adjustment is a typical transistor structure, with stable and reliable characteristics, and is also widely used in vacuum coating machines.This type of instrument tube is a typical triode box structure, using noble metal oxide cathode, with the characteristics of anti-oxidation, anti-atmospheric instantaneous impact, stable performance, long service life, suitable for medium and high vacuum measurement.
.
The main technical parameters:
- Measuring range: 65~3×10-4Pa
- X-ray limit: 3×10-4Pa
- Adjustment sensitivity: 0.15±15%Pa-1
- Operating parameters:
Filament voltage 1.3V
Filament current 2.5A
Gate current (emission current) 0.05/0.5mA
5. Electron bombardment (EB) degassing
Grid voltage 300V
Degassing current 20mA
6. Vacuum connection form and baking temperature:
Φ15.5±0.5 glass tube 80℃
Φ15.5±0.1 metal tube 80℃
KF10/16 quick release flange 80℃
KF25 quick release flange 80℃
KF40 quick release flange 80℃
CF16 super flange 450℃
CF25 super flange 450℃
CF35 super flange 450℃
